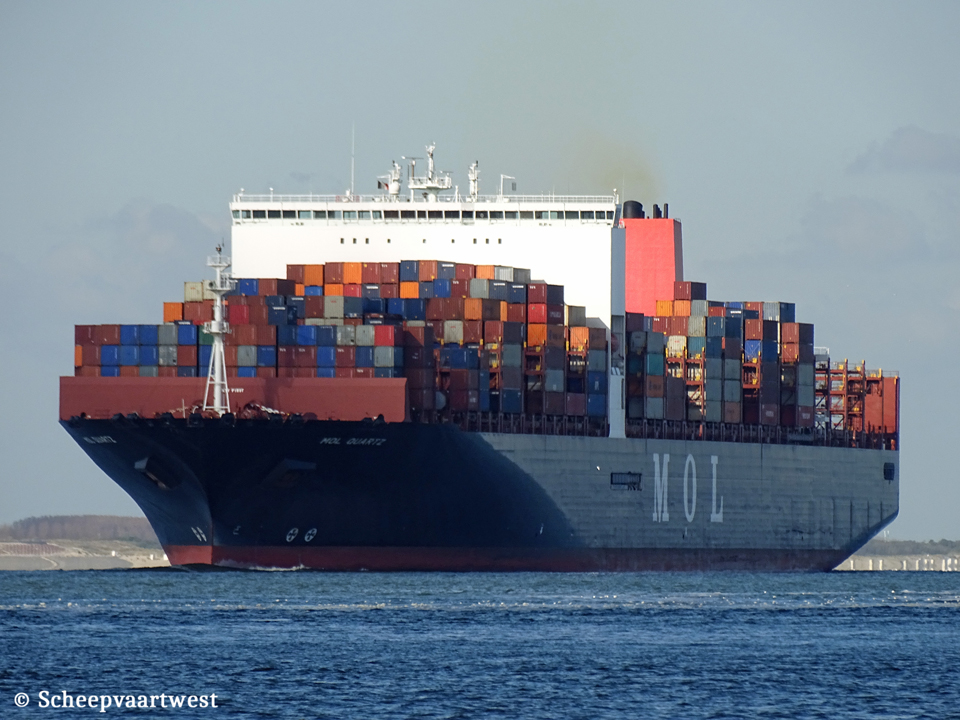

Westerschelde 12 October 2015 |
 |
|

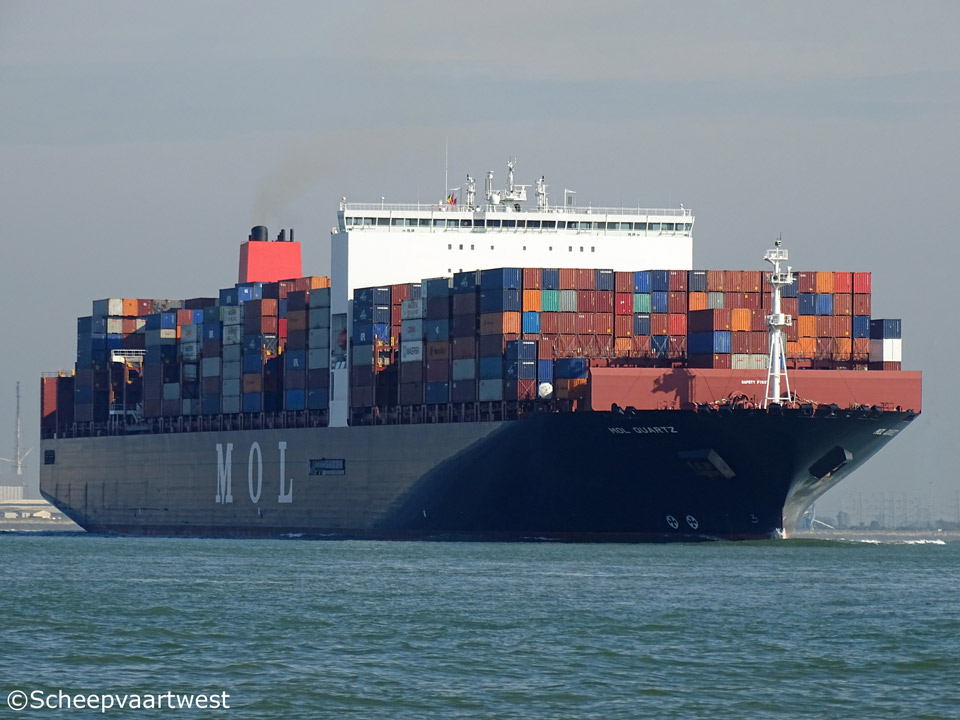

| Westerschelde 01/05/15 | |
|
Name |
MOL QUARTZ |
|
Previous names |
2013 build as: APL Agile |
|
Type |
Cellular containership |
|
IMO-number |
9632002 |
|
Call sign |
S6LT3 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
151.963 t |
|
DWT |
Summer: 150.166 t |
|
NT |
63.838 t |
|
Number of 20ft containers |
13.892 |
|
Length |
368,50 m overall 352,00 m between perpendiculars |
|
Breadth |
51,00 m extreme |
|
Draught |
15,52 m |
|
Depth |
29,85 m |
|
Speed |
Max.: 21,0 knots |
|
Built |
2013 |
|
Keel laid |
29/04/2013 |
|
Launch date |
06/07/2013 |
|
Date of completion |
10/09/2013 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. |
|
Yard number |
S635 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Single side |
|
Main engine |
1x Hyundai/MAN-B&W 11S90ME-C9.2 - 11 cylinder combustion engine 72.240 kW |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (Exhaust gas economizer) 1x Auxiliary boiler, exhaust gas heated (Auxiliary boiler) Builder: Kangrim HI |
|
Generators |
2x Hyundai/Himsen 8H32/40 main diesel generatorsets each 3.840 kW 2x Hyundai/Himsen 9H32/40 main diesel generatorsets each 4.300 kW Builder: Hyundai Engine & Machinery Co. Ltd. |
|
Emergency generator |
1x Scania DI16 diesel generatorset Builder: Scania CV AB, Industrial & Marine Engines |
|
Tank capacities |
Ballast: 36.238,6 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 127 mm |
|
Cargo gear |
Gearless |
|
Manager |
CMA CGM International Shipping Company Pte. |
|
Operator |
MOL - Mitsui Osk Lines |
|
Registered owner |
NOL Liner (Pte.) Ltd. Care of Neptune Shipmanagement Services (Pte) Ltd. |
|
Renamed |
2017 APL Singapura Republic of Singapore; Singapore City - Call sign: S6LT3 Owner: CMA CGM Asia Pacific Liner Pte. Ltd. Manager: CMA CGM International Shipping Company Pte. Ltd. |
|
Latest data adjustment |
10 December 2023 |
