Westerschelde 12 October 2015 |
|
Name |

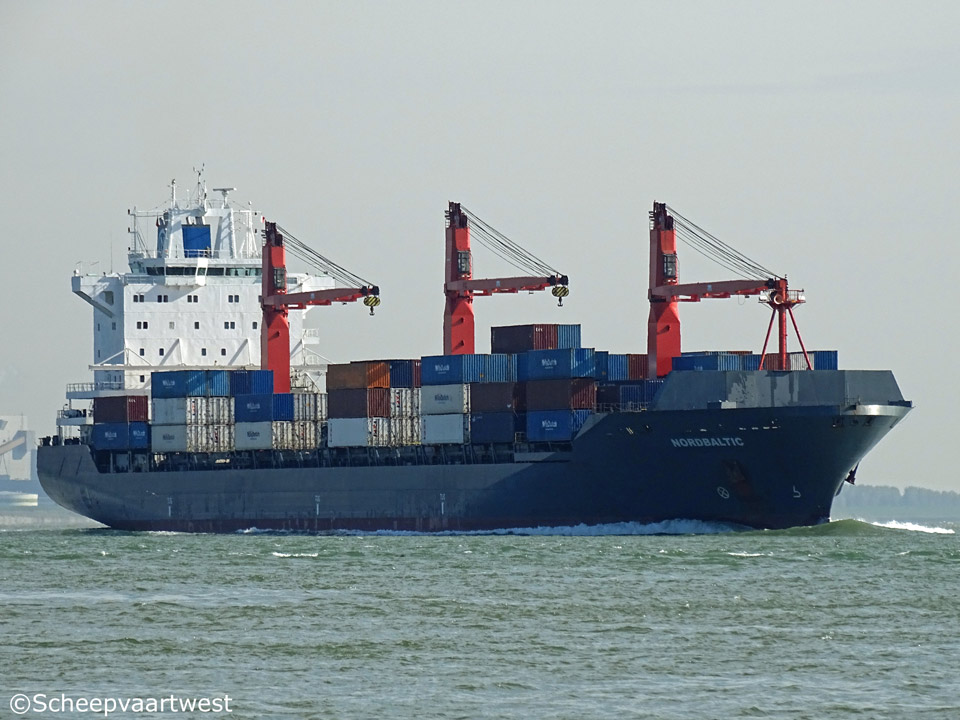

NORDBALTIC |
|
Previous names |
2003 Built as: Nordbaltic 11.2003 - 12.2008 CMA CGM Romania 12.2008 - 05.2011 Nordbaltic 05.2011 - 12.2012 Baltic 12.2012 - 2015 Niledutch Gemsbok |
|
Type |
Cellular containership "MTW 2500" Sub-Panamax Size, Selfsust. Cell. Cont. Vessel |
|
IMO-number |
9241475 |
|
Call sign |
P3QN9 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
25.407 t |
|
DWT |
Summer: 33.850 t |
|
NT |
12.733 t |
|
Number of 20ft containers |
On deck: 1.486 In hold: 992 Total: 2.478 |
|
Number of 40ft containers |
On deck: 706 + 74 TEU In hold: 482 + 28 TEU Total: 1.188 + 102 TEU |
|
Container capacity 14t |
1.912 |
|
Reefer capacity |
In hold: 100 On deck: 300 Total: 400 |
|
Length |
207,40 m overall 195,40 m between perpendiculars |
|
Breadth |
29,80 m extreme |
|
Draught |
11,40 m |
|
Depth |
16,40 m |
|
Speed |
20,0 knots Economic: 12,5 knots |
|
Built |
2003 |
|
Keel laid |
01.04.2003 |
|
Launch date |
05.07.2003 |
|
Date of completion |
05.09.2003 |
|
Builder |
Aker MTW Werft GmbH |
|
Yard number |
018 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW at 99,0 rpm Year of manufacture: 2002 Manufacturer: Wartsila Italia S.p.A. |
|
Propellers |
1x Solid propeller (keyless) aft at 99,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 18,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 262,0 m² Year of manufacture: 2002 Manufacturer: Alfa Laval Aalborg A/S Marine & Offshore Systems Marine Boilers & Heaters |
|
Electric installations |
3x Plants each 440/220 V - 1.880 kVA 1x Plant 440 V - 220 kVA 2x Plants each 24 V - 120 Ah 2x Plants each 24 V - 130 Ah |
|
Generators |
3x Wärtsilä 9L20C main diesel generatorsets each 1.880 kVA / 1.582 kW |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 220 kVA |
|
Batteries |
2x Batteries for automation each 130 Ah 2x Batteries for automation each 120 Ah |
|
Compressed air receivers |
2x Receivers each 6.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster BRUNVOLL - 1.100 kW, forward |
|
Number of holds |
5 |
|
Hold ventilation |
2x Air changes per hour, mechanical and natural |
|
Number of hatches |
10 Hatch 1: 12,64 x 15,36 m |
|
Hatch cover type |
Mac Gregor pontoon type hatch covers, weathertight |
|
Tank capacities |
Fuel oil: 2.443 m³ Ballast: 9.333 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Length: 660,00 m Diameter: 76 mm |
|
Cargo gear |
3x Cranes - 45,0 t each |
|
Manager |
Reederei Nord GmbH |
|
Owner |
N Baltic Shipping Company Ltd. |
|
Registered owner |
Schifffahrtsgesellschaft MS "BALTIC" mbH & Co. |
|
Previous named & owners |
2003 Nordbaltic- Isle of Man, Douglas - Nordbaltic Shipping Co. Ltd. 2003 CMA CGM Romania - CMA CGM 2008 Nordbaltic - Nordbaltic Shipping Co. Ltd. 2011 Baltic - Cyprus, Limassol - Schiffahrtsgesellschaft MS Baltic GmbH 2012 Nileducht Gemsbok - Niledutch 2015 Nordbaltic- Nordbaltic Shipping Co. Ltd. |
|
Latest data adjustment |
02 March 2017 |
