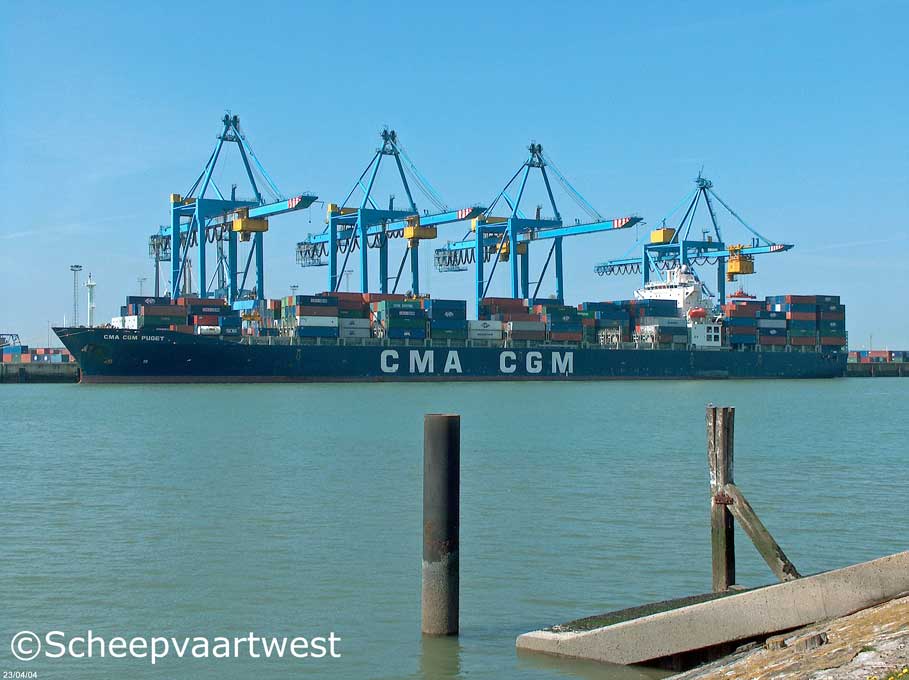

| Zeebrugge 23 April 2004 |
|
Name |
CMA CGM PUGET |
|
Type |
Cellular containership |
|
IMO-number |
9248124 |
|
Cal sign |
C6SR7 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
49.855 t |
|
DWT |
Summer: 58.334 t |
|
NT |
20.243 t |
|
Number of 20ft containers |
4.404 |
|
Container capacity 14th |
3.020 |
|
Reefer Point |
400 on deck |
|
Length |
282,10 m overall |
|
Breadth |
32,20 m overall |
|
Draught |
Summer: 13,02 m |
|
Freeboard |
Summer: 4.370 mm |
|
Depth |
21,50 m |
|
Speed |
26,9 knots |
|
Built |
2002 |
|
Date of completion |
10.09.2002 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. |
|
Yard number |
100 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
10 |
|
Continuous decks |
2 |
|
Propelling engine |
1x MAN-B&W 8K98MC-C - 2 stroke 8 cylinder 980 x 2.400 mm internal combustion engine - 45.680 kW / 62.065 hp at 104,0 rpm |
|
Number of screws |
1x Screw propeller solid at 104 rpm |
|
Boiler |
1x CHM 756,00 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 450 V |
|
Diesel generators |
3x Main diesel generatorsets each 3.125 kVA - 2.500 kW - 3.669 hp |
|
Emergency generators |
1x Diesel generatorset 312 kVA - 250 kW - 401 hp |
|
Bow thruster |
1.849 kW |
|
Cargo holds |
7 |
|
Hatchways |
15 |
|
Fuel oil capacity |
8.955,50 m³ |
|
Cargo Gear |
Gearless |
|
Manager |
CMA CGM |
|
Operator |
CMA CGM |
|
Owner |
Puget Ltd. |
