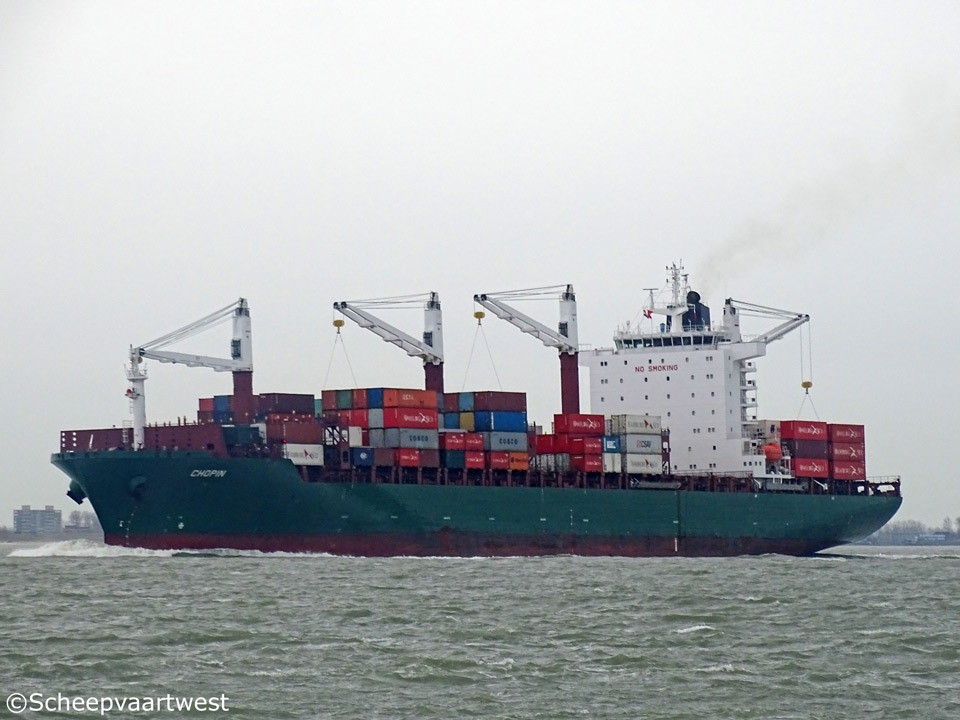

Westerschelde 17 November 2017 |
 |
 |
 |
 |
 |
||||

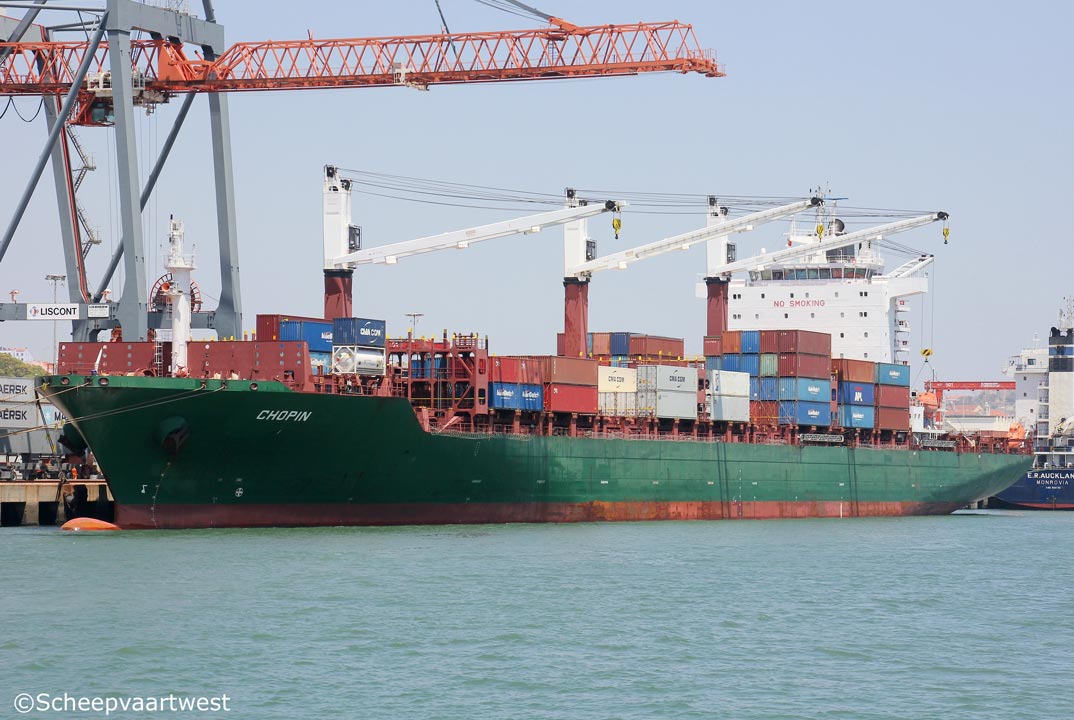

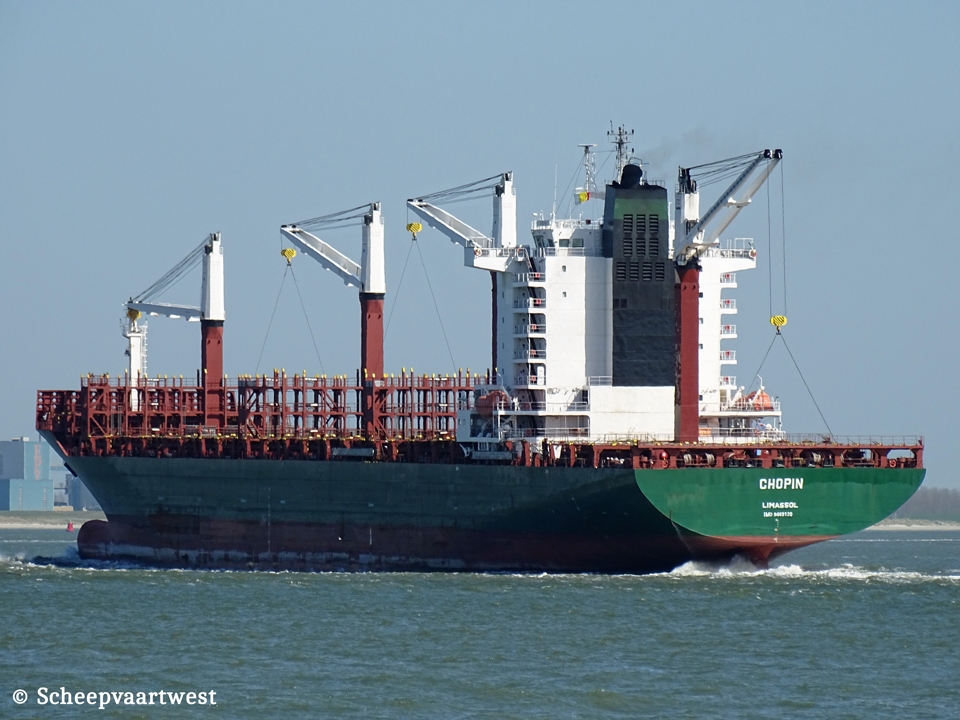

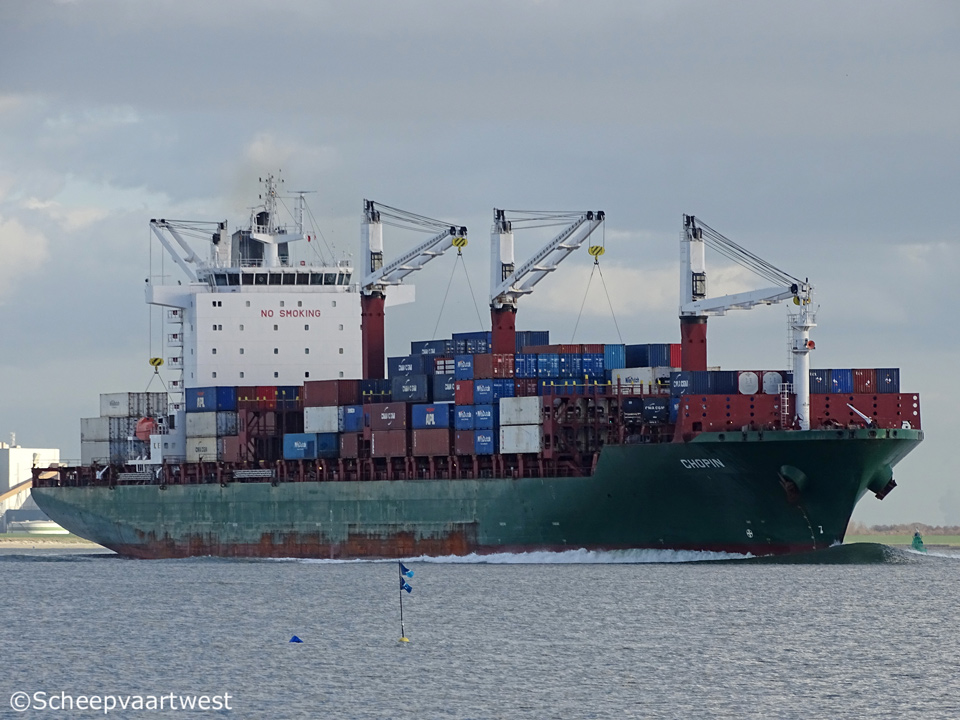

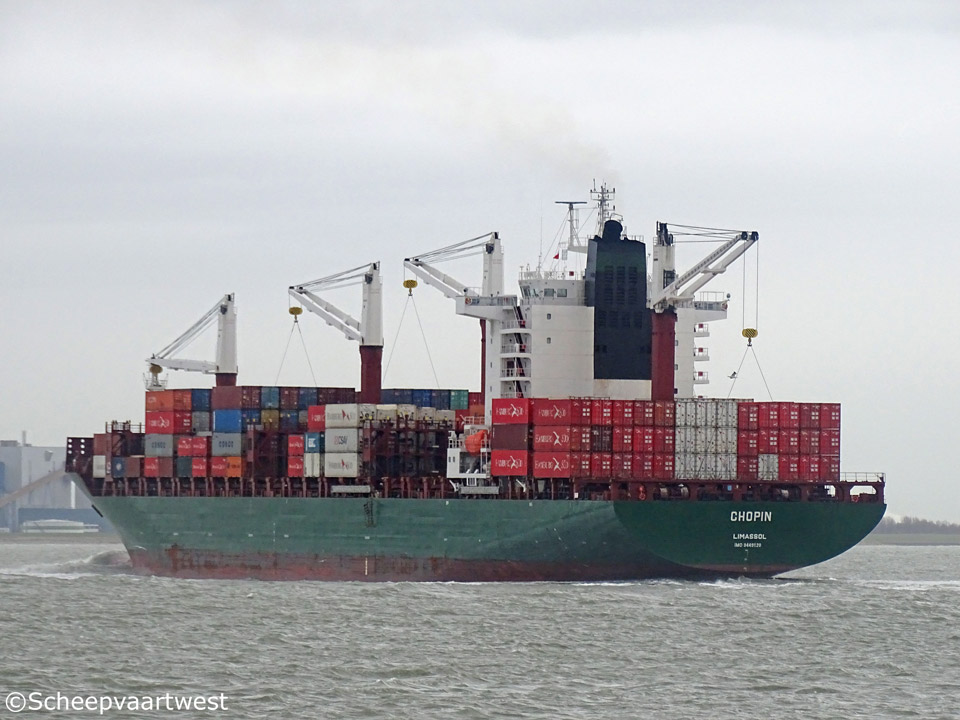

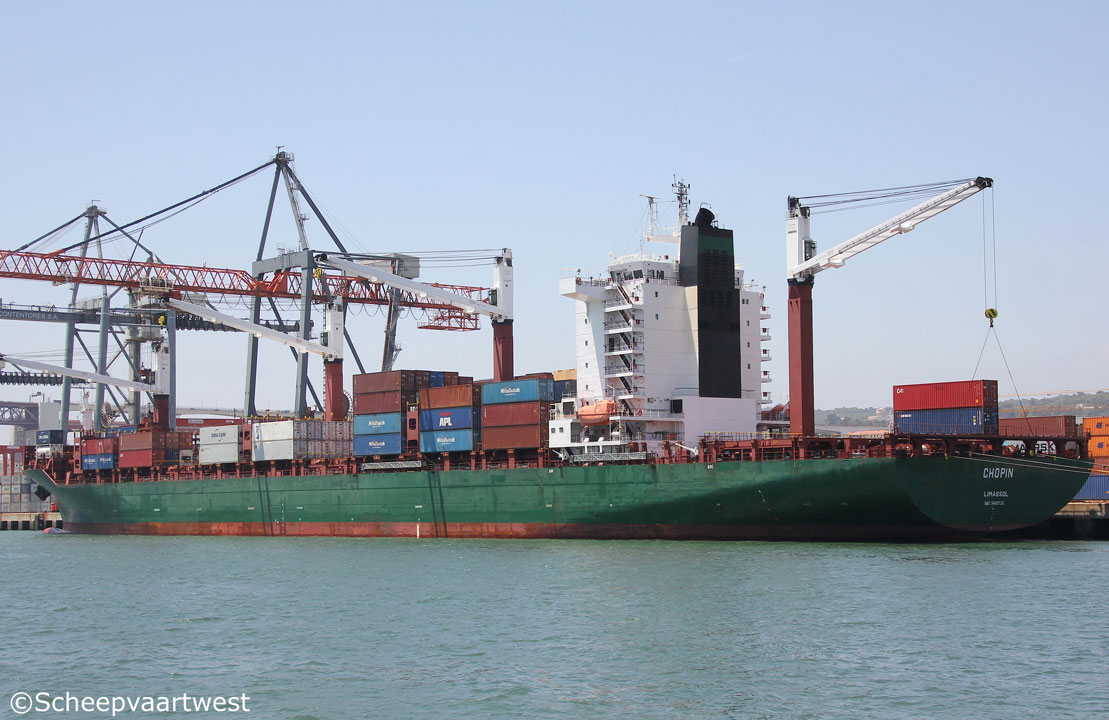

| Westerschelde 11/12/15 | Westerschelde 11/12/15 | Lisboa, Portugal 14/06/17 | Lisboa, Portugal 14/06/17 | Westerschelde 20/04/16 | ||||
|
Name |
CHOPIN |
|
Previous names |
2012 - 11/2014 Paula Schulte |
|
Type |
Cellular containership |
|
IMO-number |
9449120 |
|
Call sign |
D5ZF9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2012 - 2014 Liberia, Monrovia - Call sign: D5AP6 2014 - 2022 Cyprus, Limassol - Call sign: 5BEJ4 |
|
GT |
38.364 t |
|
DWT |
Summer: 46.954,7 t |
|
NT |
16.631 t |
|
Number of 20ft containers |
3.635 |
|
Container capacity 14t |
2.273 |
|
Reefer capacity |
550 |
|
Length |
239,51 m overall 223,49 m between perpendiculars |
|
Breadth |
32,28 m extreme |
|
Draught |
12,50 m |
|
Depth |
19,20 m |
|
Speed |
Max.: 23,3 knots |
|
Built |
2012 |
|
Keel laid |
06/01/2012 |
|
Launch date |
08/06/2012 |
|
Date of completion |
20/11/2012 |
|
Builder |
Shanghai Shipyard Co., Ltd. 3F No. 10 Building 468, Yangshupu Road Yangpu District Shanghai People's Republic of China |
|
Yard number |
SS1146 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7K90MC-C9 - 2 stoke 7 cylinder 800 x 2.600 mm combustion engine 31.710 kW - 43.506 bhp at 104,0 rpm Year of manufacture: 2011 Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division 1000 Bangeojinsunhwan-doro Dong-gu Ulsan Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 90, bar Heating surface: 20,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 451,8 m² Year of manufacture: 2011 Manufacturer: SAACKE VKK Marine Boilers Gmb, 24143 Kiel - Federal Republic of Germany |
|
Electric installations |
4x Plants each 450 V - 2.250 kVA 1x Plant 450 V - 212,5 kVA 2x Plants each 24 V - 2 Ah 2x Plants each 24 V - 7 Ah 1x Plant 24 V - 12 Ah 2x Plants each 24 V - 65 Ah 1x Plant 24 V - 70 Ah 2x Plants each 24 V - 70 Ah 2x Plants each 24 V - 200 Ah 12x Plants each 24 V - 300 Ah 12x Plants each 24 V - 300 Ah |
|
Generators |
4x Himsen/Hyundai 7H25/33 main diesel generatorsets each 1.800 kW / 2.250 kVA |
|
Emergency generator |
1x Sisu diesel 645 DSBIG diesel generatorset 170 kW -212,5 kVA |
|
Batteries |
12x Batteries for other purpose each 300 Ah 12x Batteries for automation each 300 Ah 2x Batteries for UPS radio each 200 Ah 2x Batteries for start emergency engine each 70 Ah 1x Battery for other purpose 70 Ah 2x Batteries for diesel control each 65 Ah 1x Battery for automation 12 Ah 2x Batteries for other purpose each 7 Ah 2x Batteries for other purpose each 2 Ah |
|
Bow thruster |
1x Transverse thruster 1.200 kW, forward |
|
Tank capacities |
Ballast: 16.759,4 m³ |
|
Anchor equipment |
3x Anchors weight each 11.700 kg Length: 687,50 m Diameter: 84 mm |
|
Cargo gear |
4x Deck cranes - SWL 45,0 t each |
|
Manager |
Boden Denizcilik A.S Sahrayıcedit Mh. Halk Sk No:52 Sıddıklar İş Merkezi Kat:8, 34734 Kadıköy Turkey |
|
Previous manager |
2012 - 2014 Thomas Schulte Ship Management GmbH & Co. KG, 20095 Hamburg - Germany |
|
Registered owner |
Bomar Chopin LLC |
|
Latest data adjustment |
01 July 2023 |
