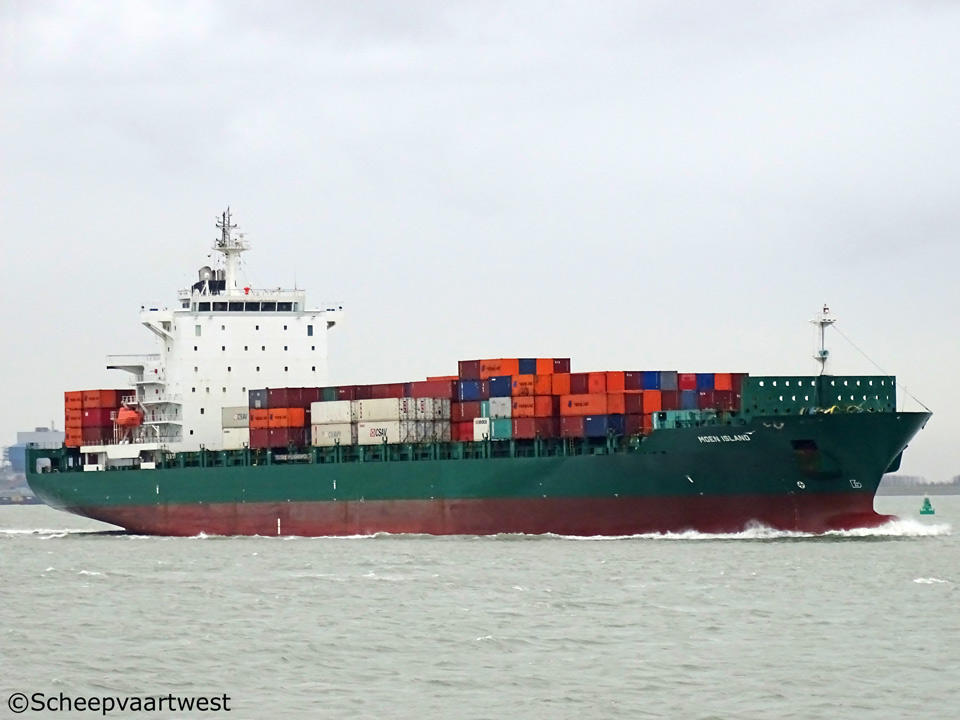

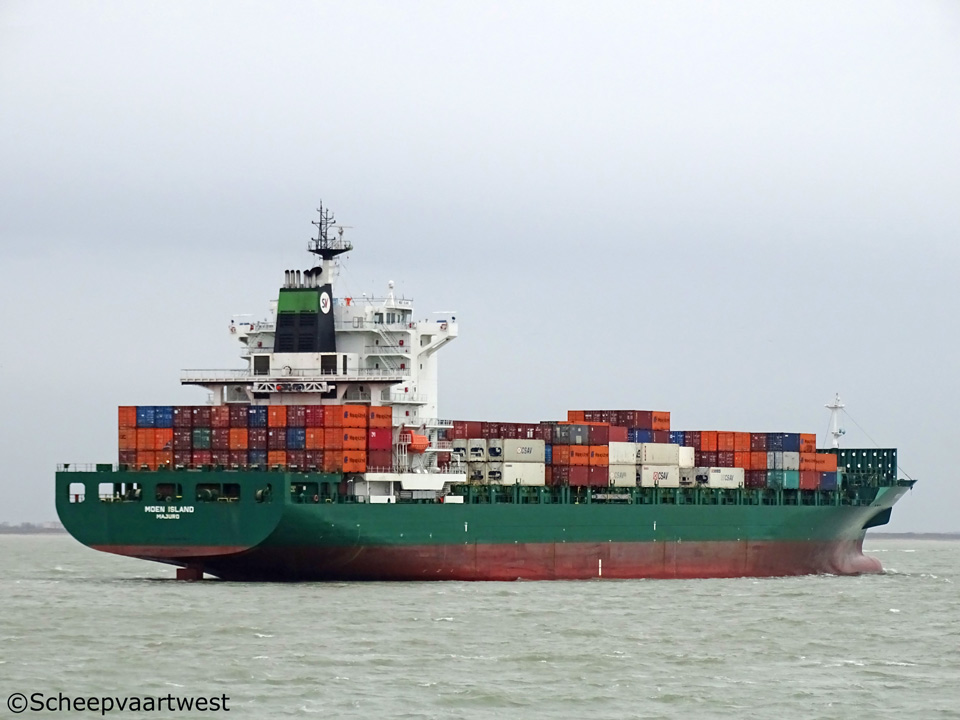

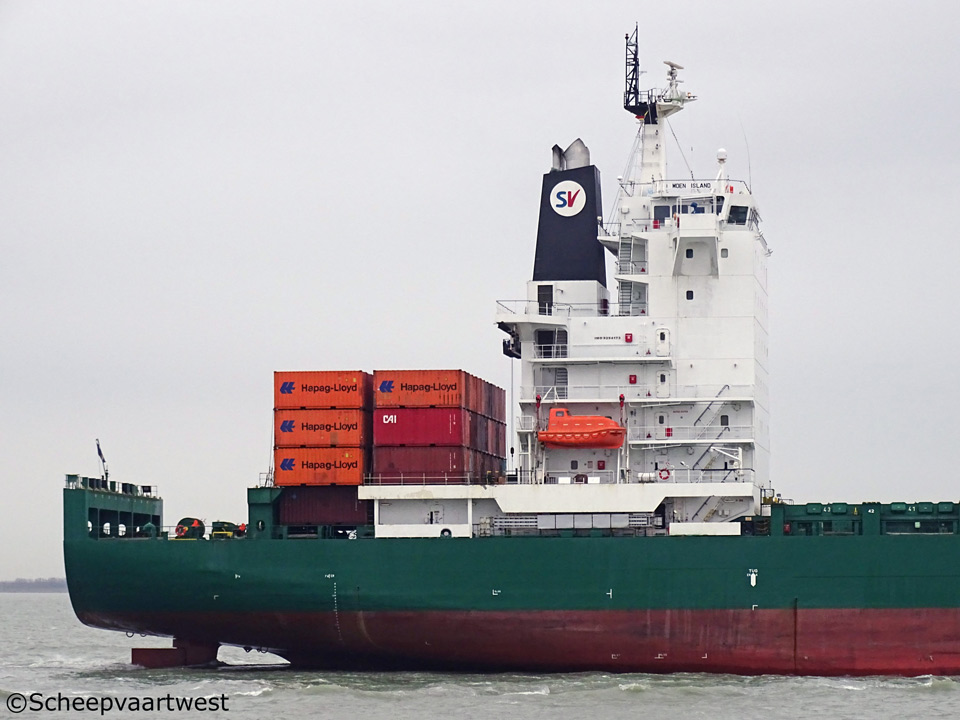

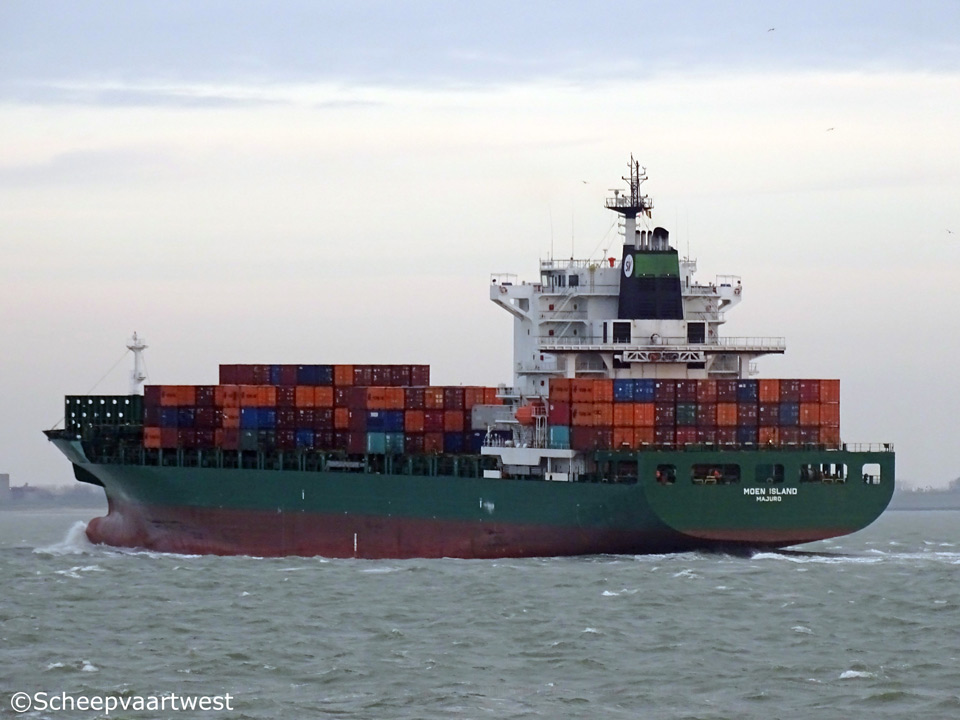

Westerschelde 11 December 2015 |
 |
 |
 |
||
| Westerschelde 11/12/15 | Westerschelde 11/12/15 | Westerschelde 10/12/15 |
|
Name |
MOEN ISLAND |
|
Previous names |
2005 - 03/2011 Tatiana Schulte 03/2011 - 03/2012 YM Fuzhou 03/2012 - 04/2014 Tatiana Schulte |
|
Type |
Cellular containership |
|
IMO-number |
9294173 |
|
Call sign |
V7ES7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2005 - 2008 Cyprus 2008 - 2012 Germany |
|
GT |
28.592 t |
|
DWT |
Summer: 39.333 t |
|
NT |
14.769 t |
|
Number of 20ft containers |
On deck: 1.798 In hold: 1.026 Total: 2.824 |
|
Container capacity 14t |
2.030 |
|
Reefer capacity |
On deck: 332 In hold: 254 Total: 586 |
|
Length |
222,14 m overall 210,00 m between perpendiculars |
|
Breadth |
30,07 m extreme |
|
Draught |
12,00 m |
|
Forecastle |
27,33 m |
|
Freeboard |
4.837 mm |
|
Depth |
16,80 m |
|
Speed |
Max.: 23,0 knots |
|
Built |
2005 |
|
Keel laid |
03/06/2005 |
|
Launch date |
02/09/2005 |
|
Date of completion |
16/10/2005 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
0343 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W//Hyundai 7K80MC-C - 2 stroke single acting 7 cylinder 800 x 2.300 mm combustion engine Mcr 25.270 kW / 34.357 hp at 104,0 rpm Builder: Hyundai Heavy Industries Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Steam boiler, oil fired - 8,83 bar Heating surface 35,0 m² 1x Exhaust gas heated - 8,83 bar Heating surface 654,0 m² Builder: KangRim Industries Co., Ltd. (3 rd Factory) |
|
Generators |
4x MAN-B&W 8L28/32H diesel engines each Mcr 1.750 kW connected with generators each 1.600 kW at 720 rpm - 440 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 150 kVA |
|
Batteries |
2x Batteries for UPS radio each 200 Ah |
|
Compressed air receivers |
2x Receivers each 8.500 litres - 30,0 bar 1x Receiver 300 litres - 30,0 bar 1x Receiver 250 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 1.100 kW |
|
Number of holds |
6 |
|
Number of hatches |
11 |
|
Anchor equipment |
3x Anchors weight each 9.900 kg Length: 660,00 m Diameter: 78 mm |
|
Lifting equipment |
2x Cranes- SWL 0,8 t each 1x Crane - SWL 6,3 t 1x Crane - SWL 6,5 t |
|
Cargo gear |
Gearless |
|
Crew |
25 |
|
Manager |
Thomas Schulte Ship Management (Cyprus) Ltd. |
|
Registered owner |
CV Five LLC |
|
Renamed |
2018 CMA CGM Pointe Caraibe Marshall Islands, Majuro- Call sign: V7ES7 |
|
Latest data adjustment |
09 April 2022 |
