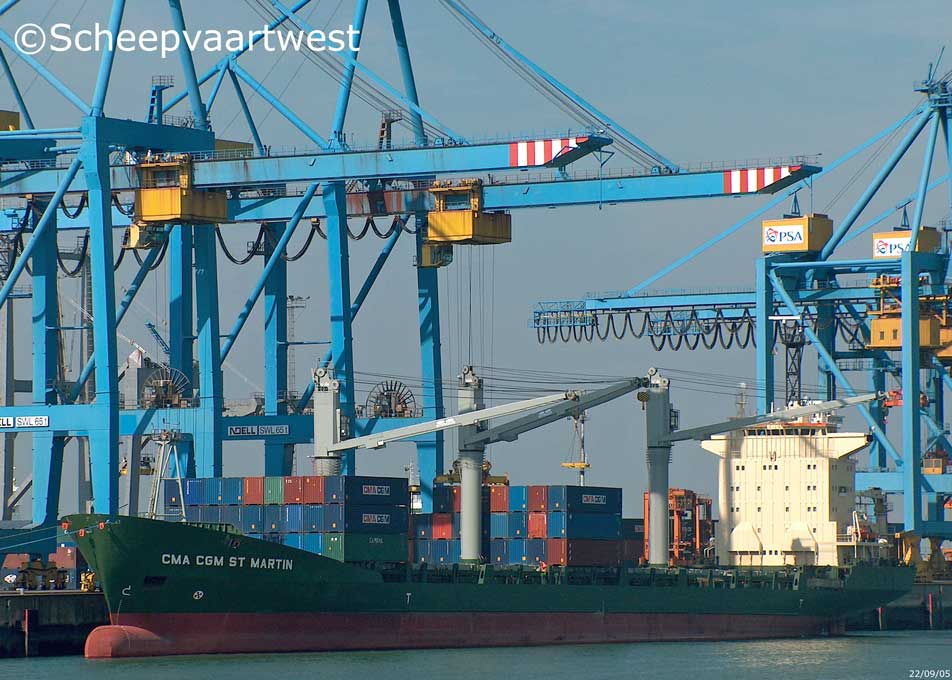

CMA CGM St Martin - IMO 9152911

Name

CMA CGM ST MARTIN

Previous name

1998-19.10.1998 Lilly Rickmers
19.10.1998-30.03.2001 CGM Basse Terre

Type

GC - Gear Containership

IMO-number

9152911

Call sign

V7DV5

Flag

Marshall Islands

Previous flag

31.08.2002 Germany

Port of registry

Majuro

GT

10.752 t

DWT

Summer: 14.070 t

NT

5.478 t

Number of 20ft containers

1.150

Container capacity 14th

750

Reefer point

100 Plugs 380 V / 50 cps / 3 phases

Length

162,86 m overall
153,40 m between perpendiculars

153,93 m registered

Breadth

22,30 m overall

Draught

Summer: 8,11 m

Forecastle

11,16 m

Poop

15,74 m

Freeboard

3.000 mm

Depth

11,10 m

Speed

17,7 knots

Built

1998

Keel laid

17.03.1998

Launch date

09.05.1998

Date of completed

06.1998

Builder

Stocznia Szczecinska Nowa

ul. Hutnicza 1
71-642 Szczecin
Republic of Poland

Yard number

B183-II/30

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Double bottom

Propelling engine

1x MAN B&W 6 L 50 MC – 2 stroke single acting 6 cylinder 500 x 1.620 mm diesel engine - 6.930 kW

Year of manufacture: 1998

Manufacturer: Cegielski Poznan

ul. 28 Czerwca 1956 223/229
60-965 Poznan
Republic of Poland

Number of screws

1x Controllable pitch propeller - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar
Heating Surface: 63,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar
Heating Surface:212,0 m²
Year of manufacture: 1998

Manufacturer: Aalborg Sunrod
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x 380/220 V - 1.890 kVA

1x 380 V - 1.250 kVA

1x 380 V - 145 kVA

Shaft generator

1x 1.250 kVA / 1.000 kW

Generators

3x H. Cegielski / Sulzer 6AL20D main diesel generatorsets each 630 kVA / 504 kW

Emergency generator

1x Diesel generatorset 145 kVA

Compressed air receivers

1x Receiver 400 litres - 40,0 bar

2x Receivers each 2.500 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

Bow thruster

1x Transverse thruster ULSTEIN - 590 kW, forward

Cargo capacity

Grain: 19.215 m³

Tank capacities

Bunker: 1.231 t

Fuel oil: 1.339 m³

Cargo gear

3x Cranes - SWL 40,0 t each

Anchor equipment

3x Anchors weight each 5.250 kg

Chain length: 577,50 m

Crew size

25

Manager

Uniteam Marine Shipping GmbH
Glockengiesserwall 3
20095 Hamburg
Federal Republic of Germany

Operator

CMA CGM

Owner

Bertram Rickmers Reederei
Hamburg
Germany

Registered owner

"LILLY RICKMERS" Schiffahrtsgesellschaft mbH & Cie. KG
Neumühlen 19
22763 Hamburg
Federal Republic of Germany
