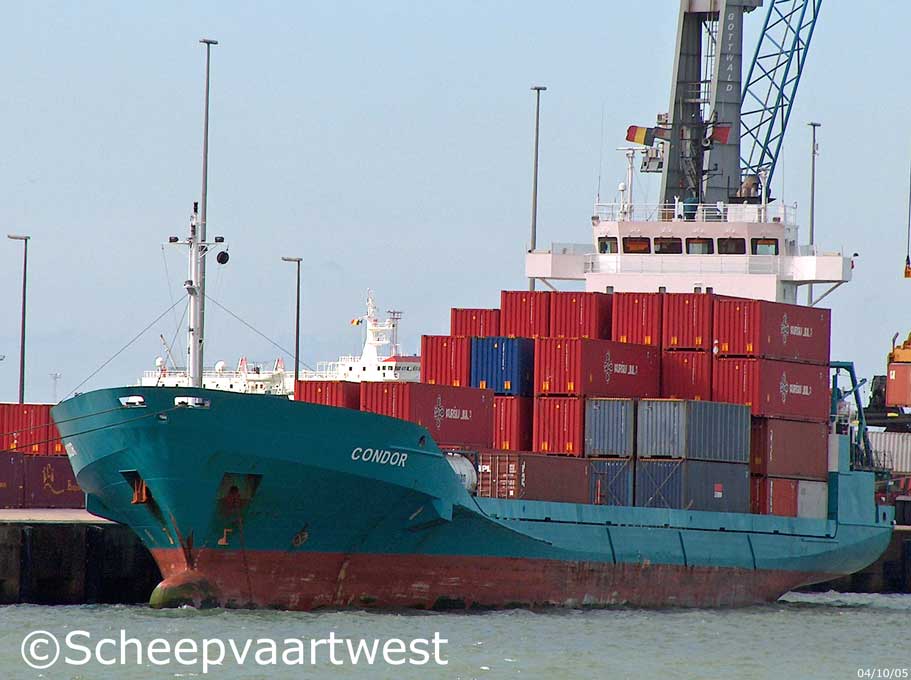

Condor - IMO 9143415

Name

CONDOR

Previous names

25.07.2000-Bremer Zukunft
29.08.2001-Admiral Star
12.01.2004-Uppland
13.11.2006-Condor

Type

Container vessel

IMO-number

9143415

Call sign

V2PP7

Flag

Antigua & Barbuda

Previous flag

06.02.2005 Germany
13.11.2006 Antigua & Barbuda

Port of registry

St. John's

GT

2.985 t

DWT

Summer: 4.852 t

NT

1.311 t

Number of 20ft Containers

366

Length

98,68 m overall
91,45 m between perpendiculars
92,19 m registered

Beam

16,90 m over all

Draught

Summer: 5,912 m

Forecastle

7,00 m

Freeboard

1.640 mm

Depth

7,55 m moulded

Speed

15,0 knots

Built

1998

Keel laid

24.06.1997

Launch date

17.10.1997

date of Completion

01.1998

First movement

20.01.1998

Builder

Kroegerwerft Werft GmbH & Co. KG.
Hüttenstr. 25
24790 Schacht-Audorf
Germany

Yard number

1543

Hull material

Shipbuilding steel (standard)

Hull type

Single hull
Double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x Burmeister & Wain Alpha 12 V 28/32 - 4 stroke single acting 12 cylinder 280 x 320 mm diesel engine - 2.940 kW
Year of Manufacture: 1997
Builder: MAN B&W Diesel A/S Frederikshavn
Niels Juels Vej 15
9900 Frederikshavn
Kingdom of Denmark

Number of screws

1x Controllable pitch propeller - aft

Boiler

1x Water heater, oil fired - 5,0 bar
Heating Surface: 15,2 m²
Year of manufacture: 1997

Electric installations

1x 440/220 V - 640 kVA
1x 440 V - 783 kVA
1x 440 V - 31 kVA

Shaft generator

1x 783 kVA

Generators

2x Main diesel generatorsets each 320 kVA

Emergency generator

1x Diesel generatorset 31 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 350 kW, forward

Cargo capacity

Bale: 4.166 m³ / 147.000 ft³
Grain: 4.456 m³ / 157.400 ft³

Tank capacities

Ballast: 1.661 m³
Bunker: 212 t
Fuel oil: 254 m³

Anchor equipment

3x Anchors weight each 2.850 kg
Chain length: 495,00 m

Crew size

12

Manager

Reederei Gebr. Winter GmbH & Co KG.
Grosse Elbstrasse 14
22767 Hamburg
Germany

Previous managers

1998-2002 Bischoff Schiffahrts Beteiligungs GmbH
2002-2003 Reederei Gebr. Winter GmbH & Co. KG.
2003-2003 See-Berufsgenossenschaft

Owner

Bischoff Schiffahrts Beteiligungs GmbH
Weserstrasse 79
28757 Bremen
Germany

Renamed

27.02.2008 Europe Orion
