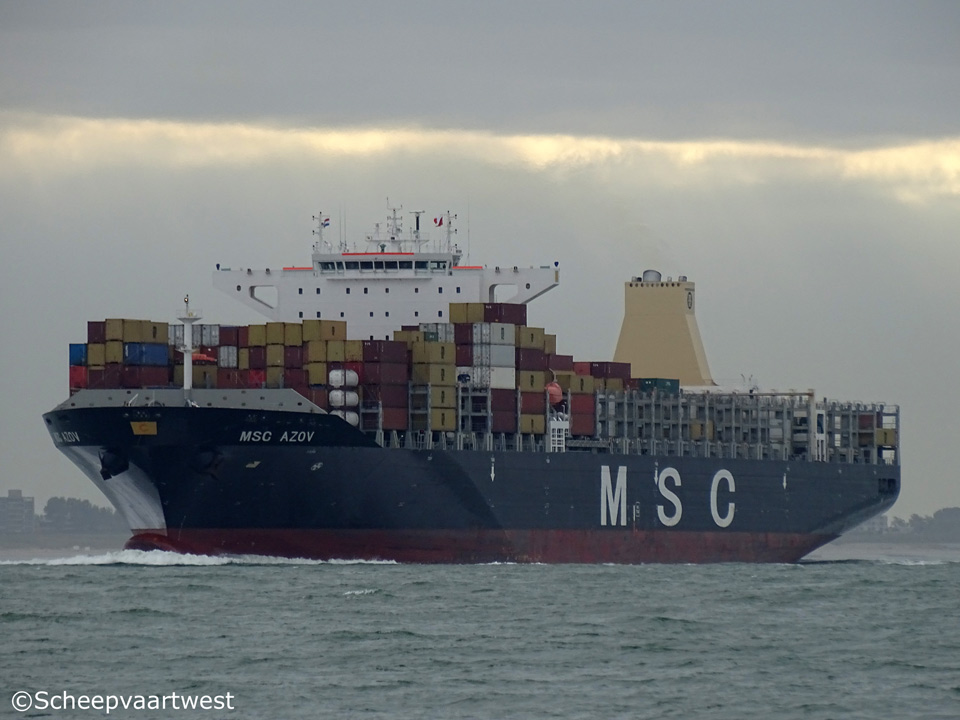

MSC Azov 01

Westerschelde 22 October 2015

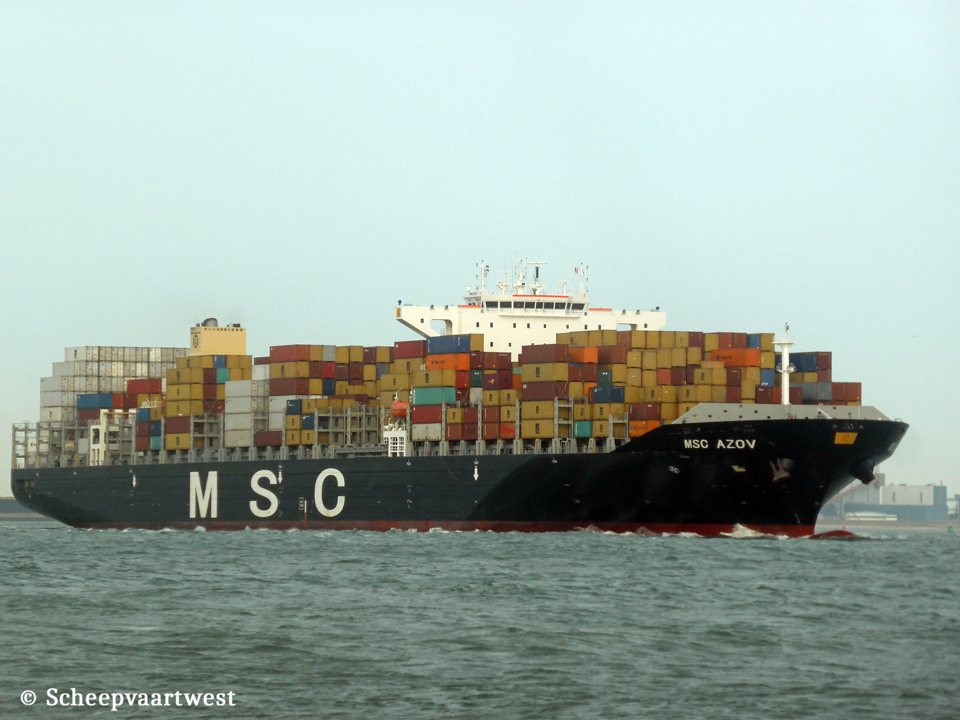

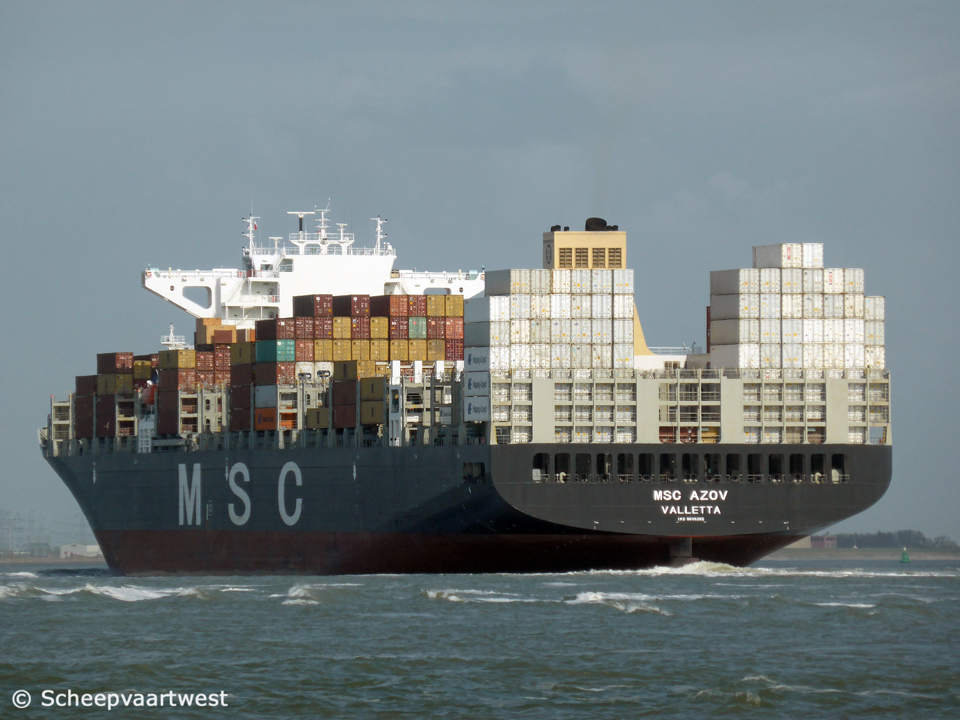

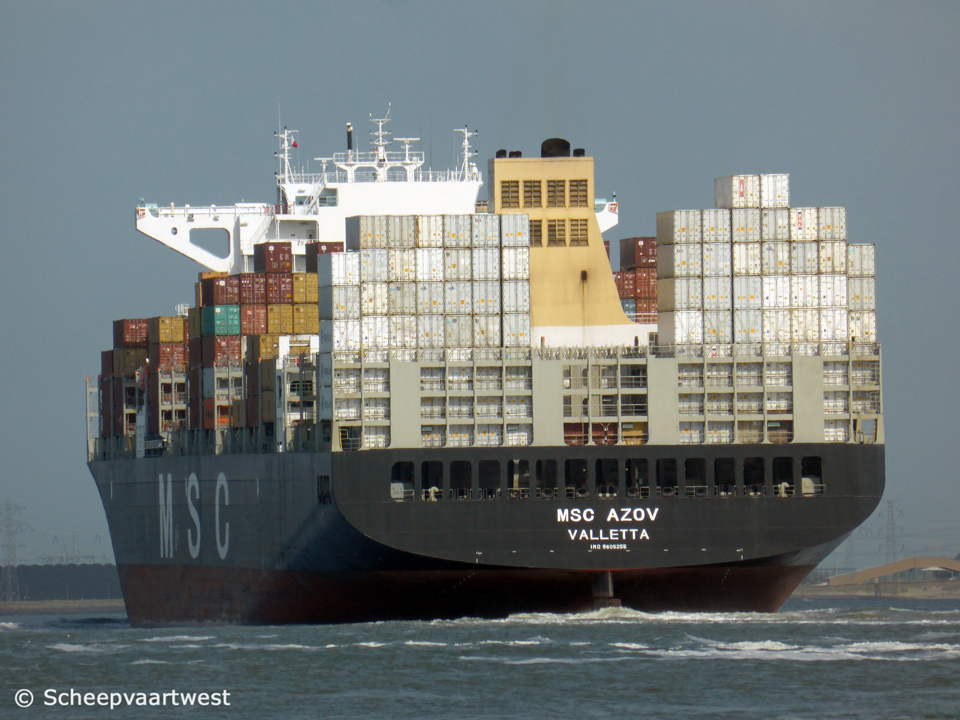

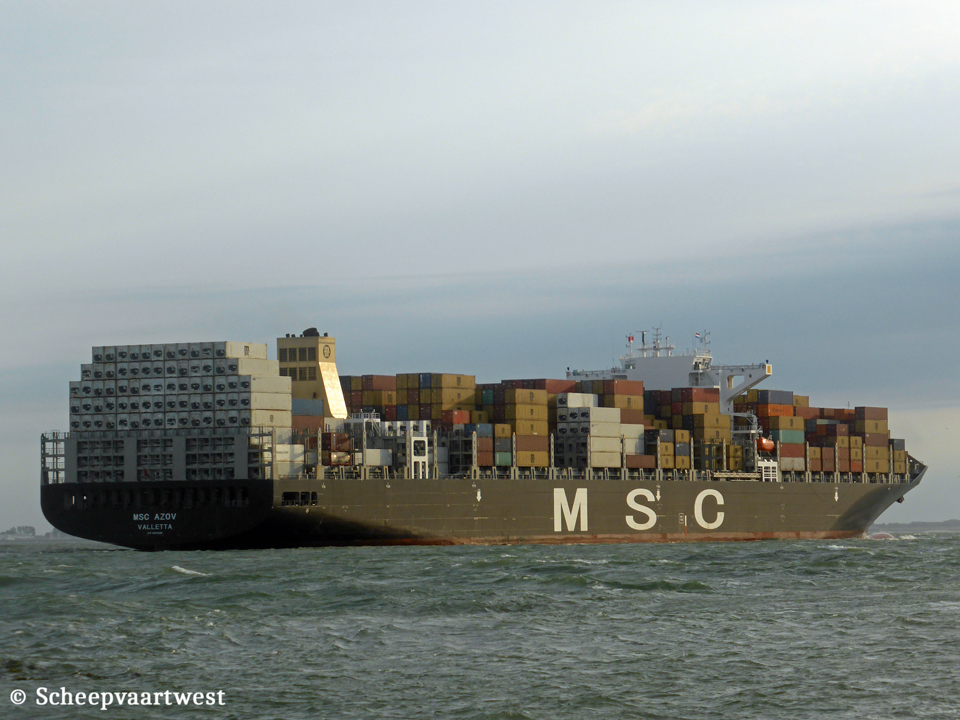

MSC Azov IMO 9605255 02   MSC Azov IMO 9605255 03   MSC Azov IMO 9605255 04   MSC Azov IMO 9605255 05
Westerschelde 07/05/15   Westerschelde 07/05/15   Westerschelde 04/07/15   Westerschelde 04/07/15


Name

MSC AZOV

Type

Cellular containership

IMO-number

9605255

Call sign

9HA2457

Flag

Malta

Port of registry

Valletta

GT

94.402 t

DWT

Summer: 112.434 t

NT

52.968 t

Number of 20ft containers

9.403

Container capacity 14t

7.100

Reefer capacity

1.000

Length

299,89 m overall

283,23 m between perpendiculars

Breadth

48,33 m extreme

48,19 m moulded

Draught

14,50 m

Depth

24,80 m

Speed

Max.: 22,2 knots

Built

2014

Keel laid

17/12/2012

Launch date

14/07/2013

Date of completion

14/01/2014

Builder

Shanghai Jiangnan Changxing Heavy Industry Co., Ltd.

Shanghai

China

Yard number

H1068A

Hull material

Steel

Main engine

1x MAN-B&W/HHI 9S90ME-C9.2 - 2 stroke 9 cylinder combustion engine 52.229 kW

Builder: MAN Diesel & Turbo SE, Augsburg - Germany

Propellers

1x Fixed propeller

Boilers

Auxiliary boiler, oil/gas fired (Oil fired boiler)

Auxiliary boiler, exhaust gas heated (Exhaust gas economiser)

Generators

4x Daihatsu 8DC-32e main diesel generatorsets each 3.320 kW

Emergency generator

1x MAN D2866 LE 203 diesel generatorset

Bow thruster

3.000 kW

Anchor equipment

Length: 770,00 m

Diameter: 111 mm

Cargo gear

Gearless

Crew size

26

Manager

Costamare Shipping Co. S.A.

Piraeus

Greece

Operator

MSC - Mediterranean Shipping Company

Registered owner

Adele Shipping Company

Previous owner

Ample Pointer Ltd

Latest data adjustment

14 July 2023
