Westerschelde 06 May 2016 |
 |
|
| Westerschelde 07/08/17 | |
|
Name |

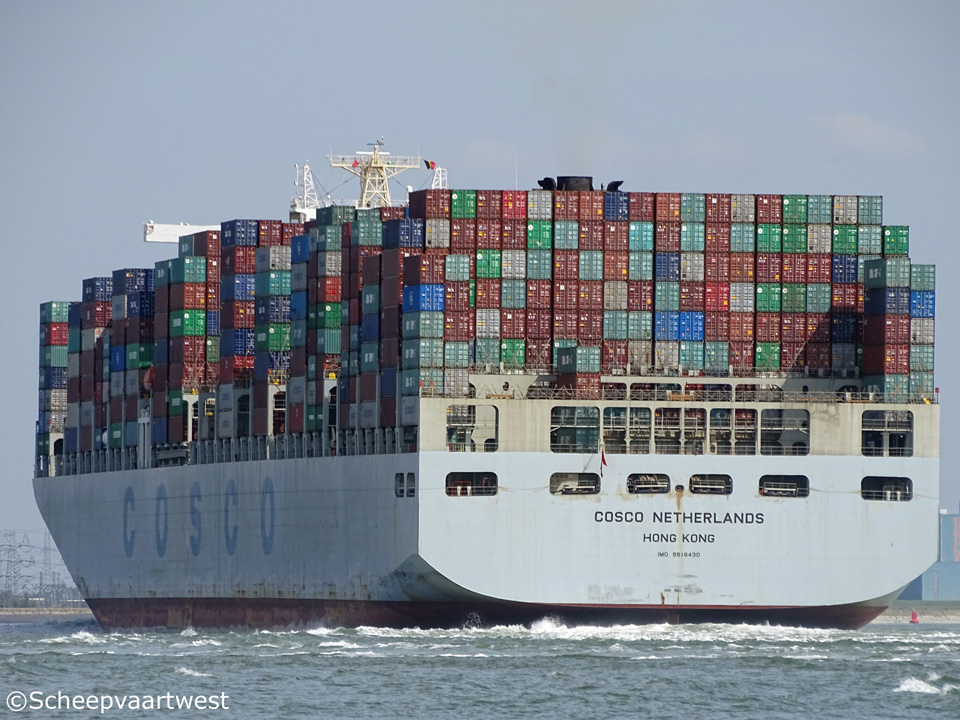

COSCO NETHERLANDS |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9516430 |
|
Call sign |
VRMR5 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
153.666 Suez: 159.758,81 |
|
DWT |
Summer: 157.000 t |
|
NT |
65.592 Suez: 144.606,03 |
|
Number of 20ft containers |
13.386 |
|
Container capacity 14t |
9.000 |
|
Length |
365,90 m overall 348,00 m between perpendiculars |
|
Breadth |
51,20 m moulded |
|
Draught |
15,50 m |
|
Freeboard |
7.493 mm |
|
Depth |
29,85 m moulded |
|
Speed |
Max.: 23,0 knots |
|
Built |
2013 |
|
Keel laid |
18/10/2011 |
|
Launch date |
21/08/2013 |
|
Delivery date |
18/11/2013 |
|
Builder |
Nantong COSCO Khi Ship Engineering Co., Ltd. Nantong China |
|
Yard number |
NE114 |
|
Hull material |
High strength steel Forged steel |
|
Watertight bulkheads |
13 |
|
Main engine |
1x HHI/MAN-B&W 12K98ME7 - 12 cylinder 980 x 2.660 mm combustion engine Mcr 72.240 kW at 94,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch solid keyless propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Unfired exhaust gas boiler - 10,0 bar 1x Fired boiler - 8,0 bar Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
2x Main diesel generatorsets each 3.000 kW 3x Main diesel generatorsets each 2.500 kW Manufacturer: HHI Electro Electric System |
|
Number of holds |
10 |
|
Hold capacity |
325.414,3 m³ |
|
Number of tanks |
Ballast: 22 Sea water: 14 Fuel oil: 10 Lubricating oil: 9 Diesel oil: 3 Fresh water: 3 Chain: 2 Waste water: 2 Hydraulic oil: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 739,8 m³ Freshwater: 700,2 m³ Fuel Oil: 12.070,1 m³ Hydraulic Oil: 19,4 m³ Lube Oil: 819,6 m³ Tank Ballast: 28.167,2 m³ |
|
Lifting equipment |
1x Mono-rail crane - SWL 13,0 t Manufacture: Nantong Sekigahara Machinery Manufacturing Co., Ltd. 1x Provision crane - SWL 1,5 t 1x Provision crane - SWL 4,0 t Manufacture: South China Marine Machinery Limited Corporation |
|
Cargo gear |
Gearless |
|
Commercial Manager |
Cosco Shipping Lines Co Ltd. COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu, Shanghai, 200080 China |
|
Ism Manager |
Shanghai Ocean Shipping Co Ltd. COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu, Shanghai, 200080 China |
|
Registered owner |
COSCO Netherlands Shipping Limited c/o COSCO Shipping Lines Co Ltd. COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu, Shanghai, 200080 China |
|
Latest data adjustment |
03 May 2025 |
