Seoul Express - IMO 9193305

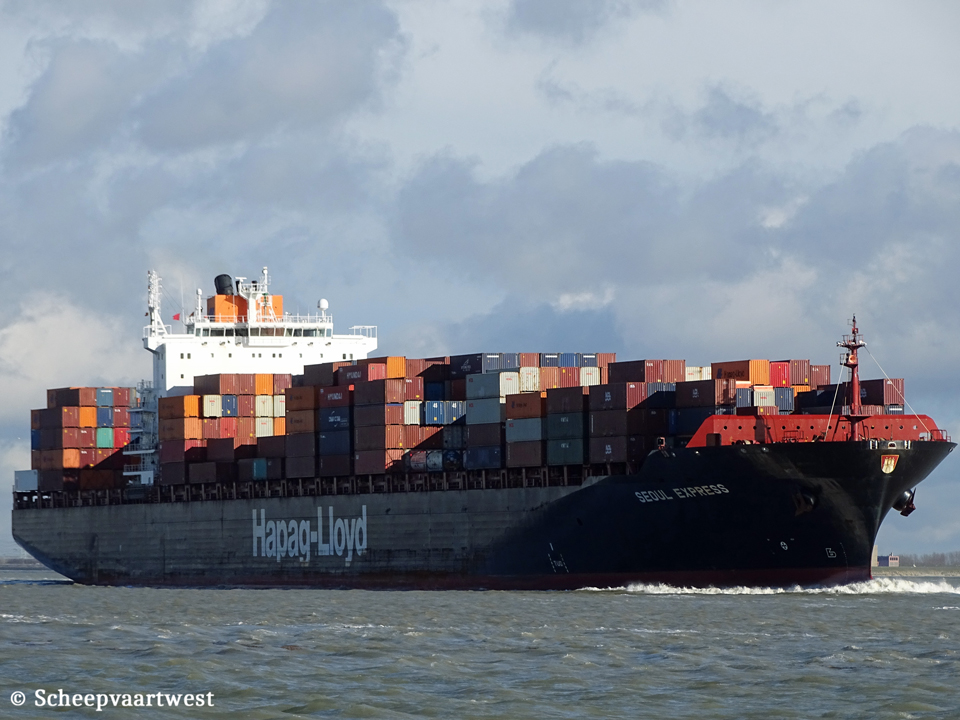

Westerschelde 02 July 2016

Name

SEOUL EXPRESS

Previous names

2000 - 09.2007 Seoul Express

09.2007 - 09.2007 Bremen Express

Type

Cellular containership

IMO-number

9193305

Call sign

DHBN

Flag

Germany

Port of registry

Hamburg

GT

54.465 t

DWT

Summer: 66.971 t

NT

23.876 t

Number of 20ft containers

4.890

Container capacity 14t

3.370

Reefer capacity

370

Length

294,05 m overall

283,21 m between perpendiculars

285,90 m registered

Breadth

32,20 m extreme

Draught

13,55 m

Forecastle

260,68 m

Poop

23,14 m

Depth

21,80 m moulded

Speed

Max.: 23,4 knots

Built

2000

Keel laid

10.01.2000

Launch date

25.03.2000

Date of completion

15.06.2000

Builder

Hyundai Heavy Ind. Co., Ltd.
Ulsan
South Korea

Yard number

1192

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN B&W 7K98 MC - 2 stroke 7 cylinder 900 x 2.660 mm diesel engine 40.040 kW at 94,0 rpm

Year of manufacture: 2000

Manufacturerx Hyundai Engine & Machinery Co., Ltd.

Propellers

1x Solid propeller (keyless), aft at 94,0 rpm

Boilers

Steam boiler, oil fired / exhaust gas heated - 10,0 bar

Heating surface 106,0 m²
Heating surface 1.360,0 m²

Year of Manufacture: 1999

Manufacturer: Tong Il Boiler Mfg. Co., Ltd.

Electric installations

1x Plant 440/220 V - 2187 kVA
1x Plant 440/220 V - 2875 kVA
1x Plant 440/220 V - 2875 kVA
1x Plant 440 V - 3750 kVA
1x Plant 440 V - 375 kVA
1x Plant 12 V - 200 Ah
1x Plant 24 V - 100 Ah
1x Plant 24 V - 200 Ah
1x Plant 24 V - 200 Ah

Shaft generator

1x 3.000 kW / 3.750 kVA

Generators

2x Daihatsu 8DK-28 main diesel generatorsets each 2.300 kW / 2.875 kVA

1x Daihatsu 6DK-28 main diesel generatorset 1.750 kW / 2.187 kVA

Emergency generator

1x Cummins NTA 855 DM diesel generatorset 375 kVA

Batteries

1x Battery for automation 200 Ah
1x Battery for automation 100 Ah

Compressed air receivers

2x Receivers each 15.000 liters - 30,0 bar
1x Receiver 250 liters - 30,0 bar
1x Receiver 350 liters - 7,7 bar

Bow thruster

1x Transverse thruster 2.100 kW, forward

Tank capacities

Fuel oil: 6.630 m³

Ballast: 19.255 m³

Anchor equipment

3x Anchors weight each 12.900 kg

Length: 715,00 m

Diameter: 87 mm

Cargo gear

Gearless

Crew size

34

Manager

Hapag-Lloyd AG
Hamburg
Germany

Operator

Hapag-Lloyd

Registered owner

Hapag-Lloyd AG

Ballindamm 25

20095 Hamburg
Germany

Latest data adjustment

10 September 2017
