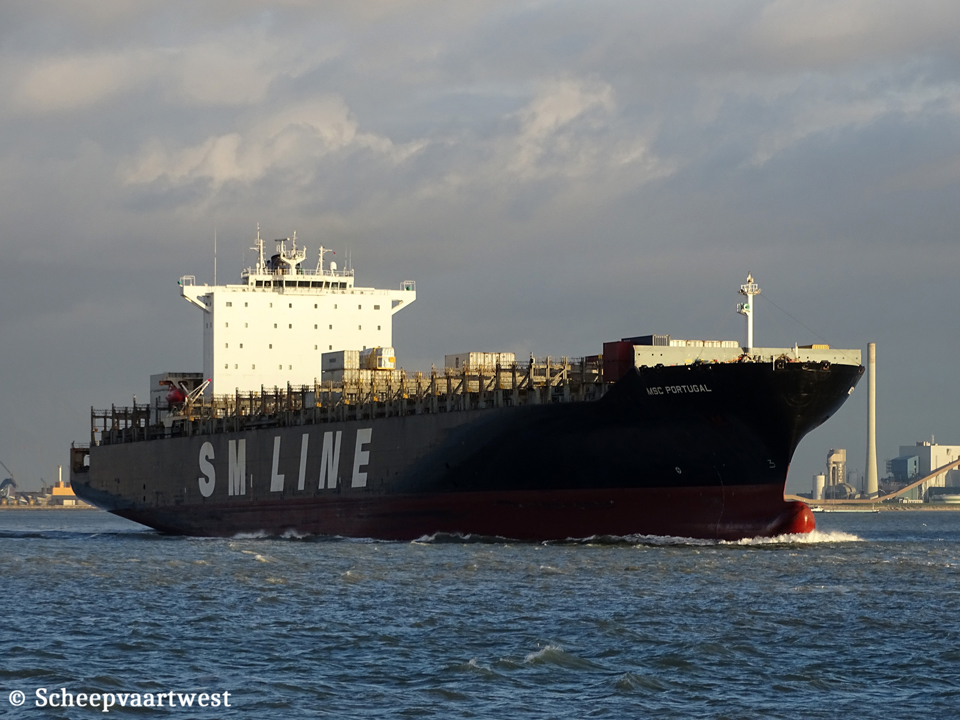

Westerschelde 22 July 2017 |
 |
 |
 |
 |
 |
 |
|||||

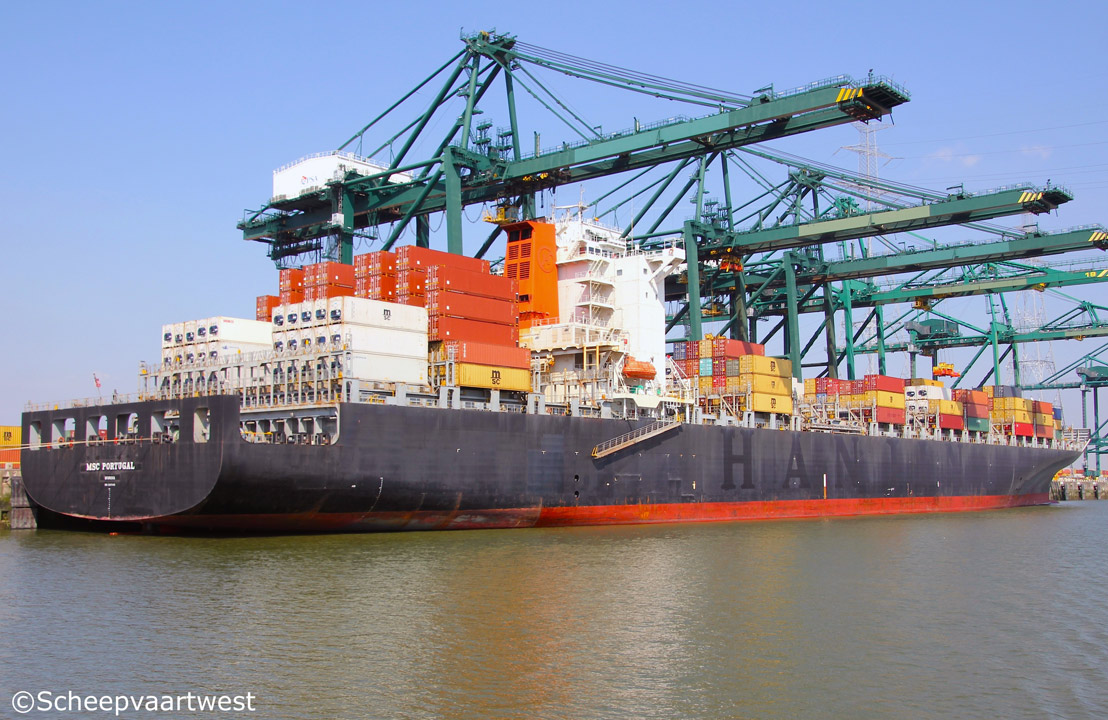

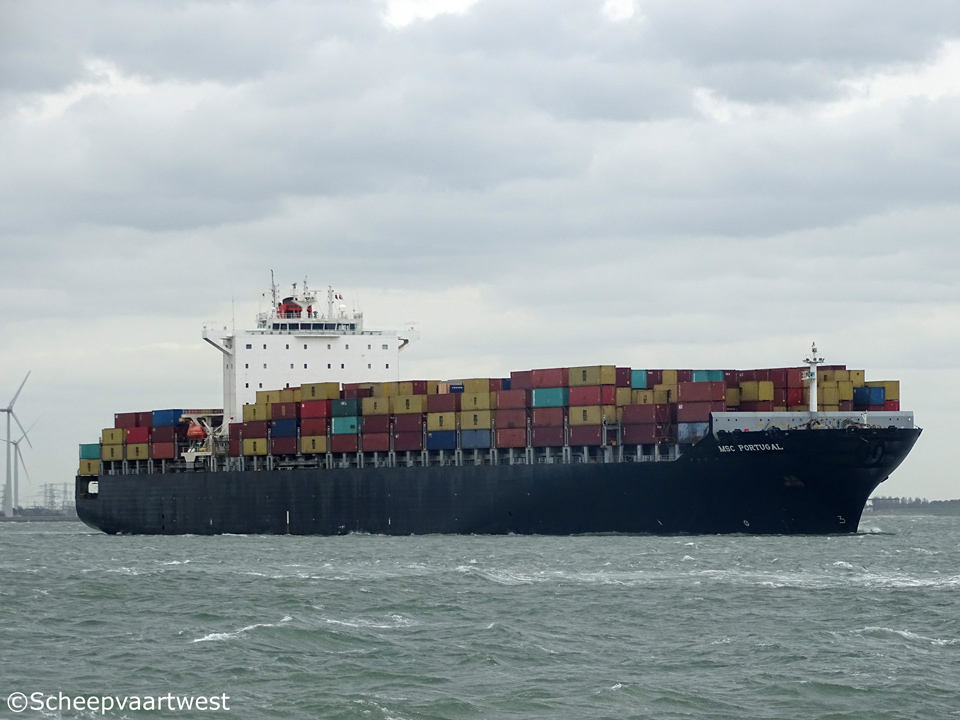

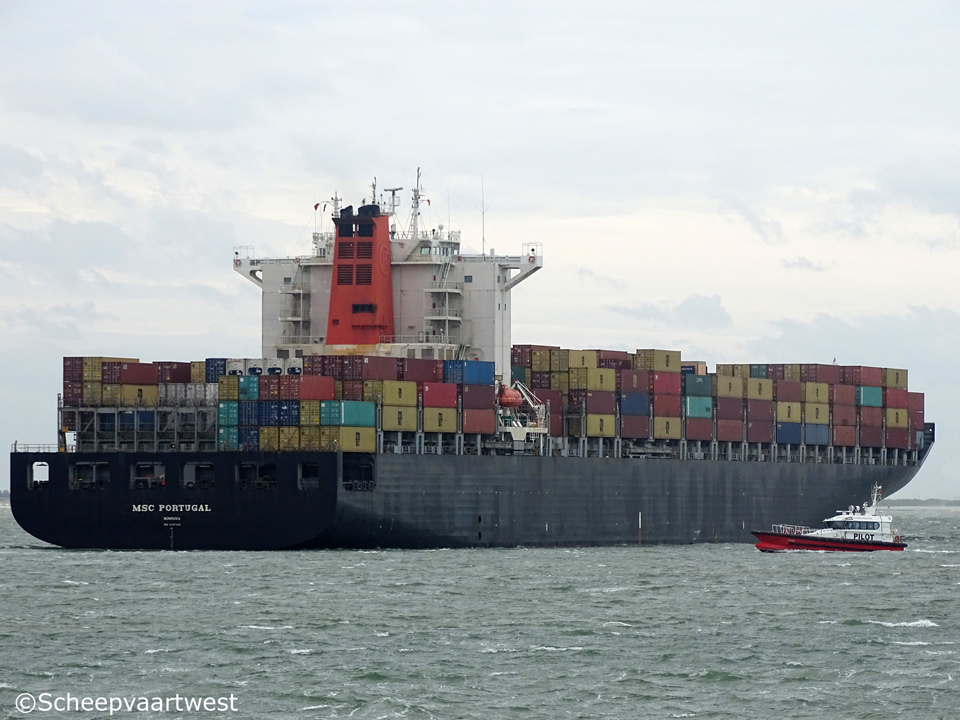

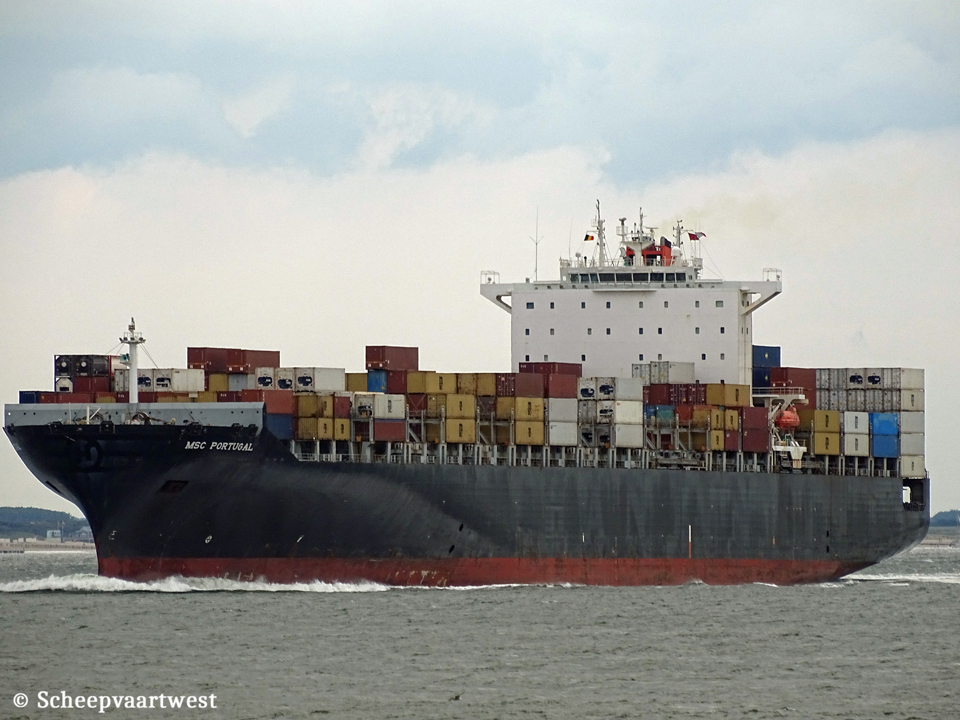

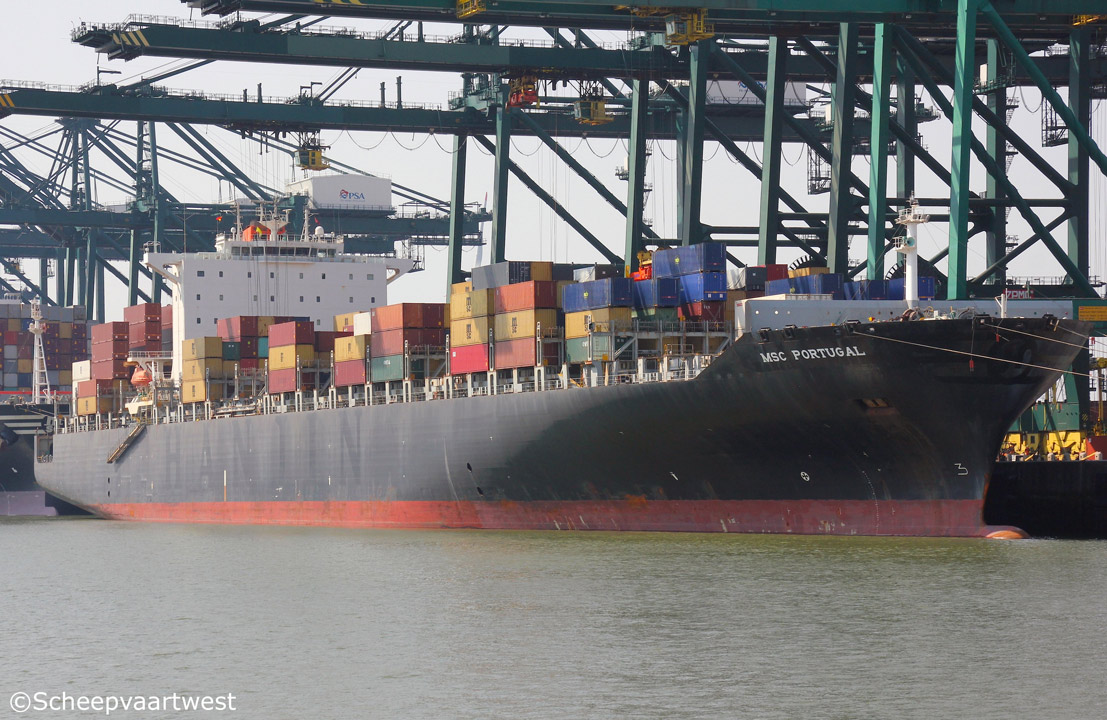

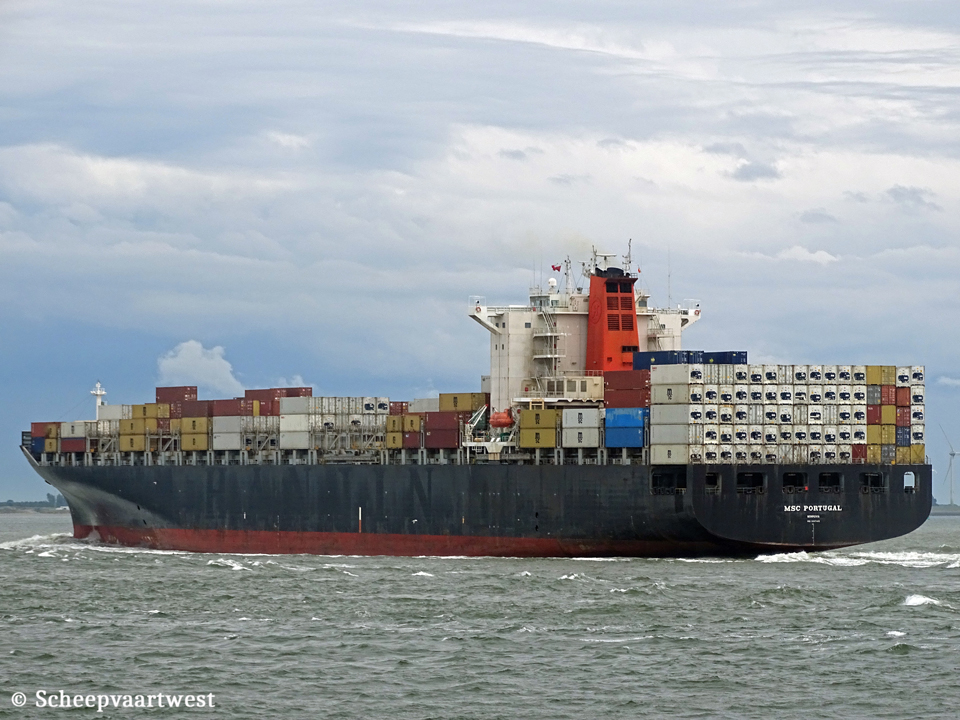

| Westerschelde 22/0717 | Westerschelde 04/10/17 | Westerschelde 04/10/17 | Doel, Belgium 29/08/17 | Doel, Belgium 29/08/17 | Westerschelde 10/12/18 | |||||
|
Name |
MSC PORTUGAL |
|
Previous names |
2008 - 2017 Hanjin Chongqing 2017 - 2017 SM Seattle |
|
Type |
Cellular containership |
|
IMO-number |
9347449 |
|
Call sign |
D5NP7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2008 - 2017 Republic of Panama, Panama City - Call sign: 3EPJ2 |
|
GT |
74.962 t |
|
DWT |
80.855 t |
|
NT |
44.353 t |
|
Number of 20ft containers |
In hold: 3.084 On deck: 3.538 Total: 6.622 |
|
Container capacity 14t |
4.840 |
|
Reefer capacity |
600 |
|
Length |
304,07 m overall |
|
Breadth |
40,00 m |
|
Draught |
14,22 m |
|
Keel to mast end |
59,54 m |
|
Reg. dimensions L x B x D |
294,11 x 40,00 x 20,23 m |
|
Rule dimensions L x B x D |
288,45 x 40,00 x 24,60 m |
|
Freeboard |
Summer: 6.049 mm |
|
Depth |
24,60 m |
|
Speed |
Max.: 26,5 knots |
|
Built |
2008 |
|
Keel laid |
05/11/2007 |
|
Launch date |
11/01/2008 |
|
Date of completion |
29/02/2008 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
HDHI1809 |
|
Hull material |
Steel |
|
Watertight bulkheads |
10x Transverse |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 12RT-Flex96C - 2 stroke single acting 12 cylinder 960 x 2.800 combustion engine 68.640 kW / 93.323 hp at 102,0 rpm Built: 11/2007 Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 102,0 rpm |
|
Boilers |
1x Auxiliary water tube boiler - 8,8 bar Heating surface: 76,0 m² 1x Auxiliary exhaust gas boiler - 11,8 bat Heating surface: 547,7 m² Built: 11/2007 Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
3x MAN-B&W 8L27/38 diesel generatorsets each 2.280 kW 450 Volt |
|
Bow thruster |
1x 2.500 KW / 3.399 bhp |
|
Number of hatches |
8 Hatch 1: 25,20 x 20,43 Hatch 2: 25,20 x 33,19 m Hatch 3,4,5,6,7: 25,20 x35,80 m Hatch 8: 37,80 x 35,80 m |
|
Tank capacities |
Fuel oil: 9.674,4 m³ Fresh water: 700,7 m³ Water ballast: 23.006,1 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
22 |
|
Manager |
Korea Line Corporation |
|
Technical manager |
KLCSM Co., Ltd. |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Korea Tonnage NO.23 Shipping Company |
|
Renamed |
2020 KMTC Mundra Republic of Korea - Call sign: D7UW Manager & owner: Korea Marine Transport Co., Ltd. - South Korea ISM manager: KMTC Ship Management Co., Ltd. - South Korea |
|
Latest data adjustment |
03 September 2021 |
