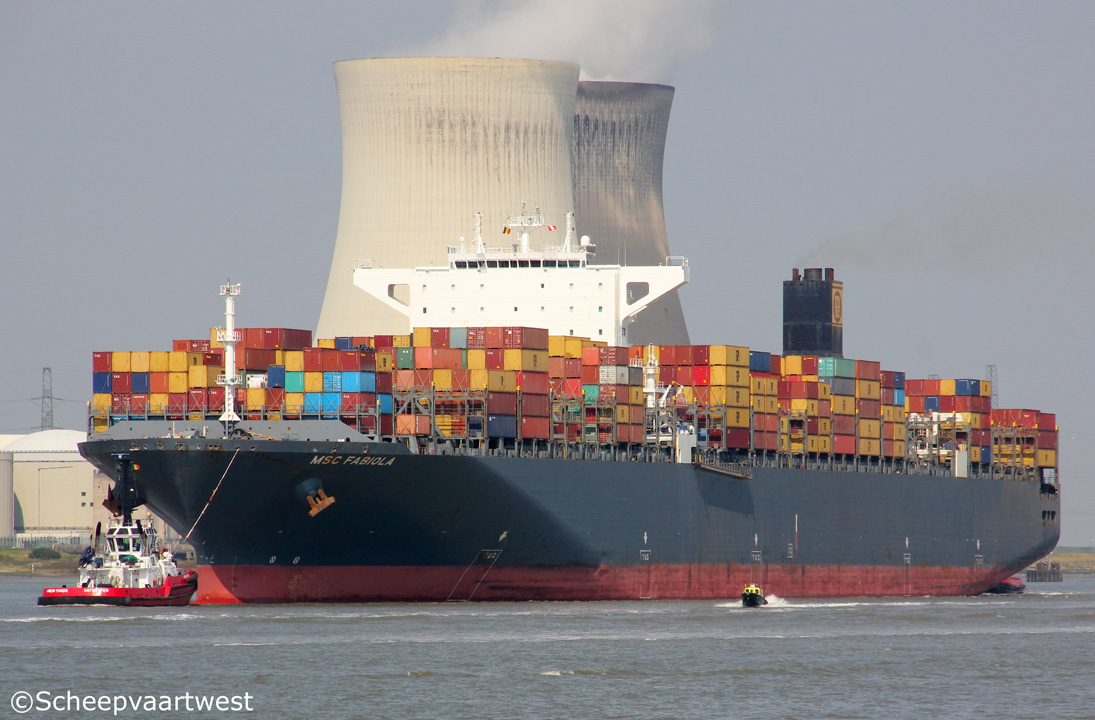

Doel, Belgium 29 August 2017 |
 |
 |
 |
 |
 |
||||

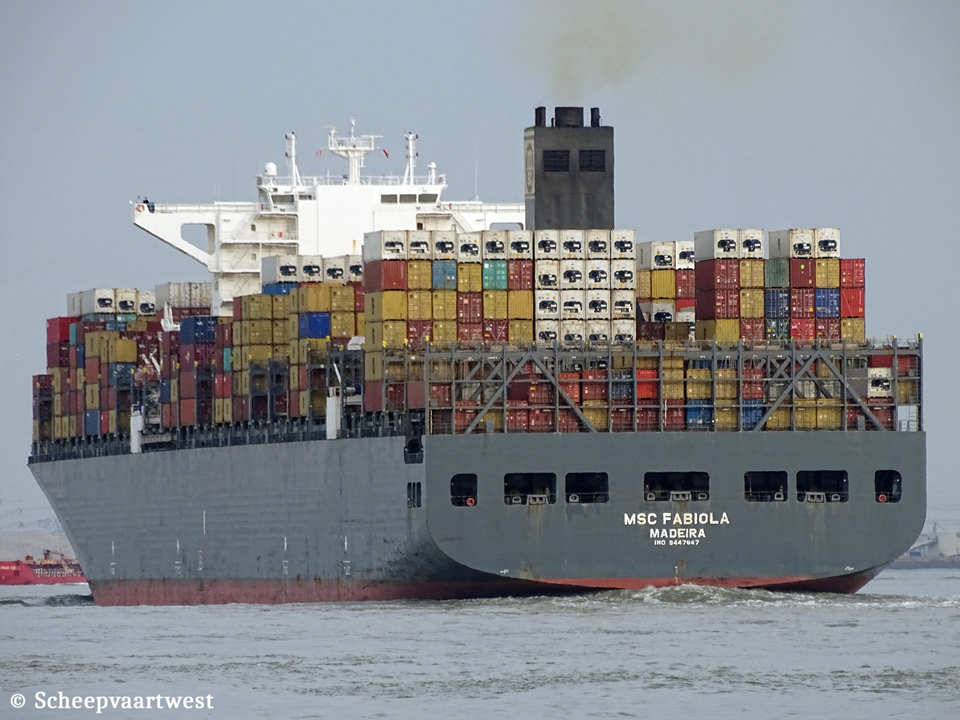

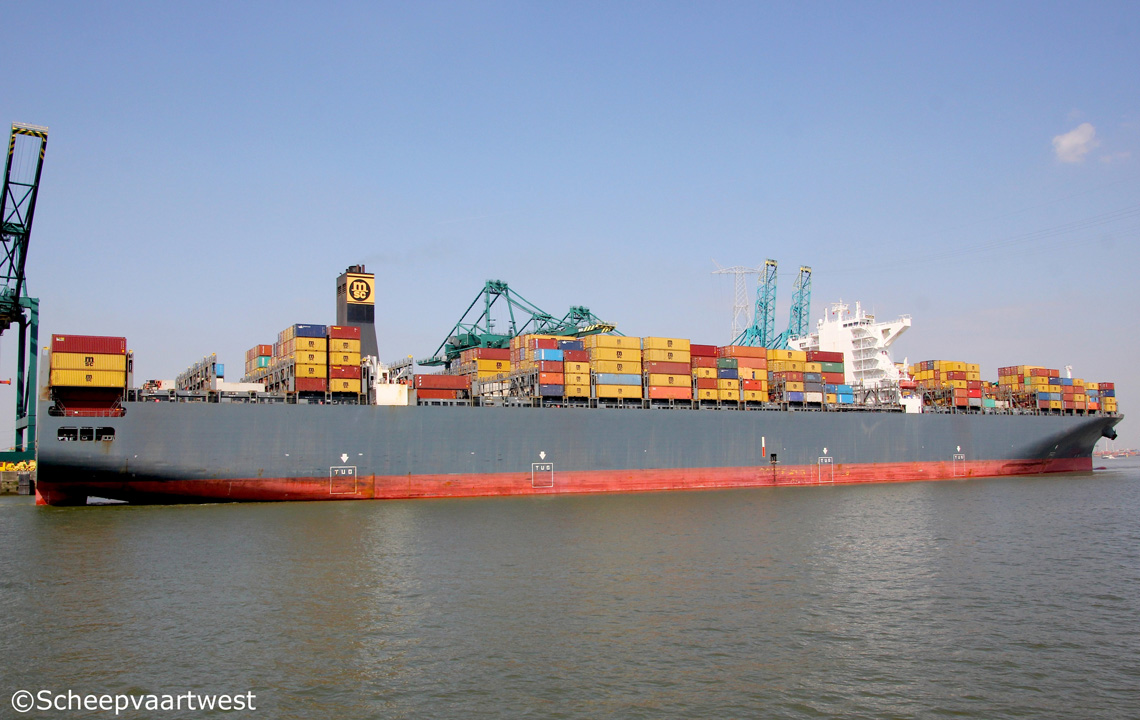

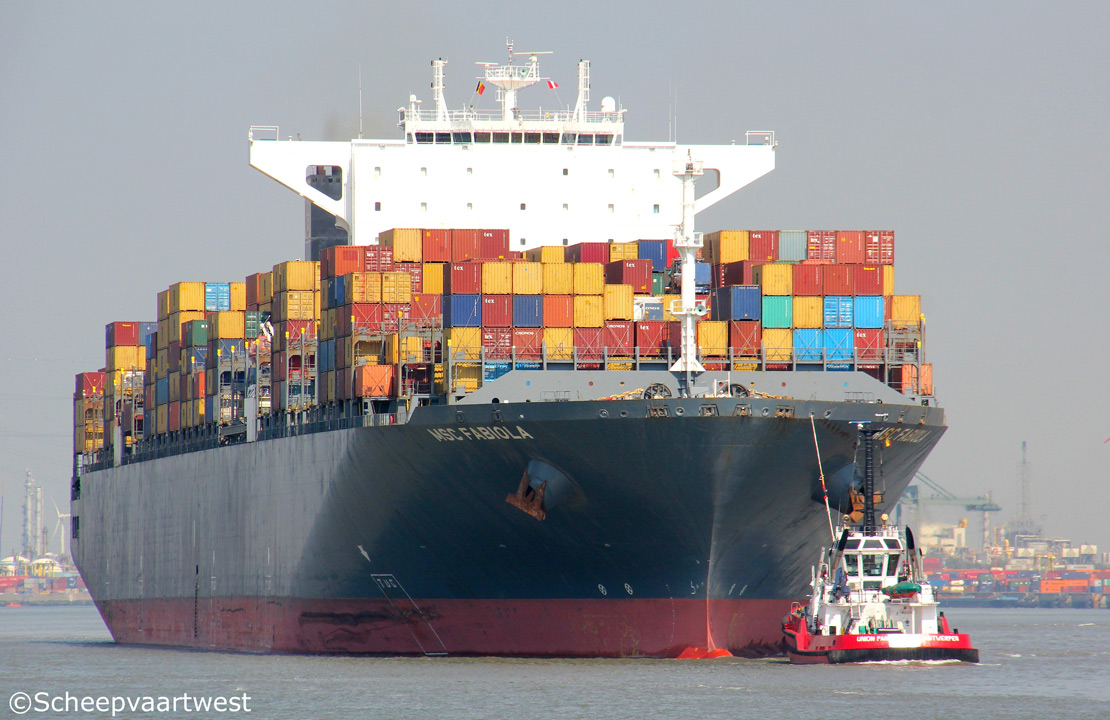

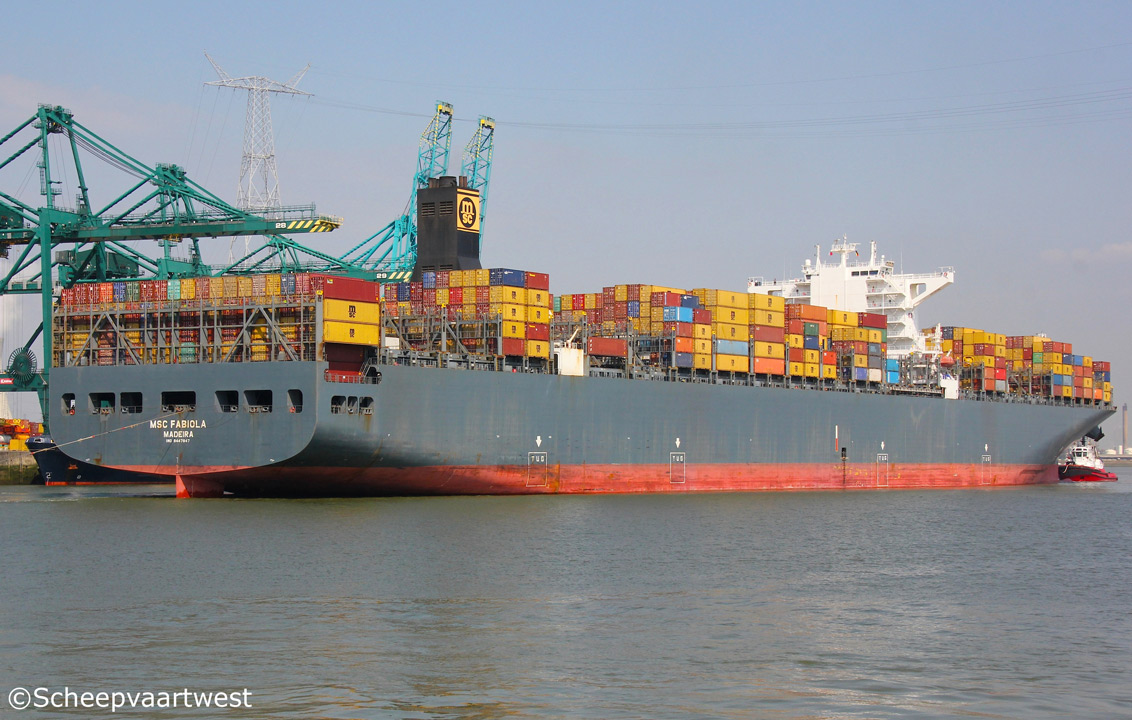

| Doel, Belgium 29/08/17 | Doel, Belgium 29/08/17 | Doel, Belgium 29/08/17 |

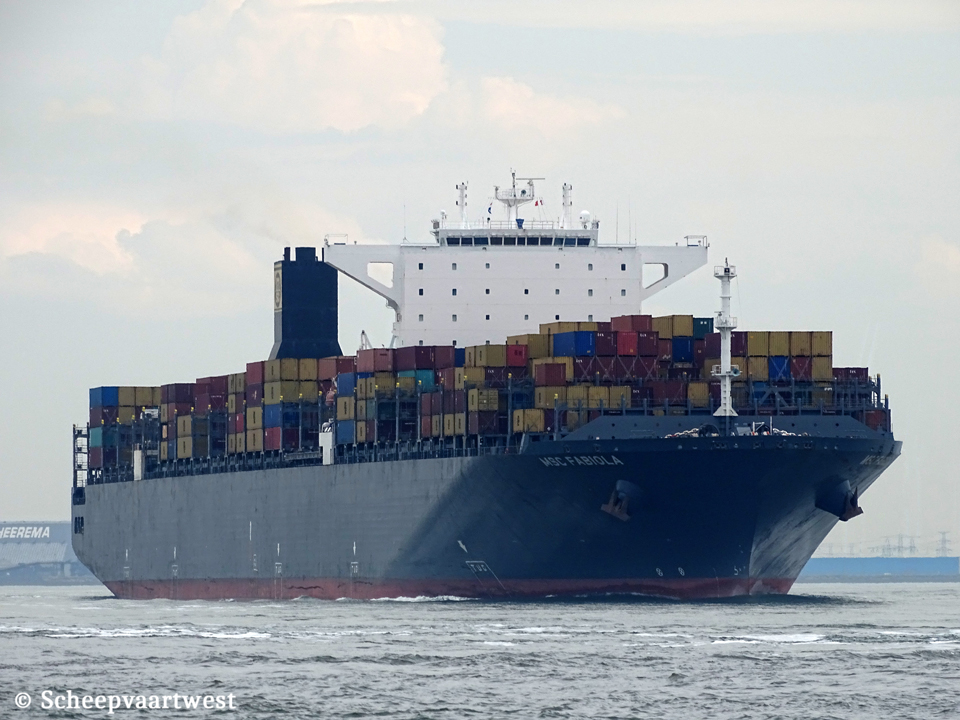

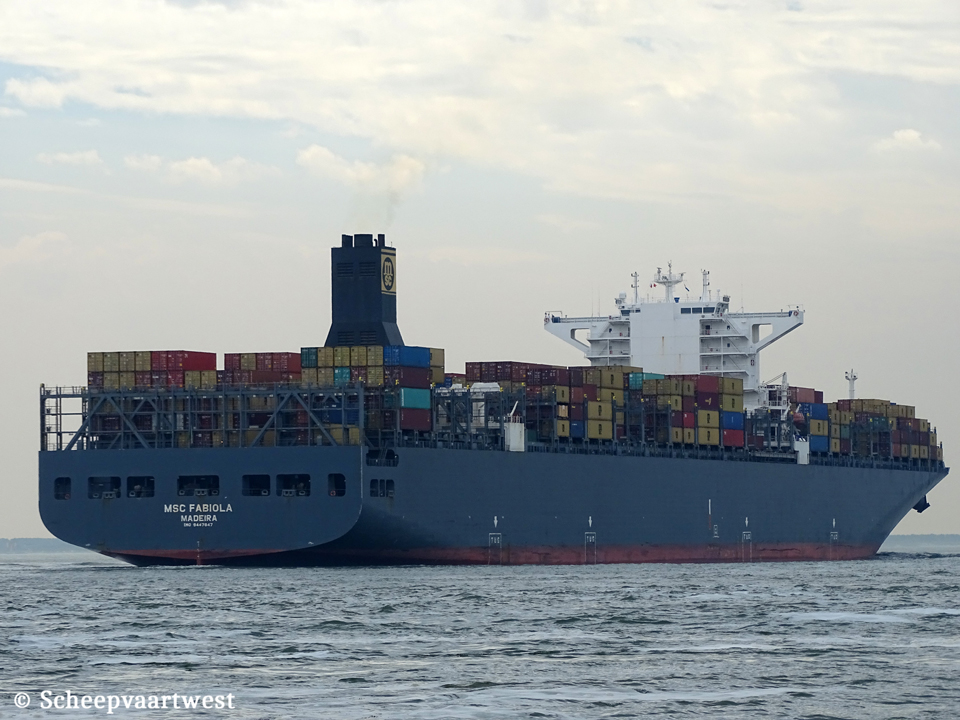

Westerschelde 11/05/17 | Westerschelde 11/05/17 | ||||
|
Name |
MSC FABIOLA |
|
Previous names |
2010 Launch as: Fabiola |
|
Type |
Cellular containership |
|
IMO-number |
9447847 |
|
Call sign |
CQDV |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2010 - 2015 Liberia, Monrovia - Call sign: A8VL5 |
|
GT |
140.259 t |
|
DWT |
Summer: 153.514,2 t |
|
NT |
80.630 t |
|
Number of 20ft containers |
13.371 |
|
Number of 40ft containers |
6.215 |
|
Container capacity 14t |
9.080 |
|
Reefer capacity |
1.000 |
|
Length |
366,08 m overall 350,00 m between perpendiculars |
|
Breadth |
48,23 m extreme |
|
Draught |
16,00 m |
|
Depth |
29,80 m |
|
Speed |
Max.: 25,3 knots |
|
Built |
2010 |
|
Keel laid |
11/01/2010 |
|
Launch date |
01/04/2010 |
|
Date of completion |
29/12/2010 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard 530, Jangpyeong-ri, Sinhyeon-eup Geoje South Korea |
|
Yard number |
1793 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Single hull Partly double bottom |
|
Continuous decks |
2 |
|
Main engine |
1x DOOSAN/MAN-B&W 12K98ME-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW at 104,0 rpm Year of manufacture: 2010 Manufacturer: Doosan Engine Co., Ltd. 18, Gongdanro21-gil, Sungsan-gu Changwon Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 53,7 m² 1x Steam boiler, exhaust gas heated - 8,0 bar Heating surface: 660,0 m² Year of manufacture: 2010 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao People's Republic of China |
|
Electric installations |
2x Plants each 6.600 V - 3.500 kVA 2x Plants each 6.600 V - 4.750 kVA 1x Plant 450 V with 375 kVA 2x Plants each 24 V - 4 Ah 2x Plants each 24 V - 4 Ah 2x Plants each 24 V - 24 Ah 2x Plants each 24 V - 24 Ah 2x Plants each 24 V - 215 Ah 2x Plants each 24 V - 400 Ah 12x Plants each 24 V - 2400 Ah 12x Plants each 24 V - 2400 Ah 1x Plant 24 V Ah 2x Plants each 24 V Ah 2x Plants each 24 V Ah 2x Plants each 110 V - 585 Ah |
|
Generators |
2x MAN 6L32/40 main diesel generatorsets each 2.800 kW / 3.500 kVA 2x MAN 8L32/40 main diesel generatorsets each 3.800 kW / 4.750 kVA |
|
Emergency generator |
1x Cummins NTA855-DM diesel generatorset 375 kVA |
|
Batteries |
12x Batteries for UPS navigation each 2.400 Ah 12x Batteries for UPS radio each 2.400 Ah 2x Batteries for other purpose each 585 Ah 2x Batteries for other purpose each 400 Ah 2x Batteries for start emergency engine each 215 Ah 2x Batteries for other purpose each 24 Ah 2x Batteries for other purpose each 4 Ah 2x Batteries for start emergency engine each 4 Ah |
|
Compressed air receivers |
2x Receivers each 14.500 litres - 32,4 bar 1x Receiver 300 litres - 32,4 bar 1x Receiver 200 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster KAWASAKI - 1.700 kW, aft 1x Transverse thruster KAWASAKI - 1.700 kW, forward |
|
Tank capacities |
Ballast: 37.153,3 m³ |
|
Anchor equipment |
3x Anchors weight each 24.500 kg Length: 770,00 m Diameter: 122 mm |
|
Cargo gear |
Gearless |
|
Crew size |
34 |
|
Manager |
Peter Döhle Schiffahrts-KG Elbchaussee 370 22609 Hamburg Germany |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
MS "FABIOLA" Schiffahrtsgesellschaft mbH & Co. |
|
Renamed |
2019 Madrid Express Portugal, Madeira - Call sign: CQDV Reg. Owner: MS "FABIOLA" Schiffahrtsgesellschaft mbH & Co. KG Manager: Peter Döhle Schiffahrts-KG |
|
Latest data adjustment |
14 April 2020 |
