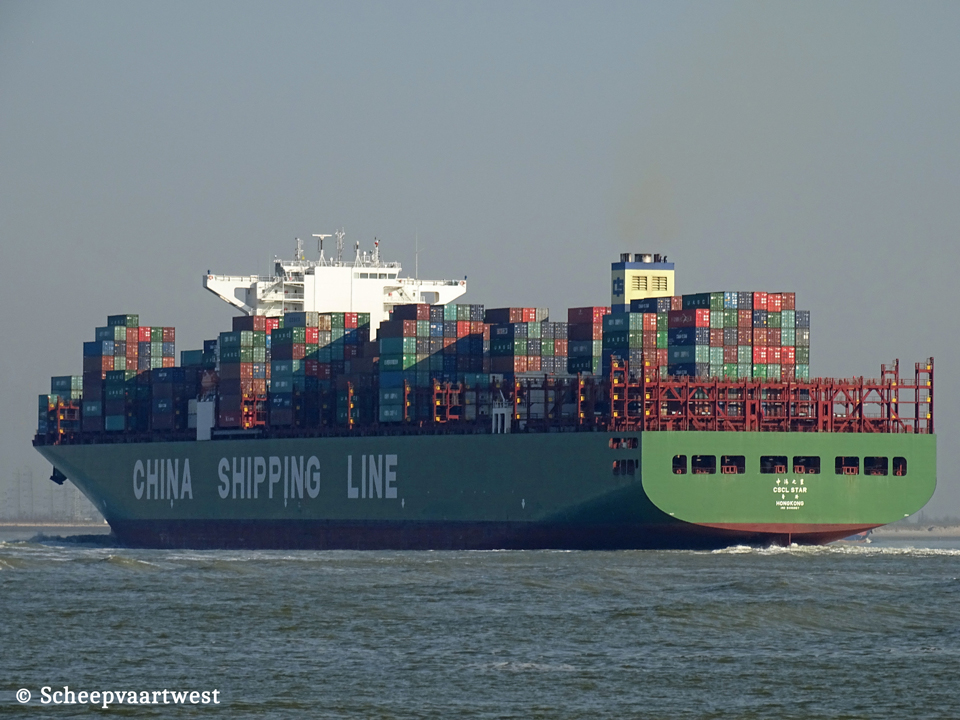

Westerschelde 15 March 2018 |
 |
 |
 |
 |
|||

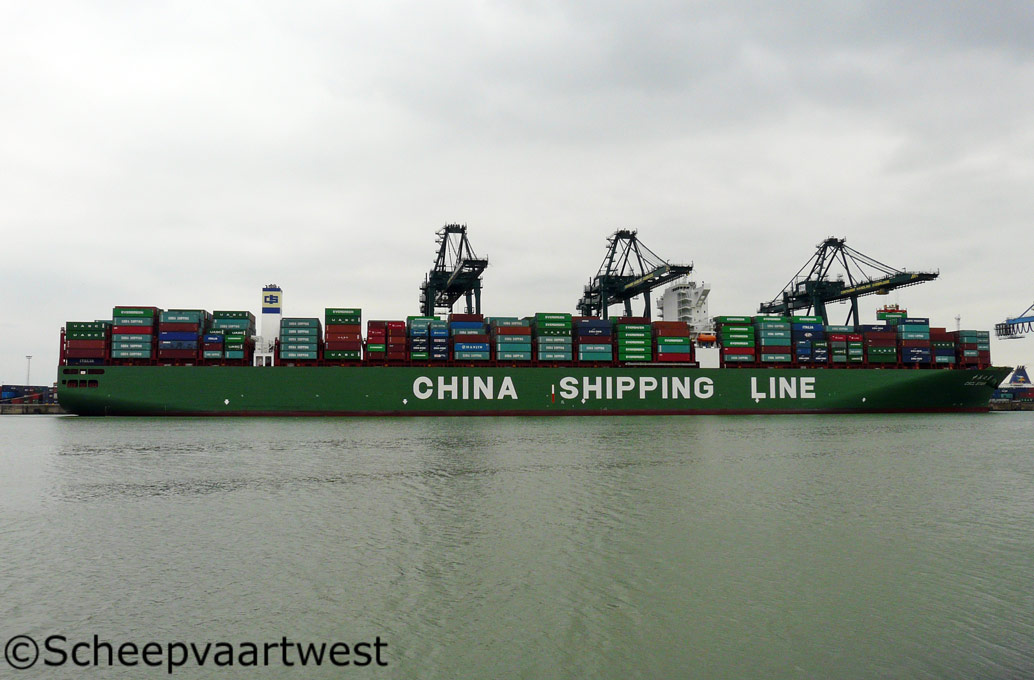

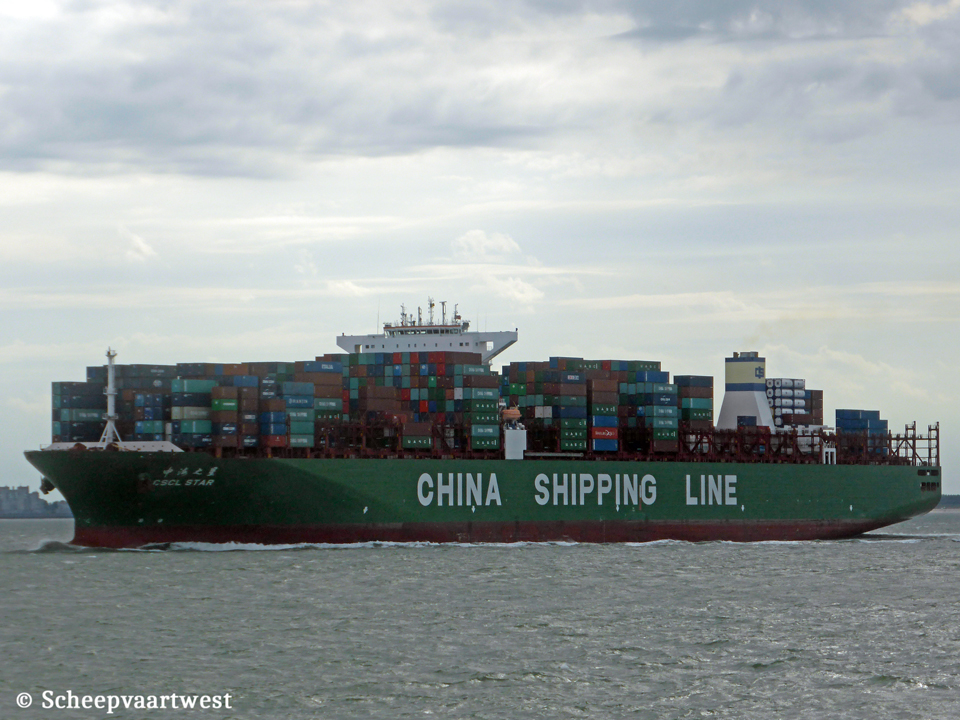

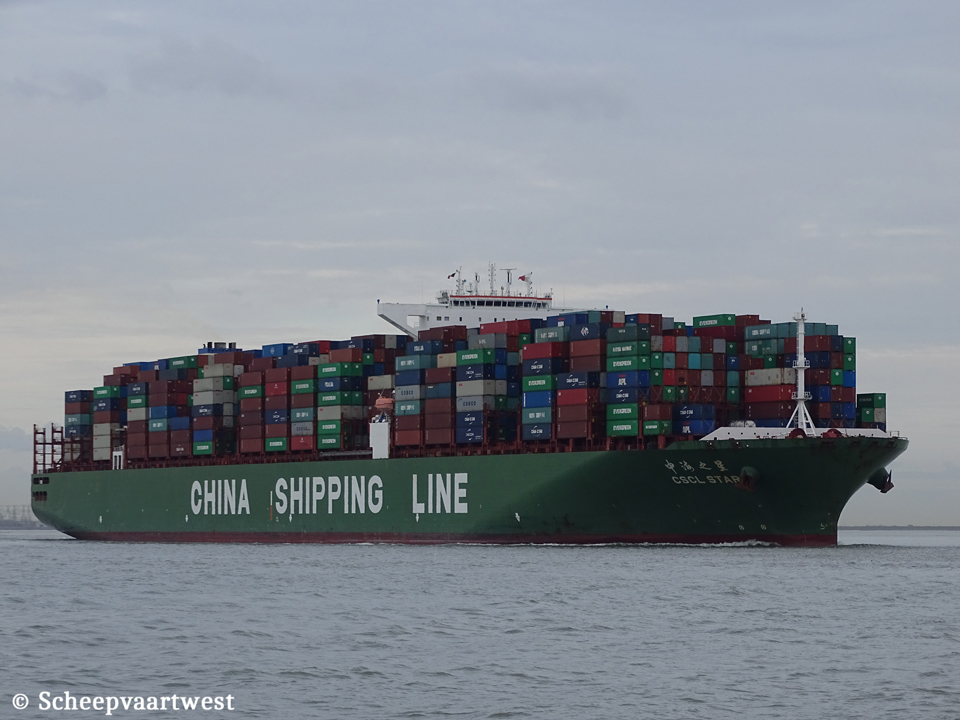

| Westerschelde 05/03/18 | Zeebrugge 18/05/12 | Westerschelde 17/02/16 | Westerschelde 26/08/15 | |||
|
Name |
CSCL STAR |
|
Chinese name |
中海之星 |
|
Type |
Cellular containership |
|
IMO-number |
9466867 |
|
Call sign |
VRHM7 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
151.993 t |
|
DWT |
155.470 t |
|
NT |
80.514 t |
|
Number of 20ft containers |
Deck: 7.658 In hold: 6.416 Total: 14.074 |
|
Container capacity 14t |
10.500 |
|
Length |
366,07 m overall 351,50 m registered |
|
Breadth |
51,20 m registered |
|
Draught |
14,50 m |
|
Forecastle |
175,04 m |
|
Bridge |
164,84 m |
|
Deckhouse |
6,30 m |
|
Poop |
10,20 m |
|
Freeboard |
4.936 mm |
|
Depth |
29,90 m moulded |
|
Speed |
25,10 knots |
|
Built |
2011 |
|
Keel laid |
12/04/2010 |
|
Launch date |
30/06/2010 |
|
Date of completion |
15/01/2011 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard 530, Jangpyeong-ri, Sinhyeon-eup 656-710 Geoje 11 Republic of Korea |
|
Yard number |
1819 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Bulkheads |
10 |
|
Continuous decks |
2 Upper deck & 2nd deck |
|
Main engine |
1x MAN-B&W 12K98MC-C7 - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW at 104,0 rpm Build: 17/05/2010 Year of manufacture: 2010 Manufacturer: Doosan Engine Co., Ltd. 69-3, Sinchon-dong 642-370 Changwon 11 Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104 rpm |
|
Boilers |
Steam boiler, oil fired - 7,85 bar Heating Surface: 75,9 m² Steam boiler, exhaust gas heated - 7,85 bar Heating Surface: 897 m² Year of manufacture: 2010 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) 40, Wongnam-dong Changwon Republic of Korea |
|
Electric installation |
2x Plants 6600 V each 3.500 kVA 2x Plants 6600 V each 4.750 kVA 1x Plant 450 V - 375 kVA 1x Plant 24 V - 8 Ah 2x Plants 24 V each 12 Ah 2x Plants each 24 V - 76 Ah 2x Plants 24 V each 200 Ah 1x Plant 24 V - 300 Ah 2x Plants each 110 V- 405 Ah |
|
Generators |
2x Main diesel generatorsets each 4.750 kVA 2x Main diesel generatorsets each 3.500 kVA |
|
Emergency generator |
1x Diesel generatorset 375 kVA |
|
Batteries |
2x Batteries for automation each 405 Ah 1x Battery for UPS navigation 300 Ah 1x Battery for UPS radio 200 Ah 1x Battery for Start emergency engine 200 Ah 2x Batteries for automation each 76 Ah 1x Battery for other purpose 12 Ah 1x Battery for automation 12 Ah 1x Battery for start emergency engine 4 Ah 1x Battery for start emergency engine 4 Ah |
|
Compressed air receivers |
2x Receivers each 18.000 litres - 30,0 bar 1x Receiver 300 litres - 30,0 bar 1x Receiver 400 litres - 7,0 bar |
|
Bow thruster |
2x Transverse thruster each 1.700 kW, forward |
|
Number of holds |
8 |
|
Hold capacity |
E/R: 72.00 m No.1 cargo hold: 234.00 m³ No.2 cargo hold: 854.00 m³ No.3 cargo hold: 1124.00 m³ No.4 cargo hold: 1176.00 m³ No.5 cargo hold: 1176.00 m³ No.6 cargo hold: 1118.00 m³ No.7 cargo hold: 662.00 m³ |
|
Hatch & Scantling |
5x 12,64 x 46,14(F) / 12,64 x 46,14(M) / 12,64x46,14(A) 1x 12,64 x 40,782(F) / 12,64 x 46,14(M) / 12,64 x46,14(A) 1x 12,64 x 30,69(F) / 12,64 x 35,736(A) 1x 12,60 x 46,14 |
|
Tank capacities |
Ballast: 43.764 m³ |
|
Anchor equipment |
3x Anchors weight each 26.000 kg Chain length: 770,00 m |
|
Cargo gear |
None |
|
Crew |
29 |
|
Crew size |
31 |
|
Manager |
Shanghai Ocean Shipping Co., Ltd. 1555 Changyang Rd, Yangpu District Shanghai China |
|
Operator |
CSCL - China Shipping Container Line |
|
Registered owner |
CSCL Star Shipping Co., Ltd. 59/F., One Island East 18 Westlands Road, Island East Hong Kong Hong Kong Special Administration Region of P.R. China |
|
Latest data adjustment |
04 February 2021 |
