| Westerschelde 24 April 2017 |
 |
|
| Zeebrugge 25/08/11 | |
|
Name |

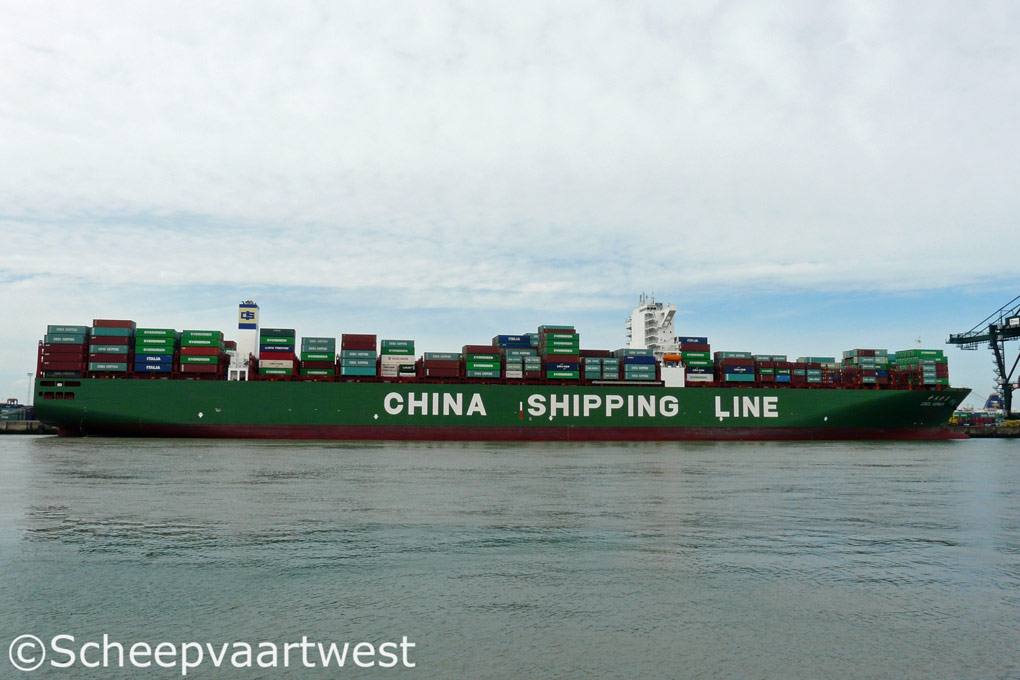

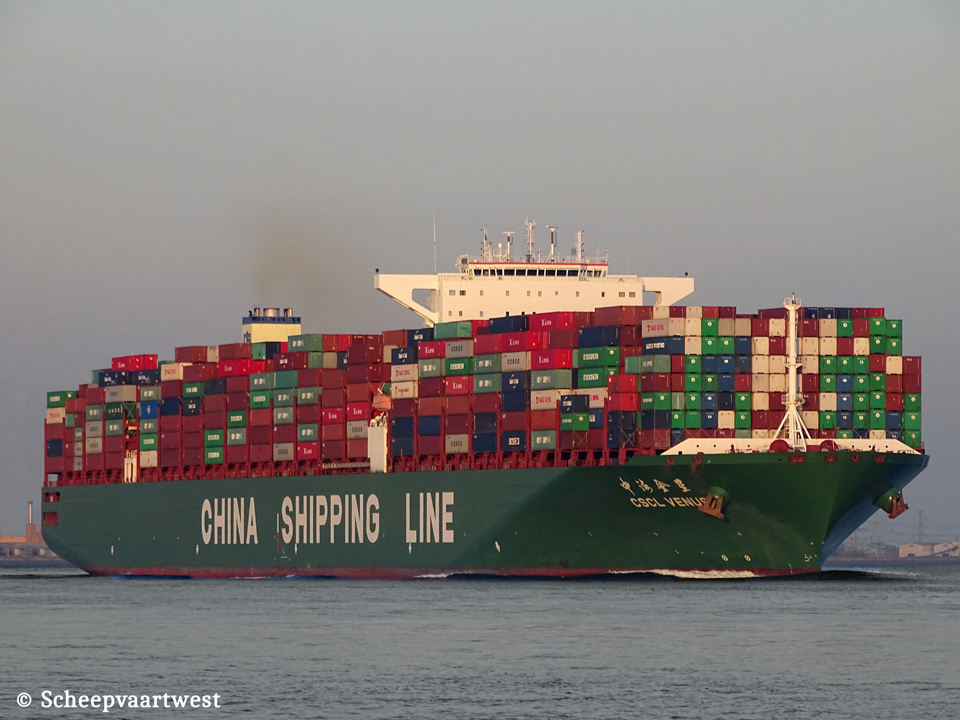

CSCL VENUS |
|
Chinese name |
中海金星 |
|
Type |
Cellular containership |
|
IMO-number |
9467251 |
|
Call sign |
VRIE8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
150.853 t |
|
DWT |
155.470 t |
|
NT |
80.514 t |
|
Number of 20 ft containers |
On deck: 7.658 In hold: 6.416 Total: 14.074 |
|
Container capacity 14t |
10.500 |
|
Reefer point |
1.000 |
|
Length |
366,07 m overall 351,50 registered |
|
Breadth |
51,20 m |
|
Draught |
Summer: 15,50 m |
|
Deckhouse |
6,30 m |
|
Freeboard |
4.936 mm |
|
Depth |
29,90 m moulded |
|
Speed |
25,1 knots |
|
Line |
China Shipping |
|
Built |
2011 |
|
Keel laid |
19/07/2010 |
|
Launch date |
19/09/2010 |
|
Date of completion |
29/04/2011 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co., Ltd. Geoje South Korea |
|
Yard number |
1820 |
|
Hull material |
Steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
10 |
|
Continuous decks |
2 Upper deck & 2nd deck |
|
Main engine |
Doosan/MAN-B&W 12K98MC-C7 - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW / 98.216 bhp at 104,0 rpm Build: 2010 Manufacturer: Doosan Engine Co., Ltd.,Changwon - Republic of Korea |
|
|
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Thrusters |
2x Transverse thruster each 1.700 kW, forward |
|
Electric Installations |
1x Plant 6.600 V - 3.500 kVA 1x Plant 6.600 V - 3.500 kVA 1x Plant 6.600 V - 4.750 kVA 1x Plant 6.600 V - 4.750 kVA 1x Plant 450 V - 375 kVA 1x Plant 24 V - 8 Ah 3x Plants each 24 V - 36 Ah 2x Plants each 24 V - 76 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah 2x Plants each 110 V - 360 Ah |
|
Generators |
2x Main generators each 4750 kVA 2x Main generators each 3500 kVA |
|
Emergency generator |
1x Diesel generatorset 375 kVA |
|
Batteries |
2x Batteries for automation each 360 Ah 1x Battery for UPS navigation 300 Ah 1x Battery for UPS radio 200 Ah 1x Battery for Start emergency engine 200 Ah 2x Batteries for automation each 76 Ah 3x Batteries for automation each 36 Ah 1x Battery for start emergency engine 4 Ah 1x Battery for start emergency engine 4 Ah |
|
Boiler |
1x Steam boiler, oil fired - 7,85 bar Heating surface: 75.9 m² 1x Steam boiler, exhaust gas heated - 7,85 bar Heating surface: 897,0 m² Build: 2010 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Compressed air receivers |
2x Receivers each 18.000 litres - 30,0 bar 1x Receiver 300 litres - 30,0 bar 1x Receiver 400 litres - 7,0 bar |
|
Number of holds |
8 |
|
Tank capacities |
Ballast: 45.764 m³ |
|
Anchor equipment |
3x Anchors weight each 26.000 kg Chain length 770,00 m |
|
Crew size |
31 |
|
Commercial manager |
CSCL - China Shipping Container Line 450, Fushan Lu, Pudong Xinqu Shanghai, 200122 China |
|
ISM manager |
China International Ship Management Co., Ltd. 6th Floor, China Development Bank Tower, 500, Pudong Nanlu, Pudong Xinqu Shanghai, 200120 China |
|
Operator |
Shanghai Ocean Shipping Co.,Ltd. |
|
Registered owner |
CSCL Venus Shipping Co., Ltd. Care of China Shipping Container Lines Co., Ltd. 450, Fushan Lu, Pudong Xinqu Shanghai, 200122 China |
|
Latest data adjustment |
04 April 2023 |
