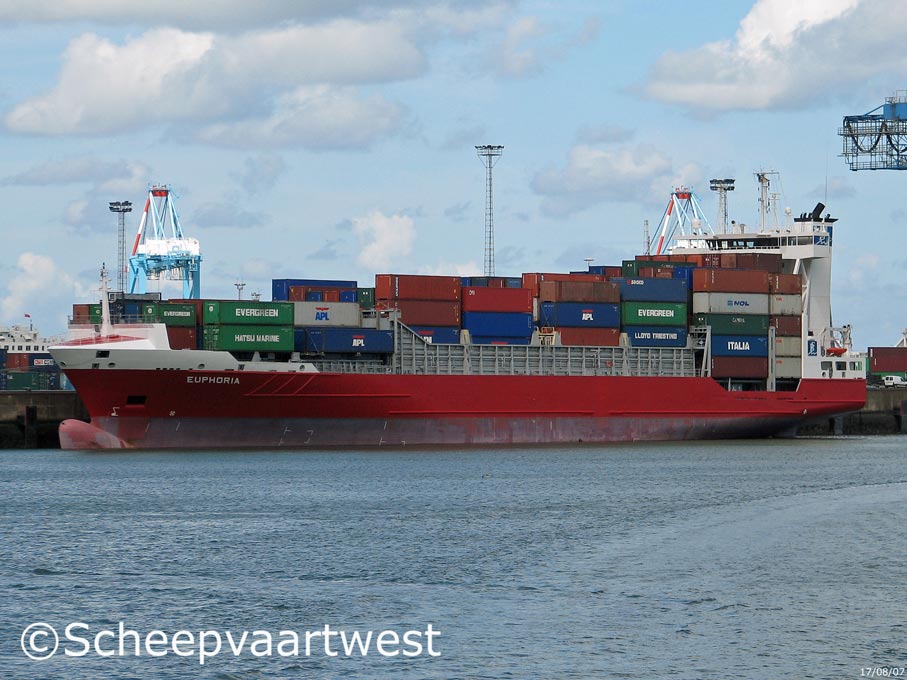

Euphoria - IMO 9354404

Name

EUPHORIA

Type

Cellular containership

IMO-number

9354404

Call sign

V2CB7

Flag

2006-14.04.2009 Antigua & Barbuda

GT

9.962 t

DWT

Summer:11.432 t

NT

6.006 t

Number of 20ft containers

868

Container cap. at 14t

516

Reefer plug

150 - 400 Volt / 50 Hz

Length

134,44 m overall
124,41 m between perpendiculars

125,08 m registered

Breadth

22,74 m over all
22,50 m moulded

Draught

Summer: 8,70 m

Bridge

28,85 m

Poop

9,45 m

Forecastle

62,54 m

Freeboard

3.000 mm

Depth

11,30 m

Speed

18,5 knots at design draught

Built

2006

Keel laid

08.12.2004

Launch date

09.06.2006

Date of completion

10.08.2006

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fahrdiech 88
21129 Hamburg
Germany

Yard number

1239

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MaK 9 M 43 - 4 stroke single acting 9 cylinder 430 x 610 mm medium speed diesel engine with reduction gear - 8.400 kW at 500 rpm

Year of manufacture: 2006

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Number of screws

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, oil fired - 10,0 bar
Heating surface: 45,4 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 183,0 m²

Year of manufacture: 2006

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

1x 400/230 V - 2.545 kVA

1x 400 V - 1.860 kVA

1x 400 V - 400 kVA

1x 400 V - 192 Ah

1x 24 V - 560 Ah

Shaft generator

1.860 kVA / 1.488 kW

Generators

1x Main diesel generatorset - 1.390 kVA / 1.112 kW

1x Main diesel generatorset - 1.155 kVA / 1.443,75 kW

Emergency generator

1x diesel generatorset 400 kVA

Batteries

2x Batteries for Start emergency engine each 280 Ah

Compressed air receivers

2x Receivers, each 750 litres - 30,0 bar

Bow thrusters

1x Transverse thruster - 750 kW, forward

1x Transverse thruster - 450 kW, aft

Cargo gear

None

Tank capacity

Fuel oil: 861 t
Gas oil: 113 t

Water ballast: 4.030 t

Freshwater: 129 t

Anchor equipment

3x Anchors weight each 5.250 kg

Chain length: 577,50 m

Crew size

19

Manager

Reederei Foroohari Beteiligungsgesellschaft mbH
An der Werft 2
21680 Stade
Federal Republic of Germany

Operator

Evergreen

Owner

MS "EUPHORIA" Foroohari Schiffahrts GmbH & Co. KG
Ottenbecker Damm 15
21684 Stade
Federal Republic of Germany

Note

14.04.2009 Flag: Gibraltar

Call sign: ZDJE5

Port of registry: Gibraltar
