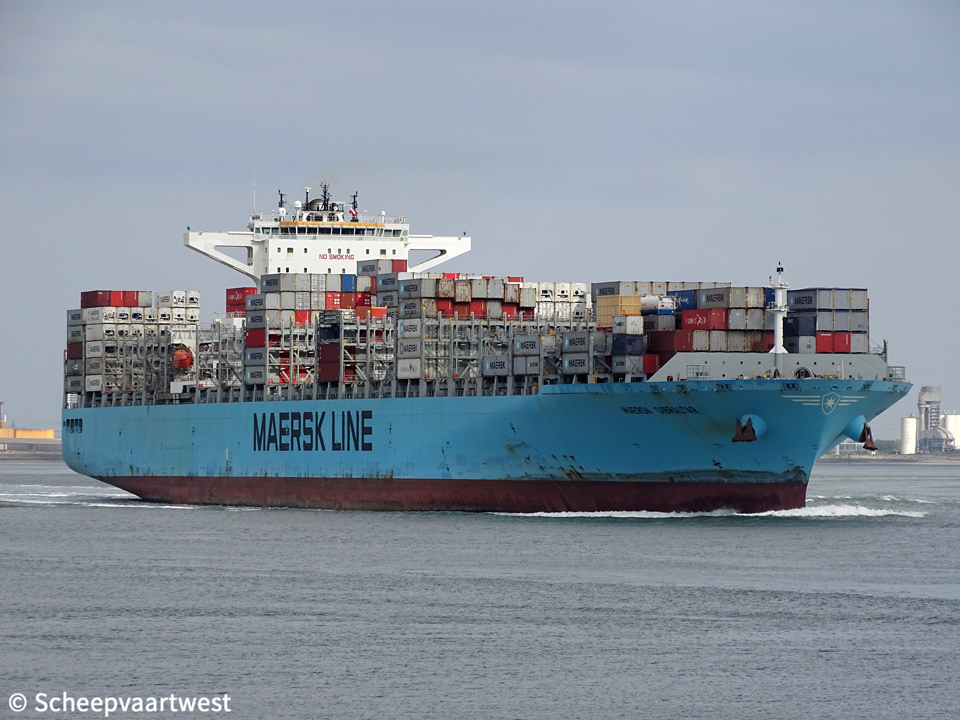

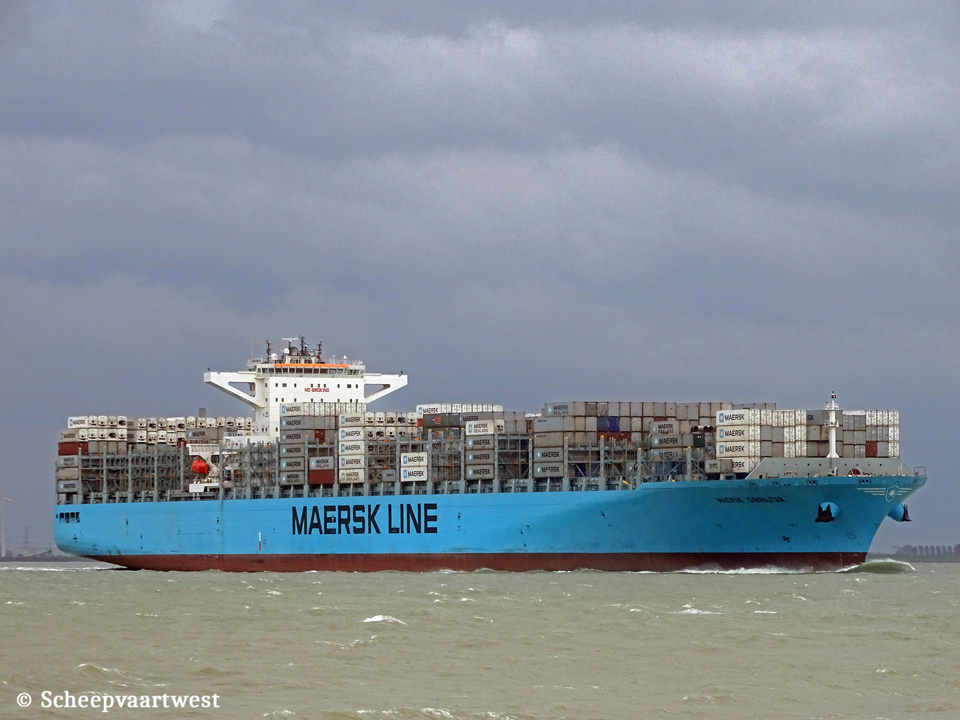

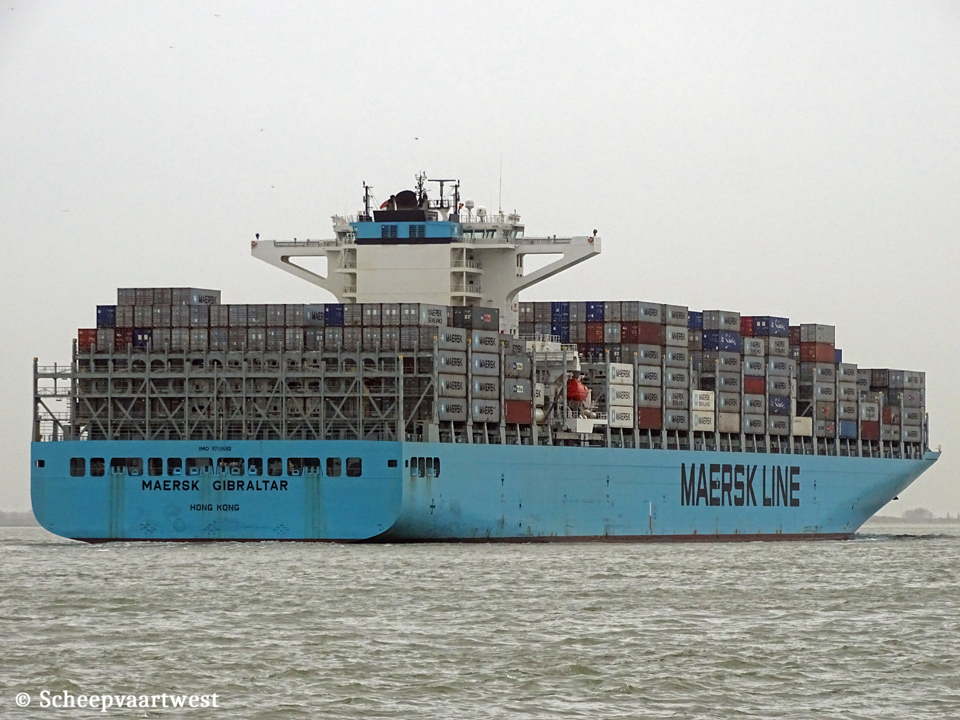

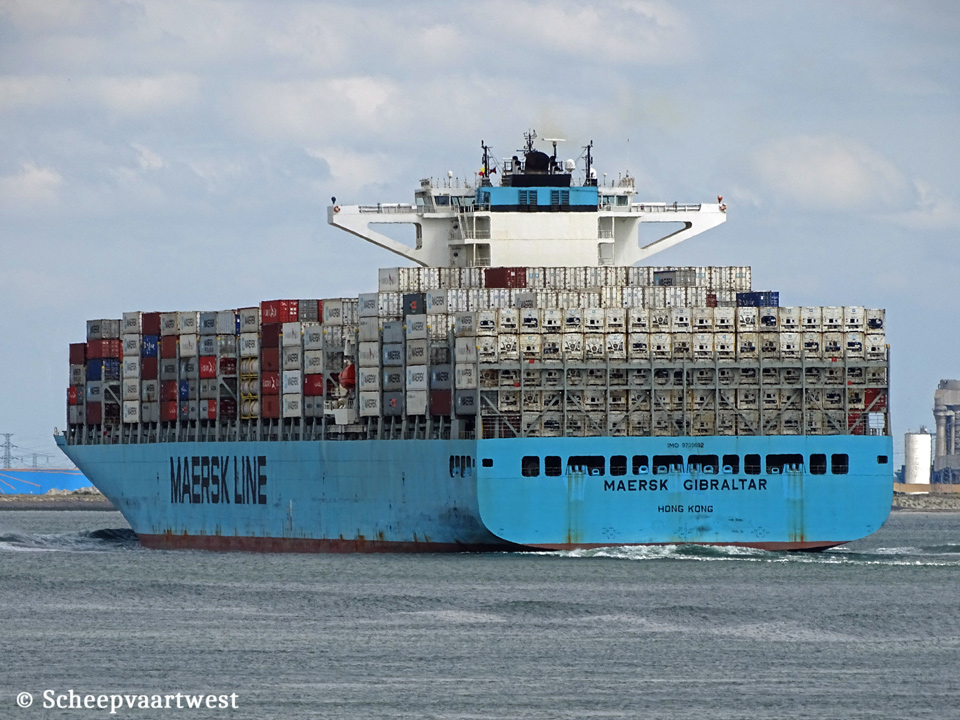

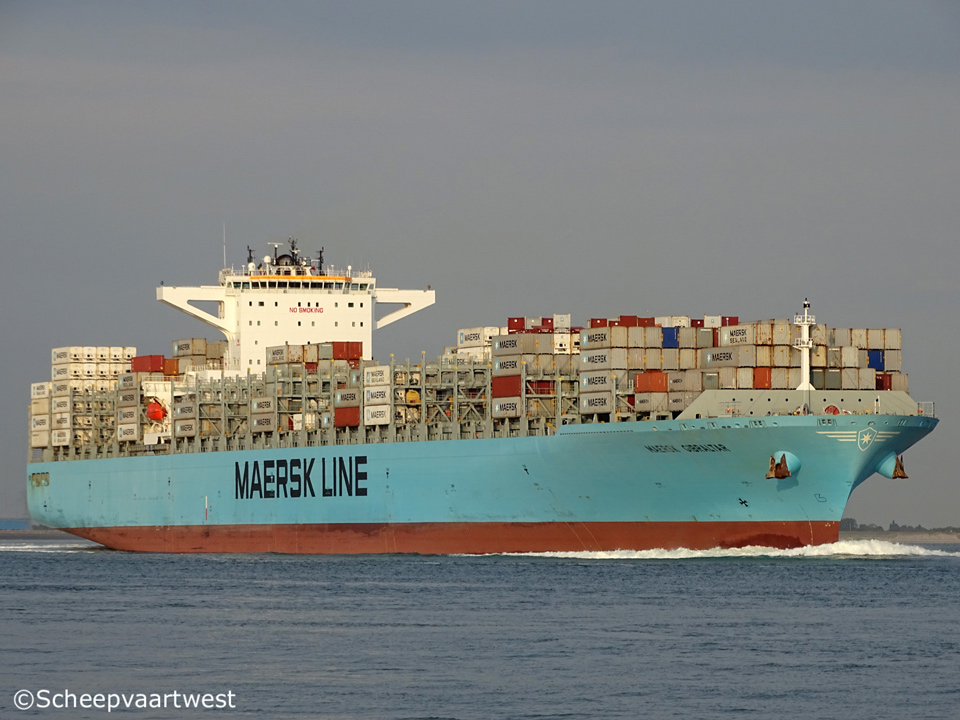

Maersk Gibraltar - IMO 9739692

Westerschelde 04 April 2020

Name

MAERSK GIBRALTAR

Type

Cellular containership

IMO-number

9739692

Call sign

VRPN6

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

113.042 t

DWT

119.130 t

NT

59.440 t

Number of 20ft containers

10.100

Container capacity 14t

8.060

Reefer capacity

1.000

Length

336,96 m overall

320,34 m between perpendiculars

Breadth

48,31 m extreme

48,20 m moulded

Draught

15,52 m

Depth

27,20 m

Speed

Service: 23,0 knots

Built

2016

Keel laid

27/06/2014

Launch date

02/06/2016

Date of completion

24/11/2016

Builder

Jiangsu Yangzi Xinfu Shipbuilding Co Ltd.

Jingjiang JS

China

Yard number

YZJ2014-1121

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W 10S90ME-C9.2 - 2 stroke single acting 10 cylinder 900 x 3.260 mm combustion engine 58.116 kW / 79.015 bhp at 84,0 rpm

Propellers

1x Fixed pitch propeller, mono-block - aft at 84,0 rpm

6 blades

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Manufacturer: ALfa laval Aalborg

Generators

2x Daihatsu 8DC-32 -4 stroke 8 cylinder 320 x 400 mm diesel engines each 4.000 kW connected with generator each 3.900 kW

2x Daihatsu 6DC-32 4 stroke 6 cylinder 320 x 400 mm diesel engines each 3.300 kW connected with generator each 3.200 kW

Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Factory

Emergency generator

1x Doosan 180 diesel generatorsets

Manufacturer: Doosan Infracore Co., Ltd.

Bow thruster

1x 2.410 kW / 3.277 bhp

Tank capacities

Ballast: 31.530,1 m³

Anchor equipment

Length: 770,00 m

Diameter: 114 m

Cargo gear

Gearless

Manager

Seaspan Ship Management Ltd.

Suite 2600, 200, Granville Street

Vancouver BC V6C 1S4

Canada

Registered owner

GC Intermodal XX Ltd.

Charterer

Maersk

Latest data adjustment

25 June 2020
