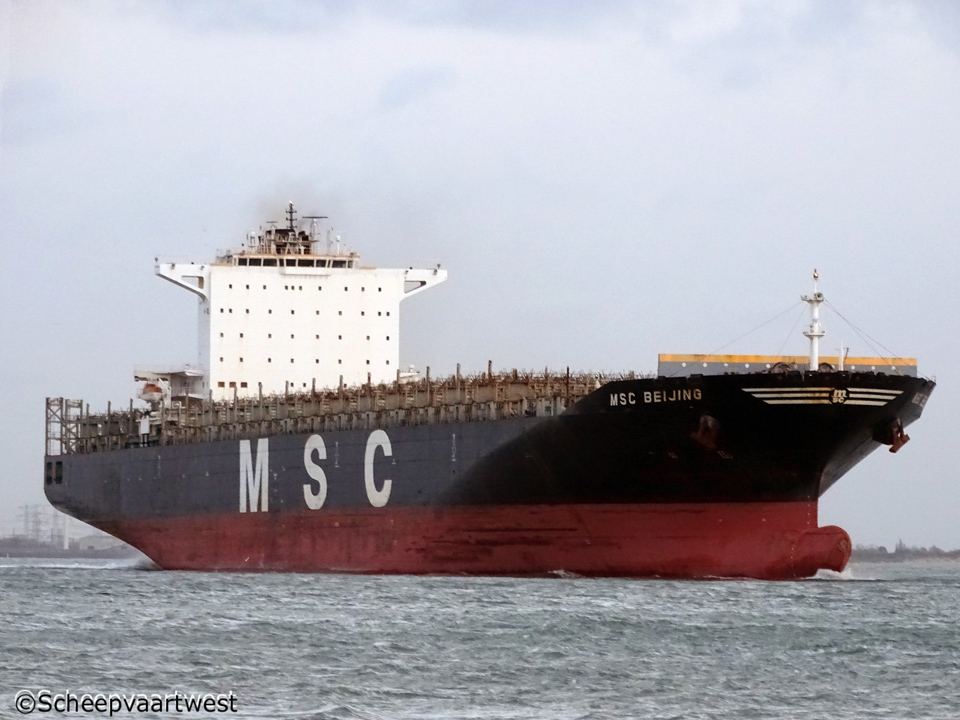

MSC Beijng 01

Westerschelde 10 November 2017



Name

MSC BEIJNG

Type

Cellular containership

IMO-number

9289099

Call sign

DFDE2

Flag

Germany

Port of registry

2009 - 2013 Liberia, Monrovia

2013 -2016 Malta, Valletta

GT

89.954 t

DWT

Summer: 105.034,7 t

NT

54.268 t

Number of 20ft containers

8.034

Container capacity 14t

6.275

Reefer capacity

550

Length

324,89 m overall

309,20 m between perpendiculars

Breadth

42,80 m extreme

Draught

14,50 m

Forecastle

61,97 m

Bridge

233,06 m

Depth

24,60 m

Speed

Max: 25,4 knots

Built

2005

Keel laid

11/07/2005

Launch date

12/12/2005

Date of completion

14/12/2005

Builder

Hanjin Heavy Industries & Construction Co., Ltd.

Busan

South Korea

Yard number

N-132

Hull material

Steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Wärtsilä-Sulzer 12RTA96C-B - 2 stroke 12 cylinder 960 x 2.500 mm combustion engine 68.640 kW at 102,0 rpm

Transmission: Main propulsion acts directly on the propellershaft

Starter yype: Compressed air direct

Built: 2005

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 102,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 95,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bat

Heating surface: 393,0 m²

Year of Manufacture: 2005

Manufacturer: Alfa Laval Qingdao Ltd.

Electric installations

1x Plant 450/ 230 V - 2.812,5 kVA

1x Plant 450/ 230 V - 2.812,5 kVA

1x Plant 450/ 230 V - 2.812,5 kVA

1x Plant 450/ 230 V - 2.812,5 kVA

1x Plant 450 V - 625 kVA

2x Plants each 12 V - 40 Ah

Generators

4x MAN 8L27/38 main diesel generatorsets each 2.250 kW / 2.812,5 kVA

Emergency generator

1x Cummins VTA 28-D(M) diesel generatorset 625 kVA

Batteries

1x Battery for UPS radio 200 Ah
1x Battery for start emergency engine 200 Ah

Compressed air receivers

2x Receivers each 16.800 litres - 33,0 bar
1x Receiver 500 litres - 33,0 bar
1x Receiver 250 litres - 8,8 bar
1x Receiver 250 litres - 7,7 bar

Bow thruster

1x Transverse thruster 2.600 kW, forward

Anchor equipment

3x Anchors weight each 18.800 kg

Length: 742,50 m

Diameter: 107 mm

Cargo gear

Gearless

Manager

Reederei Claus-Peter Offen (GmbH & Co.) KG

CPO Containerschiffreederei (GmbH & Co.)
Bleichenbruecke 10
20354 Hamburg
Germany

Operator

MSC - Mediterranean Shipping Company

Registered owner

Santa Laurentia Shipping Corp.
Care of Reederei Claus-Peter Offen GmbH & Co KG

Bleichenbruecke 10
20354 Hamburg
Germany

Latest data adjustment

23 May 2018
