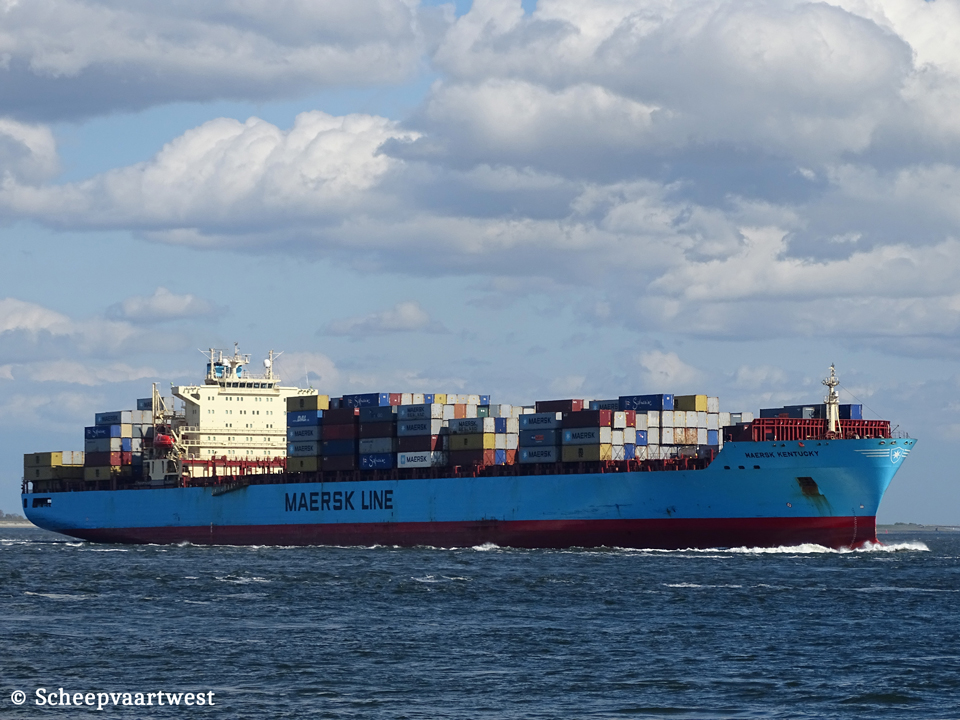

Maersk Kentucky IMO 9193240 05

Westerschelde 23 April 2017

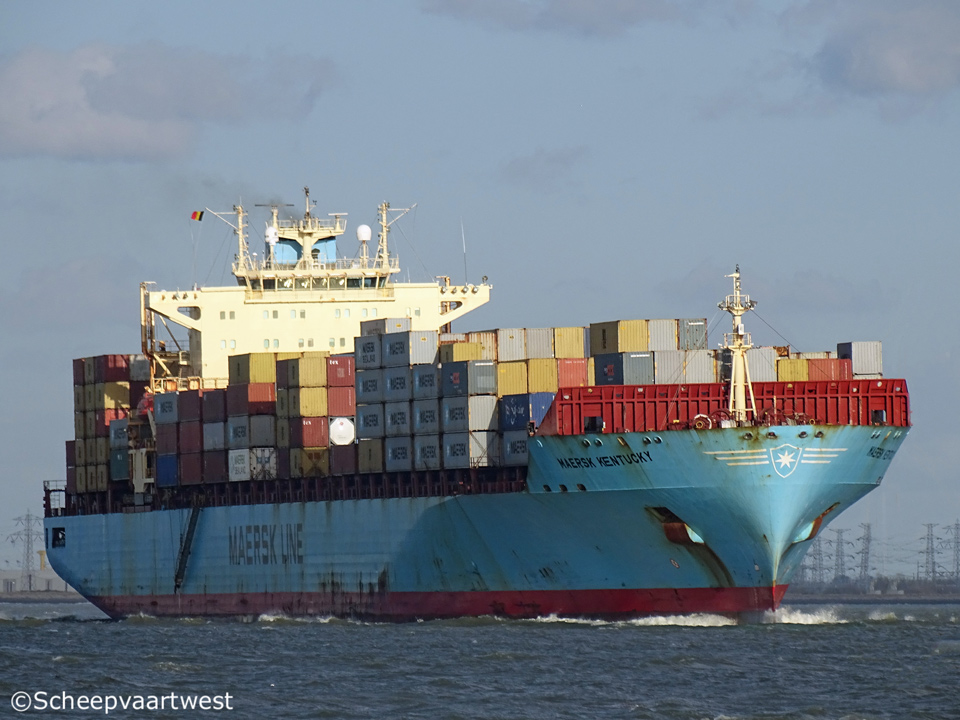

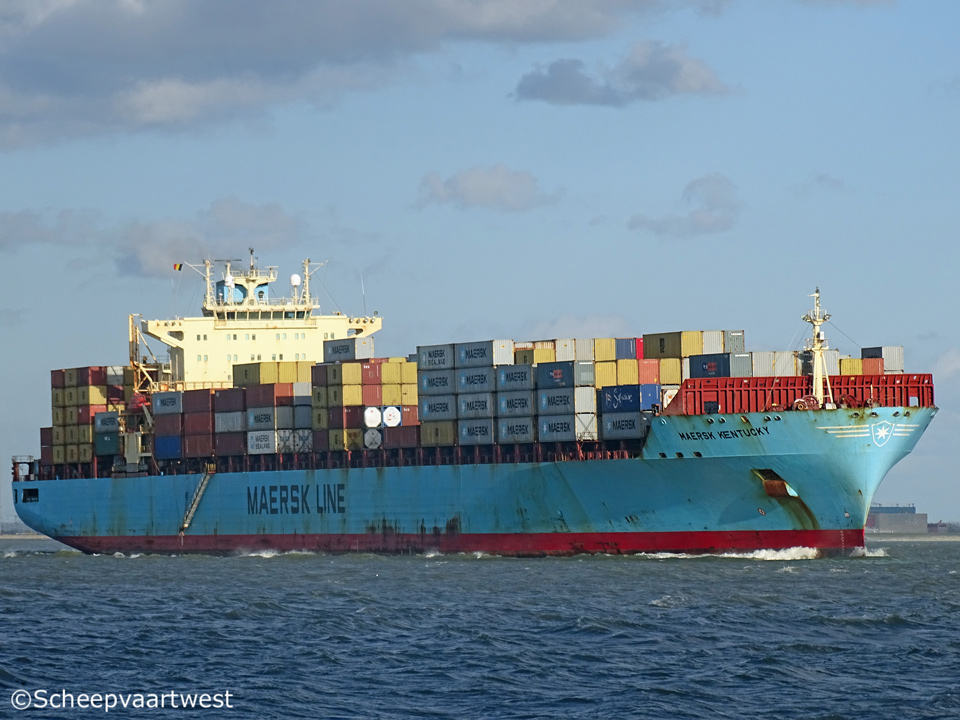

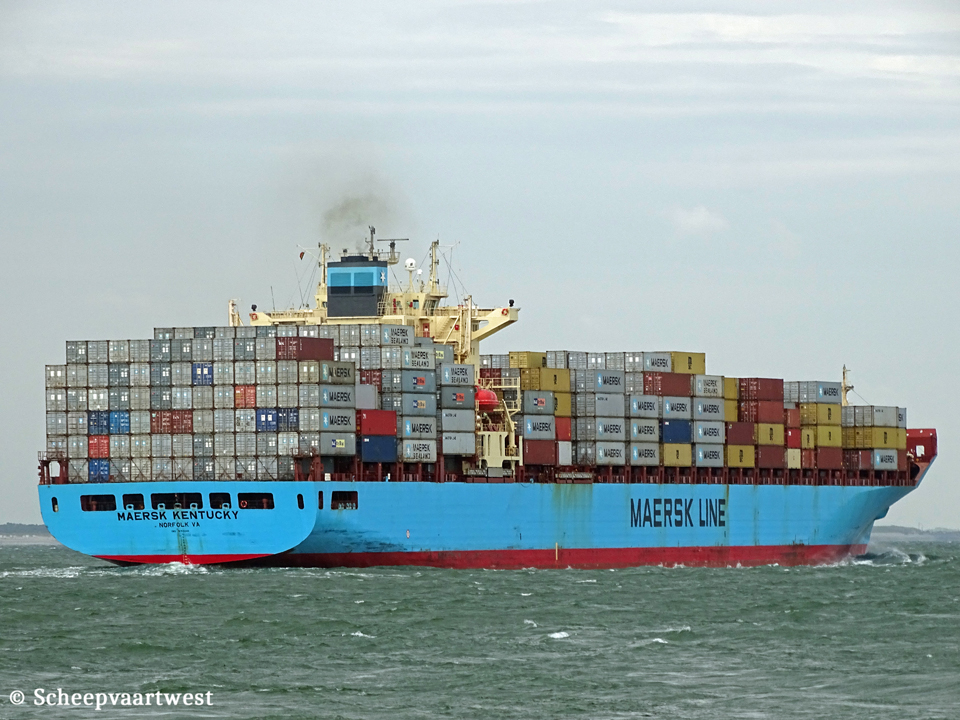

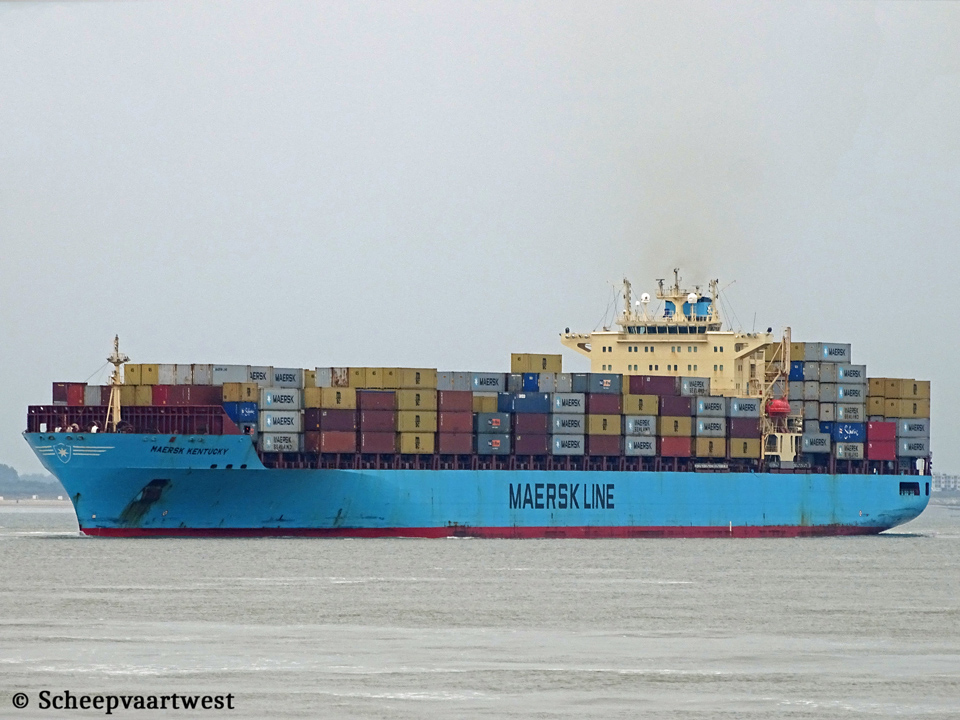

Maersk Kentucky 01   Maersk Kentucky 02   Maersk Kentucky IMO 9193240 04   Maersk Kentucky IMO 9193240 06
Westerschelde 29/03/16   Westerschelde 29/03/16 Westerschelde 29/04/18   Westerschelde 11/07/17


Name

MAERSK KENTUCKY

Previous names

1999 - 04/2009 Glasgow Maersk

Type

Cellular containership - Panamax

IMO-number

9193240

Call sign

9V6172

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

01/2009 - 04/2009 United Kingdom, London

04/2009 - 04/2019 United States of America, Norfolk VA - Call sign: WKPY

GT

50.698 t registered

Suez: 53.318,79 t

DWT

Summer: 61.987 t

NT

29.707 t registered

Suez: 43.321,02 t

Panama: 43.895 t

Number of 20ft containers

4.338

Container capacity 14t

3.320

Reefer capacity

613

Length

292,00 m overall

Breadth

32,25 m

Draught

Max: 13,50 m

Freeboard

3.885 mm

Depth

21,70 m

Speed

Max: 24,2 knots

Built

1999

Keel laid

29/06/1999

Delivery date

28/12/1999

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

1199

Hull material

High strength steel

Ordinary strength steel

Hull type

Single hull

Watertight bulkheads

7

Continuous decks

1

Main engine

1x HHI/MAN-B&W 10K90MC-C Mk5 - 2 stroke 10 cylinder combustion engine 43.100 kW

Manufacturer: HHI Engine & Machinery Division

Propellers

1x Fixed pitch propeller

Boilers

1x Exhaust gas boiler - 8,0 bar

Manufacturer: Kangrim

1x Waste oil fired auxiliary boiler - 8,0 bar

Manufacturer: Aalborg Marine Boilers

Generators

4x MAN-B&W 8L27/38 main diesel generatorsets each 2.100 kW

Bow thruster

1x 1.500 kW, forward

1x 860 kW, aft

Number of holds

8

Cargo hold capacity

101.330,3 m³

Number of tanks

Ballast: 24

Fuel oil: 12

Lubricating oil: 6

Waste water: 5

Sludge: 4

Fresh water: 4

Diesel oil: 3

Chain: 2

Tank capacities 100%

Diesel Oil: 408,2 m³

Freshwater: 405,6 m³

Fuel Oil: 6.134,8 m³

Lube Oil: 435,4 m³

Tank Ballast: 17.512,9 m³

Cargo gear

Gearless

Manager

Maersk Line

Copenhagen

Denmark

Registered owner

Maersk Line, Limited

Latest data adjustment

15 January 2021
