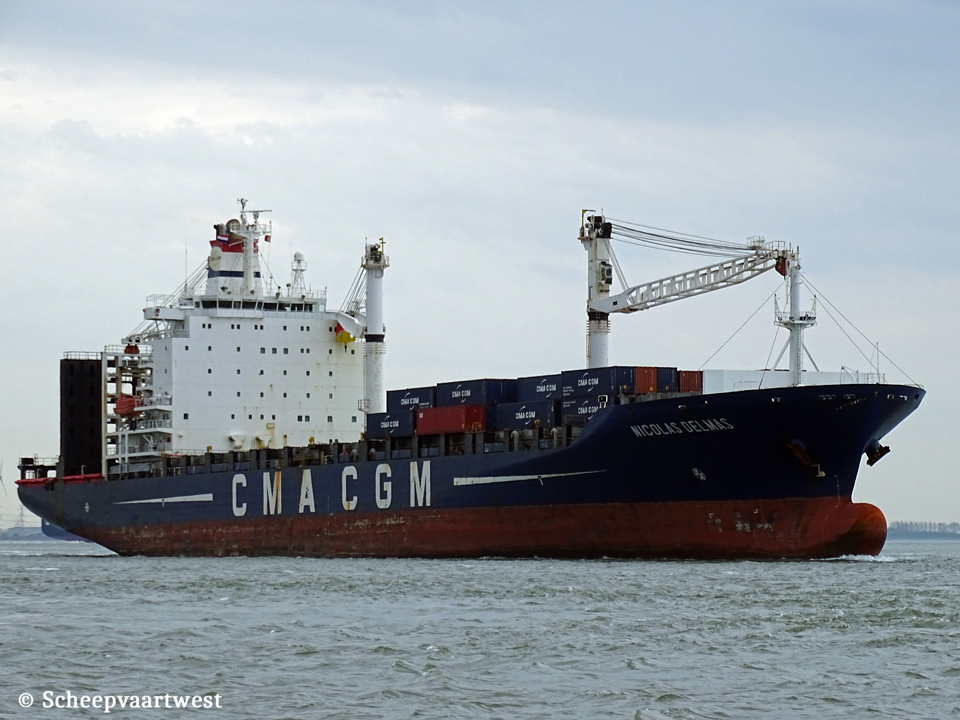

Nicolas Delmas IMO 9220861 04

Westerschelde 11 April 2016

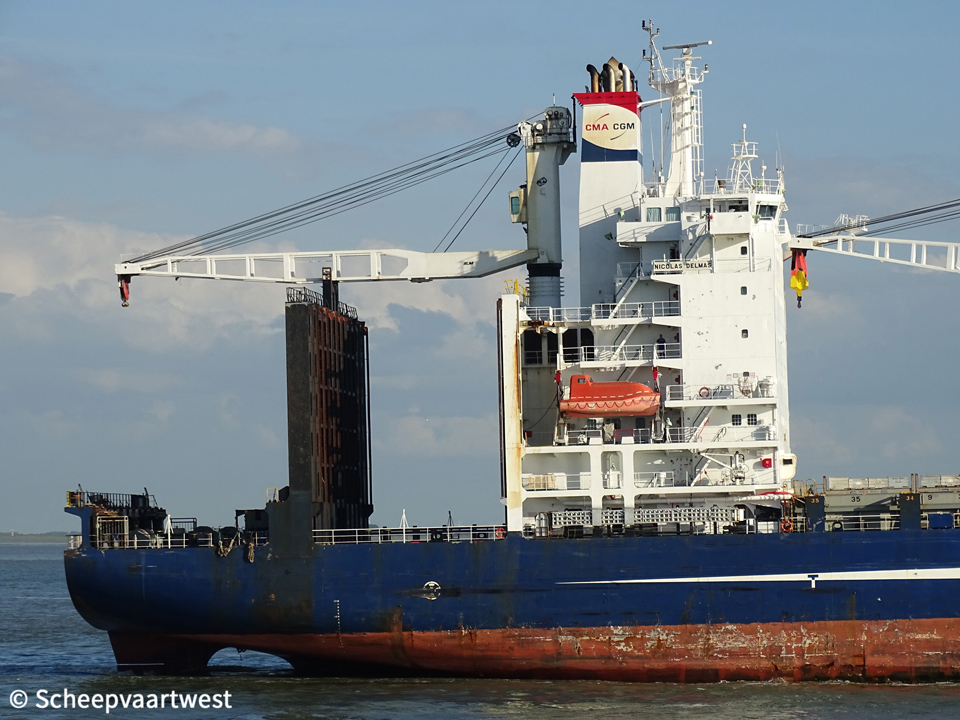

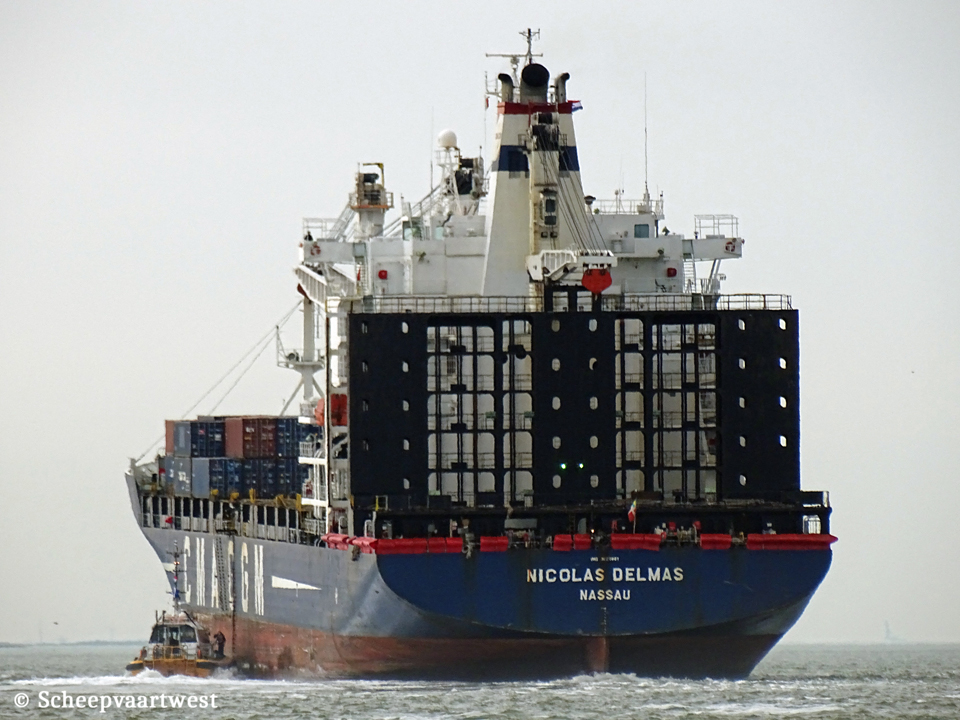

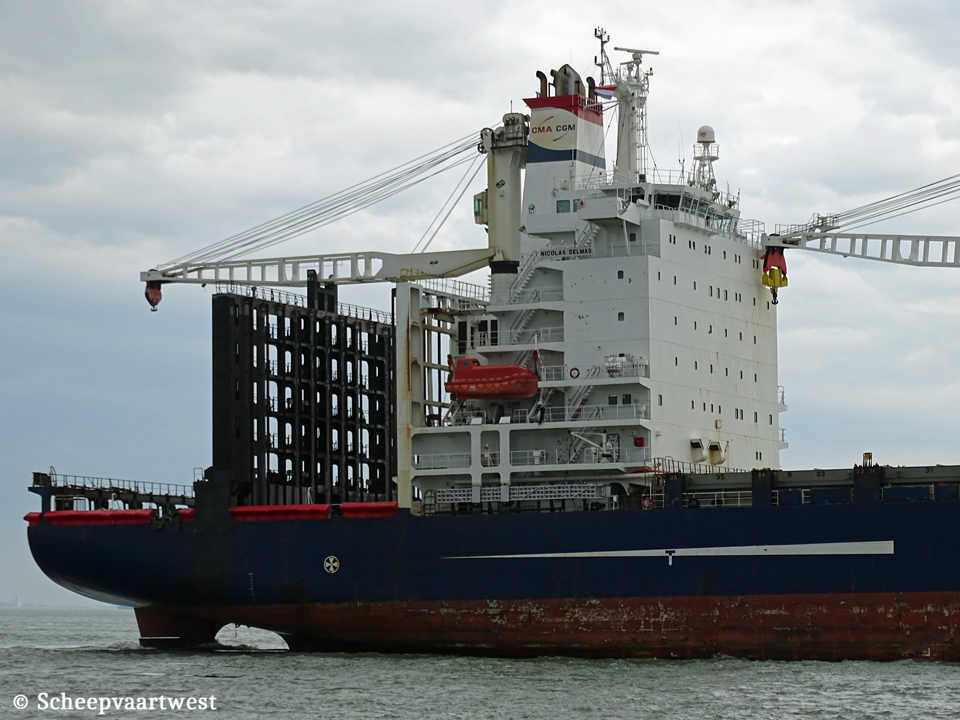

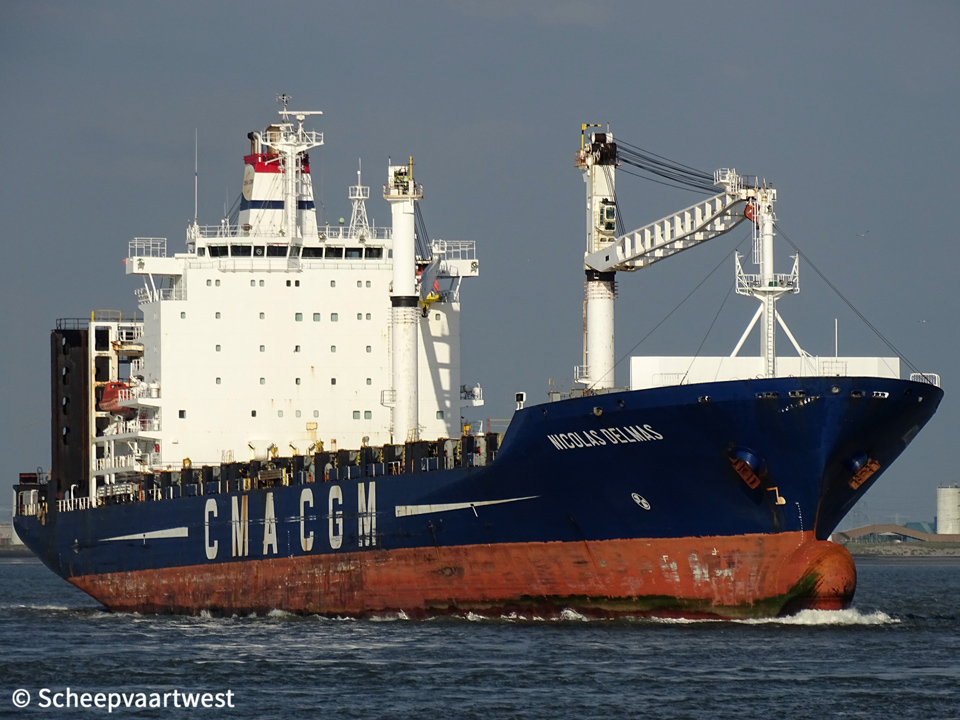

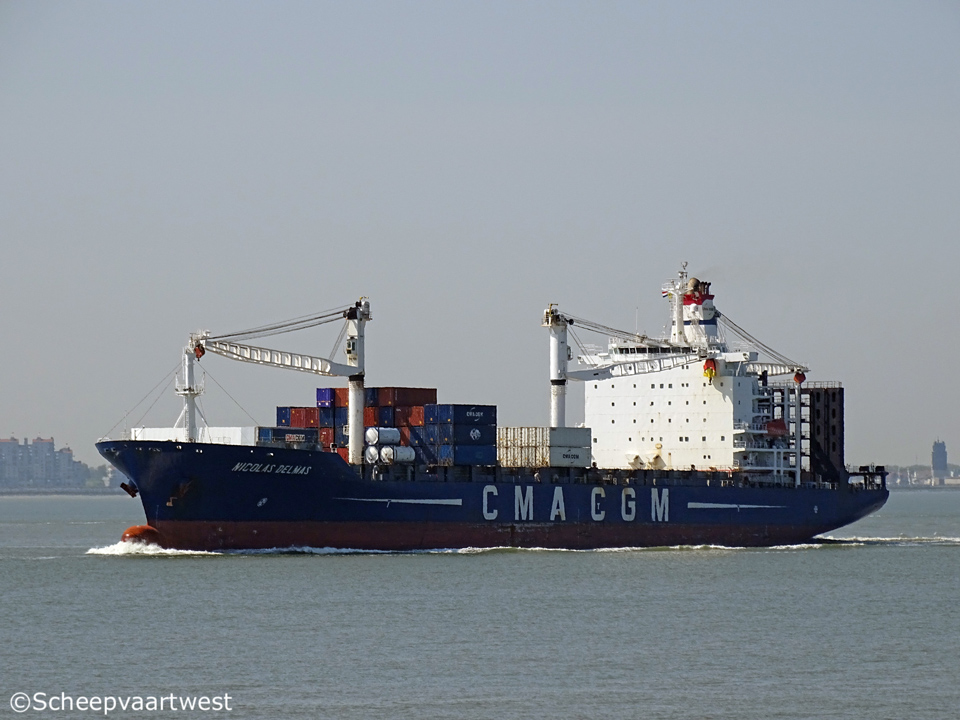

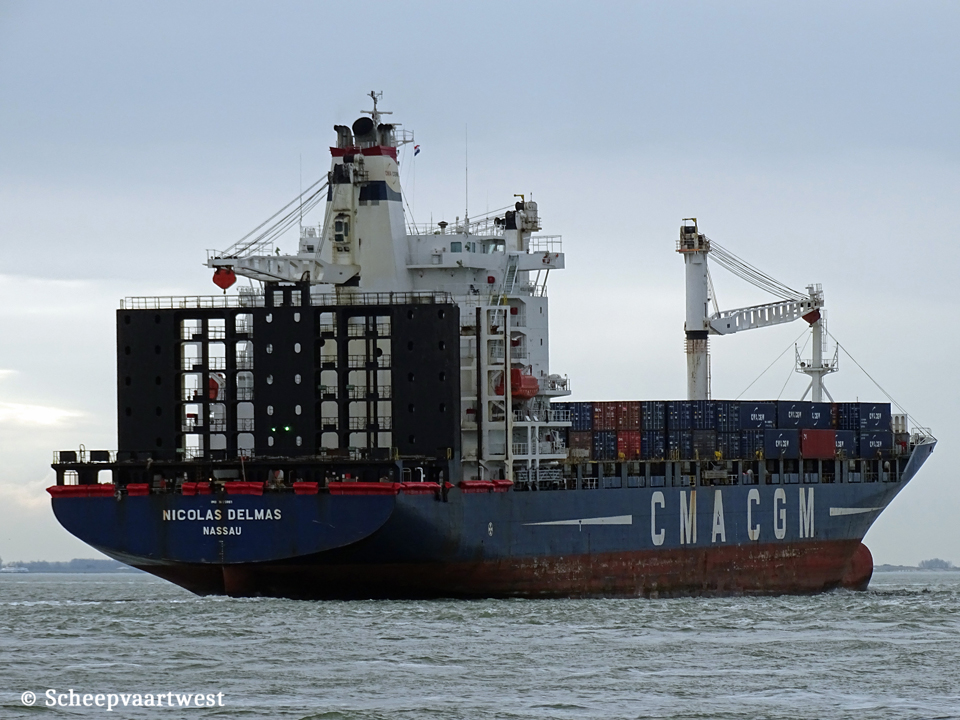

Nicolas Delmas IMO 9220861 06   Nicolas Delmas IMO 9220861 08   Nicolas Delmas IMO 9220861 05   Nicolas Delmas 02   Nicolas Delmas 03   Nicolas Delmas 01
Westerschelde 11/04/16   Westerschelde 11/04/16   Westerschelde 11/04/16   Westerschelde 03/07/16   Westerschelde 03/07/16 Westerschelde 08/05/16


Name

NICOLAS DELMAS

Type

Cellular containership

IMO-number

9220861

Call sign

C6SF5

Flag

Bahamas

Port of registry

Nassau

GT

26.061 t

Suez: 27.017 t

DWT

Summer: 30.512 t

NT

10.209 t

Suez: 22.315 t

Light ship

11.734 t

Number of 20ft containers

2.207

Container capacity 14t

1.725

Reefer capacity

350

Length

195,60 m overall

183,36 m between perpendiculars

Breadth

30,20 m

Draught

11,01 m

Freeboard

5.625 mm

Depth

16,60 m

Speed

Max: 21,5 knots

Built

2002

Date of completion

06/05/2002

Builder

China Shipbuilding Corporation Kaohsiung Shipyard

Taiwan

Yard number

775

Hull material

Steel

Watertight compartments

8

Continuous decks

1

Main engine

1x Hyundai/MAN-B&W 8S70MC-C7-TI - 2 stroke 8 cylinder 700 x 2.800 mm combustion engine 24.824 kW / 33.728 hp at 91,0 rpm

Built: 2001

Manufacturer: Hyundai Heavy Ind. Co., Ltd. - Industrial Plant & Offs, Ulsan - South Korea

Propellers

1x Fixed pitch propeller - aft at 91,0 rpm

Boilers

1x CHR Osaka 625,00 m² - 12,0 bar

1x CHO Osaka 47,00 m² - 7,0 bar

Thruster

1x 1.100 kW, forward

1x 1.100 kW, aft

Electric installations

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

4x Main diesel generatorsets each 1.500 kVA - 1.200 kW - 1.732 hp

Emergency generator

1x MAN-B&W 6L28/32H diesel generatorset 150 kVA - 120 kW - 179 hp

Number of holds

5

Cargo hatchways

9

1x 12,60 x 15,80 m

1x 12,60 x 25,60 m

7x 12,60 x 25,10 m

Tank capacities

Fuel: 2.495,8 m³

Cargo gear

3x Deck cranes - SWL 45,0 t each

Crew size

32

Manager

Midocean

Douglas

Isle of Man

Operator

CMA CGM

4, quai d'Arenc

13002 Marseille

France

Registered owner

Marocaine De Navigation (Compagnie)

Latest data adjustment

23 April 2024
