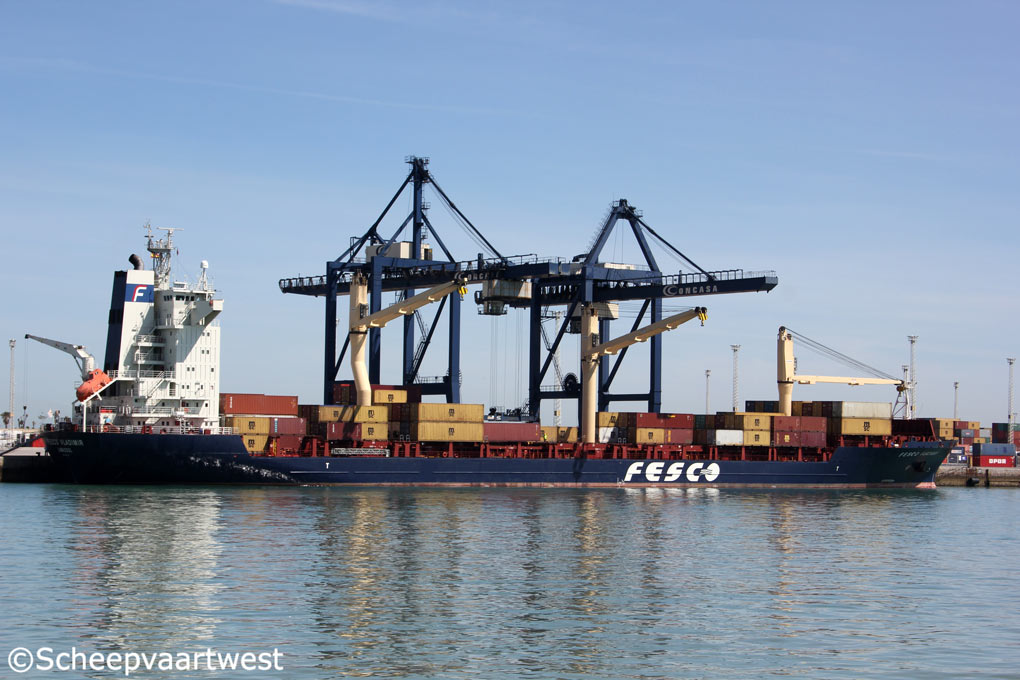

| Cadiz - Spain 04 June 2012 |
|
Name |
FESCO VLADIMIR |
|
Type |
Containership |
|
IMO-number |
9354533 |
|
Call sign |
5BSL2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
16.803 t |
|
DWT |
22.708 t |
|
Displacement |
30.800 t |
|
NT |
8.648 t |
|
Number of 20ft containers |
1.730 |
|
Container capacity 14t |
1.124 |
|
Reefer capacity |
200 |
|
Length |
183,97 m overall 172,32 m registered |
|
Breadth |
25,30 m |
|
Draught |
9,889 m |
|
Freeboard |
3.633 mm |
|
Depth |
13,50 m moulded |
|
Forecastle |
36,819 m |
|
Poop |
15,082 m |
|
Speed |
19,2 knots |
|
Built |
2008 |
|
Keel laid |
22.08.2008 |
|
Launch date |
07.03.2009 |
|
Date of completion |
29.05.2009 |
|
Builder |
Stocznia Szczecinska Nowa Sp. z o.o. |
|
Yard number |
B170-V/3 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 6 RTA 62 U - 2 stroke 6 cylinder 620 x 2.150 mm diesel engine - 13.320 kW at 113,0 rpm Year of manufacture: 2008 Manufacturer: H. Cegielski-Poznan S.A. |
|
Propellers |
1x Solid propeller (keyless) - aft at 113 rpm 5 blades |
|
Boilers |
1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 294,0 m² Year of manufacture: 2008 Steam boiler, oil fired - 9,0 bar Heating surface: 24,0 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
3x Plant 450/220 V - 1.370 kVA 1x Plant 450 V - 156 kVA 1x Plant 12 V - 50 Ah 1x Plant 24 V - 42 Ah 1x Plan t24 V - 126 Ah |
|
Generators |
3x H.Cegielski 8S20H main diesel generatorsets each 1.370 kVA / 1.096 kW |
|
Emergency generator |
1x Diesel generatorset 156 kVA |
|
Batteries |
2x Batteries for automation each 126 Ah 2x Batteries for start emergency engine each 50 Ah 1x Battery for UPS radio 42 Ah |
|
Compressed air receivers |
2x Receivers each 6.300 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar 1x Receiver 750 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster - 750 kW, forward |
|
Hold capacity |
1x 5.153 m³ 1x 1.052 m³ 1x 10.883 m³ 1x 3.235 m³ |
|
Number of hatches |
1x 12,50 x 13,00 m 8x 12,50 x 20,60 m |
|
Grain capacity |
29.816 m³ |
|
Tank capacities |
Fuel oil: 2.230 m³ Water ballast: 8.127 t |
|
Anchor Equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m |
|
Lifting devices |
3x Cranes - each SWL 45,0 t |
|
Crew size |
25 |
|
Manager |
Fesco Wallem Shipmanagement Ltd. |
|
Operator |
FESCO - Far-Eastern Shipping Co |
|
Owner |
Star Warm Shipping Co. Ltd. |
|
Registered owner |
Star Warm Shipping Co. Ltd. |
