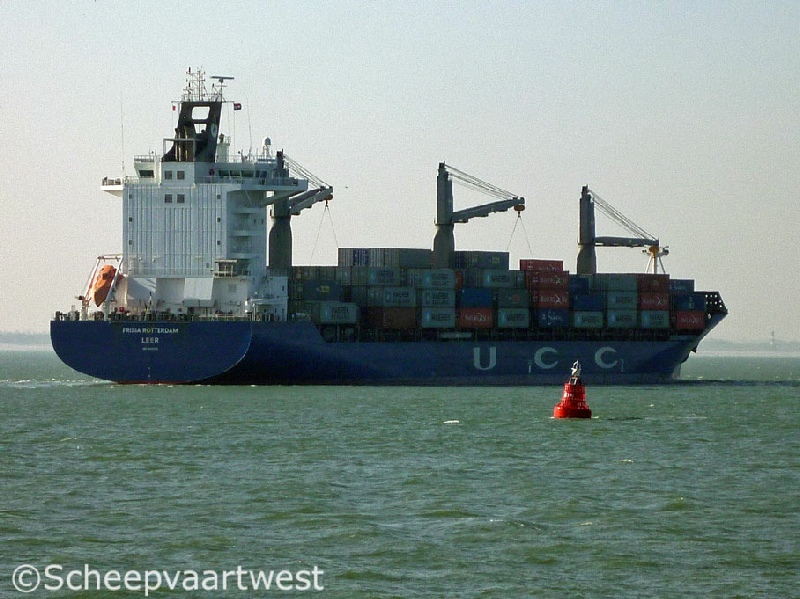

| Westerschelde 22 October 2011 |
|
Name |
FRISIA ROTTERDAM |
|
Previous names |
2004-09.04.2004 Frisia Rotterdam 09.04.2004-01.11.2009 Cap Saray |
|
Type |
Containership - Self-sustained |
|
IMO-number |
9299032 |
|
Call sign |
DCGL2 |
|
Flag |
Germany |
|
Previous flag |
Liberia |
|
Port of registry |
Leer |
|
Previous port of registry |
Monrovia |
|
GT |
25.406 t |
|
DWT |
Summer: 33.781 t |
|
NT |
12.538 t |
|
Number of 20ft containers |
On deck: 1486 In hold: 992 Total: 2.478 |
|
Container capacity 14t |
1.897 |
|
Reefer capacity |
In hold: 100 On deck: 300 Total: 400 |
|
Length |
207,54 m overall 196,70 m registered |
|
Breadth |
29,80 m registered |
|
Draught |
11,40 m |
|
Freeboard |
5.040 mm |
|
Forecastle |
27,48 m |
|
Poop |
14,66 m |
|
Depth to main deck |
16,40 m moulded |
|
Speed |
21,9 knots |
|
Built |
2004 |
|
Keel laid |
20.07.2004 |
|
Launch date |
16.10.2004 |
|
Date of completion |
29.11.2004 |
|
Builder |
Wadan Yards MTW GmbH (Aker MTW GmbH) |
|
Yard number |
102 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7 L 70 MC-C - 2 stroke 7 cylinder 700 x 2.370 mm diesel engine - 21.770 kW at 108 rpm Year of manufacture: 2004 Manufacturer: Hitachi Zosen Diesel and Engineering Co., Ltd. |
|
Propeller |
1x Solid propeller (keyless), aft at 108 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating Surface: 19,0 m² 1x Exhaust gas heated - 9,0 bar Heating Surface: 482,0 m² Year of manufacture: 2004 Manufacturer: Alfa Laval Aalborg A/S Division Boiler Production |
|
Electric installations |
1x Plant 450/230 V - 1.131 kVA 3x Plant 450/230 V - 1.662,5 kVA 1x Plant 450 V - 220 kVA 1x Plant 24 V - 128 Ah 1x Plant 24 V - 180 Ah |
|
Generators |
3x STX MAN-B&W 7L21/31 main diesel generatorset each 1.662,5 kVA / 1.330 kW at 900 rpm 1x STX MAN-B&W 5L21/31 main diesel generatorset - 1.131 kVA / 904,8 kW at 900 rpm |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Batteries |
1x Battery for automation 128 Ah |
|
Compressed air receivers |
2x Receivers each 8.000 litres - 30,0 bar 1x Receiver 1.000 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster Brunvoll - 1.100 kW, forward |
|
Number of holds |
5 |
|
Number of hatches |
10 |
|
Hatch openings |
Hatch 1: 12,64 x 15,36 m |
|
Hatch covers |
Mac Gregor Ponton type hatch covers, weather tight |
|
Hold ventilation |
2x Air changes per hour, mechanical and natural |
|
Tank capacities |
HFO: 2.489,2 m³ MDO: 171,5 m³ Fresh water: 200 m³ Lubricating oil: 177,38 m³ Water ballast: 9.417 m³ |
|
Anchor Equipment |
3x Anchors weight each 9.300 kg Chain length: 660,00 m |
|
Cargo gear |
3x Cranes each SWL 45 t at 25,00 m outreach SWL 40 t at 28,00 m outreach SWL 36 t at 29,10 m outreach |
|
Crew complement |
23 |
|
Manager |
Hartmann Schiffahrts GmbH & Co. KG |
|
Operator |
UCC - United Container Carrier |
|
Registered owner |
Container-Schiffahrt GmbH & Co. MS "FRISIA ROTTERDAM" KG |
