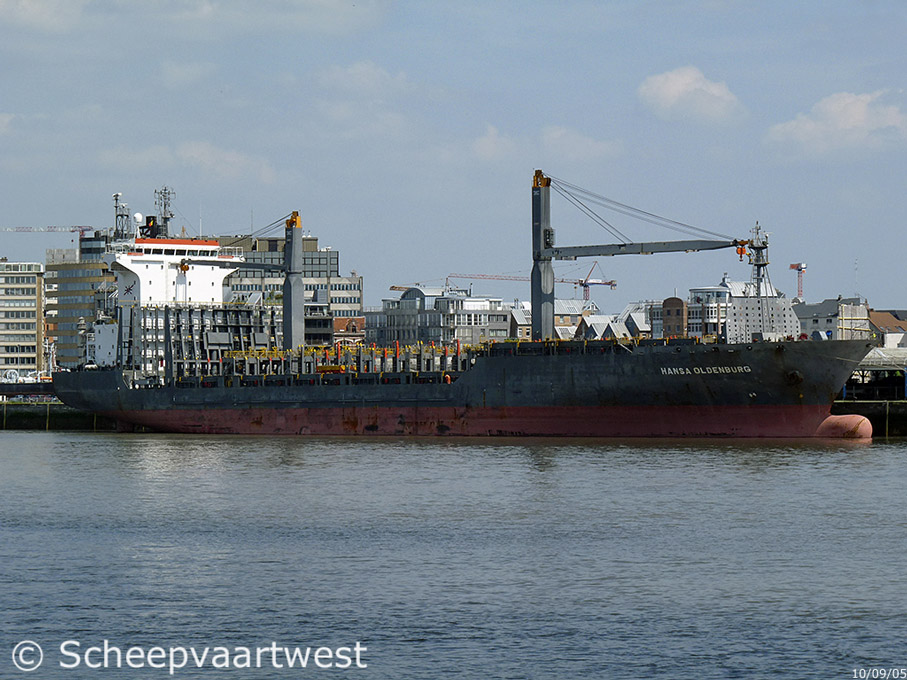

| Antwerpen 10 May 2009 |
|
Name |
HANSA OLDENBURG |
|
Previous names |
Hansa Oldenburg Delmas Kerguelen |
|
Type |
Cellular Containership |
|
IMO-number |
9236224 |
|
Call sign |
LXOE |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxembourg City |
|
Previous flags |
2002 - 2013 Liberia, Monrovia - Call sign: A8GY6 2013 - 2015 Gibraltar - Call sign: ZDNM6 |
|
GT |
18.334 t |
|
DWT |
Summer: 23.493 t |
|
NT |
10.744 t |
|
Number of 20ft containers |
In hold: 700 On deck: 1.036 Total: 1.736 |
|
Number of 40ft containers |
In hold: 388 On deck: 520 Total: 858 |
|
Number of 14t containers |
1.290 |
|
Reefer capacity |
296 - whereof 80 under deck |
|
Length |
175,49 m overall 165,00 m between perpendiculars 166,10 m registered |
|
Breadth |
27,40 m overall 24,40 m moulded |
|
Draught |
Summer: 10,905 m |
|
Forecastle |
57,81 m |
|
Poop |
16,04 m |
|
Freeboard |
3.390 mm |
|
Depth |
14,30 m |
|
Speed |
19,0 knots |
|
Built |
2002 |
|
Keel laid |
03/12/2001 |
|
Launch date |
28/03/2002 |
|
Date of completion |
05/12/2002 |
|
Builder |
Guangzhou Wenchong Shipyard Co., Ltd. 1, Wenchuan Road Hongshan Street, Huangpu District 510725 Guangzhou, Guangdong People's Republic of China |
|
Yard number |
GWS290 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.785 kW at 105,0 rpm Year of manufacture: 2001 Manufacturer: Hudong Heavy Machinery Co., Ltd. 2851, Pudong Dadao 200129 Shanghai People's Republic of China |
|
Number of screws |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 40,0 m² 1x exhaust gas heated - 9,0 bar Heating surface: 310,00 m² Year of manufacture: 2001 Manufacturer: Omnical Marine Boilers Kaiserstr. 4 24143 Kiel Federal Republic of Germany |
|
Electric installations |
1x 440/220 V - 4.497 kVA 1x 440 V - 213 kVA 1x 24 V - 146 Ah |
|
Generators |
3x MAN-B&W 6L28/32H main diesel generatorsets each 1.499 kVA / 1.199,20 kW |
|
Emergency generator |
1x Diesel generatorset 213 kVA |
|
Batteries |
2x Batteries for start emergency engine each 73 Ah |
|
Compressed air receivers |
2x Receivers each 6.000 litres - 30,0 bar 1x Receiver 350 litres- 8,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 900 kW, forward |
|
Number of holds |
5 |
|
Cargo hold capacity |
27.172 m³ |
|
Nuber of hatches |
8 |
|
Hatche type |
Pontoon |
|
Tank capacities |
Water ballast: 7.784 m³ Fuel oil: 2.042 m³ fresh water: 109 m³ |
|
Anchor equipment |
3x Anchors weight each 7.800 kg Chain length: 632,50 m Diameter: 68 mm |
|
Cargo gear |
2x Electro-hydraulic driven cranes- SWL 40,00 t each |
|
Lifting equipment |
1x Carne - SWL 4,0 t 1x Carne - SWL 6,0 t |
|
Crew size |
30 |
|
Manager |
Leonhardt & Blumberg Schiffahrtsges. mbH & Co. KG Neumühlen 13 22763 Hamburg Federal Republic of Germany |
|
Owner |
Schiffahrts-Gesellschaft "HANSA OLDENBURG" mbH & Co. KG Neumühlen 13 22763 Hamburg Federal Republic of Germany |
|
Previous owner |
2002-2007 Hansa Oldenburg Shipping Corporation |
|
Renamed |
2017 Okee Ann Mari Liberia, Monrovia - Call sign: D5NO2 Manager: Leonhardt & Blumberg Reederei GmbH & Co. KG Owner: OKEE Ship Two GmbH & Co. KG |
|
Latest data adjustment |
05 July 2020 |
