Westerschelde 07 September 2015 |
 |
|
| Westerschelde 08/07/15 | |
|
Name |

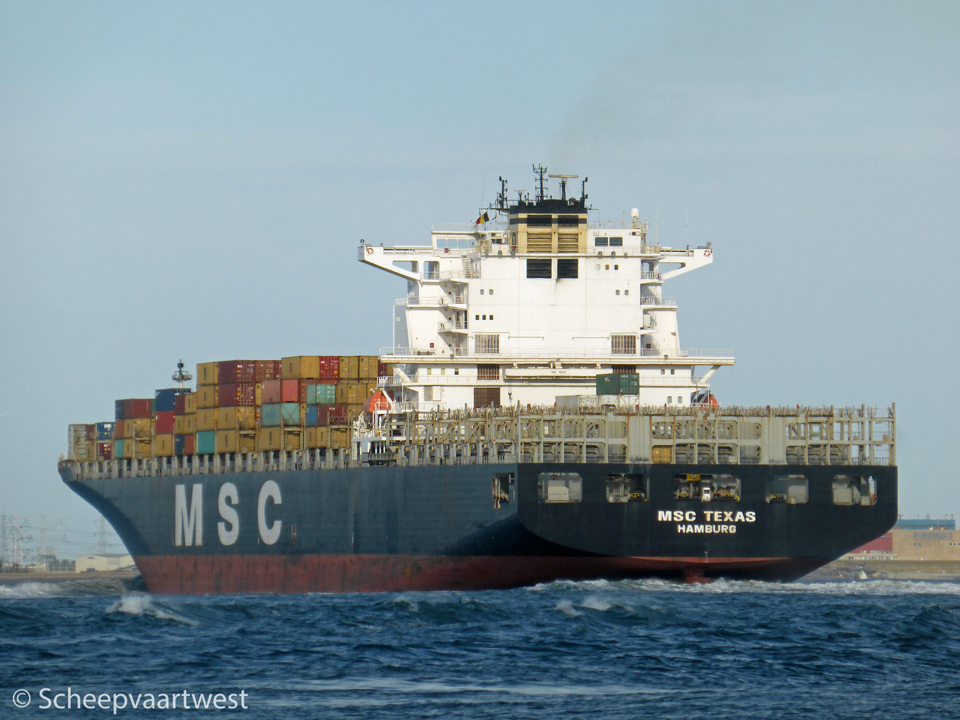

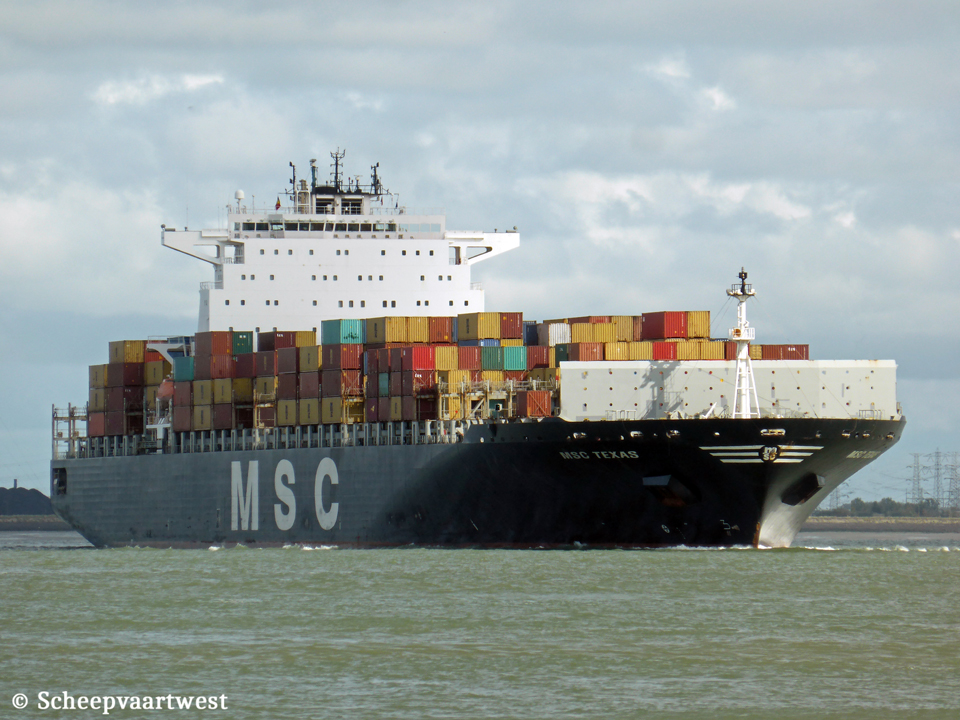

MSC TEXAS |
|
Type |
Cellular containership |
|
IMO-number |
9286243 |
|
Call sign |
DCSY2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
90.745 t |
|
DWT |
Summer: 101.030 t |
|
NT |
55.203 t |
|
Number of 20ft containers |
8.238 |
|
Container capacity 14t |
6.310 |
|
Reefer capacity |
700 |
|
Length |
334,07 m overall 319,00 m between perpendiculars |
|
Breadth |
42,80 m |
|
Draught |
14,50 m |
|
Keel to mast end |
61,60 m |
|
Freeboard |
5.749 mm |
|
Depth |
20,23 m moulded |
|
Speed |
Max: 24,5 knots |
|
Built |
2004 |
|
Keel laid |
27/04/2004 |
|
Launch date |
09/07/2004 |
|
Date of completion |
23/09/2004 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
H1533 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
14 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 12K98MC-C - 2 stroke 12 cylinder 980 x 2.660 mm combustion engine 68.640 kW / 93.261 hp at 94,0 rpm Build: 19/05/2004 Built: 2004 Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 94,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 46,0 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 736,0 m² Built: 2004 Manufacturer Alfa Laval Qingdao Ltd. |
|
Electric installations |
1x Plant 6600/ 440 V - 2.933 kVA 1x Plant 6600/ 440 V - 2.933 kVA 1x Plant 6600/ 440 V - 2.933 kVA 1x Plant 6600/ 440 V - 3.733 kVA 1x Plant 6600/ 440 V - 3.733 kVA 1x Plant 450 V - 625 kVA 1x Plant 24 V Ah |
|
Generators |
3x MAN-B&W 7L27/38 main diesel generatorsets each 2.933 kVA - 2.346 kW - 3L139 hp 2x MAN-B&W 9L27/38 main diesel generatorsets each 3.733 kVA - 2.986 kW - 4.004 hp |
|
Emergency generator |
1x Diesel generatorset 625 kVA - 500 kW - 826 hp |
|
Compressed air receivers |
2x Receivers each 16.000 litres - 32,4 bar 1x Receiver 250 litres - 32,4 bar 1x Receiver 100 litres - 32,4 bar 1x Receiver 250 litres - 8,0 bar |
|
Bow thruster |
1x 2.500 kW, forward |
|
Number of holds |
9 |
|
Anchor equipment |
3x Anchors weight each 18.800 kg Length: 742,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG Hamburg Germany |
|
Operator |
MSC- Mediterranean Shipping Company |
|
Owner |
Conti Holding Munchen Germany |
|
Renamed |
2016 - 2018 Conti Makalu Malta, Valletta - Call sign: 9HA4341 Manager: NSB Niederelbe Schiffahrts GmbH & Co. KG, Hamburg - Germany Owner: Conti Makalu (M.I.) Shipping Ltd. 2018 - 2019 Niledutch Makalu 2024 Conti Makalu Liberia, Monrovia - Vall sign: D5UY6 Registered owner: Conti 26. Container Schiffahrts-GmbH & Co. KG MS ''Conti Makalu'' |
|
Latest data adjustment |
20 October 2018 |
