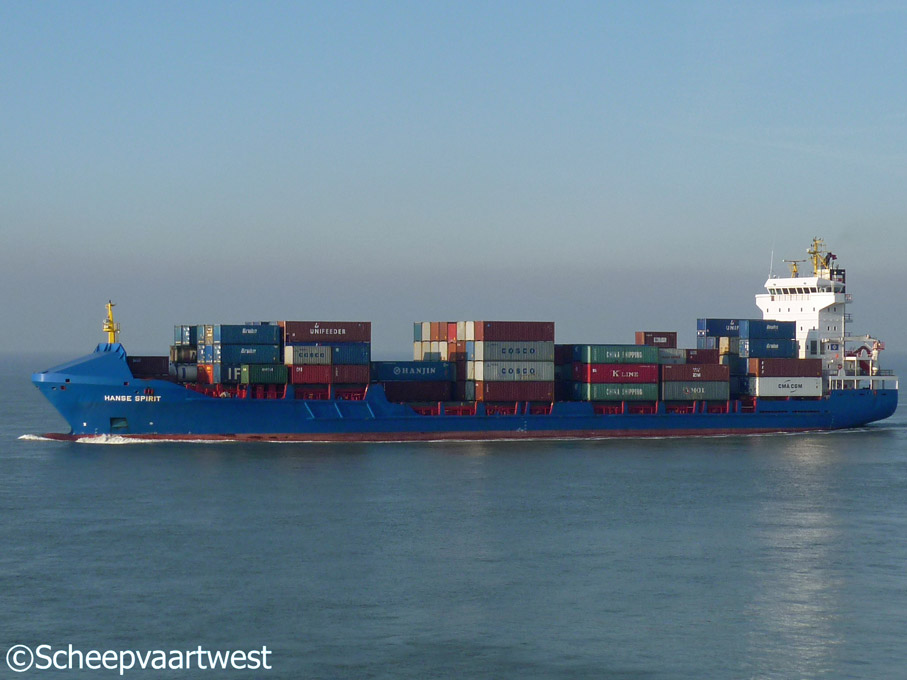

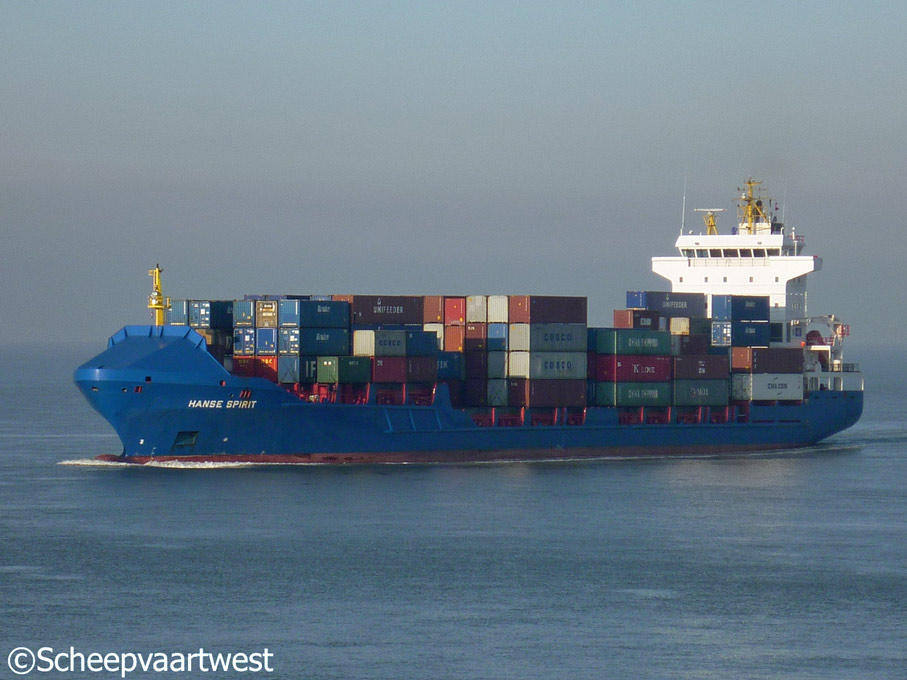

| Westerschelde 12 February 2012 |
 |
 |
|

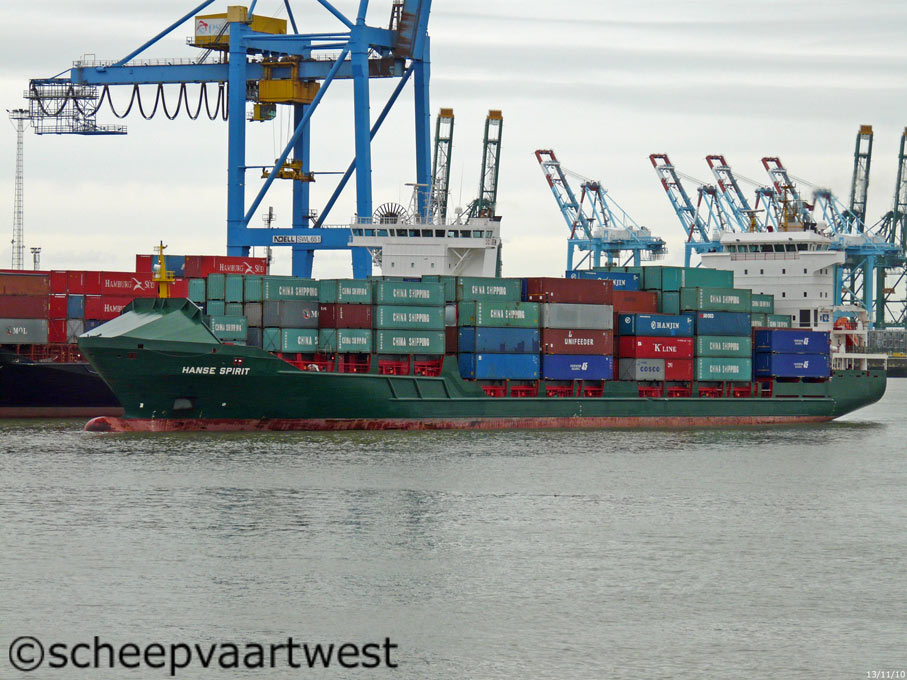

| Westerschlede12/02/12 | Zeebrugge 13/11/10 |
|
Name |
HANSE SPIRIT |
|
Previous names |
2005 - 06/2007 Merwedestroom |
|
Type |
Gearless cellular container vessel |
|
IMO-number |
9302255 |
|
Call sign |
C4WP2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
08/2005 - 07/2007 The Netherlands, Geldermalsen - Call sign: PHAV |
|
GT |
7.713 t |
|
DWT |
9.654,5 t |
|
NT |
3.785 t |
|
Number of 20ft containers |
On deck: 571 In hold: 238 Total: 809 |
|
Number of 40ft containers |
380 |
|
Container capacity 14t |
529 |
|
Reefer plugs |
On deck: 122 In hold: 78 Total: 200 |
|
Length |
141,65 m overall 132,42 m registered |
|
Breadth |
20,60 m registered |
|
Draught |
Summer: 7,30 m |
|
Air draft |
38,00 m |
|
Forecastle |
41,72 m |
|
Poop |
10,00 m |
|
Speed |
Max.: 19,0 knots |
|
Depth |
9,50 m to main deck |
|
Line |
United Shipping Agencies |
|
Built |
2005 |
|
Keel laid |
06/11/2003 |
|
Launch date |
17/12/2004 |
|
Date of completion |
03/11/2005 |
|
Builder casco |
STX RO Offshore Tulcea Tulcea Romania Yard number: 307 |
|
Builder completion |
IHDA Shipbuilding Service B.V. Dorpsstraat 59a 2931 AD Krimpen a.d. Lek The Netherlands Yard number: 226 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L46D - 4 stroke single acting 8 cylinder 460 x 580 mm combustion engine 9.240 kW at 500 rpm Year of manufacture: 2004 Manufacturer: Wärtsilä Finland Oy Staalarminkatu 45 20810 Turku Finland |
|
Propeller |
1x Controllable pitch propeller - aft at 158 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 28,4 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 90,2 m² Year of manufacture: 2004 Manufacturer: Regiomat PSS GmbH Industriegebiet Zum Drahtzug 19 57645 Nister Federal Republic of Germany |
|
Electric installations |
1x Plant 440/230 V - 740 kVA 1x Plant 440/ 230 V - 740 kVA 1x Plant 440 V - 1.600 kVA 1x Plant 440 V - 195 kVA 1x Plant 24 V - 170 Ah 1x Plant 24 V - 215 Ah |
|
Shaft generator |
1.280 kW / 1.600 kVA |
|
Generators |
2x Mitsubisi S12A2-MPTA main diesel generatorset each 592 kW / 740 kVA |
|
Emergency generator |
1x Mitsubisi 6D24TC diesel generatorset 156 kW / 195 kVA |
|
Batteries |
4x Batteries for UPS radio each 215 Ah 2x Batteries for UPS radio each 170 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 33,0 bar 1x Receiver 400 litres - 11,0 bar 1x Receiver 150 litres - 11,0 bar |
|
Bow thruster |
2x Transverse thruster each 750 kW - forward |
|
Number of holds |
3 |
|
Number of hatches |
3 Hatch 1: abt. 25,44 m x 17,91/13,20 m Hatch 2: abt. 27,03 m x 17,91 m Hatch 3: abt. 27,03 m x 17,91 m |
|
Hatch type |
Mac Gregor hydraulic operated folding steel hatch covers |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550 m Diameter: 54 mm |
|
Cargo gear |
Gearless |
|
Crew |
12 |
|
Manager |
Johs. Thode GmbH & Co. KG Köhlbrandtreppe 2 22767 Hamburg Federal Republic of Germany |
|
Previous managers |
08/2005 - 07/2007 Universal Marine B.V., Krimpen aan den IJssel - The Netherlands |
|
Owner |
MS "HANSE SPIRIT" Schiffahrtsgesellschaft mbH & Co. KG Köhlbrandtreppe 2 22767 Hamburg Federal Republic of Germany |
|
Previous names & owners |
08/2005 - 07/2007 Merwedestroom - C.V. Scheepvaartonderneming Merwedestroom, Geldermalsen - The Netherlands |
|
Renamed |
06/2015 Spirit The Netherlands, Sneek - Call sign: PBQC Owner: Sven-D Shipping B.V., Sneek - The Netheralnds Manager: Visser Shipping B.V., Sneek - The Netheralnds |
|
Latest data adjustment |
17 November 2020 |
