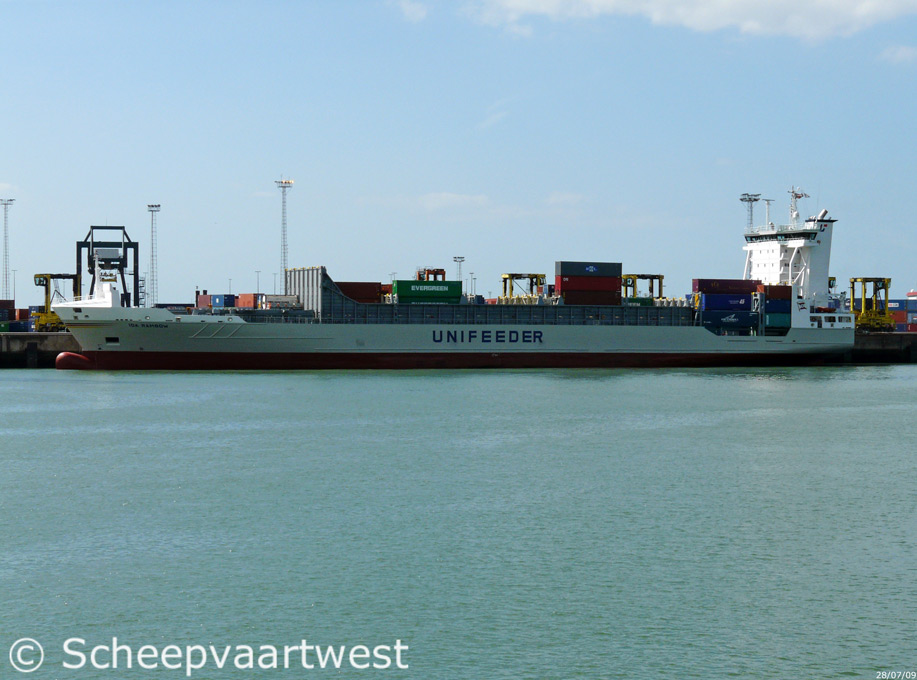

Ida Rambow - 9354478

Name

IDA RAMBOW

Type

Cellular Containership

IMO-number

9354478

Official number

21460

Call sign

DFHR2

Flag

Germany

Previous flag

10.08.2007 Antigua & Barbuda

Port of registry

Hamburg

GT

11.662 t

DWT

13.709 t

NT

7.284 t

Number of 20ft containers

1.008

Length

149,14 m overall

139,14 m between perpendiculars

139,79 m registered

Breadth

22,50 overall

Draught

Summer: 8,71 m

Bridge

39,265 m

Forecastle

70,065 m

Poop

9,45 m

Freeboard

5.290 mm

Depth

11,30 m moulded

Speed

18,5 knots

Built

2007

Keel laid

22.12.2004

Launch date

15.06.2007

Date of completion

14.09.2007

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1274

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MaK 9 M43 C - 4 stroke single acting 9 cylinder 430 x 610 mm diesel engine - 8.400 kW

Year of manufacture: 2007

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, oil fired - 10,0 bar
Heating surface: 51,7 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 221,5 m²

Year of manufacture: 2007

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

1x 400 V - 2.545 kVA

1x 400 V - 1.860 kVA

1x 400 V - 400 kVA

1x 24 V - 380 Ah

Shaft generator

1x 1.860 kVA

Generators

1x Main diesel generatorset 1.390 kVA

1x Main diesel generatorset 1.155 kVA

Emergency generator

1x Diesel generatorset 400 kVA

Batteries

1x Battery for UPS radio 240 Ah

1x Battery for start emergency engine 140 Ah

Compressed air receivers

2x Receivers each 750 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 750 kW forward

Stern thruster

1x 450 kW aft

Anchor equipment

3x Anchors weight each 5.250 kg

Chain length: 577,50 m

Cargo gear

Gearless

Crew

14

Manager

Rambow Bereederungs GmbH & Co. KG
Schoolpatt 17
21706 Drochtersen-Assel
Federal Republic of Germany

Operator

Unifeeder

Owner

Reederei Rambow GmbH & Co. KG MS "IDA RAMBOW"
Schoolpadd 17
21706 Drochtersen/Assel
Federal Republic of Germany

Remarks

Ship lengthened 10-2007

before elongated:

Loa: 134,40 m

Lbp: 124,80 m

Beam: 22,70 m

GT: 9.981 t

DWT: 11.271 t
