Antwerpen 18 February 2019 |
|
Name |

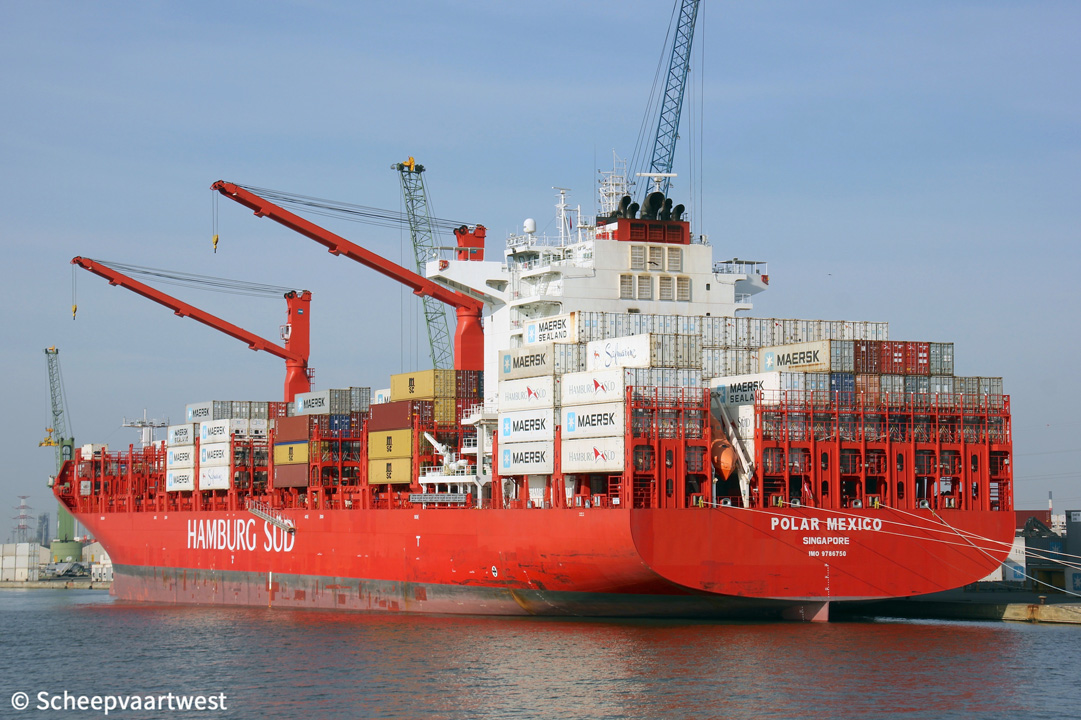

POLAR MEXICO |
|
Previous names |
08/2017 - 11/2017 Polar Mexico 11/2017 10/2018 Diego Garcia |
|
Type |
Cellular containership |
|
IMO-number |
9786750 |
|
Call sign |
9V6081 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
25/08/2017 - 02/11/2017 Portugal, Madeira - Call sign: CQIM4 02/ 11/2017 - 18/11/2017 Liberia; Monrovia - Call sign: D5ON7 18/11/2017 - 13/10/2018 Brazil, Rio de Janeiro - Call sign: PPRZ |
|
GT |
42.628 t registered Suez: 45.663,24 t |
|
DWT |
52.103 t |
|
NT |
17.495 t registered Panama: 36.023 t Suez: 40.184,6 t |
|
Number of 20ft containers |
3.923 |
|
Length |
230,00 m overall 220,80 m between perpendiculars |
|
Breadth |
37,30 m moulded |
|
Draught |
Max: 12,50 m |
|
Freeboard |
7.139 mm |
|
Depth |
19,60 m moulded |
|
Speed |
18,0 knots |
|
Built |
2017 |
|
Keel laid |
03/12/2015 |
|
Launch date |
07/04/2017 |
|
Delivery date |
25/08/2017 |
|
Builder |
Jiangsu New Yangzi Shipbuilding Co., Ltd. China |
|
Yard number |
YZJ2015-1200 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Watertight bulkheads |
8 |
|
Main engine |
1x MAN-B&W 6S70ME-C8.5 - 6 cylinder 700 x 2.800 mm combustion engine 19.620 kW at 91,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Mecklenburger Metallguss GmbH |
|
Boilers |
1x Composite boiler - 9,0 bar 1x Exhaust Gas Boiler - 9,0 bar Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x Daihatsu 8DE33 main diesel generatorsets each 4.520 kW 1x Daihatsu 6DE33 diesel generatorset 2.080 kW |
|
Number of holds |
5 |
|
Hold capacity |
77.177,05 m³ |
|
Number of tanks |
Ballast: 26 Fuel oil: 14 Lubricating oil: 8 Waste water: 5 Diesel oil: 4 Sludge: 4 Fresh water: 4 Chain: 2 Sewage: 1 |
|
Tank capacities 100% |
Diesel Oil: 434,68 m³ Freshwater: 469,12 m³ Fuel Oil: 4.830,64 m³ Lube Oil: 297,46 m³ Tank Ballast: 20.288,23 m³ |
|
Lifting equipment |
1x Engine overhead room crane - SWL 6,3 t Manufacturer: Jiangyin Jianghai Mechanical Manufacture Co., Ltd. 1x Hose davit/Suez boat davit - SWL 4,0 t Manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd. 1x Monorail provision crane - SWL 6,5 t Manufacturer: Oriental Prec & Eng'g Co. |
|
Cargo gear |
2x Deck cranes SWL 30,5 t each |
|
Operator |
Hamburg Süd |
|
Registered owner |
Polar Mexico Maritime Ltd. |
|
Latest data adjustment |
03 March 2019 |
