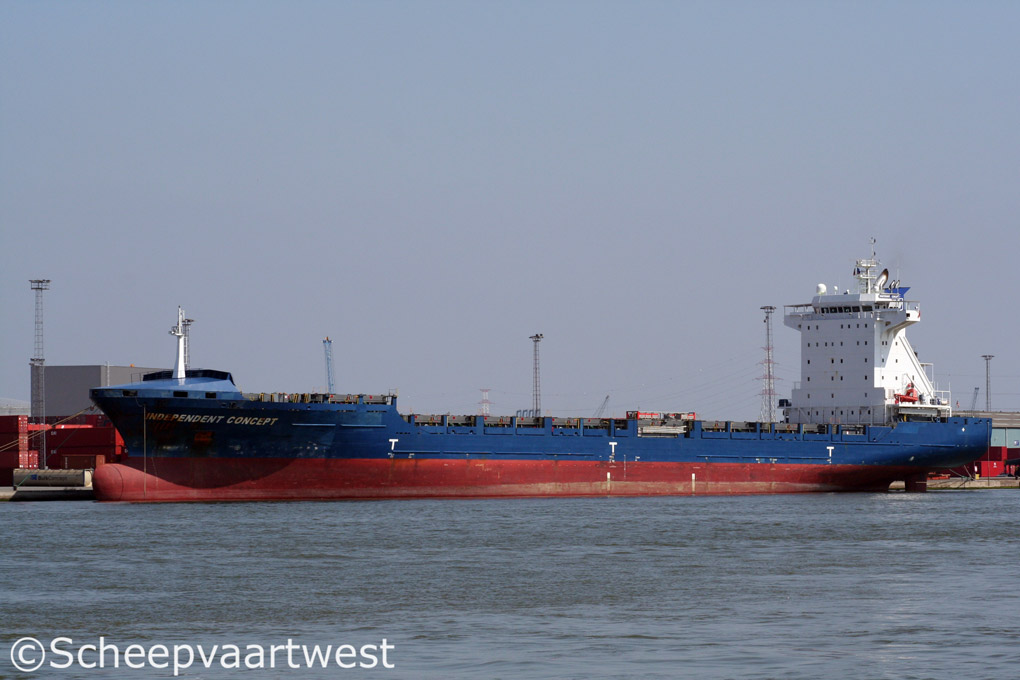

Independent Concept 01
Antwerpen 01 August 2011

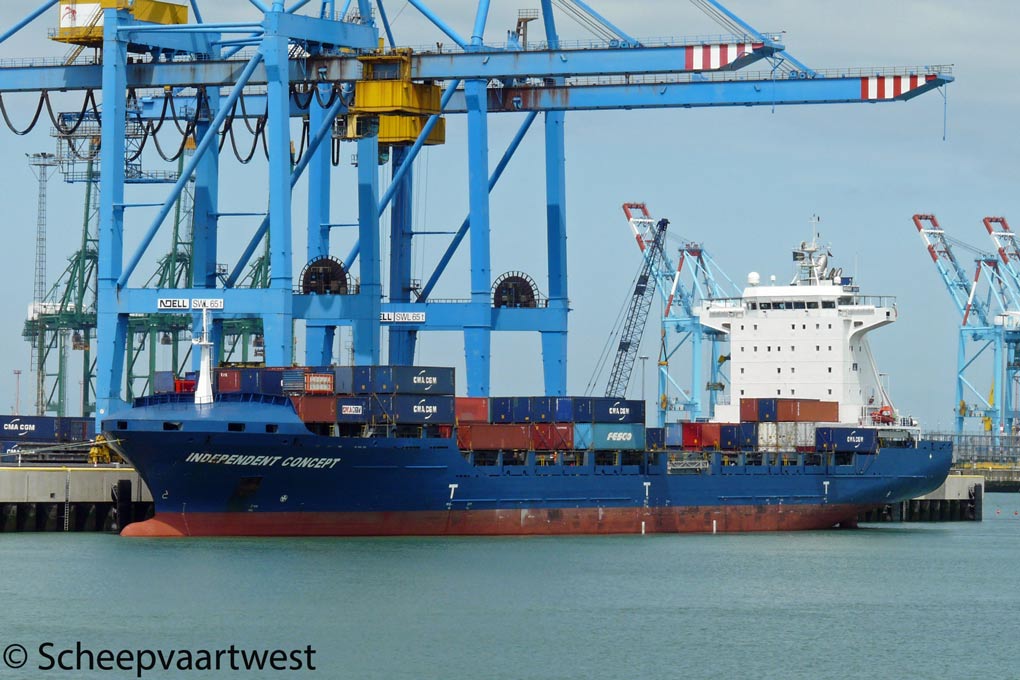

Independent Concept 04
Zeebrugge 01/07/13



Name

INDEPENDENT CONCEPT

Type

Cellular containership

IMO-number

9306213

Call sign

A8MJ4

Flag

Liberia

Port of registry

Monrovia

GT

15.345 t

DWT

20.994 t

NT

7.838 t

Number of 20ft containers

1.574

Container capacity 14t

1.065

Reefer capacity

250

Length

168,02 m overall

158,25 m registered

Breadth

25,29 m registered

Draught

10,20 m

Depth

13,50 m moulded

Speed

Service: 18,0 knots

Max.: 20,0 knots

Built

2007

Keel laid

25.12.2006

Launch date

22.03.2007

Date of completion

19.07.2007

Builder

Jiangsu Yangzijiang Shipbuilding Co., Ltd.
38 Shiyugang Road
214431 Jiangyin , Jiangsu
People's Republic of China

Yard number

YZJ2004-670C

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

6

Continuous decks

1

Main engine

1x Sulzer 7RT-Flex60C - 2 stroke 7 cylinder 600 x 2.250 mm diesel engine - 16.520 kW at 114 rpm

Year of manufacture: 2006

Manufacturer: Hudong Heavy Machinery Co., Ltd.
2851, Pudong Dadao
200129 Shanghai
People's Republic of China

Propeller

1x Solid propeller (keyless) - aft at 114 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 19,5 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 103,0 m²

Year of manufacture: 2006

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
266300 Qingdao , Shandong
People's Republic of China

Electric installations

1x Plant 450/230 V - 1.200 kVA

1x Plant 450/230 V - 1.615 kVA

1x Plant 450/230 V - 1.615 kVA

1x Plant 450 V - 1.350 kVA

1x Plant 450 V - 175 kVA

1x Plant 24 V - 50 Ah

1x Plant 24 V - 92 Ah

1x Plant 24 V - 200 Ah

Shaft generator

1.350 kVA

Generators

2x Main diesel generatorsets each 1.615 kVA / 1.292 kW

1x Main diesel generatorset 1.200 kVA / 960 kW

Emergency generator

1x Diesel generatorset 175 kVA

Batteries

2x Batteries for UPS navigation each 200 Ah

2x Batteries for automation each 92 Ah

2x Batteries for start emergency engine each 50 Ah

Compressed air receivers

2x Receivers each 6.300 litres - 33,0 bar

1x Receiver 250 litres - 33,0 bar

1x Receiver 500 litres - 12,0 bar

Thrusters

1x Transverse thruster 750 kW - forward

1x Transverse thruster 550 kW - aft

Largest hatch

Length: 39,00 m

Breadth: 20,60 m

Anchor equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Crew size

21

Manager

Norddeutsche Reederei H. Schuldt GmbH & Co. KG
Rolandsbrücke 4
20095 Hamburg
Federal Republic of Germany

Operator

Independent CL

Owner

Neunte Beteiligungs-KG TIM Shipping mbH & Co.
Elbchaussee 133
22763 Hamburg
Federal Republic of Germany

Last update

08 July 2013
