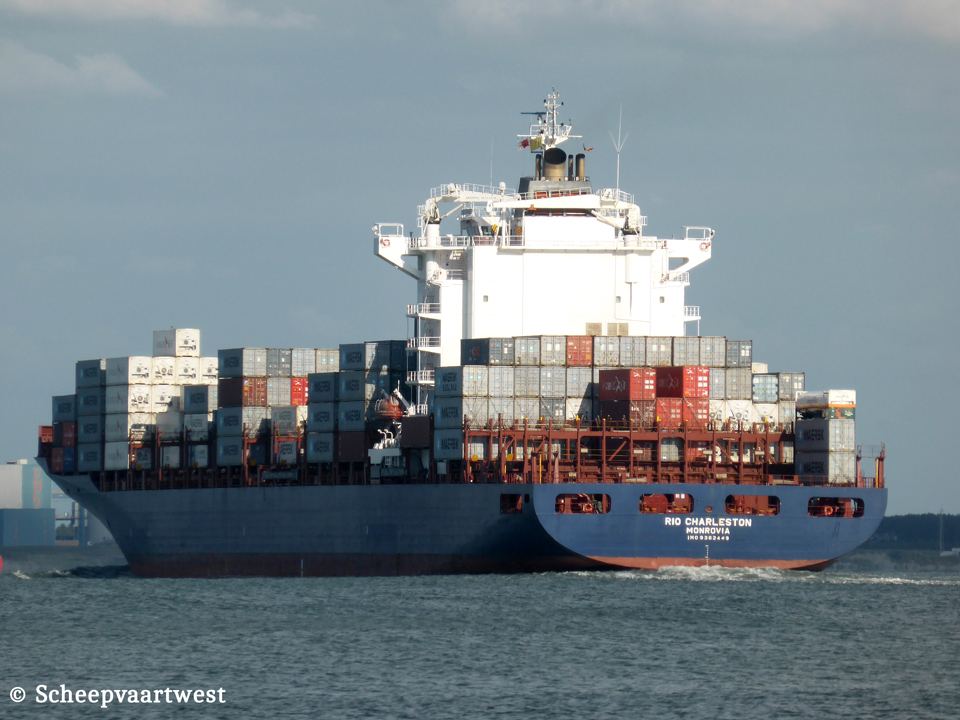

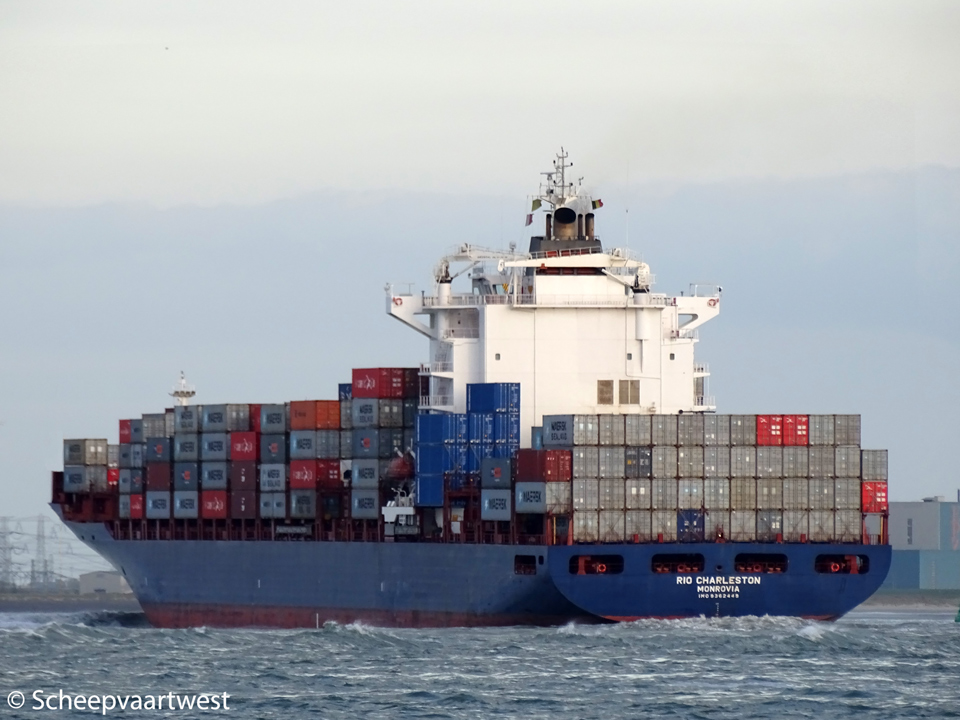

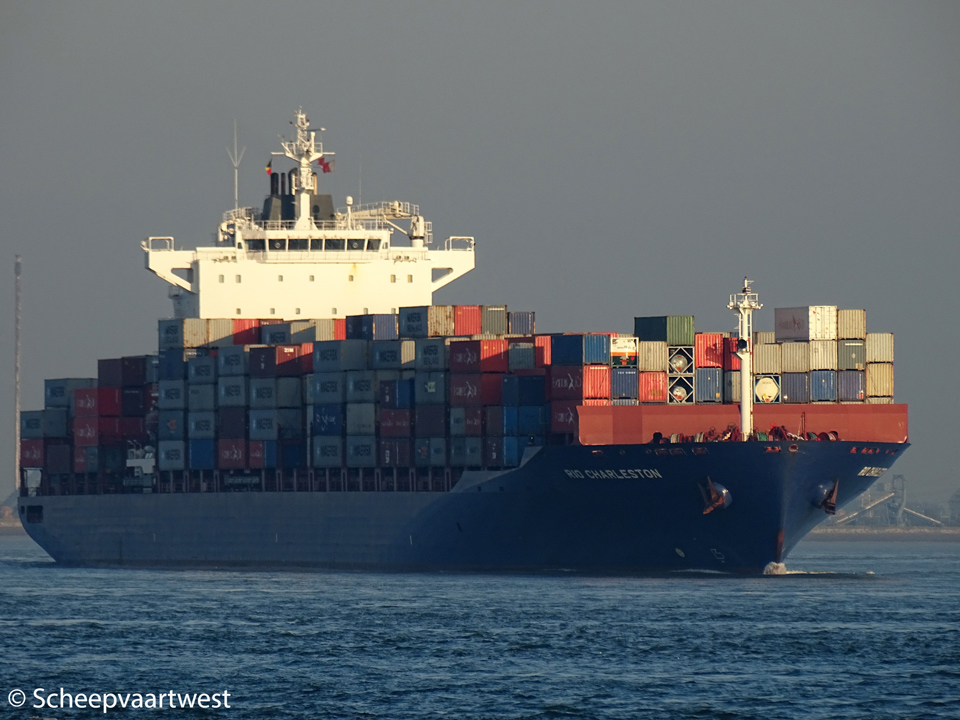

Westerschelde 25 October 2015 |
 |
 |
|
| Westerschelde 25/10/15 | Westerschelde 16/08/15 | |
|
Name |
RIO CHARLESTON |
|
Previous names |
2008 - 01/2013 CSAV Lonquimay |
|
Type |
Cellular containership |
|
IMO-number |
9362449 |
|
Call sign |
CQEP6 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
Liberia, Monrovia - Call sign: A8OT3 |
|
GT |
40.807 t |
|
DWT |
Summer: 55.313,4 t |
|
NT |
24.257 t |
|
Number of 20ft containers |
4.334 |
|
Number of 40ft containers |
2.124 |
|
Container capacity 14t |
2.900 |
|
Reefer capacity |
On deck: 322 In hold: 178 Total: 500 |
|
Length |
260,89 m overall 248,70 m between perpendiculars 249,71 m registered |
|
Breadth |
32,31 m extreme 32,26 m moulded |
|
Draught |
Max: 13,00 m |
|
Forecastle |
124,85 m |
|
Bridge |
112,25 m |
|
Depth |
19,30 m |
|
Speed |
Max: 24,2 knots |
|
Built |
2008 |
|
Keel laid |
14/08/2007 |
|
Launch date |
27/10/2007 |
|
Date of completion |
11/01/2008 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. Jeollanam-do South Korea |
|
Yard number |
S323 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 8K90MC-C MK6 - 2 stroke 8 cylinder 900 x 2.300 mm combustion engine 36.560 kW at 104,0 rpm Built: 2007 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid pitch propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 7,85 bar Heating surface 35,0 m² Heating surface 490,0 m² Built: 2007 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric installations |
1x Plant 450 V - 1.687,5 kVA 1x Plant 450 V - 1.687,5 kVA 1x Plant 450 V - 2.493,75 kVA 1x Plant 450 V - 2.493,75 kVA 1x Plant 450 V - 187,5 kVA |
|
Generators |
2x Hyundai/Himsen 9H25/33 main diesel generatorsets each 1.995 kW / 2.493,75 kVA 2x Hyundai/Himsen 6H25/33 main diesel generatorsets each 1.350 kW / 1.387,5 kVA |
|
Emergency & harbour gen. |
1x Cummins 6CTA8.3-D(M) diesel generatorset 197,5 kVA |
|
Compressed air receivers |
2x Receivers each 11.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2.000 litres - 7,0 bar 1x Receiver 250 litres - 7,0 bar |
|
Bow thruster |
1x 1.800 kW, forward |
|
Anchor equipment |
3x Anchors, weight each 11.700 kg Chain length 687,50 m Diameter: 84 mm |
|
Cargo gear |
Gearless |
|
Crew size |
27 |
|
Manager |
Wilhelmsen Ahrenkiel Ship Management GmbH & Co. KG Palmaille 67 22767 Hamburg Germany |
|
Precious manager |
Ahrenkiel Steamship GmbH & Co. KG Palmaille 75 22767 Hamburg Germany |
|
Registered owner |
Ternerabben AS Care of Harper Petersen Holding GmbH & Co KG Palmaille 75 22767 Hamburg Germany |
|
Latest data adjustment |
15 February 2023 |
