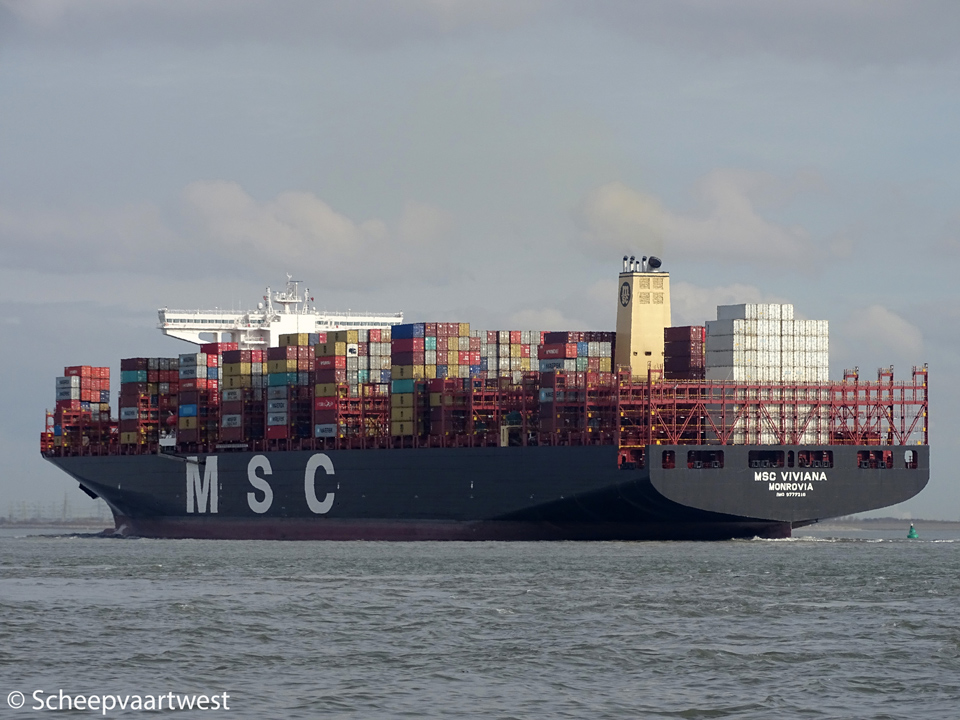

MSC Viviana 01

Westerschelde 05 March 2018



Name

MSC VIVIANA

Type

Cellular containership

IMO-number

9777216

Call sign

D5ND7

Flag

Liberia

Port of registry

Monrovia

GT

187.587 t

DWT

185.503 t

NT

85.485 t

Number of 20ft containers

19.368

Container capacity 14t

15.522

Reefer capacity

1.000

Length

399,98 m overall

383,00 m between perpendiculars

Breadth

58,60 m extreme

Draught

Max: 16,00 m

Depth

30,50 m

Speed

23,8 knots

Built

2017

Keel laid

30/11/2015

Launch date

18/11/2016

Date of completion

15/03/2017

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

2843

Hull material

Steel

Continuous decks

1

Main engine

1x Doosan/MAN-B&W 11G95ME-C - 2 stroke single acting 11 cylinder 950 x 3.460 mm combustion engine 60.140 kW / 81.766 hp at 80,0 rpm

Manufacturer: Doosan Engine Co Ltd - South Korea

Propellers

1x Fixed pitch propeller - aft at 80,0 rpm

Boilers

1x Auxiliary boiler, exhaust gas heated (EGB)

1x Auxiliary boiler, oil/gas fired (OFB)

2x Auxiliary boiler, exhaust gas heated (EGE)

Manufacturer: Kangrim Heavy Ind. Co., Ltd.

Generators

2x MAN-B&W 8L32/40CD 4 stroke 8 cylinder 320 x 400 combustion engines each 4.000 kW coupled with 2 generators each 3.900 kW

2x MAN-B&W 9L32/40CD 4 stroke 8 cylinder 320 x 400 combustion engines each 4.500 kW coupled with 2 generators each 4.400 kW

Emergency generator

1x Cummins QSK19 diesel generatorset

Bow thruster

2x Tunnel thruster each 2.500 kW / 3.399 bhp, forward

Tank capacities

Ballast: 47.893,9 m³

Anchor equipment

Length: 770,00 m

Diameter: 132 mm

Crew size

24

Manager

Mediterranean Shipping Co., Srl
Chemin Rieu, 12-14
1208 Geneva
Switzerland

Registered owner

Xinshi International Ship Lease Co., Ltd.

Latest data adjustment

05 February 2019
