Westerschelde 05 May 2019 |
 |
| Westerschelde 05/01/19 |
|
Name |

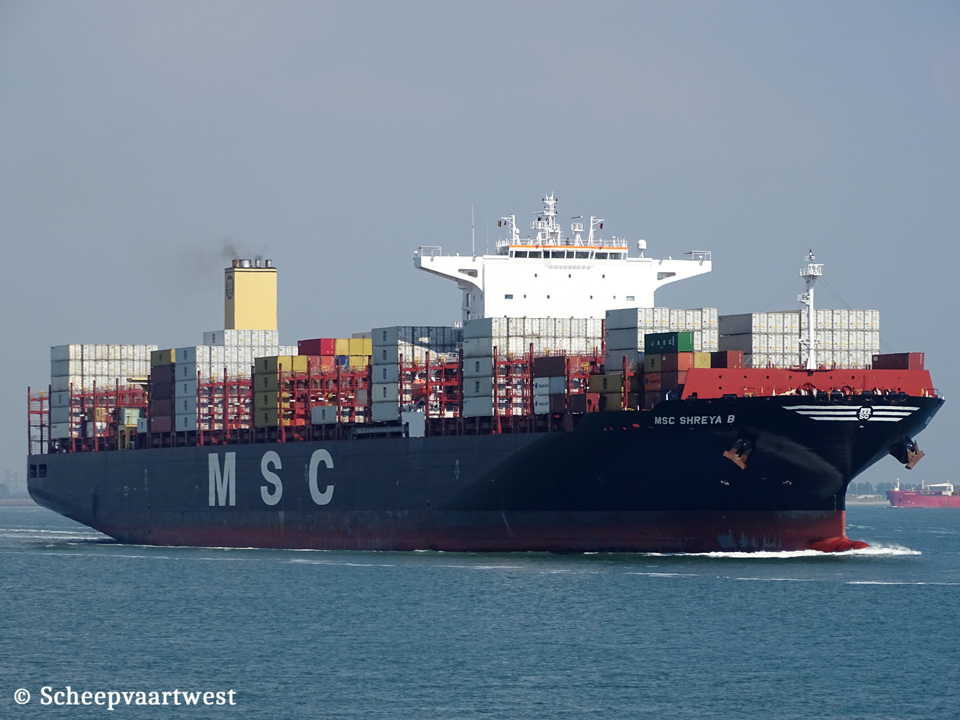

MSC SHREYA B |
|
Type |
Cellular containership |
|
IMO-number |
9778105 |
|
Call sign |
CQIP3 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
113.112 t |
|
DWT |
126.368 t |
|
NT |
62.337 t |
|
Number of 20ft containers |
11.010 |
|
Container capacity 14t |
8.270 |
|
Reefer capacity |
1.453 |
|
Length |
330,03 m overall 316,40 m between perpendiculars |
|
Breadth |
48,31 m extreme 48,20 m moulded |
|
Draught |
Max: 16,00 m |
|
Depth |
22,94 m |
|
Speed |
Service: 22,0 knots |
|
Built |
2017 |
|
Keel laid |
27/11/2015 |
|
Launch date |
14/04/2017 |
|
Date of completion |
20/09/2017 |
|
Builder |
HHIC-Phil Inc (Hanjin Heavy Industries & Construction) Subic Bay Philippines |
|
Yard number |
NCP0146 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8G95ME-C - 2 stroke single acting 8 cylinder 950 x 3.460 mm combustion engine 54.960 kW / 74.724 hp at 80,0 rpm Manufacturer: Hyundai Heavy Industries Co Ltd (B&W); Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 80,0 rpm |
|
Boilers |
3x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired Builder: KangRim Heavy Industries |
|
Generators |
2x MAN 8L32/40CD - 4 stroke 8 cylinder 320 x 400 mm diesel engine each 4.000 kW coupled with 2 generators each 3.900 kW 2x MAN 9L32/40CD - 4 stroke 8 cylinder 320 x 400 mm diesel engine each 4.400 kW coupled with 2 generators each 4.300 kW |
|
Emergency generator |
1x MAN diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 3.000kW / 4.079 bhp, forward |
|
Tank capacities |
Ballast: 30.823,21 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 114 mm |
|
Cargo gear |
Gearless |
|
Crew size |
22 |
|
Ism & commercial manager |
MSC Shipmanagement Ltd. MSC House, 8 Spyrou Kyprianou Avenue Limassol Cyprus |
|
Registered owner |
Sea 28 Leasing Co Ltd. |
|
Latest data adjustment |
02 September 2021 |
