Westerschelde 28 January 2019 |
|
Name |

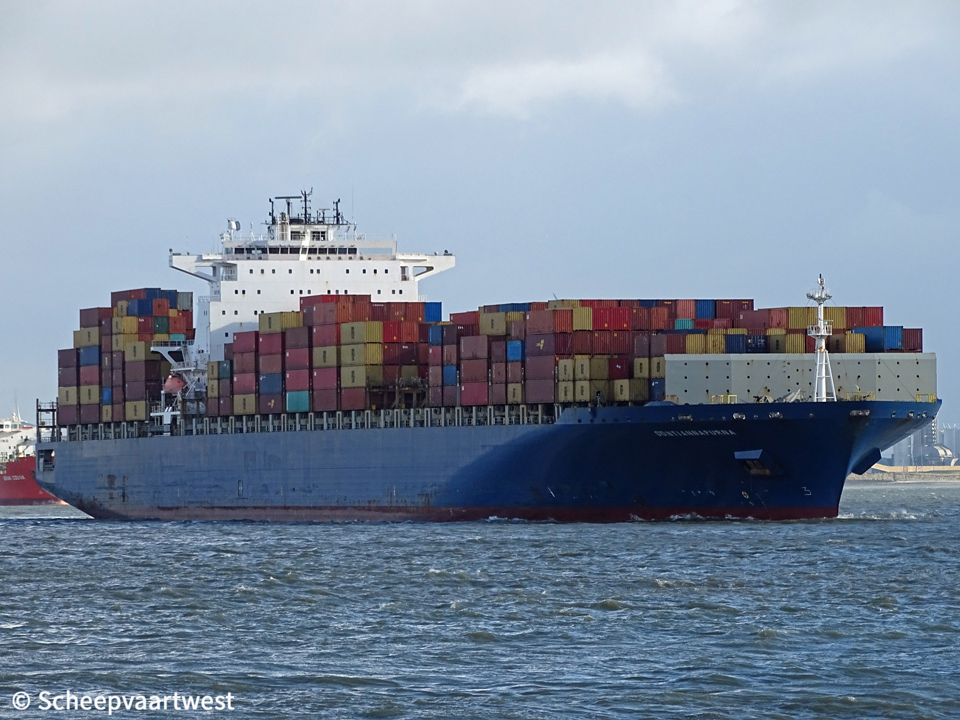

CONTI ANNAPURNA |
|
Previous names |
Pacific Link |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9286255 |
|
Call sign |
D5SI3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2004 - 2015 Germany, Hamburg - Call sign: DCSA2 2015 - 2018 Malta, Valletta |
|
GT |
90.745 t |
|
DWT |
Summer: 101.906 t |
|
NT |
55.203 t |
|
Number of 40ft containers |
In hold: 3.820 On deck: 4.418 Total: 8.238 |
|
Container capacity 14t |
6.310 |
|
Reefer capacity |
On deck: 200 In hold: 500 Total: 700 |
|
Length |
334,07 m overall 319,00 m between perpendiculars |
|
Breadth |
43,80 m |
|
Draught |
Max: 14,50 m |
|
Freeboard |
5.749 mm |
|
Depth |
20,23 m |
|
Speed |
Max; 25,4 knots Service: 24,4 knots |
|
Built |
2004 |
|
Date of completion |
29/10/2004 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1534 |
|
Hull material |
Steel |
|
Watertight compartments |
32 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W/Hyundai 12K98MC-C - 2 stroke single acting 12 cylinder 980 x 2.660 mm combustion engine 68.666 kW / 93.358 hp at 94,0 rpm Builder: Hyundai Heavy Industries Co., Ltd., Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 94,0 rpm |
|
Boilers |
1x CHR Aalborg 736,00 m² - 10,0 bar |
|
Generators |
2x MAN-B&W 9L27/38 - 4 stroke 9 cylinder 270 x 380 mm diesel engine each 2.389 kW coupled with 2 generators each 2.986 kVA 3x MAN-B&W 7L27/38 - 4 stroke 7 cylinder 270 x 380 mm diesel engine each 1.877 kW coupled with 3 generators each 2.346 kVA |
|
Emergency generator |
1x Cummins VTA-28-DM diesel generatorset 625 kVA - 500 kW - 826 hp |
|
Bow thruster |
1x Controllable pitch thruster 2.500 kW / 3.399 bhp |
|
Number of holds |
9 |
|
Tank capacities |
Fuel: 12.556,4 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
20 |
|
Manager |
NSB Niederelbe Schiffahrtsgesellschaft mbH & Co., KG |
|
Registered owner |
Conti 28, Container Schiffahrts-GmbH & Co. KG MS'' CONTI ANNAPURNA'' |
|
Latest data adjustment |
23 February 2019 |
