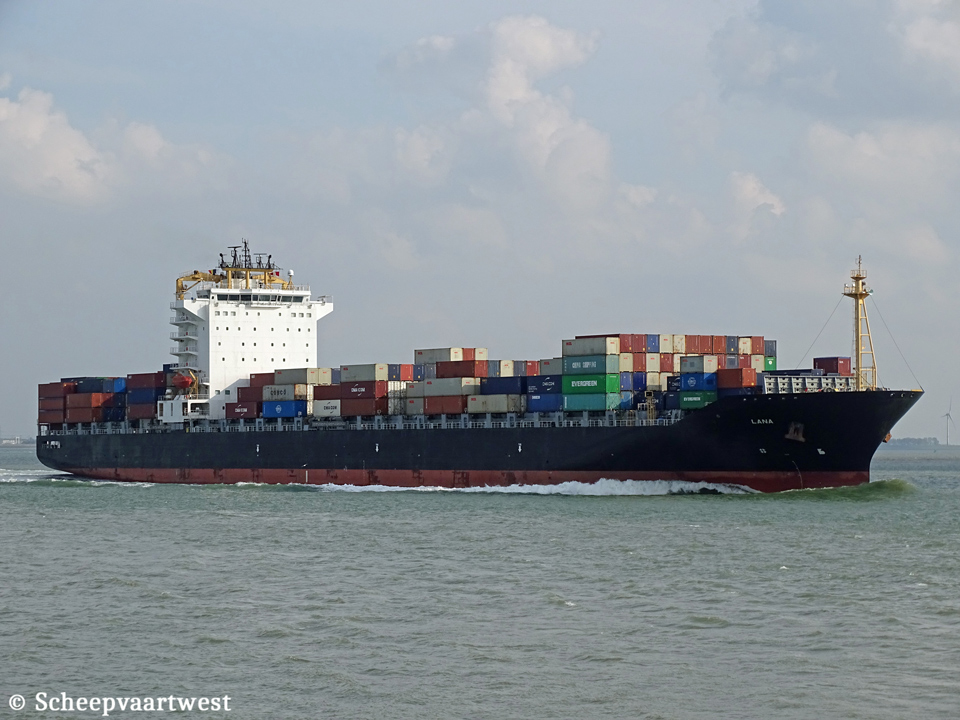

| Westerschelde 19 October 2020 |
 |

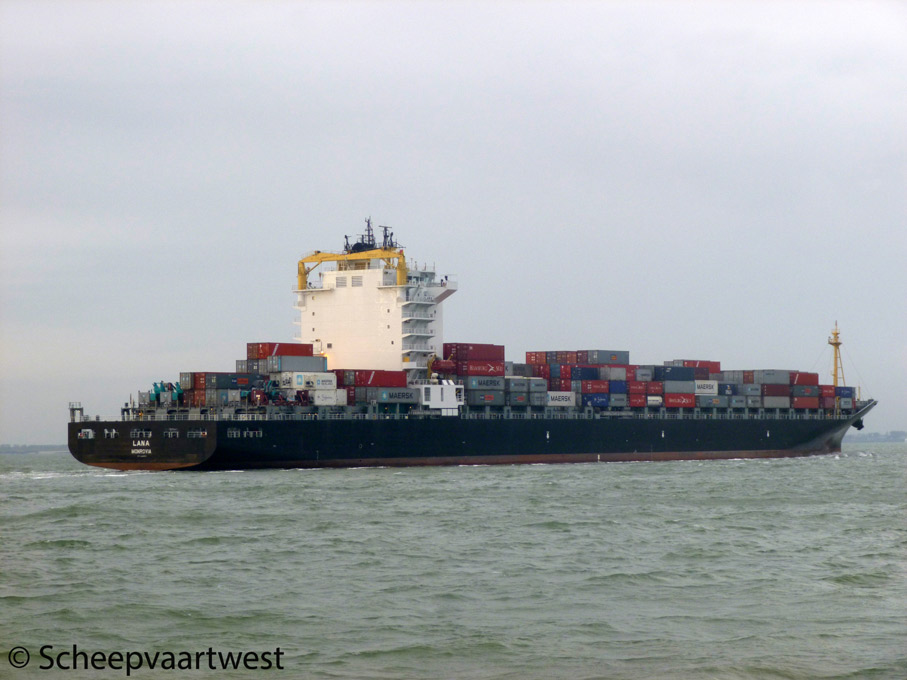

| Westerschelde 13/10/12 |
|
Name |
LANA |
|
Previous names |
Lania |
|
Type |
Cellular containership |
|
IMO-number |
9484522 |
|
Call sign |
D5BD7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
42.112 t |
|
DWT |
54.344 t |
|
NT |
2.5378 t |
|
Number of 20ft containers |
In hold: 1.622 On deck: 2.758 4.380 |
|
Container capacity 14t |
2.850 |
|
Reefer capacity |
360 |
|
Length |
260,36 m overall 247,29 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
12,60 m |
|
Forecastle |
123,64 m |
|
Bridge |
114,04 m |
|
Freeboard |
3.890 mm |
|
Depth |
19,20 m moulded |
|
Speed |
Max: 24,37 knots |
|
Built |
2010 |
|
Keel laid |
05/03/2010 |
|
Launch date |
15/05/2010 |
|
Date of completion |
29/06/2010 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard 1, Aju-dong Geoje-si ,656-714 Kyongsang-namdo Republic of Korea |
|
Yard number |
4172 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 8K90MC-C - 2 stroke 8 cylinder 900 x 2.300 mm combustion engine 35.560 kW at 104,0 rpm Year of Manufacture: 2010 Manufacturer: Doosan Engine Co., Ltd. 18, Gongdanro21-gil, Sungsan-gu Changwon ,642-370 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (Keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 36,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 679,0 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao ,266300 Shandong People's Republic of China |
|
Electric installations |
3x Plants each 450 V - 3.040 kVA 1x Plant 450 V - 375 kVA 2x Plants each 24 V - 92 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 215 Ah 1x Plant 24 V - 300 Ah |
|
Generators |
3x Hyundai/Himsen 8H25/33 main diesel generatorsets each 3.040 kVA / 2.432 kW |
|
Emergency generator |
1x Cummins NTA-855-D-M diesel generatorset 375 kVA |
|
Batteries |
1x Battery for UPS navigation 300 Ah 2x Batteries for start emergency engine each 215 Ah 1x Battery for UPS radio 200 Ah 2x Batteries for automation each 92 Ah |
|
Compressed air receivers |
2x Receivers each 11.000 litres - 33,0 bar 1x Receiver 300 litres - 33,0 bar 1x Receiver 300 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster - 1.500 kW / 2.039 bhp, forward |
|
Anchor equipment |
3x Anchors weight each 12.300 kg Chain length: 687,50 m |
|
Cargo gear |
None |
|
Crew size |
28 |
|
Manager |
Marlow Ship Management Deutschland GmbH & Co. KG Große Elbstr. 145D 22767 Hamburg Federal Republic of Germany |
|
Registered owner |
Lana Navigation Co. Ltd. 80, Broad Street 1000 Monrovia Republic of Liberia |
|
Latest data adjustment |
19 February 2021 |
