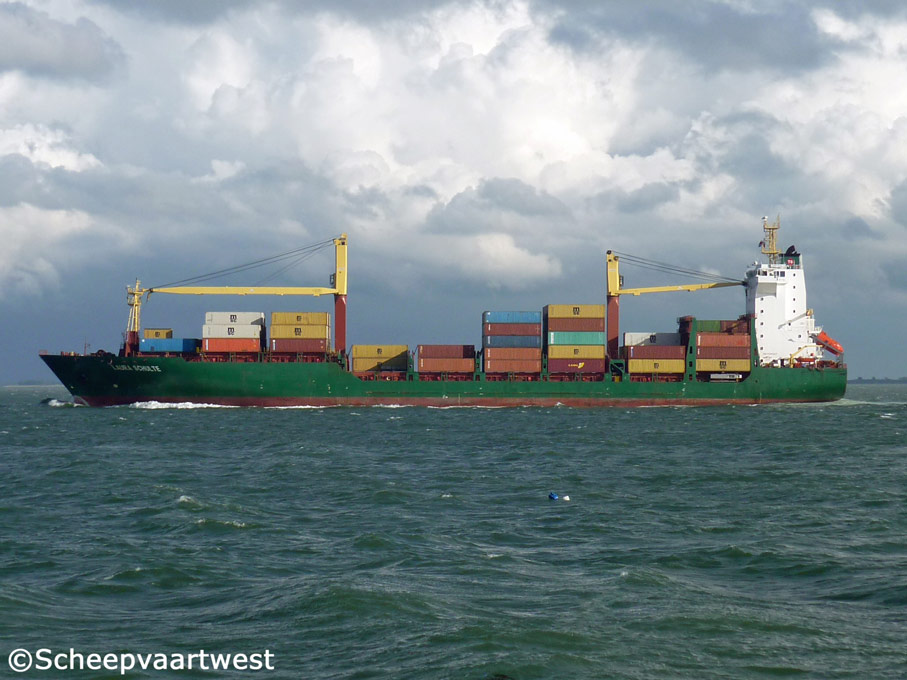

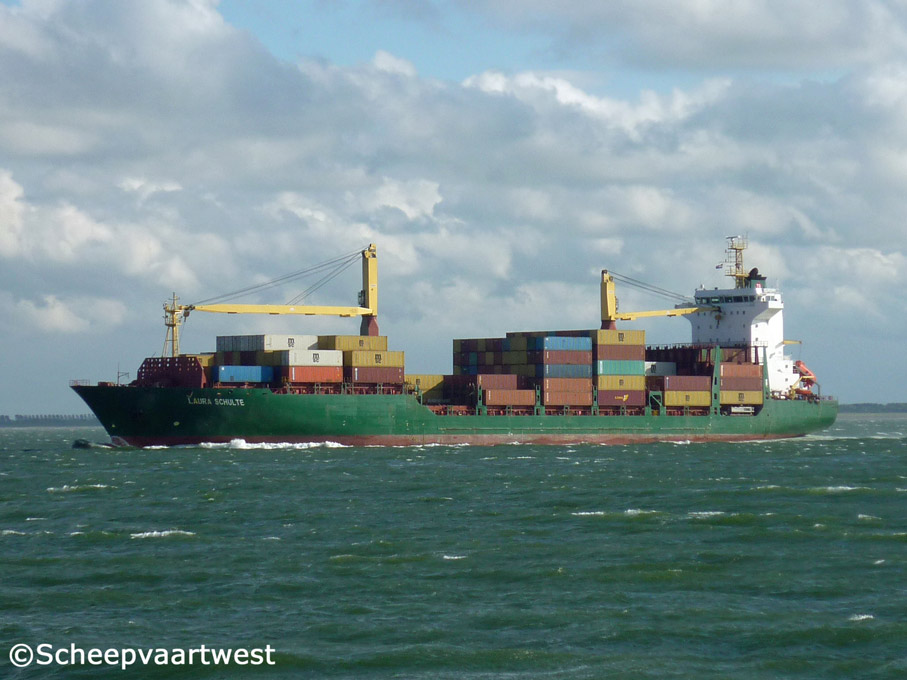

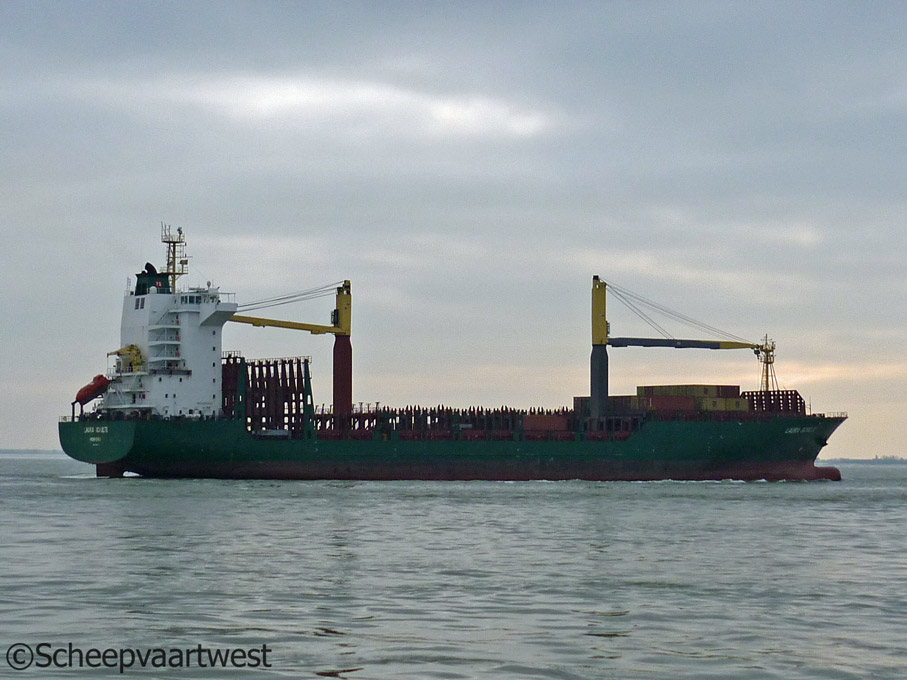

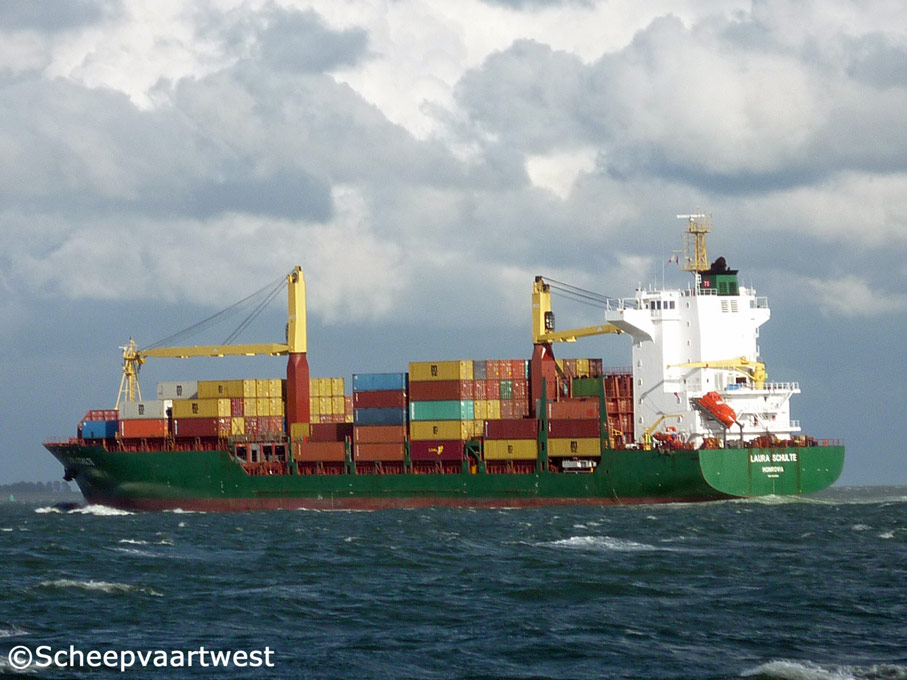

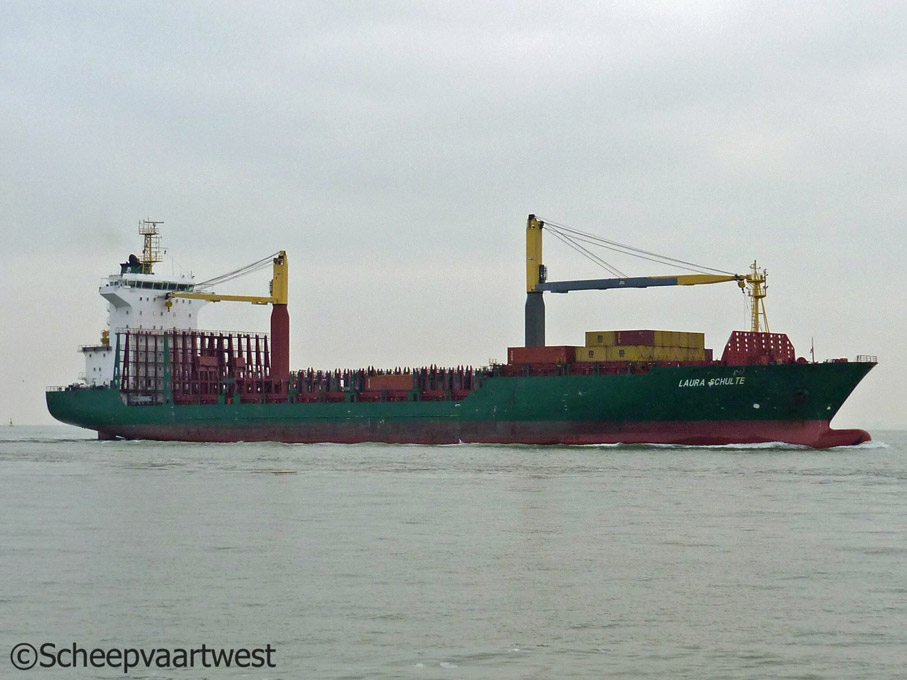

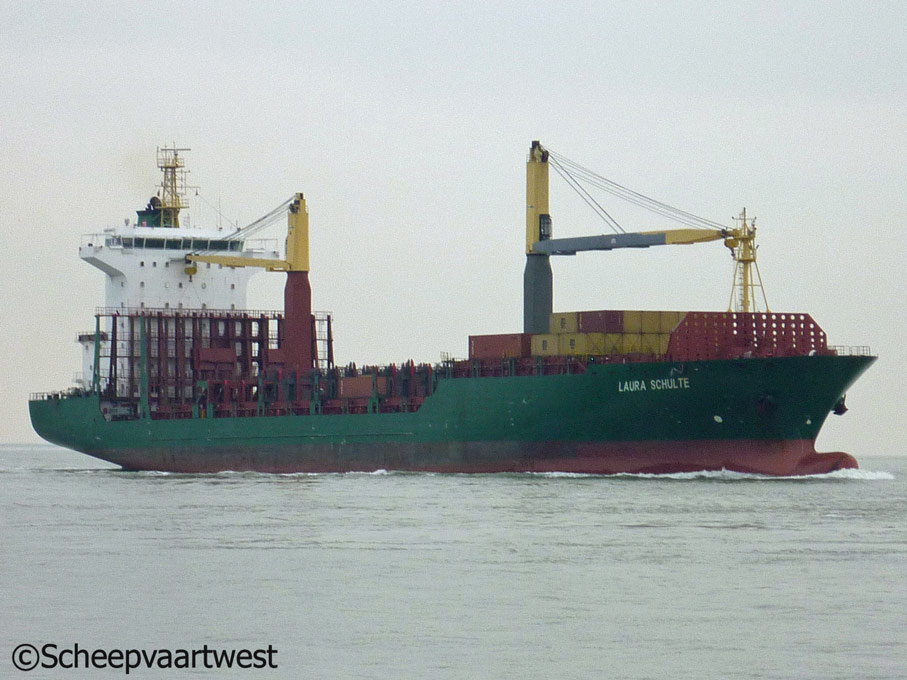

| Westerschelde 09 February 2012 |
 |
 |
 |
 |
 |
||||
| Westerschelde 09/02/12 | Westerschelde 09/02/12 | Westerschelde 08/07/12 | Westerschelde 08/07/12 | Westerschelde 08/07/12 |
|
Name |
LAURA SCHULTE |
|
Previous names |
2004 Build as: Laura Schulte 11/2004 - 11/2008 Maersk Varna |
|
Type |
Geared cellular container vessel |
|
IMO-number |
9289063 |
|
Call sign |
A8RF9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
18.334 t |
|
DWT |
23.286 t |
|
NT |
10.774 t |
|
Number of 20ft containers |
On deck: 996 In hold: 700 Total: 1.696 |
|
Container capacity 14t |
1.330 |
|
Reefer capacity |
On deck: 220 In hold: 80 Total: 300 |
|
Length |
175,59 m overall 166,13 m registered |
|
Breadth |
27,40 m registered |
|
Draught |
10,90 m |
|
Forecastle |
57,83 m |
|
Poop |
16,15 m |
|
Depth |
14,30 m |
|
Speed |
20,5 knots |
|
Service |
CCCWM |
|
Built |
2004 |
|
Keel laid |
19/02/2004 |
|
Launch date |
08/06/2004 |
|
Date of completion |
01/11/2004 |
|
Builder |
Guangzhou Wenchong Shipyard Co., Ltd. 1, Wenchuan Road Hongshan Street, Huangpu District Guangzhou, 510725 Guangdong People's Republic of China |
|
Yard number |
GWS312 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm diesel engine - 18.820 kW at 105,0 rpm Year of manufacture: 2004 Manufacturer: Hudong Heavy Machinery Co., Ltd. 2851, Pudong Dadao 200129 Shanghai People's Republic of China |
|
Propellers |
1x Solid propeller (keyless) - aft at 105,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 25,5 m² 1x Steam boiler; exhaust gas heated - 9,0 bar Heating surface: 483,0 m² Year of manufacture: 2003 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) 40, Wongnam-dong Changwon Republic of Korea |
|
Electric installation |
3x Plants each 450/230 V - 1.475 kVA 1x Plant 450 V - 213 kVA 1x Plant 24 V - 80 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah |
|
Generators |
3x MAN-B&W 6L28/32H main diesel generatorsets each 1.475 kVA / 1.180 kW |
|
Emergency generator |
1x Diesel generatorset 213 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for UPS radio 200 Ah 1x Battery for start emergency engine 80 Ah |
|
Compressed air receivers |
2x Receivers each 6.000 litres - 30,0 bar 2x Receivers each 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 900 kW, forward |
|
Number of holds |
5 |
|
Cargo hold capacity |
27.172 m³ |
|
Number of hatches |
8 |
|
Hatch type |
Pontoon hatch covers |
|
Tank capacities |
Fuel oil: 1.803 t Ballast water: 8.100 m³ Fresh water: 109 m³ |
|
Anchor equipment |
3x Anchors weight each 7.800 kg Chain length: 632,50 m Diameter: 68 mm |
|
Lifting equipment |
1x Crane - SWL 4,0 t 1X Crane - SWL 6,0t |
|
Cargo gear |
2x Electro-hydraulic driven cranes - SWL 45,0 t each |
|
Manager |
Ocean Shipmanagement GmbH Zürich Haus Domstr. 17 20095 Hamburg Federal Republic of Germany |
|
Operator |
Reederei Thomas Schulte Domstraße 17 20095 Hamburg Germany |
|
Registered owner |
Northern Vice Shipping Ltd. c/o Hanseatic Shipping Co., Ltd. 111, Spyrou Araouzou Street Hanseatic House 3036 Limassol Republic of Cyprus |
|
Renamed |
2013 Pinara Liberia, Monrovia - Call sign: A8RF9 Reg. owner: Atlantic Pinara AS, Norway Manager: Reederei F. Laeisz GmbH |
|
Latest data adjustment |
30 March 2021 |
