Westerschelde 18 Octpber 2018 |
 |
 |
|
| Westerschelde 11/04/19 | Westerschelde 20/06/19 |
|
Name |

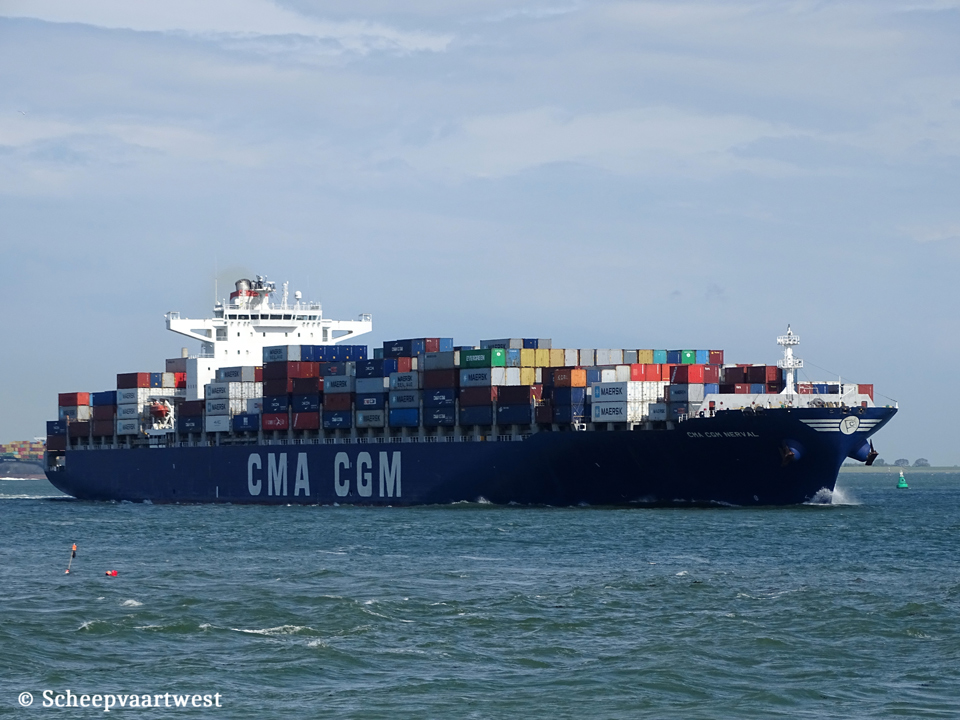

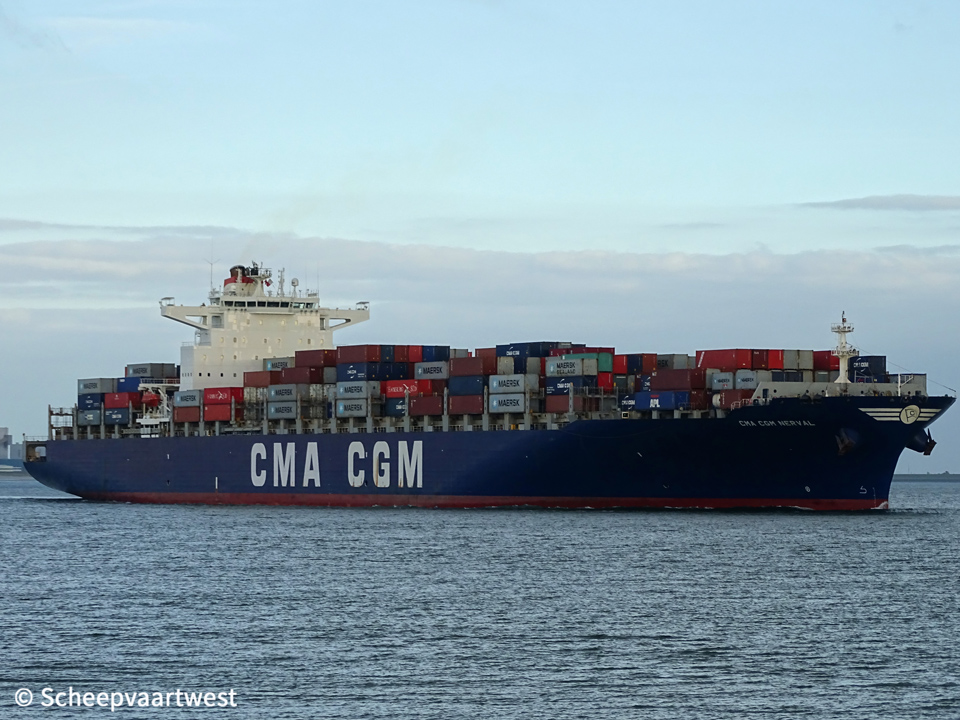

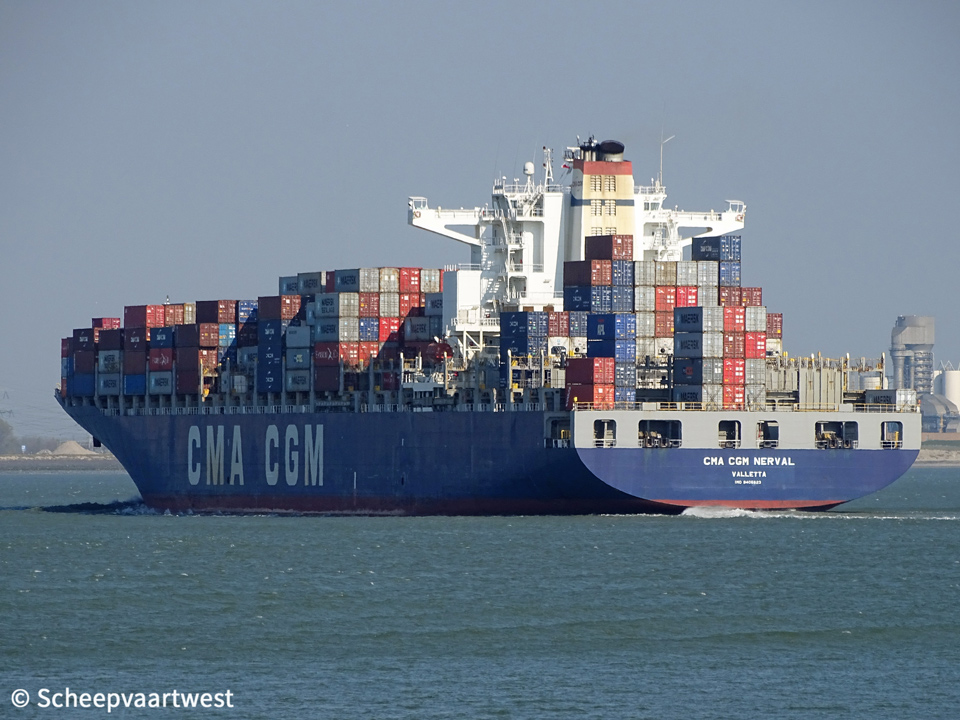

CMA CGM NERVAL |
|
Type |
Cellular container ship |
|
IMO-number |
9406623 |
|
Classification |
DNV GL |
|
Call sign |
9HA2361 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
72.884 t |
|
DWT |
Summer: 83.318,9 t |
|
NT |
44.818 t |
|
Number of 20ft containers |
6.552 |
|
Container capacity 14t |
5.050 |
|
Reefer capacity |
500 |
|
Length |
299,97 m overall 288,49 m between perpendiculars |
|
Breadth |
40,06 extreme |
|
Draught |
Max: 14,50 m |
|
Depth |
24,20 m |
|
Speed |
25,6 knots |
|
Built |
2010 |
|
Keel laid |
12/03/2009 |
|
Launch date |
27/12/2009 |
|
Date of completion |
17/05/2010 |
|
Builder |
Sungdong Shipbuilding & Marine Engineering Co., Ltd. Tongyoung South Korea |
|
Yard number |
S4003 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/HHI 10K98MC-C - 2 stroke10 cylinder combustion engine 57.100 kW / 76.572 hp at 104,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x Daihatsu 6DK-28 main diesel generatorsets each 1.920 kW 2x Daihatsu 8DK-28 main diesel generatorsets each 2.262 kW |
|
Emergency generator |
1x Cummins NT-855-D(M) diesel generatorset |
|
Bow thruster |
1x Kawasaki controllable pitch 2.800 kW |
|
Number of holds |
8 |
|
Number of hatches |
17 |
|
Tank capacities |
Ballast: 19.791,5 m³ |
|
Anchor equipment |
Length: 754,00 m Diameter: 97 mm |
|
Cargo gear |
Gearless |
|
ISM & Commerical manager |
Danaos Shipping Co., Ltd. 14, Akti Kondyli 185 45 Piraeus Greece |
|
Chartered |
CMA CGM (Compagnie Maritime d'Affrètement - Compagnie Générale Maritime) Marseille France |
|
Registered owner |
Boxcarrier No 3 Corp. Care of Danaos Shipping Co Ltd. 14, Akti Kondyli 185 45 Piraeus Greece |
|
Latest data adjustment |
19 September 2021 |
