Westerschelde 11 April 2019 |
Westerschelde 11/04 19 | Westerschelde 14/03/19 | Westerschelde 13/04/17 | ||
Name |

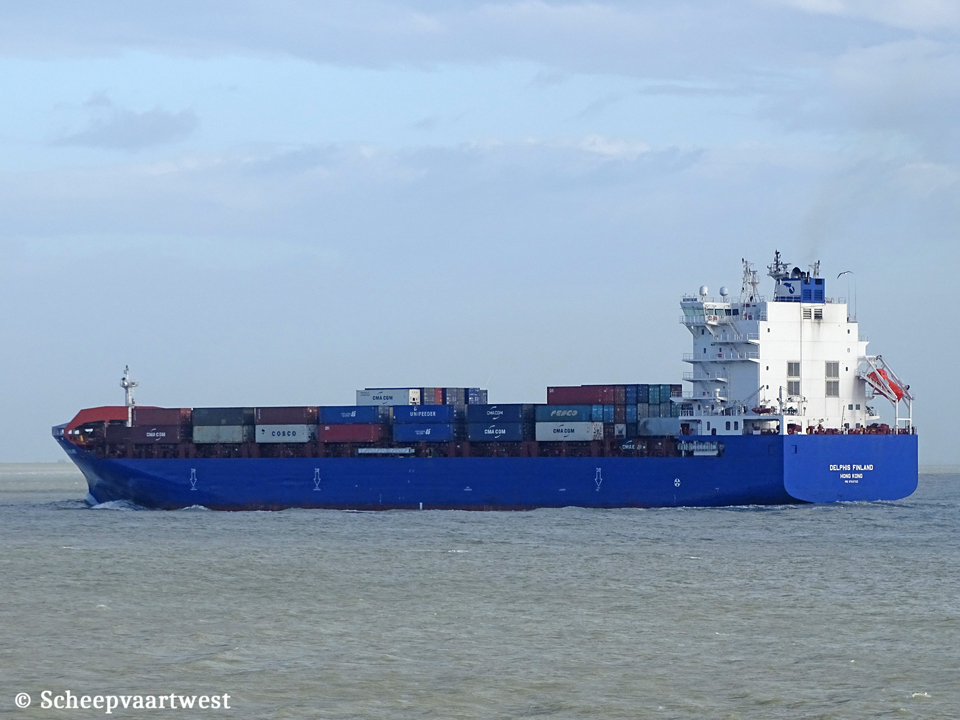

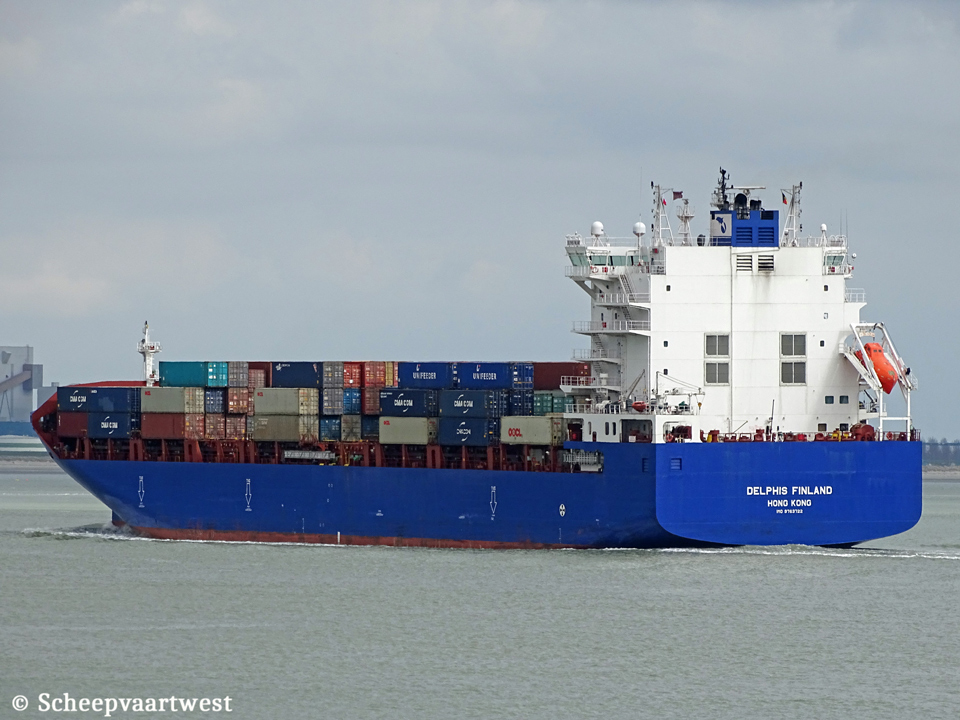

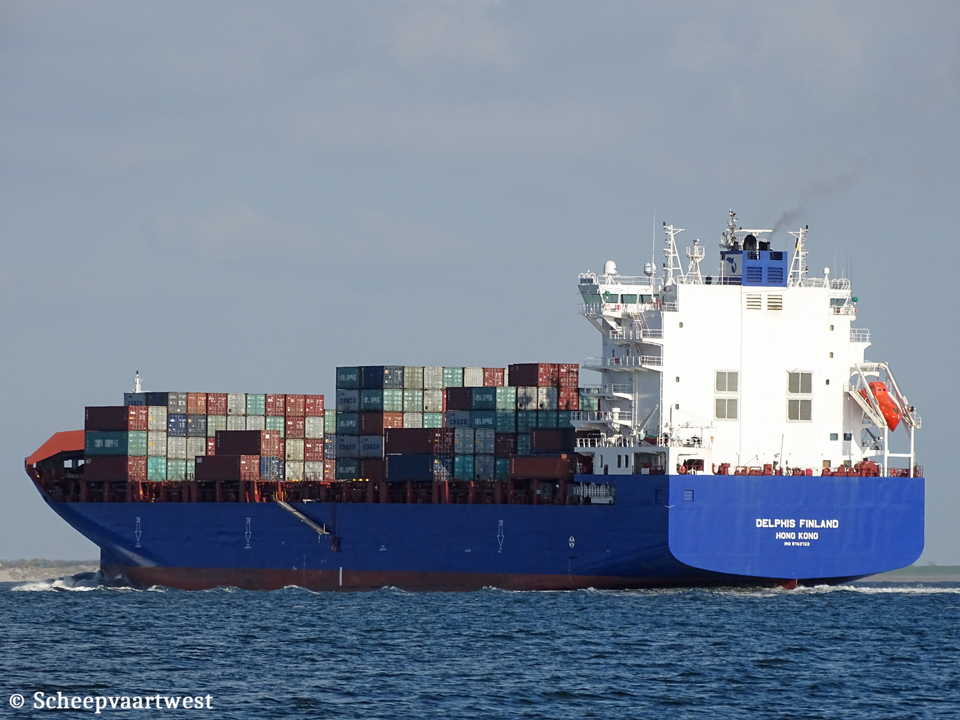

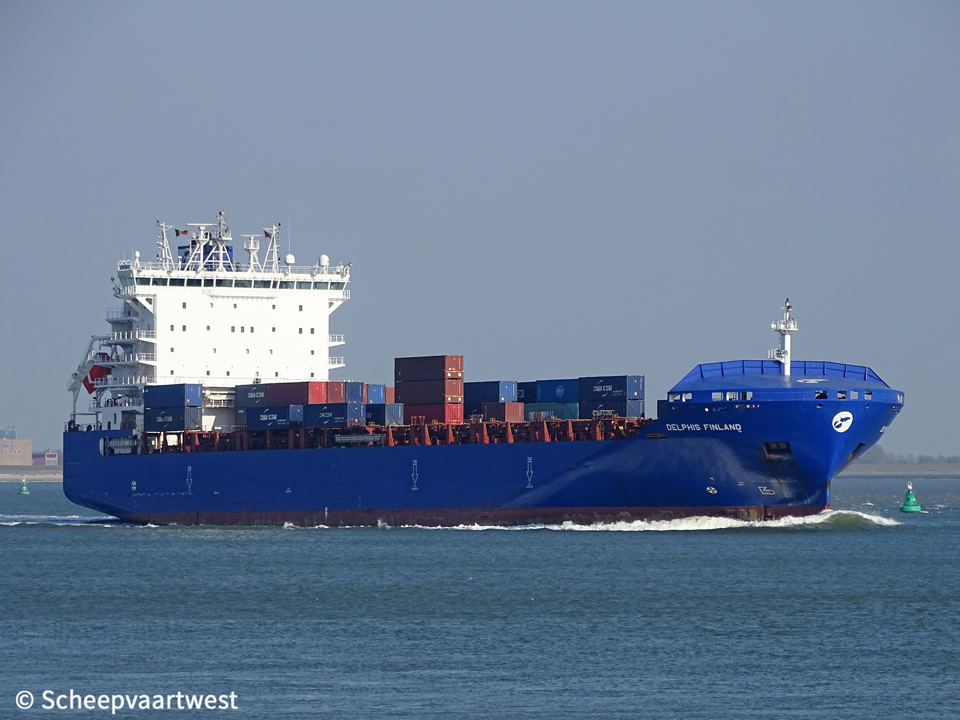

DELPHIS FINLAND |
Type |
Cellular containership |
IMO-number |
9763722 |
Call sign |
VRQA2 |
Flag |
Hong Kong - China |
Port of registry |
Hong Kong |
GT |
25.715 t |
DWT |
24.700 t |
NT |
7.715 t |
Number of 20ft containers |
1.926 |
Number of 40ft containers |
950 |
Container capacity 14t |
1.406 |
Reefer capacity |
494 |
Length |
177,53 m overall 169,50 m between perpendiculars |
Breadth |
30,54 m extreme |
Draught |
Max: 9,50 m |
Freeboard |
1.861 mm |
Depth |
16,80 m |
Speed |
Service: 18,5 knots Max: 20,0 knots |
Built |
2016 |
Keel laid |
18/12/2015 |
Launch date |
04/04/2016 |
Date of completion |
22/11/2016 |
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. Busan South Korea |
Yard number |
264 |
Hull material |
Steel |
Hull type |
Double hull |
Number of decks |
1 |
Main engine |
1x MAN-B&W/STX 6S60ME-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine Mcr 11.655 kw / 15.846 hp at 105,0 rpm Manufacturer: STX Engine Co., Ltd. - South Korea |
Propellers |
1x Fixed pitch mono-block propeller - aft at 105,0 rpm |
Boilers |
1x Auxiliary boiler, composite Manufacturer: Kangrim Heavy Industries Co.,Ltd. |
Generators |
1x Hyundai Himsen 6H21/32 - 4 stroke 6 cylinder 210 x 320 mm diesel engine Mcr 1.200 kW connected with generator 1.100 ekW 3x Hyundai Himsen 8H21/32- 4 stroke 8 cylinder 210 x 320 mm diesel engines each Mcr 1.600 kW connected with generators each 1.500 ekW Manufacturer: Hyundai Heavy Industries Co., Ltd. |
Emergency generator |
1x Cummins N855-M/ - D(M) diesel generatorset |
Bow thruster |
1x Tunnel thruster 1.250 kW / 1.835 bhp; forward 1x Tunnel thruster 700 kW / 952 hp, aft |
Tank capacities |
Ballast: 10.249,09 m³ |
Anchor equipment |
Length: 660,00 m Diameter: 76 mm |
Cargo gear |
Gearless |
Person capacity |
20 |
ISM manager |
Anglo-Eastern Germany GmbH Raboisen 28, 20095 Hamburg Germany |
Operator |
Delphis NV (CMB Division) De Gerlachekaai 20 2000 Antwerpen Belgium |
Registered owner |
Pavo Carriers Company SA, Panama City - Republic of Panama Care of Bocimar International NV , De Gerlachekaai 20 2000 Antwerpen Belgium |
Latest data adjustment |
15 January 2022 |
