Westerschelde 09 November 2018 |
 |
 |
|
| Westerschelde 23/05/19 | Westerschelde 13/04/19 |
|
Name |

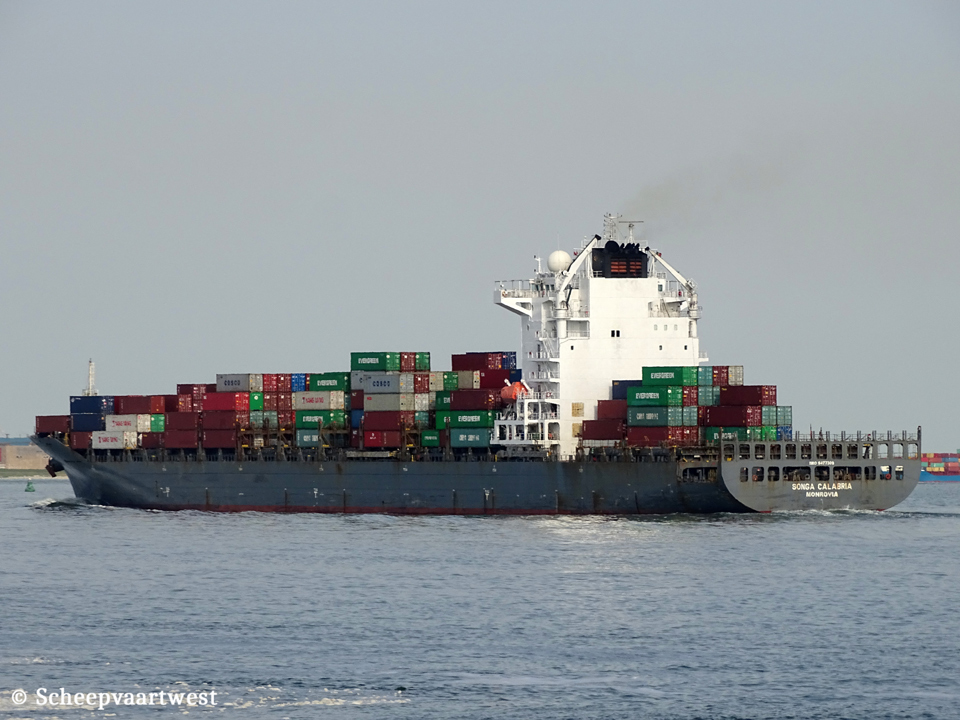

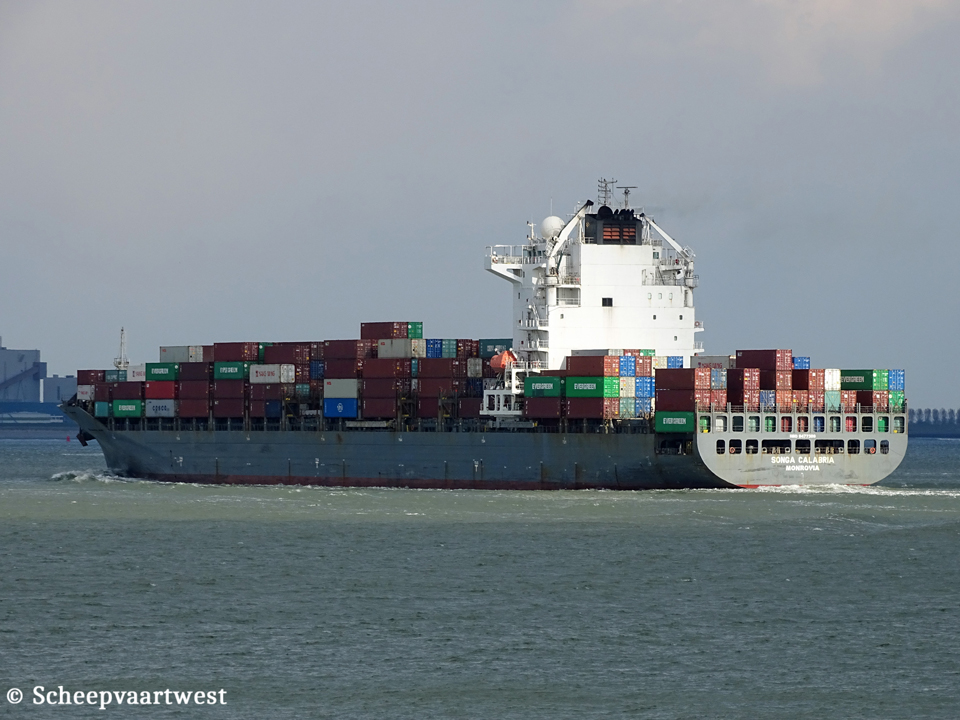

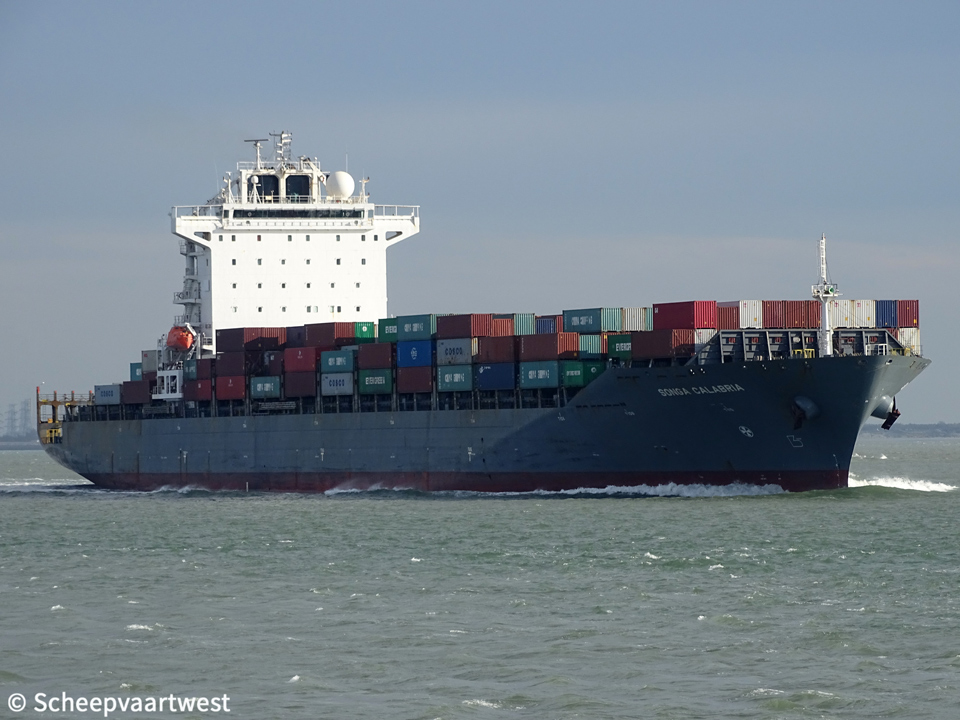

SONGA CALABRIA |
|
Previous names |
2009 build as: Hammonia Calabria 2010 - 10/2014 CSAV La Ligua |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9477309 |
|
Call sign |
D5OE7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2010 - 2013 Liberia, Monrovia 2013 - 2017 Portugal, Madeira - Call sign: CQIE |
|
GT |
41.298 t |
|
DWT |
Summer: 50.353 t |
|
NT |
24.472 t |
|
Number of 20ft containers |
In hold: 1.587 On deck: 2.491 Total: 4.078 t |
|
Container capacity 14t |
2.794 |
|
Reefer capacity |
698 |
|
Length |
261,14 m overall 247,09 m between perpendiculars |
|
Breadth |
32,35 m extreme |
|
Draught |
Max: 12,60 m |
|
Reg. dimensions L x B x D |
249,45 x 32,25 x 16,38 m |
|
Rule dimensions L x B x D |
247,09 x 32,25 x 19,30 m |
|
Freeboard |
3.808 mm |
|
Depth |
19,30 m |
|
Speed |
Max: 24,5 knots |
|
Built |
2010 |
|
Keel laid |
29/10/2008 |
|
Launch date |
25/03/2009 |
|
Date of completion |
05/01/2010 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co., Ltd. Jiangyin China |
|
Yard number |
YZJ2007-77 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 8K90MC-C - 2 stroke single acting 8 cylinder 900 x 2.300 mm combustion engine 36.560 kW / 49.708 hp at 104,0 rpm Build: 08/09/2008 Manufacturer: CSSC-MES Diesel Co.,Ltd., Shanghai - China |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
Auxiliary Boiler composite - 9,0 kg/cm² manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
4x Yanmar 8EY26L main diesel generatorsets each 2.200 kW / 2.750 kVA / 440 Volt |
|
Bow thruster |
1.600 kW |
|
Tank capacities |
Fuel oil: 6.335,4 m³ Fresh water: 1.166,2 m³ Water ballast: 11.470,0 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
ISM & commercial manager |
Sunship Schiffahrtskontor KG Promenade Am Alten Binnenhafen 10 26721 Emden Germany |
|
Registered owner |
Songa Calabria AS Care of Sunship Schiffahrtskontor KG Promenade Am Alten Binnenhafen 10 26721 Emden Germany |
|
Previous names & owners |
2010 - 10/2014 CSAV La Ligua - Comp. Sud Americana de Vapores S.A. |
|
Renamed |
2021 AS Emma Liberia, Monrovia - Call sign: D5OE7 Owner: MPCC Emma AS Manager: Wilhelmsen Ahrenkiel Ship Management GmbH & Co. KG |
|
Latest data adjustment |
23 February 2022 |
