Westerschelde 01 July 2018 |
|
Name |

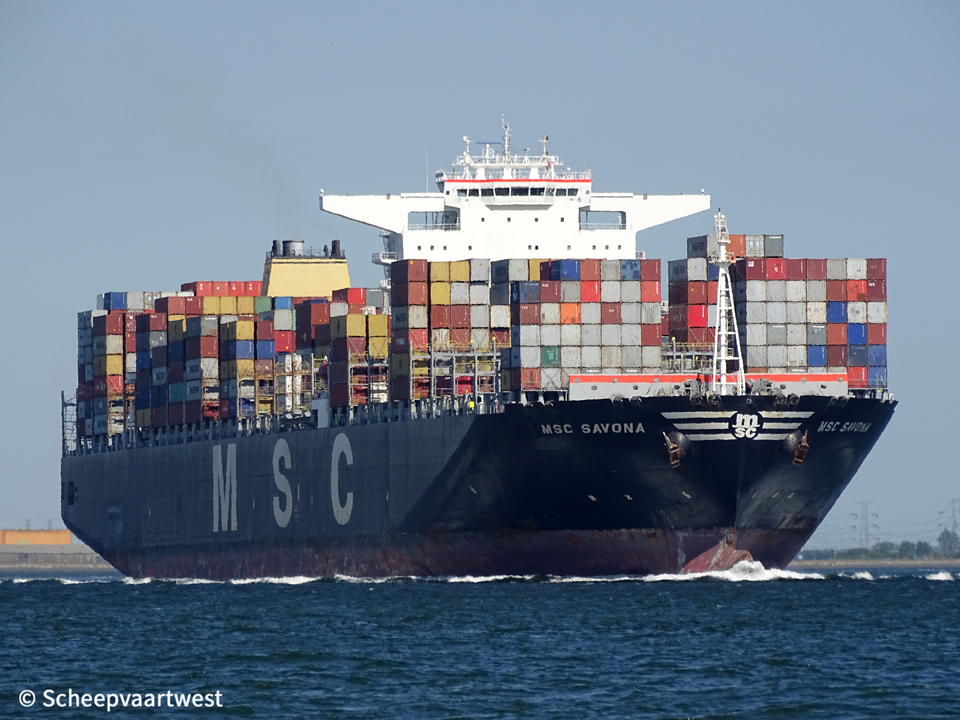

MSC SAVONA |
|
Previous names |
2010 build as: CPO Savona |
|
Type |
Cellular containership |
|
IMO-number |
9460356 |
|
Call sign |
A8UX4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
153.115 t |
|
DWT |
Summer: 165.887,2 t |
|
NT |
89.067 t |
|
Number of 20ft containers |
On deck: 7.572 In hold: 6.428 Total: 14.000 |
|
Container capacity 14t |
10.640 |
|
Reefer capacity |
1.000 |
|
Length |
365,82 m overall 349,50 m between perpendiculars 351,77 m registered |
|
Breadth |
51,30 m extreme 51,19 m moulded |
|
Draught |
Max: 16,00 m |
|
Depth |
29,90 m to main deck |
|
Speed |
Max: 24,1 knots |
|
Built |
2010 |
|
Keel laid |
06/11/2009 |
|
Launch date |
30/12/2009 |
|
Date of completion |
19/03/2010 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard |
|
Yard number |
4178 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 12K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW at 104,0 rpm Year of manufacture: 2010 Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 46,2 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 679,0 m² Year of manufacture: 2010 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
4x Plants each 6.600 V - 5.120 kVA 1x Plant 450 V - 688 kVA 1x Plant 24 V - 15 Ah 1x Plant 24 V - 63 Ah 1x Plant 24 V - 92 Ah 1x Plant 24 V - 300 Ah 1x Plant 24 V - 300 Ah 1x Plant 108 V - 40 Ah |
|
Generators |
4x MAN 8L32/40 main diesel generatorsets each 5.120 kVA / 4.096 kW |
|
Emergency generator |
1x Cummins VTA28DM diesel generatorset 688 kVA |
|
Batteries |
1x Battery for UPS radio 300 Ah 1x Battery for UPS navigation 300 Ah 1x Battery for automation 92 Ah 1x Battery for diesel control 63 Ah 1x Battery for automation 40 Ah 1x Battery for diesel control 15 Ah |
|
Compressed air receivers |
2x Receivers each 16.500 litres - 30,0 bar 1x Receiver 540 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 2.000 litres - 7,0 bar 1x Receiver 350 litres - 7,0 bar |
|
Bow thruster |
2x CPP transverse thruster each 1.800 kW, forward |
|
Number of hatches |
20 |
|
Hatch cover type |
Pontoon type with non-metallic low friction bearing pad |
|
Tank capacities |
Heavy fuel oil: 13.500 m³ Marine diesel oil: 400 m³ Fresh water: 400 m³ Ballast water: 48.000 m³ |
|
Anchor equipment |
3x Anchors weight each 26.000 kg Length: 770,00 m Diameter: 127 |
|
Lifting equipment |
1x Spare handling crane - SWL 13,0 t 1x Provision crane - SWL 2,0 t 1x Provision crane - SWL 4,0 t |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
Manager |
CPO Containerschiffreederei (GmbH & Co.) KG |
|
ISM Manager |
Claus-Peter Offen Reederei |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Kommanditgesellschaft MS "2. CPO Savona" Offen Reederei (haftungsbeschränkt) & Co |
|
Latest data adjustment |
22 August 2019 |
