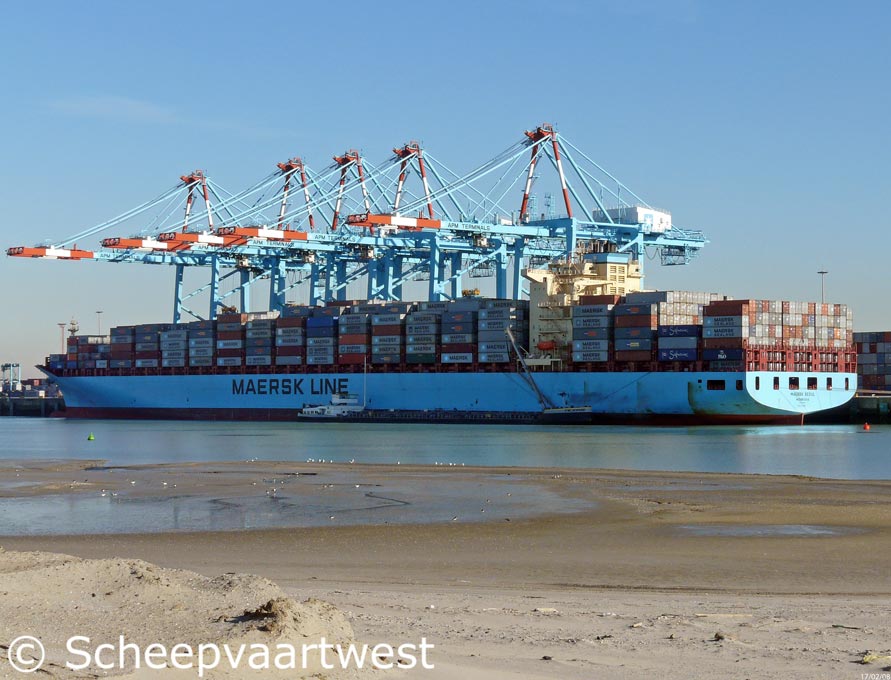

Maersk Seoul - IMO 9306550

Name

MAERSK SEOUL

Previous names

P&O Nedlloyd Marlene
Northern John

Type

Cellular Containership

IMO-number

9306550

Call sign

A8LK3

Flag

Liberia

Port of registry

Monrovia

GT

94.483 t

DWT

108.344 t

NT

54.733 t

Number of 20ft containers

8.400

Container capacity at 14t

6.670

Reefer point

700

Length

332,01 m overall

317,00 m between perpendiculars

318,26 m m registered

Breadth

43,20 m registered

Draught

Summer: 14,50 m

Forecastle

159,13 m

Bridge

150,33 m

Freeboard

5.743 mm

Depth

24,50 m

20,23 m tonnage

Speed

25,0 knots

Built

2006

Keel laid

12.06.2006

Launch date

18.09.2006

Date of completion

01.12.2006

Builder

DSME - Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard
1, Aju-dong
Geoje-si , Gyeongsangnam-do 656-714
Republic of Korea

Yard number

4106

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

2

Main engine

1x MAN-B&W 12K98ME-C - 2 stroke single acting 12 cylinder 980 x 2.400 mm diesel engine - 68.520 kW at 94,0 rpm

Year of manufacture: 2006

Manufacturer: HSD Engine Co., Ltd.
69 Sinchon-dong
Changwon , Kyungnam 641-370
Republic of Korea

Propeller

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 55,0 m²

Year of manufacture: 2005

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface:1.056,0 m²

Year of manufacture: 2006

Manufacturer: Aalborg Industries A/S Division Boiler Production
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x 6.600 V - 16.000 kVA

1x 450 V - 688 kVA

Generators

4x Main-B&W 7L32/40 main diesel generatorsets each 4.000 kVA / 3.360 kW at 720 rpm

Emergency generator

1x Diesel generatorset 688 kVA

Bow thruster

1x Transverse thruster - 3.000 kW, forward

Compressed air receivers

2x Receivers, each 16.000 litres - 32,4 bar

1x Receiver 200 litres - 32,4 bar

1x Receiver 200 litres - 29,4 bar

1x Receiver 350 litres - 7,7 bar

1x Receiver 2.000 litres - 7,6 bar

Anchor equipment

3x Anchors weight each 18.800 kg
Chain length: 742,50 m

Cargo gear

Gearless

Crew size

30

Crew

23

Manager

Reederei Blue Star GmbH
Van-der-Smissen-Str. 4
22767 Hamburg
Federal Republic of Germany

Operator

Maersk Line

Shipping company

Blue Star Ship Managment GmbH

Owner

"Neptila" Schiffsbetriebs- gesellschaft mbH & Co. MS "MARLENE STAR" KG
Am Sandtorkai 6
20457 Hamburg
Federal Republic of Germany
