Westerschelde 22 July 2016 |
 |
 |
|
| Westerschelde 18/08/16 | Westerschelde 23/05/16 | |
|
Name |

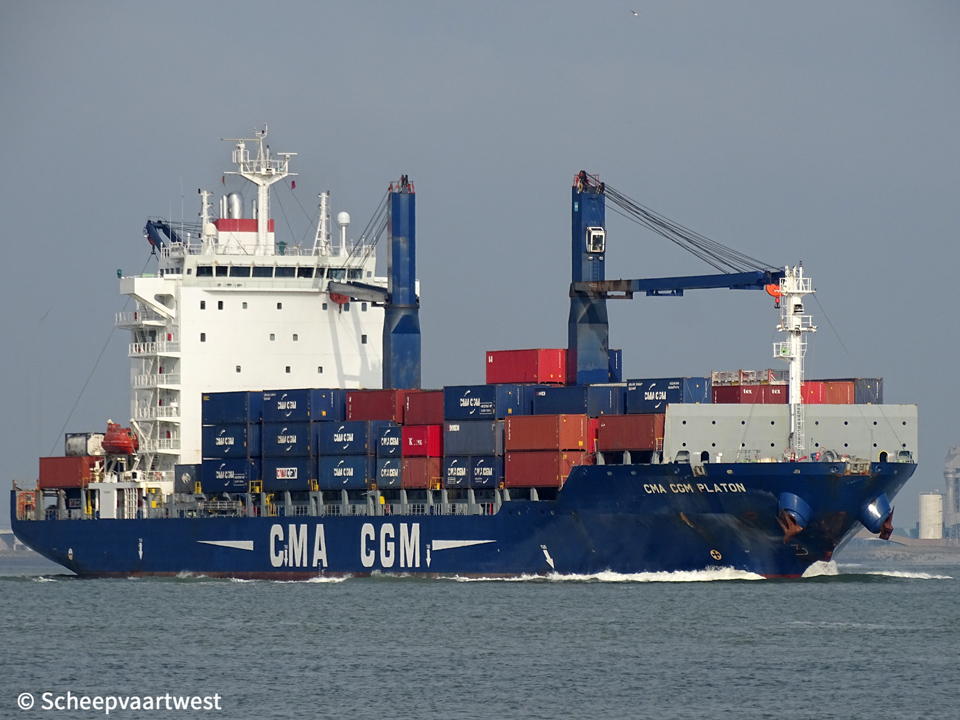

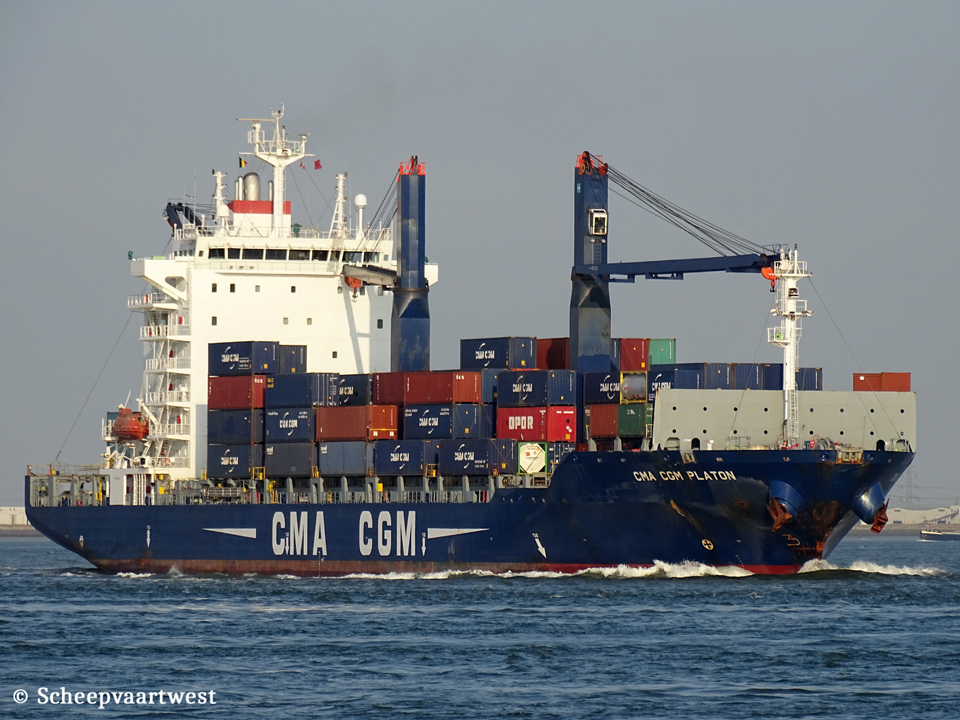

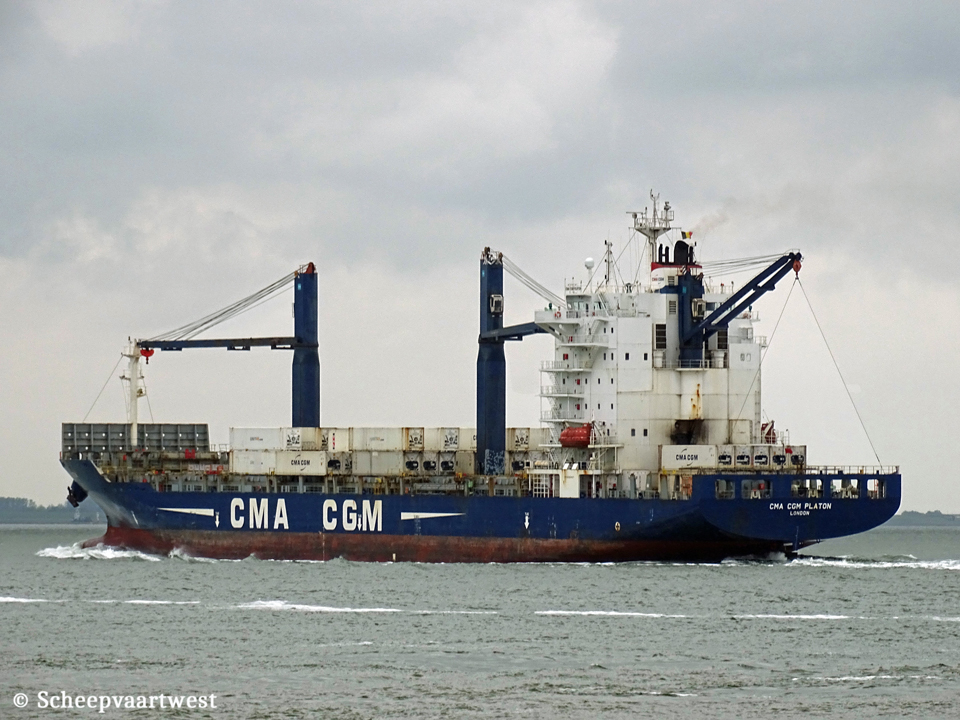

CMA CGM PLATON |
|
Type |
Cellular containership |
|
IMO-number |
9362437 |
|
Call sign |
9HA4985 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2007 - 03/2019 United Kingdom, London - Call sign: 2ACH6 |
|
GT |
17.594 t Suez: 17.983 t |
|
DWT |
Summer: 21.257 t |
|
NT |
7.181 t Suez: 15.163 t |
|
Number of 20ft containers |
1.713 |
|
Container capacity 14t |
1.149 |
|
Reefer capacity |
402 |
|
Length |
170,06 m overall 154,60 m between perpendiculars |
|
Breadth |
27,20 m |
|
Draught |
Summer: 9,36 m |
|
Freeboard |
4.676 mm |
|
Depth |
14,00 m |
|
Speed |
19,4 knots |
|
Built |
2007 |
|
Date of completion |
11/10/2007 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. South Korea |
|
Yard number |
S321 |
|
Hull material |
Steel |
|
Watertight compartments |
11 |
|
Main engine |
1x MAN-B&W/HHI 7S60MC-C7-TI - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW / 21.495 hp at 105,0 rpm Build: 2007 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div. , Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 105,0 rpm |
|
Boilers |
1x CHM Aalborg 548,00 m² /- 10,0 bar |
|
Generators |
3x Main diesel generatorsets each 1.875 kVA - 1.500 kW - 2.174 hp |
|
Emergency generator |
1x Diesel generatorset 156 kVA - 125 kW - 190 hp |
|
Bow thruster |
1x 800 kW, forward |
|
Tank capacities |
Fuel: 2.832,1 m³ |
|
Cargo gear |
1x Deck crane - SWL 25,0 t 2x Deck cranes - SWL 45,0 t each |
|
Commercial manager |
CMA CGM SA The French Line 4, quai d'Arenc 13002 Marseille France |
|
ISM manager |
CMA CGM International Shipping 14-01, The Metropolis (Tower 1) 9, North Buona Vista Drive Singapore 138588 Republic of Singapore |
|
Operator |
CMA CGM |
|
Registered owner |
CMA CGM SA The French Line 4, quai d'Arenc 13002 Marseille France |
|
Latest data adjustment |
04 August 2023 |
