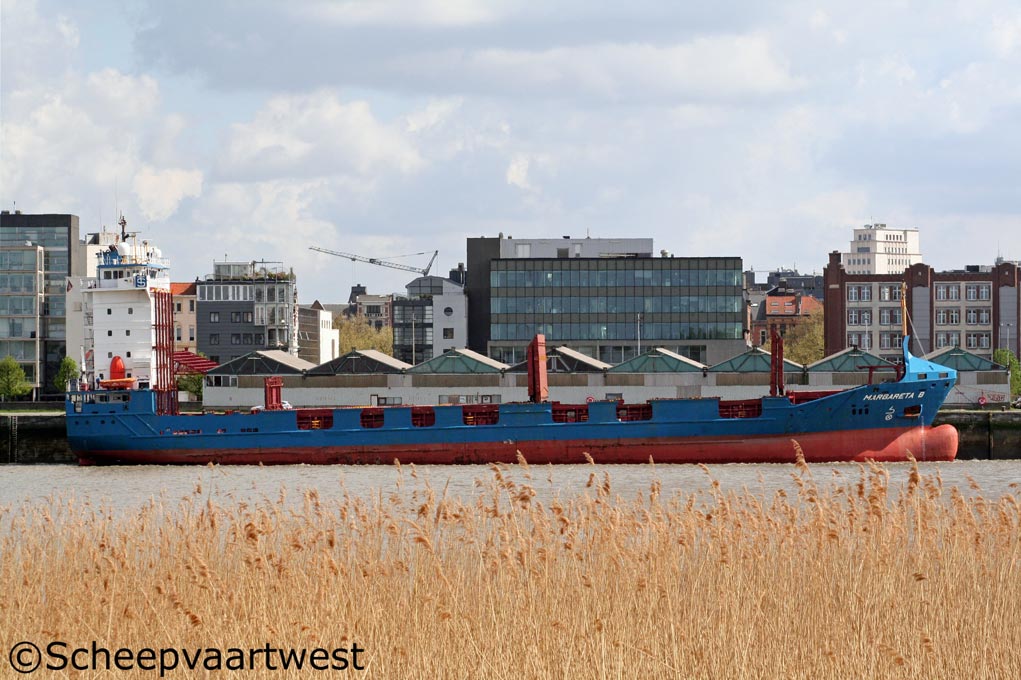

Margareta B 01
Antwerpen 14 April 2011



Name

MARGARETA B

Type

Containership

IMO-number

9121883

Call sign

V2NI

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

3.999 t

DWT

5.269 t

NT

1.994 t

Number of 20ft containers

511

Container capacity 14t

280

Reefer capacity

75

Length

99,98 m overall

95,26 m registered

Breadth

17,90 m registered

Draught

6,616 m

Forecastle

6,92 m

Poop

7,64 m

Depth

8,50 m moulded

Speed

Max.: 16,0 knots

Built

1998

Keel laid

24.06.1996

Launch date

26.06.1997

Date of completion

01.1998

Builder

EWB - Elbewerft Boizenburg GmbH
Fährweg 1
19258 Boizenburg
Federal Republic of Germany

Yard number

233

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MaK 9M32 - 4 stroke 9 cylinder 320 x 480 mm diesel engine - 3.960 kW at 600 rpm

Reduced power: 1.999 kW

Year of manufacture: 1997

Manufacturer: MaK Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 145 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 31,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 156,0 m²

Year of manufacture: 1997

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

1x Plant 380/220 V - 435 kVA

1x Plant 380/220 V - 435 kVA

1x Plant 380 V - 938 kVA

1x Plant 380 V - 200 kVA

Shaft generator

1x 750 kW / 937,5 kVA

Generator

2x Main diesel generatorsets each 348 kW / 435 kVA

Emergency generator

1x Diesel generatorset 200 kVA

Compressed air receivers

1x Receiver 500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 500 kW forward

Cargo capacity

Grain: 6.712 m³

Tank capacities

Fuel oil: 490 m³

Ballast water: 1.667 m³

Anchor equipment

3x Anchors weight each 3.780 kg

Chain length: 522,50 m

Cargo gear

Gearless

Manager

Tesch Bereederungsges. mbH
Boschstr. 18
49733 Haren/Ems
Federal Republic of Germany

Owner

Tesch Bereederungsges. mbH & Co. KG MS "MARGARETA B"
Boschstr. 18
49733 Haren/Ems
Federal Republic of Germany
