Westerschelde 01 October 2019 |
 |
 |
 |
 |
|||
| Westerschelde 10/09/19 | Westerschelde 09/09/19 | Westerschelde 24/03/20 | Westerschelde 29/08/20 | |||
|
Name |

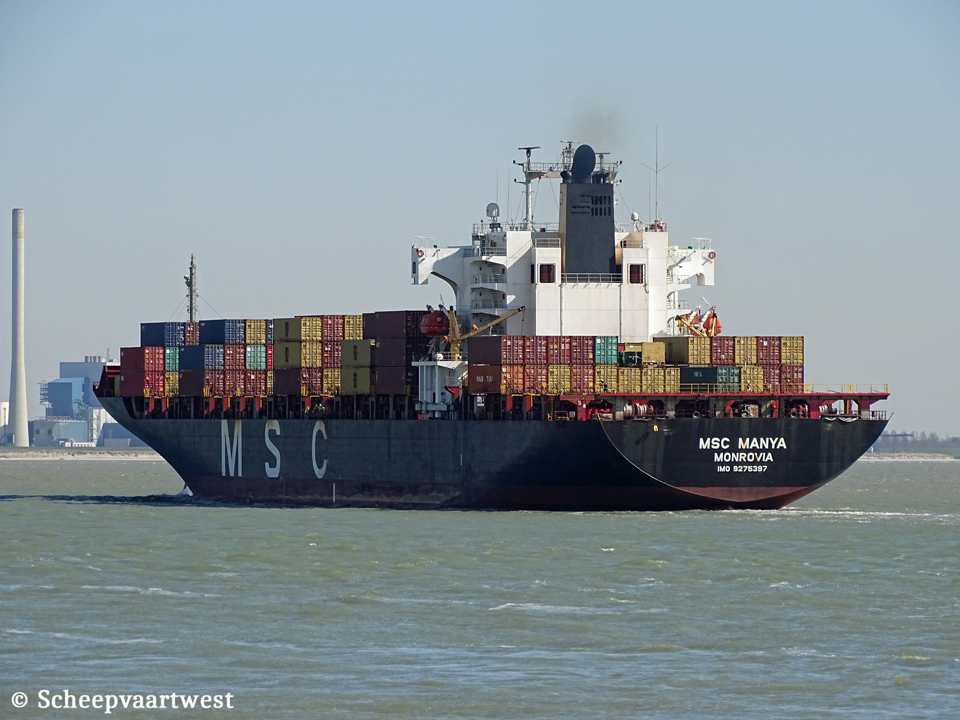

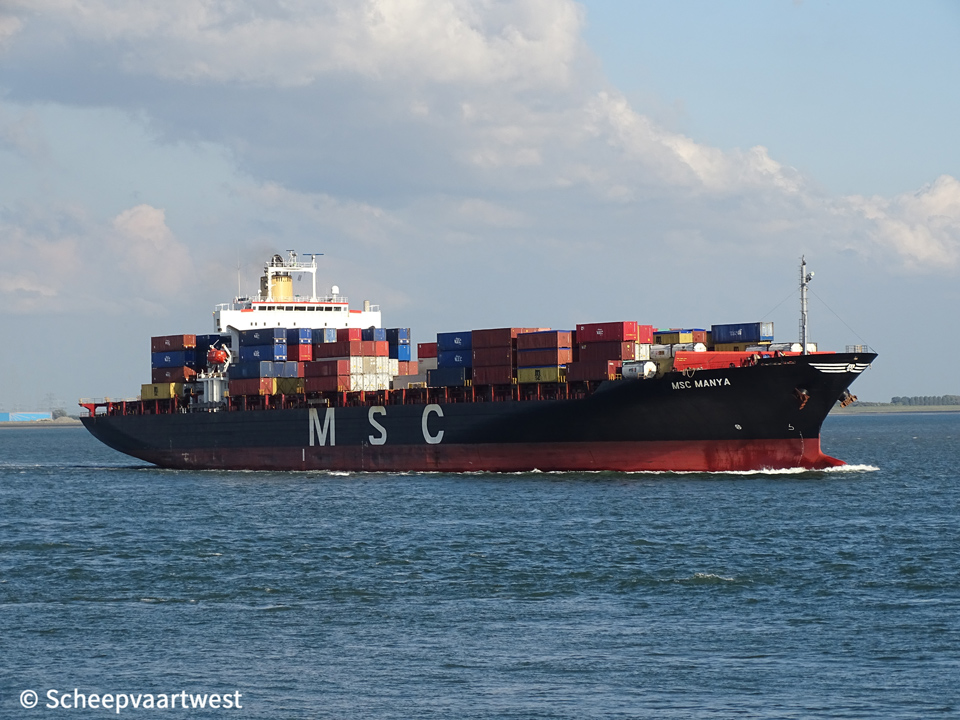

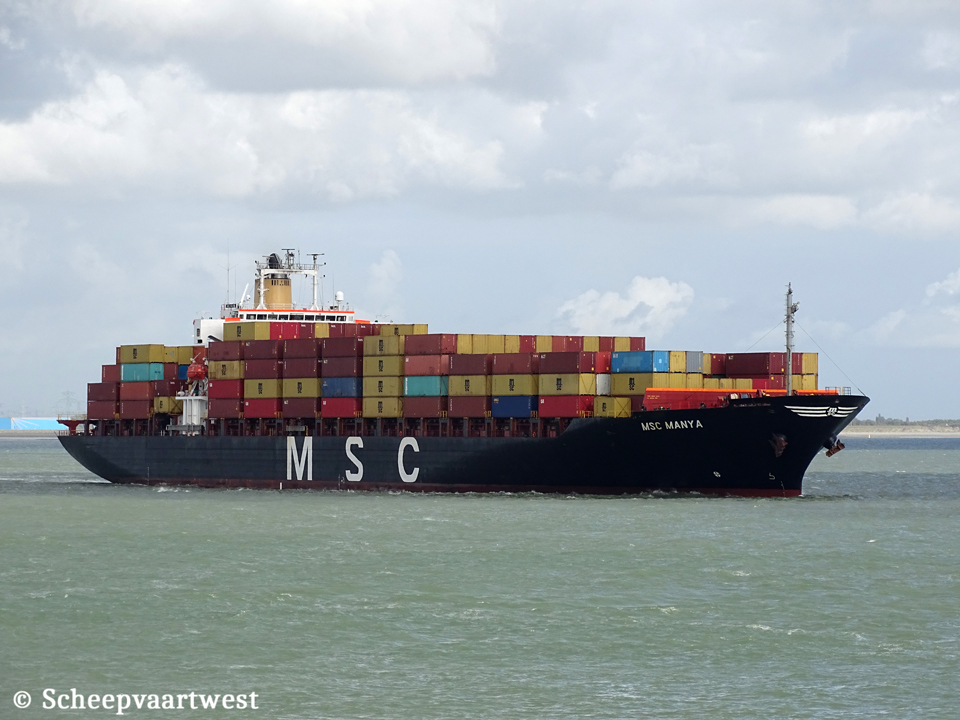

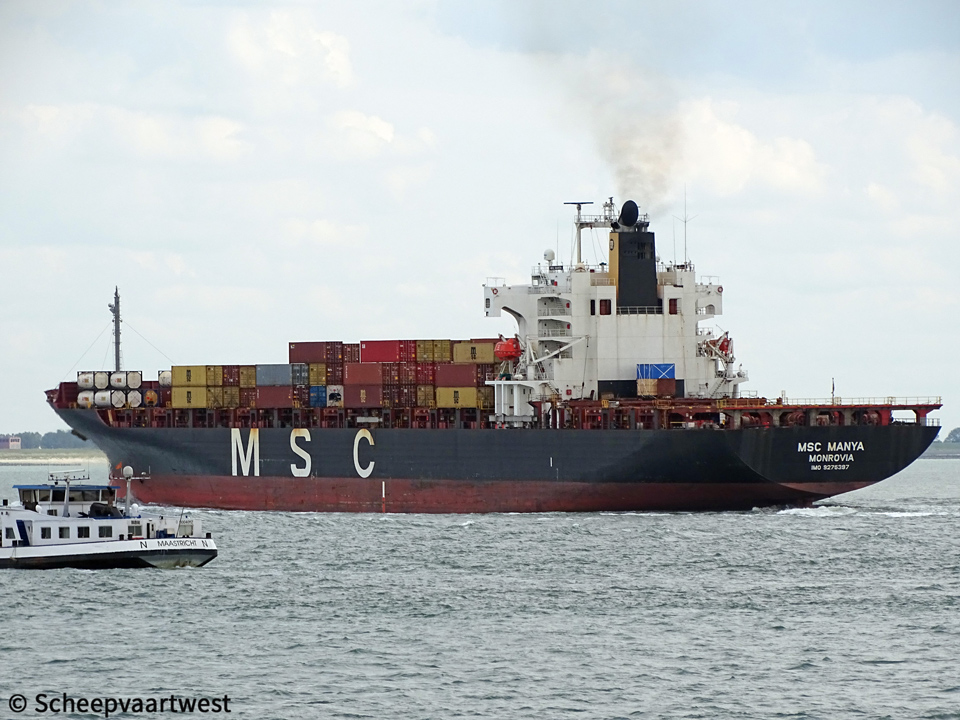

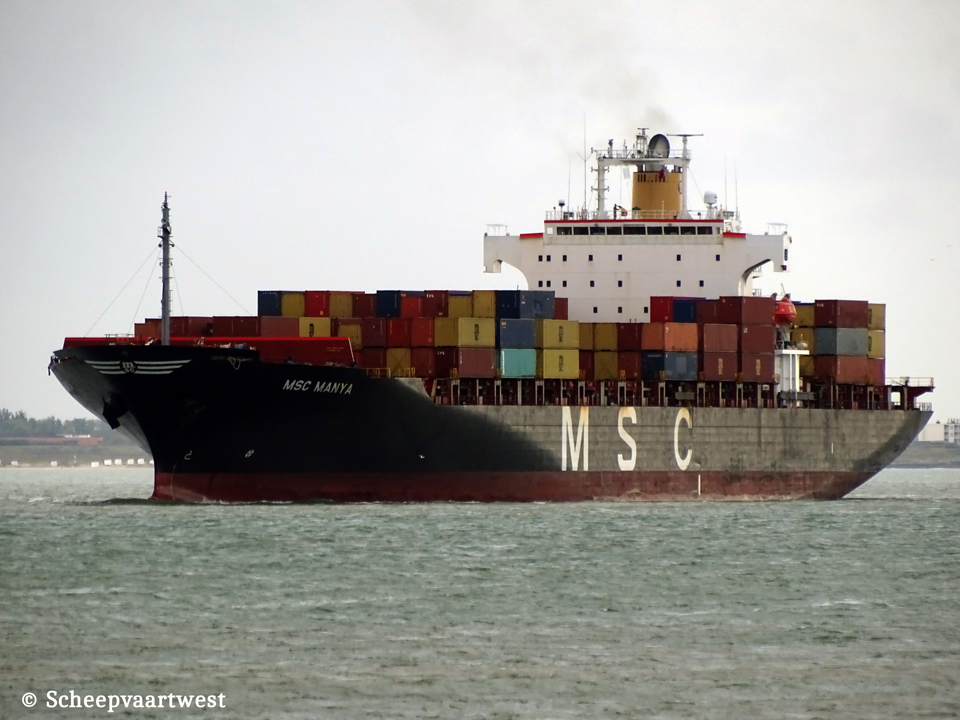

MSC MANYA |
|
Previous names |
2003 - 02/2011 OOCL Melbourne 02/2011 - 05/2017 Taroko |
|
Type |
Cellular containership |
|
IMO-number |
9275397 |
|
Call sign |
A8ZK7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2003 - 2011 Hong Kong - Call sign: VRYW9 |
|
GT |
34.610 t |
|
DWT |
Summer: 43.093 t |
|
NT |
16.865 t |
|
Number of 20ft containers |
2.762 |
|
Container capacity 14t |
2.330 |
|
Reefer capacity |
300 |
|
Length |
234,62 m overall 218,00 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Max: 12,52 m |
|
Freeboard |
6.335 mm |
|
Depth |
18,80 m |
|
Speed |
Max: 25,9 knots |
|
Built |
2003 |
|
Builder |
Koyo Dockyard Co., Ltd. Mihara Japan |
|
Yard number |
2146 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 8K80MC-C - 2 stroke 8 cylinder 800 x 2.300 mm combustion engine 28.880 kW / 39.239 hp at 104,0 rpm Build: 12/12/2002 Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano, Tamano City - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
1x CHR 694,00 m² - 12,0 bar 1x CHF 35,00 m² /-8,0 bar |
|
Generators |
4x Main diesel generatorsets each 1.500 kVA - 1.200 kW - 1.848 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 143 hp |
|
Bow thruster |
1.680 kW |
|
Number of holds |
6 |
|
Tank capacities |
Water ballast: 8.355 m³ Fuel: 5.836,84 m³ |
|
ISM & Commercial manager |
MSC shipmanagemant Ltd. MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Manya Maritime Ltd. Care of MSC Shipmanagement Ltd MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Latest data adjustment |
24 July 2024 |
