Westerschelde 08 October 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 08/10/19 | Westerschelde 01/11/18 | Westerschelde 17/01/12 | Westerschelde 17/01/12 | Westerschelde 24/01/12 | Westerschelde 13/07/18 |
|
Name |

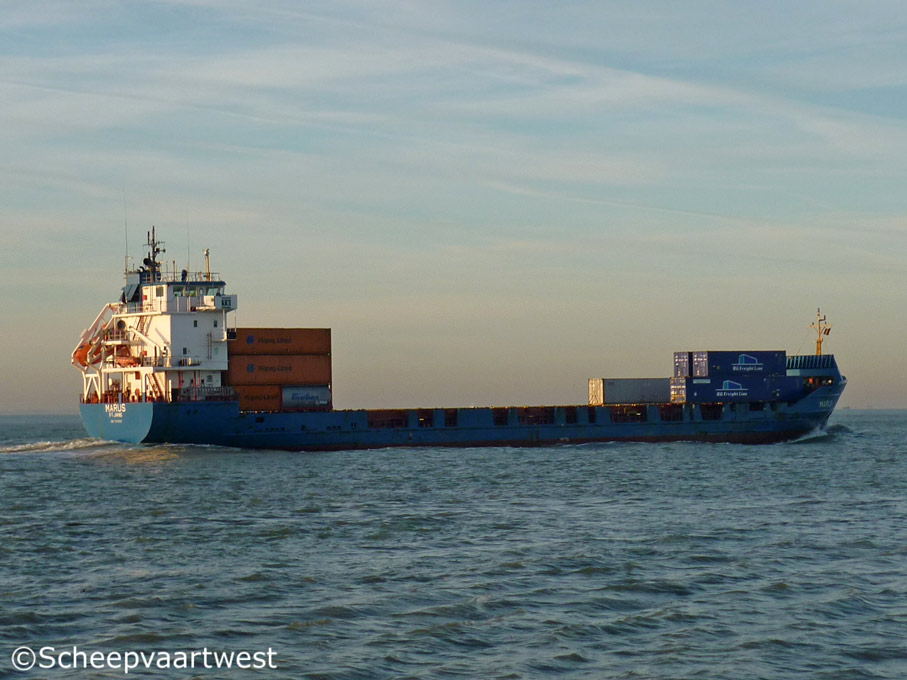

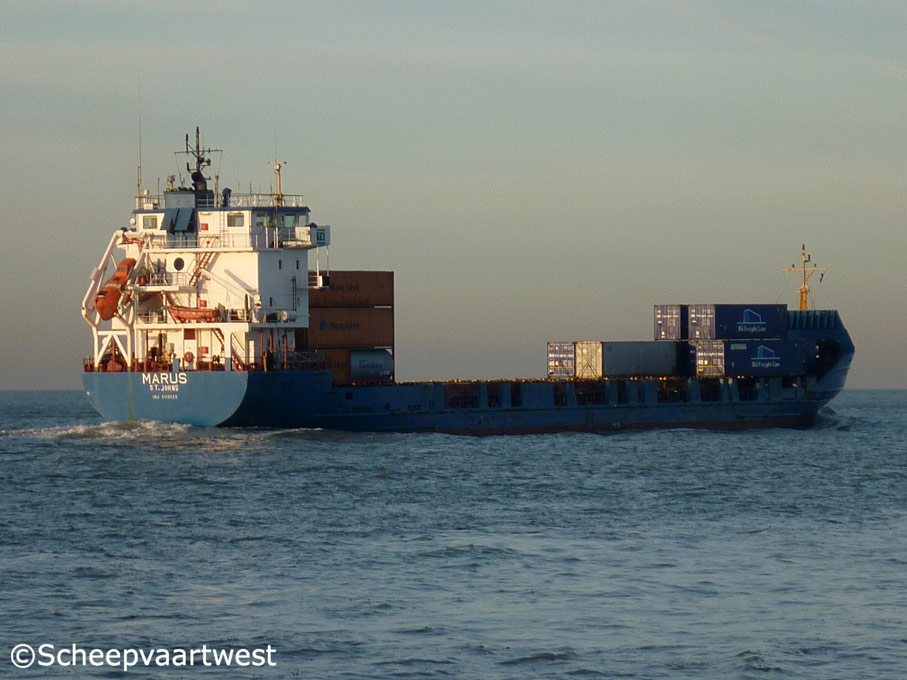

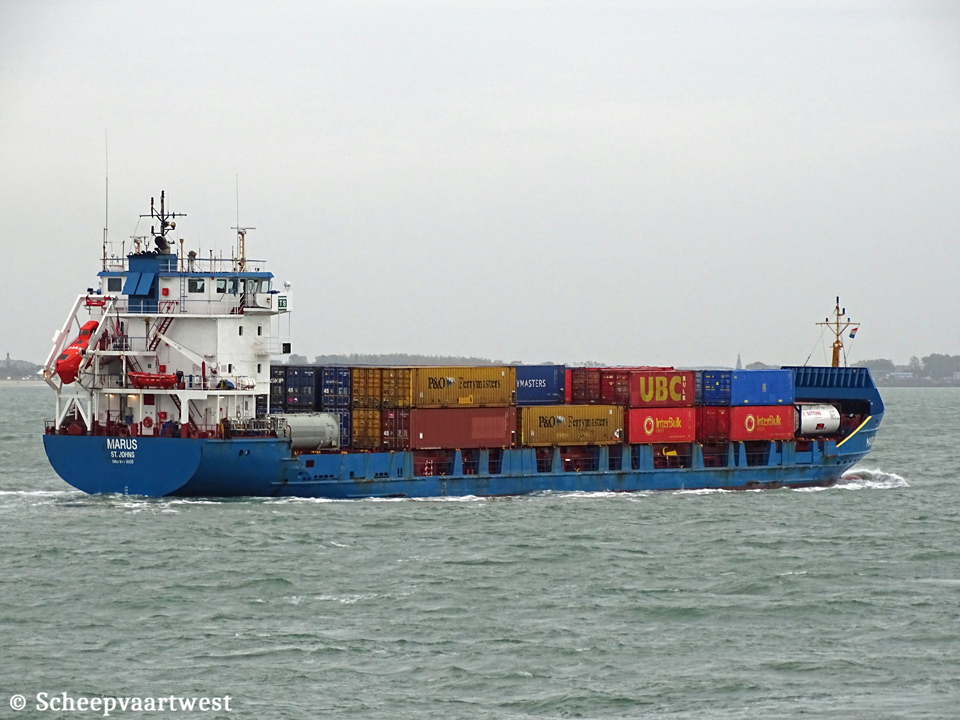

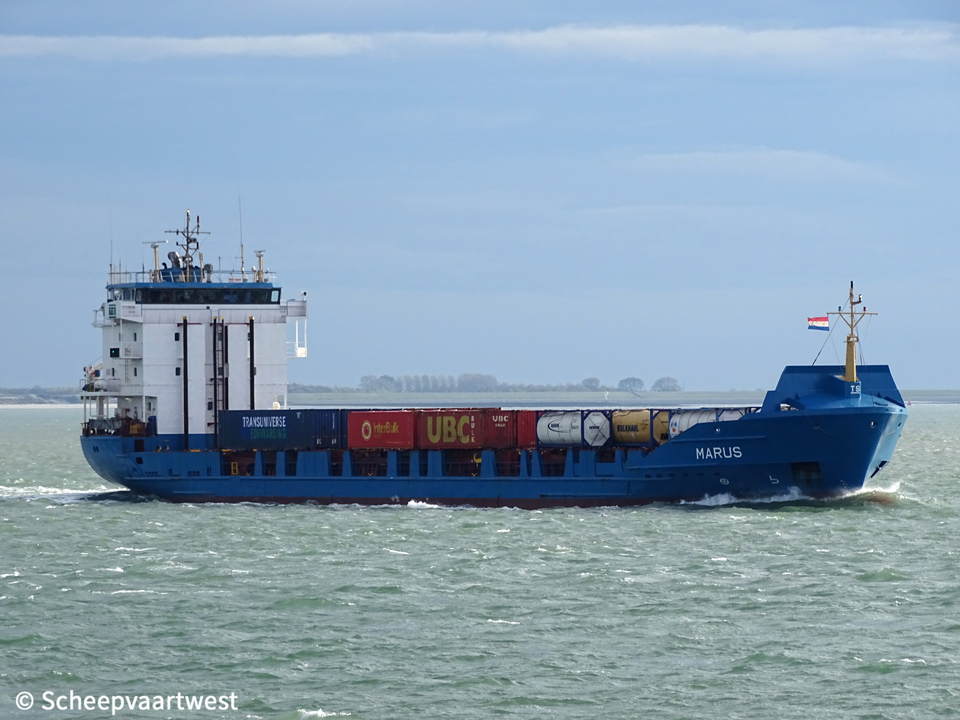

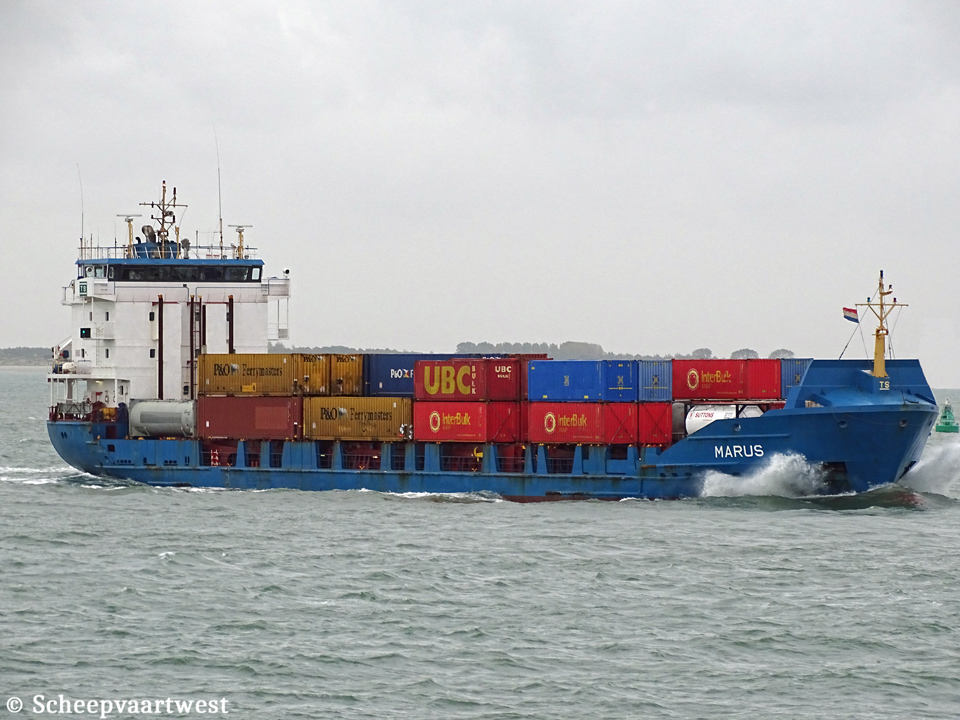

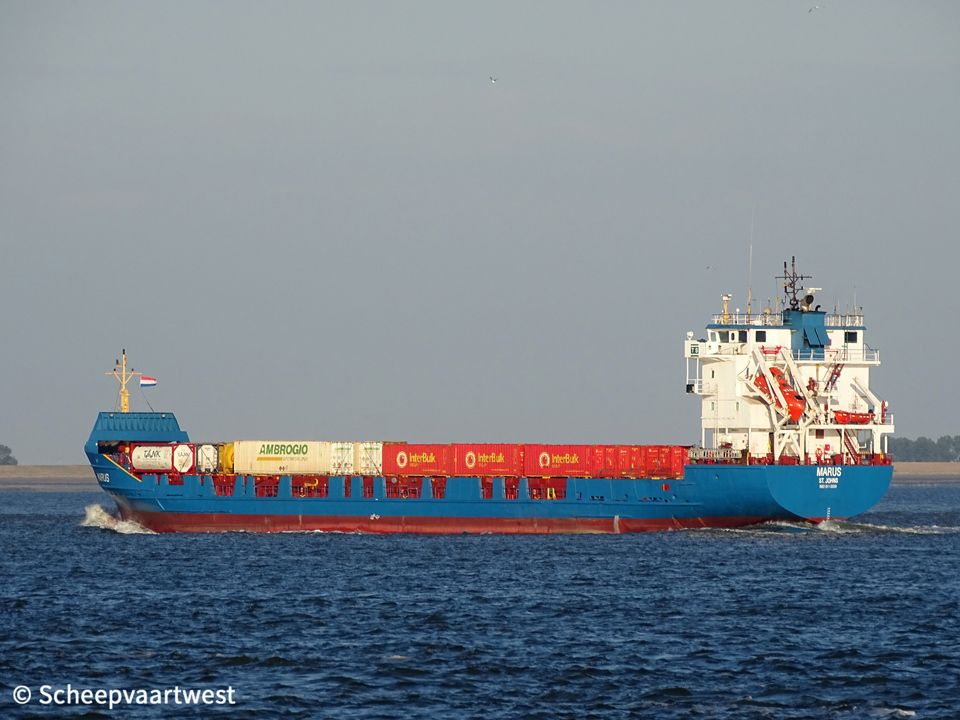

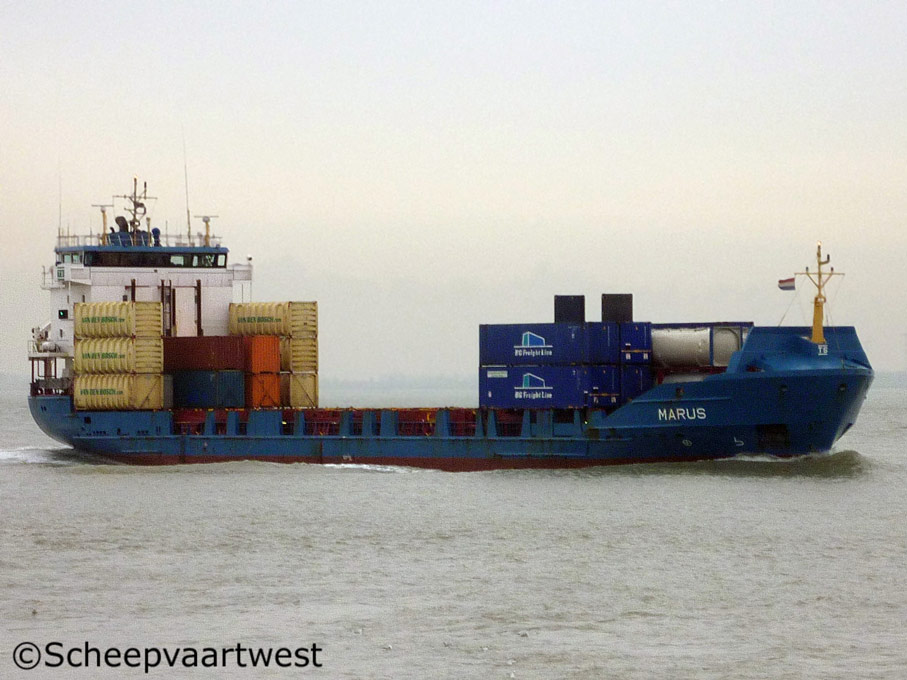

MARUS |
|
Previous names |
1996 - 07/1997 Bell Atlas 07/1997 - 02/2005 Geest Atlas |
|
Type |
Containership |
|
IMO-number |
9110559 |
|
Call sign |
V2AR3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flag |
Germany |
|
GT |
2.906 t |
|
DWT |
Summer: 3.950 t |
|
NT |
1.412 t |
|
Number of 20ft containers |
338 |
|
Length |
99,30 m overall 94,09 m registered |
|
Breadth |
16,20 m extreme |
|
Draught |
4,90 m |
|
Forecastle |
7,18 m |
|
Poop |
6,83 m |
|
Depth |
6,40 m moulded |
|
Speed |
14,0 knots |
|
Built |
1996 |
|
Keel laid |
11/07/1994 |
|
Launch date |
13/01/1996 |
|
Date of completion |
28/03/1996 |
|
Builder casco |
Elbewerft Boizenburg GmbH Fährweg 1 19258 Boizenburg Federal Republic of Germany Yard number: 229 |
|
Builder completion |
MWB Schiffbau G.m.b.H. & Co. Schiffsreparaturen K.G. Bremerhaven Germany |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32 - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.380 kW at 600 rpm Year of manufacture: 1995 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 180 rpm |
|
Electric installations |
2x Plant each 380/220 V - 250 kVA 1x Plant 380 V - 475 kVA 1x Plant 380 V - 175 kVA |
|
Shaft generator |
1x 475 kVA |
|
Generators |
2x Caterpillar 3406 DIT main diesel generatorsets each 250 kVA |
|
Emergency generator |
1x Caterpillar 3306 DIT diesel generatorset 175 kVA |
|
Compressed air receivers |
1x Receiver 500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 250 kW, forward |
|
Tank capacities |
Ballast: 2.144,2 m³ |
|
Anchor Equipment |
3x Anchors weight each 2.640 kg Chain length: 467,50 m Diameter: 40 mm |
|
Manager |
TS-Shipping GmbH & Co. KG Boschstr. 18 49733 Haren/Ems Federal Republic of Germany |
|
Previous manager |
Tesch Bereederungsges. MbH Boschstr. 18 49733 Haren/Ems Federal Republic of Germany |
|
Registered owner |
TESCH Bereederungs-UG (haftungsbeschränkt) & Co. KG MS "MARUS" Boschstr. 18 49733 Haren/Ems Federal Republic of Germany |
|
Previous names & owners |
1996 - 1997 Bell Atlas - Swift Navigation Co. Ltd., Hamilton-Bermuda 1997 - 2005 Geest Atlas - ms “GRUS” Rohden Schiffahrts GmbH, Antigua |
|
Latest data adjustment |
07 May 2021 |
