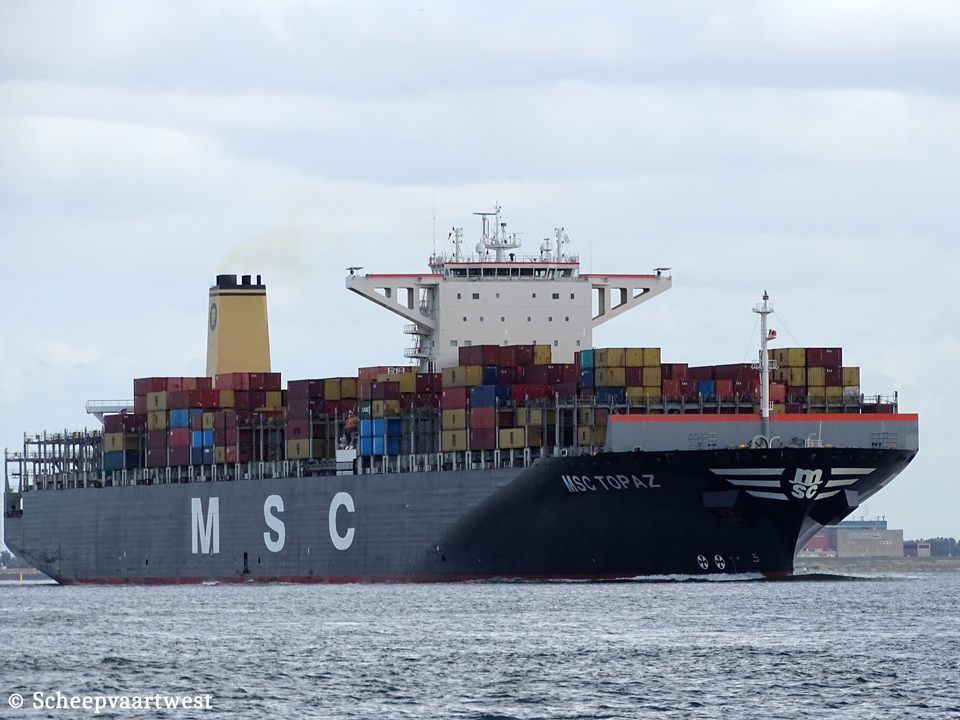

MSC Topaz IMO 9502908 09

Westerschelde 24 September 2018

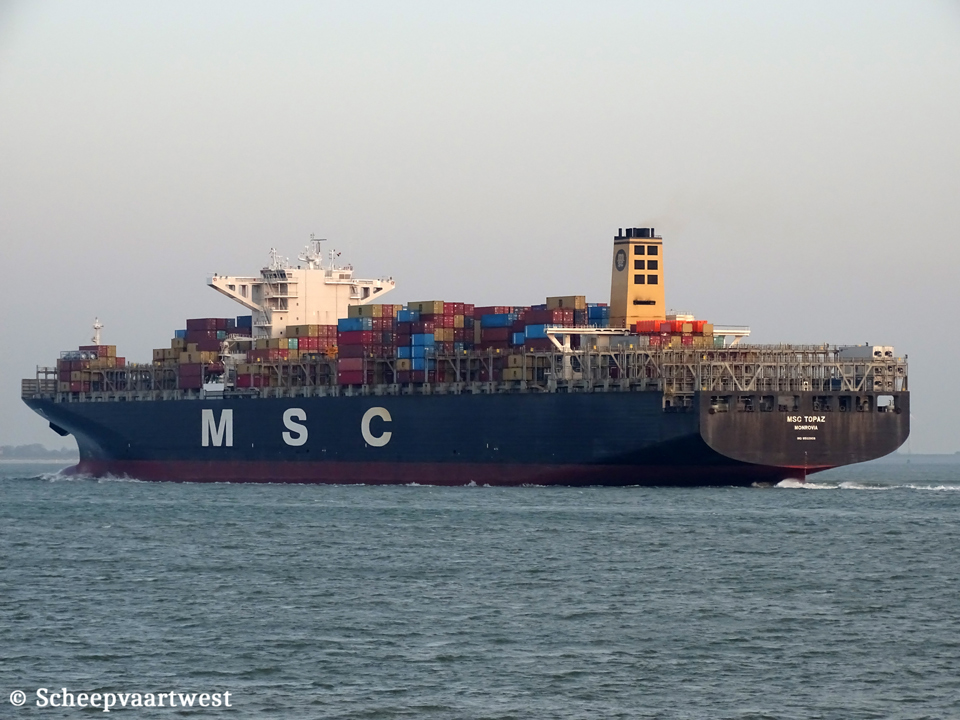

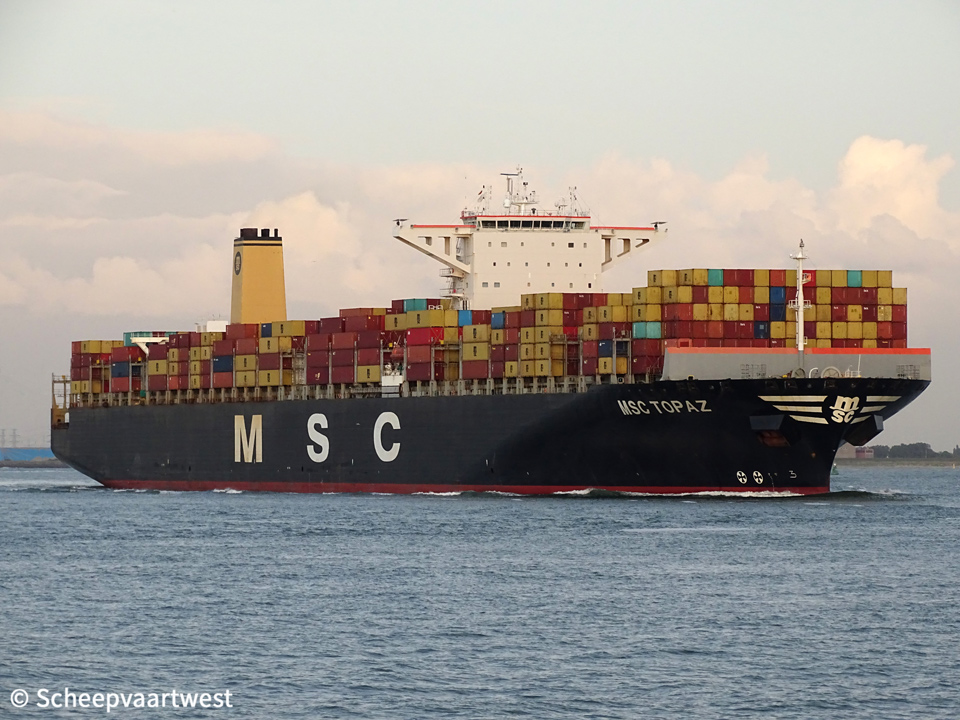

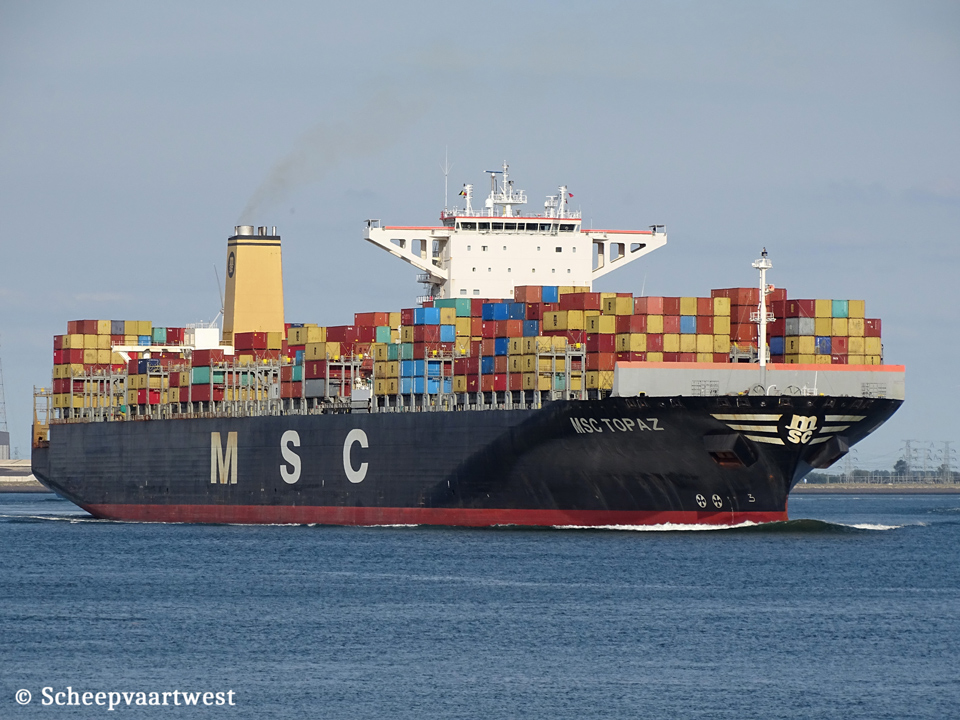

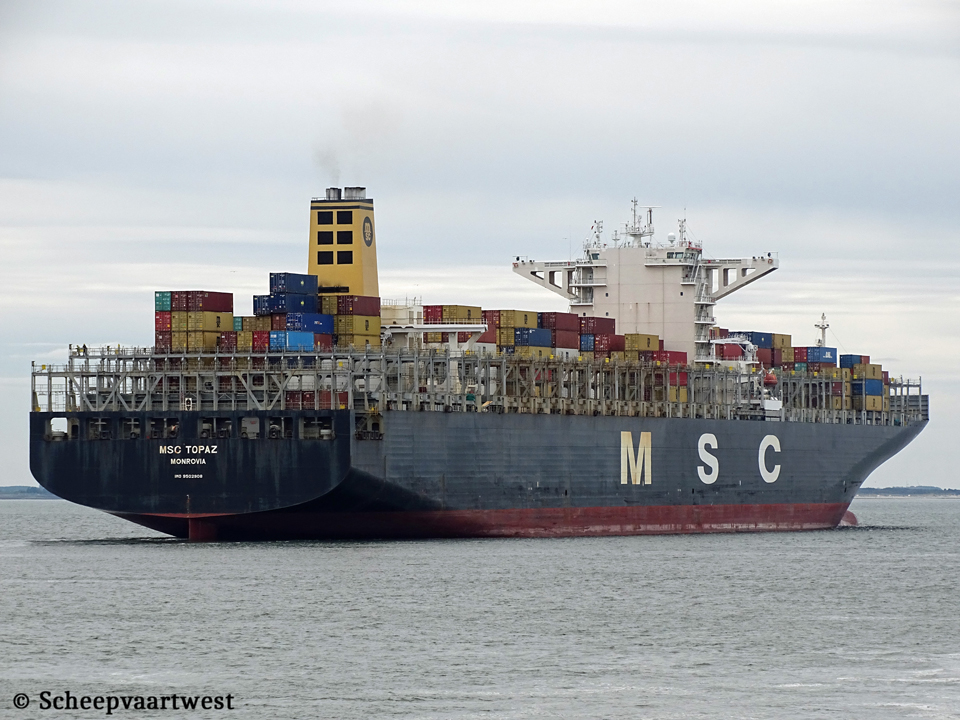

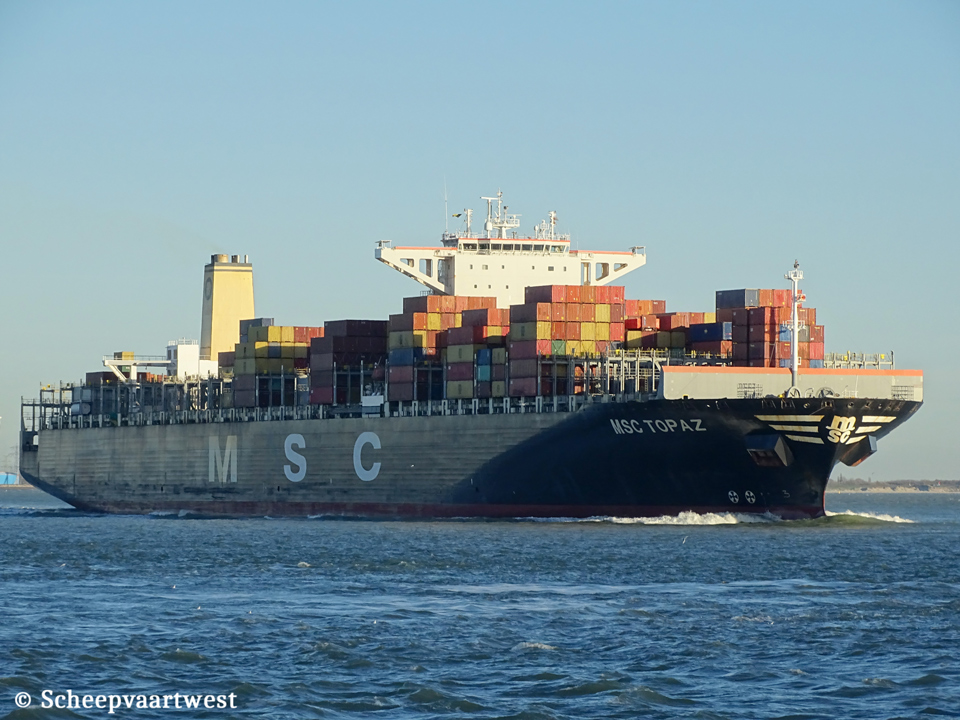

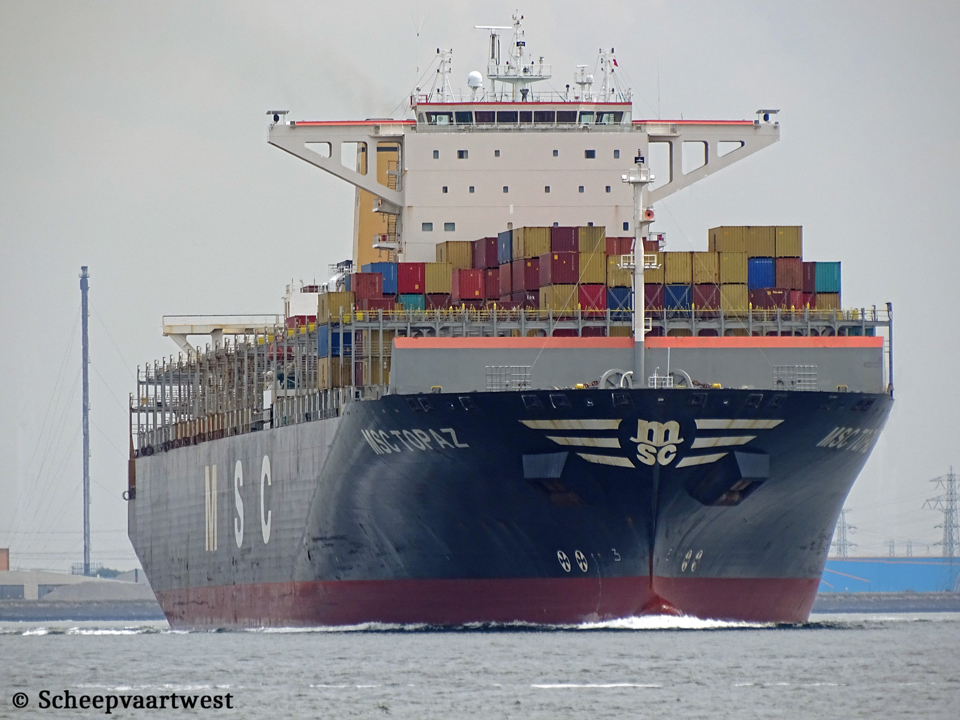

MSC Topaz IMO 9502908 03   MSC Topaz 01   MSC Topaz IMO 9502908 04   MSC Topaz IMO 9502908 05   MSC Topaz IMO 9502908 07   MSC Topaz IMO 9502908 08
Westerschelde 18/11/20   Westerschelde 05/09/19 Westerschelde 30/10/19 Westerschelde 12/07/20 Westerschelde 03/05/20   Westerschelde 03/05/20


Name

MSC TOPAZ

Previous names

2012 - 2017 Hanjin Europe

Type

Cellular containership

IMO-number

9502908

Call sign

D5NI2

Flag

Liberia

Port of registry

Monrovia

Previous flags

2012 - 2017 Isle of Man, Douglas - Call sign: 2FLR9

GT

141.754 t

DWT

Summer: 140.973 t

NT

60.615 t

Number of 20ft containers

In hold: 6.018

On deck: 7.074

Total: 13.092

Container capacity 14t

8.921

Reefer capacity

800

Length

366,00 m overall

350,00 m between perpendiculars

Breadth

48,20 m

Draught

Max: 15,52 m

Freeboard

4.959 mm

Depth

29,85 m

Speed

Max: 23,7 knots

Built

2012

Date of completion

04/05/2012

Builder

Hyundai Heavy Industries Co., Ltd.

Yard number

2232

Hull material

Steel

Compartments

10

Continuous decks

1

Main engine

1x Hyundai/Wärtsilä 12RT-flex96C - 2 stroke single acting 12 cylinder 960 x 2.500 mm combustion engine 68.640 kW / 93.323 hp at 102,0 rpm

Build: 23/12/2011

Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea

Propellers

1 Screw Propeller Solid - aft at 102,0 rpm

Boilers

1x CHO 55,90 m² - 9,0 bar

1x CHR 728,20 m² - 9,0 bar

Generators

2x Main diesel generatorsets each 3.733 kVA - 2.986 kW - 4.008 hp

2x Main diesel generatorsets each 5.067 kVA - 4.054 kW - 5.435 hp

Emergency generator

1x Diesel generatorset 375 kVA - 300 kW - 486 hp

Bow thruster

2x Tunnel thruster each 1.800 kW / 2.447 bhp, forward

Number of holds

10

Tank capacities

Fuel: 13.783 m³

Cargo gear

Gearless

Crew size

32

ISM & commercial manager

MSC Shipmanagement Ltd.

MSC House, 8, Spyrou Kyprianou Avenue

Limassol

Cyprus

Operator

MSC - Mediterranean Shipping Company

Registered owner

Topaz Shipholding Limited

Care of MSC Shipmanagement Ltd.

MSC House, 8, Spyrou Kyprianou Avenue

Limassol

Cyprus

Latest data adjustment

27 June 2022
