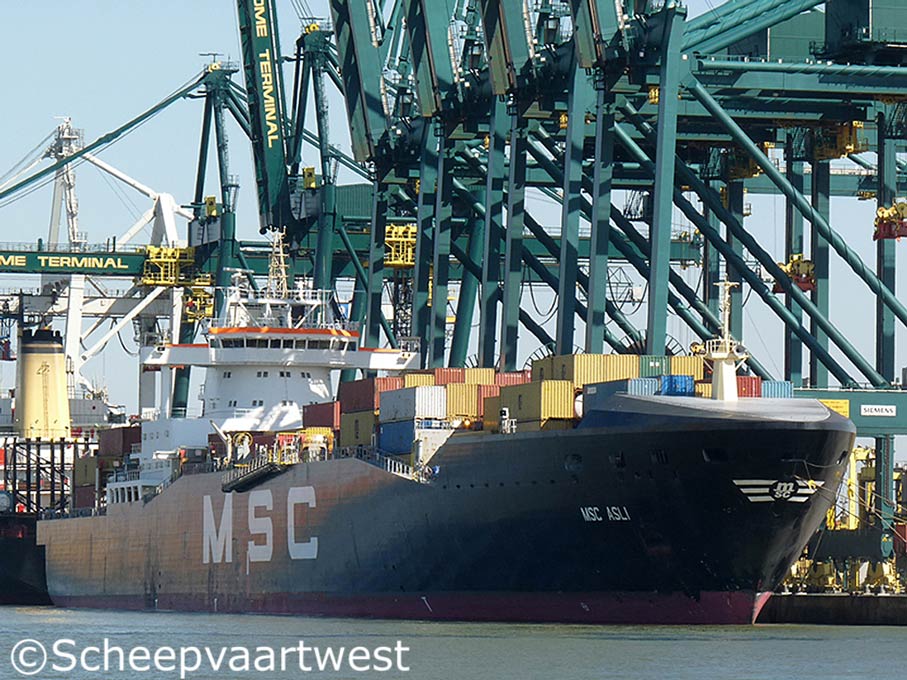

MSC Asli 01
Antwerpen 06 April 2010



Name

MSC ASLI

Previous names

2000 Norasia Salwa

2002 ADCL Salwa

2004 Lincoln

Type

Cellular containership

IMO-number

9162631

Call sign

9HA2643

Previous call sign

H3ZI

Flag

Malta

Previous flag

Republic of Panama

Port of registry

Valletta

GT

24.836 t registered

DWT

18.190 t

NT

8.664 t registered

Number of 20ft containers

1.733

Reefer capacity

300

Length

217,11 m overall

203,49 m registered

Breadth

26,66 m

Freeboard

5.231 mm

Draught

11,40 m

Speed

Max.: 25,0 knots

Service: 20,0 knots

Depth

18,95 m moulded

Purpose

Discharge & load containers

Built

2000

Keel laid

20.05.1999

Launch date

14.10.1999

Date of completion

18.07.2000

Builder

Jiangnan Shipyard (Group) Co., Ltd.
988, Jiangnan Ave. Changxing Island
200011 Shanghai
People's Republic of China

Yard number

H2243

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

11

Continuous decks

1

Main engine

2x Wärtsilä Sulzer 16ZAV40S - 4 stroke single acting 16 cylinder 400 x 560 mm diesel engine - each 12.000 kW total output 23.998 kW at 510 rpm

Year of Manufacture: 1999

Manufacturer: Wärtsilä France S.A.S.
La Combe
17700 Charente-Maritime
Republic of France

Propeller

1x Controllable pitch propeller - aft at 95 rpm

Boiler

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 36,0 m²

1x Exhaust gas heated - 10,0 bar

Heating surface: 211,0 m²

Year of manufacture: 1999

Manufacturer: Aalborg Industries Ltd.
86 Guangzhou Road North Jiaozhou
266300 Qingdao , Shandong
People's Republic of China

Electric installations

1x Plant 440 V - 1.500 kVA

1x Plant 440 V - 1.500 kVA

1x Plant 440 V - 2.500 kVA

1x Plant 440 V - 212,5 kVA

Shaft generator

1x 2.500 kVA

Generator

2x Yanmar 6N269-EN main diesel generatorsets each 1.500 kVA / 1.200 kW

Emergency + Harbour gen.

1x Diesel generatorset 121,5 kVA

Compressed air receivers

2x Receivers each 3.200 litres - 30,0 bar

1x Receiver 50 litres - 12,0 bar

1x Receiver 1.000 litres - 11,0 bar

Bow thruster

1.000 kW

Anchor Equipment

3x Anchors weight each 6.450 kg

Chain Length: 605,00 m

Cargo gear

None

Manager

MSC Shipmanagement Ltd.
MSC House 8, Spyrou Kyprianou Avenue
3070 Limassol
Republic of Cyprus

Operator

MSC - Mediterranean Shipping Company

Owner

ASLI Navira SA
Calle SD, No. 102 Edificio Unervisal
Panama
Republic of Panama
