Westerschelde 18 October 2018 |
 |
 |
 |
 |
 |
||||
| Westerschelde 20/11/19 | Westerschelde 19/11/19 | Westerschelde 19/11/19 | Westerschelde 23/09/15 | Westerschelde15/08/17 | ||||
|
Name |

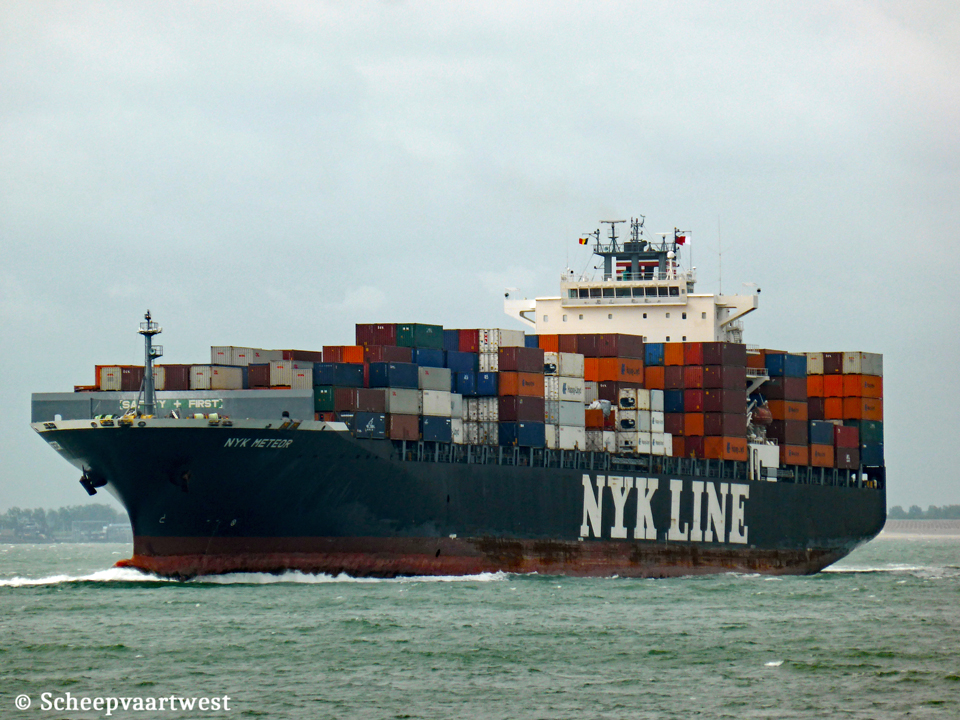

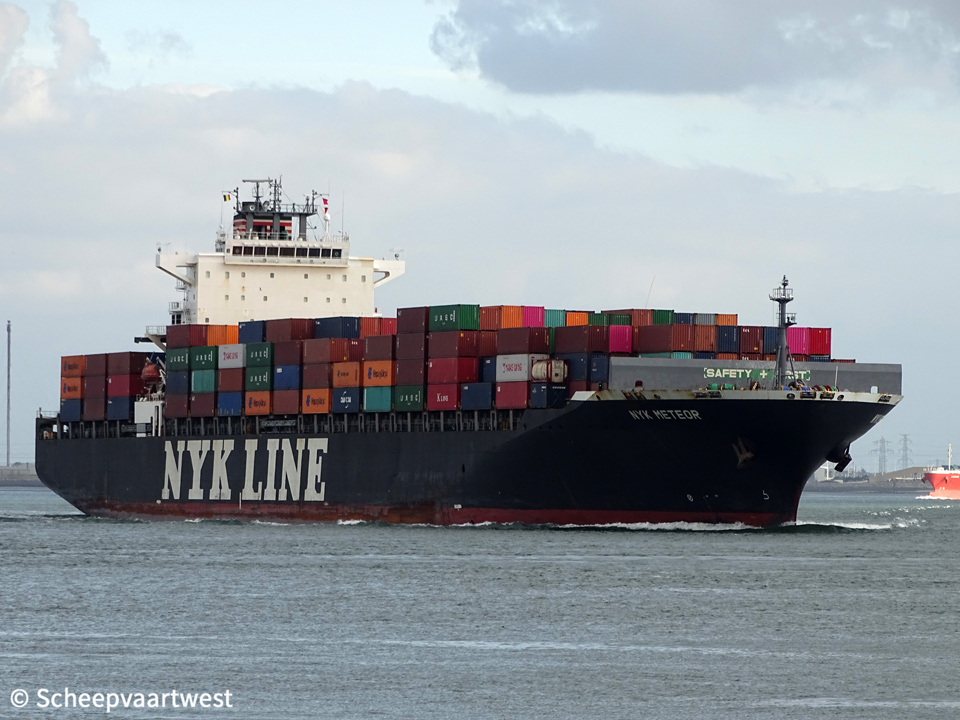

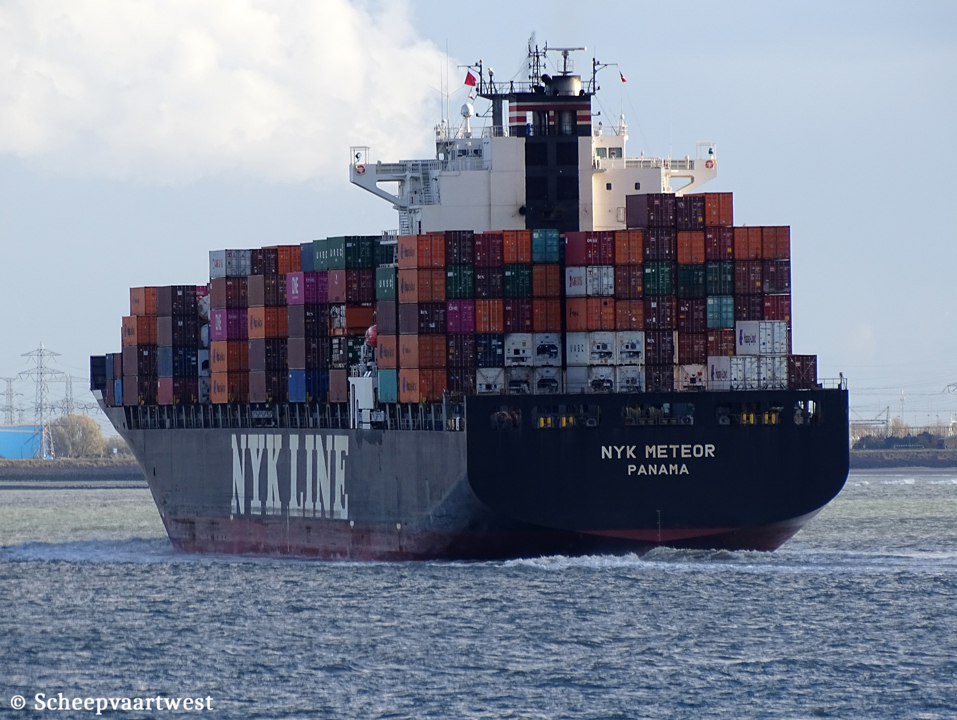

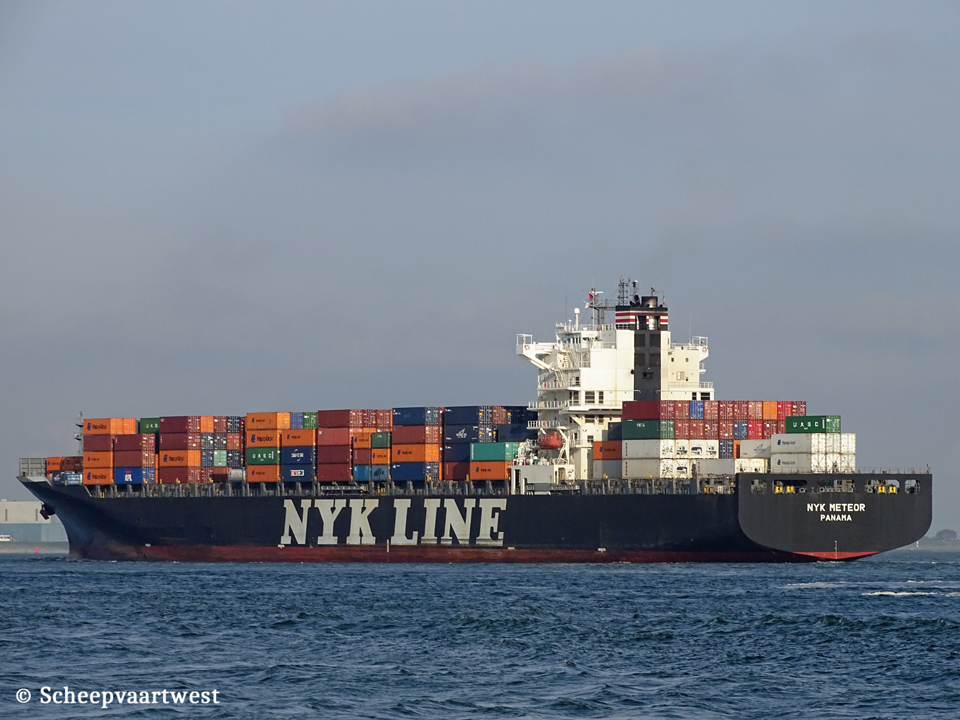

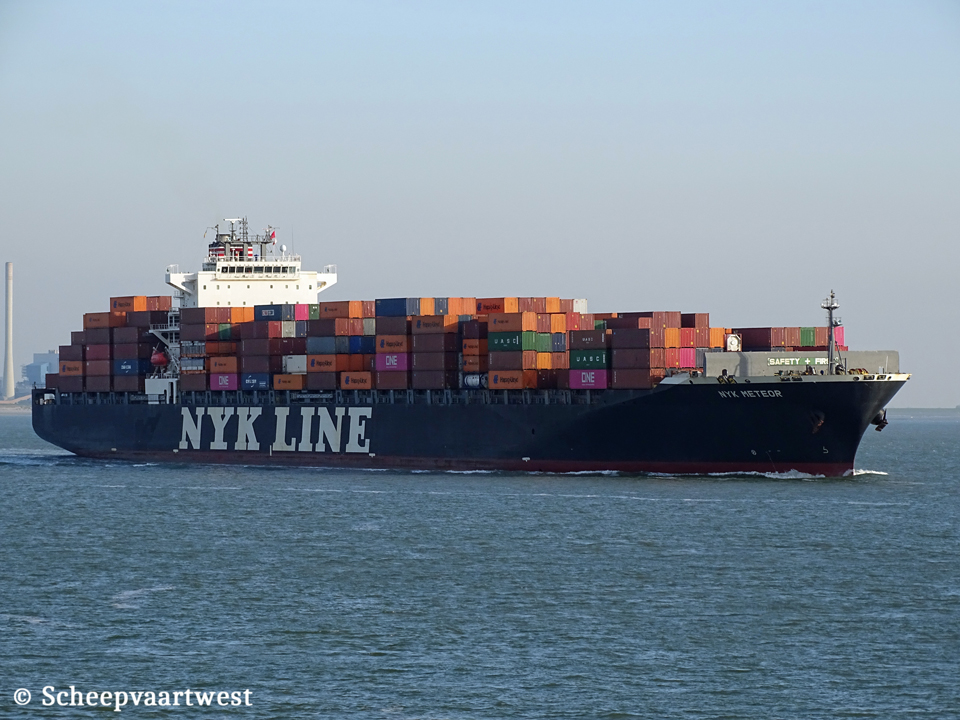

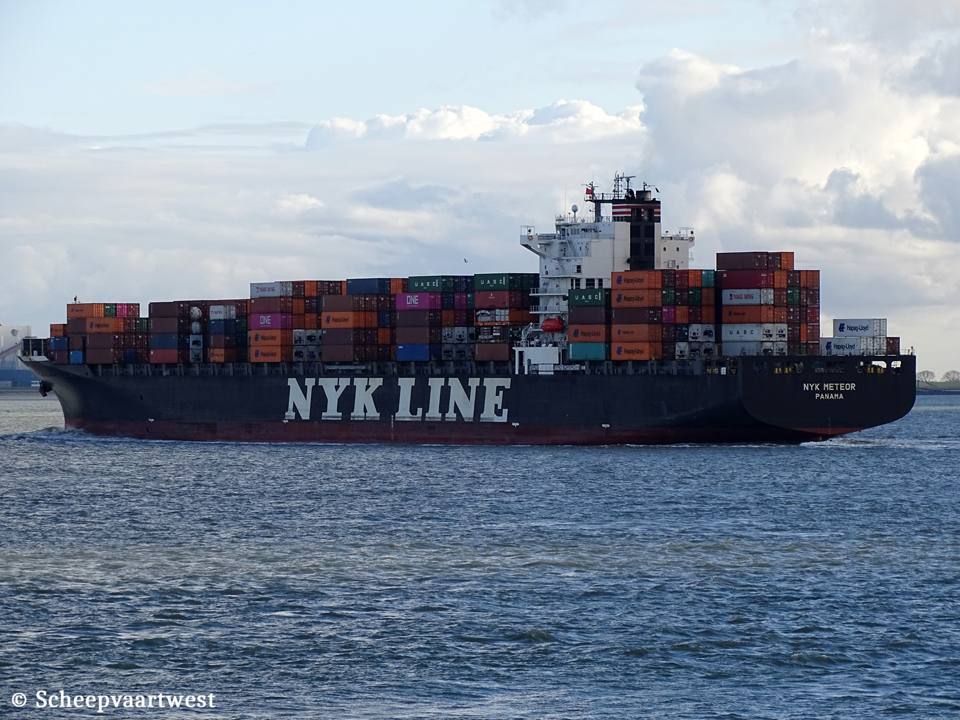

NYK METEOR |
|
Type |
Cellular containership |
|
IMO-number |
9337638 |
|
Call sign |
3ENA9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
55.534 t registered |
|
DWT |
Summer: 65.935 t |
|
NT |
23.203 t registered |
|
Number of 20ft containers |
4.888 |
|
Number of 40ft containers |
2.413 |
|
Container capacity 14t |
3.280 |
|
Reefer capacity |
330 |
|
Length |
294,12 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Max: 13,52 m |
|
Moulded L x B x D |
283,20 x 32,20 x 21,80 m |
|
Registered L x B x D |
285,79 x 32,20 x 21,80 m |
|
Freeboard |
Summer: 3.867 mm |
|
Depth |
21,80 m moulded |
|
Speed |
Max: 23,5 knots |
|
Built |
2007 |
|
Keel laid |
12/06/2007 |
|
Launch date |
31/08/2007 |
|
Date of completion |
23/10/2007 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
1785 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9K98MC-C - 2 stroke single acting 9 cylinder 980 x 2.400 mm combustion engine 51.390 kW / 69.870 hp at 104,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 880 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 9,24 t/h Manufacturer: Kang Rim Ind. Co.,Ltd. |
|
Generators |
5x Generatorsets total 8.688 kVA |
|
Tank capacities |
Fuel oil: 6.999 m³ Fresh water: 456 m³ |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
Kitaura Kaiun Co., Ltd. 2-5, Minamihorai-cho 2-chome Imabari-shi, Ehime-ken, 794-0043 Japan |
|
Operator |
NYK Line - Nippon Yusen Kaisa Line |
|
Registered owner |
Satsuki Maritime SA Care of Kitaura Kaiun KK 2-5, Minamihorai-cho 2-chome, Imabari-shi Ehime-ken, 794-0043 Japan |
|
Latest data adjustment |
16 April 2022 |
