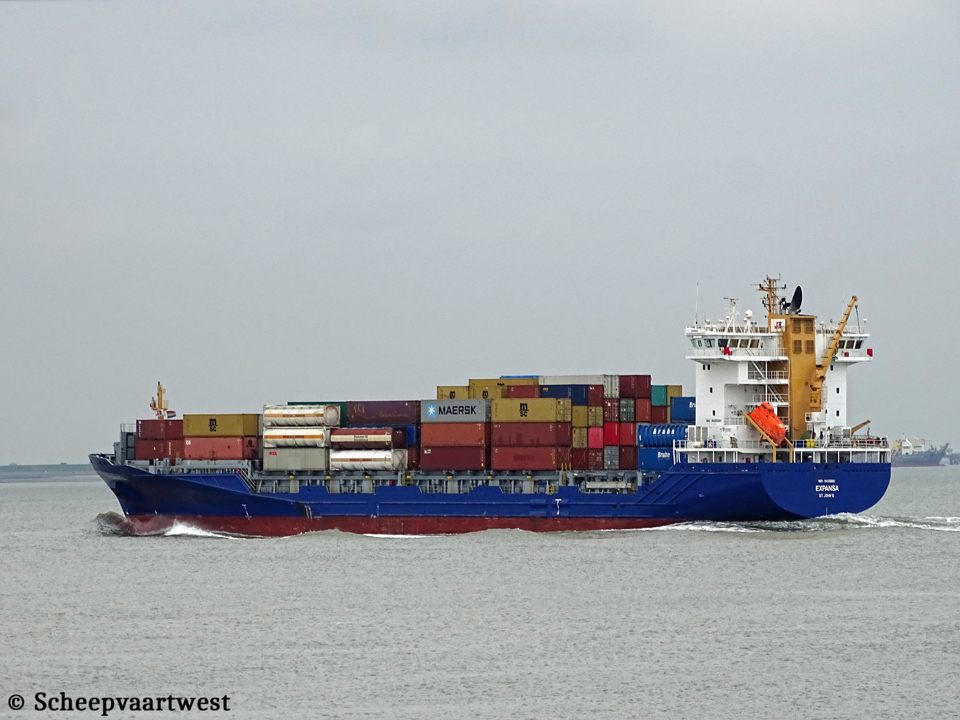

Westerschelde 06 October 2018 |
 |

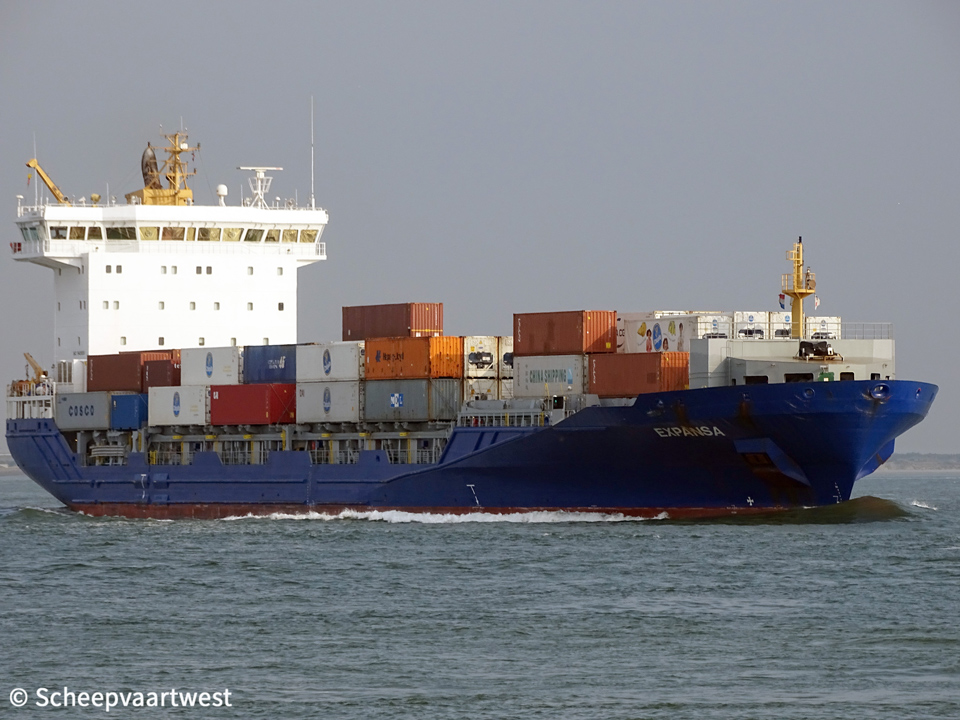

| Westerschelde 03/09/18 |
|
Name |
EXPANSA |
|
Previous names |
2012 launch as: RBD Gabriela 2012 - 03/2017 Morsum |
|
Type |
Containership - Feeder |
|
IMO-number |
9429261 |
|
Call sign |
V2QJ7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
9.983 |
|
DWT |
Summer: 11.000 t |
|
NT |
5.198 |
|
Number of 20ft containers |
In hold: 322 On deck: 555 Total: 877 |
|
Container capacity 14t |
640 |
|
Reefer capacity |
231 |
|
Length |
140,67 m overall 130,55 m between perpendiculars |
|
Breadth |
23,53 m extreme 23,20 m moulded |
|
Draught |
Max: 8,70 m |
|
Depth |
11,50 m |
|
Speed |
Service: 18,3 knots |
|
Built |
2012 |
|
Keel laid |
06/09/2008 |
|
Launch date |
12/01/2012 |
|
Date of completion |
20/04/2012 |
|
Builder |
Fujian Mawei Shipbuilding Ltd. Mawei China |
|
Yard number |
MW431-9 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke single acting 9 cylinder 430 x 610 mm combustion engine 9.000 kW / 12.236 hp at 500 rpm Builder: Caterpillar Motoren GmbH & Co., KG - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 113,0 rpm |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
1x 1.440 kW |
|
Generators |
2x ZJMD/MAN-B&W 7L28/32H - 4 stroke 7 cylinder 280 x 320 mm diesel engine each 1.540 kW coupled with generators each 1.270 kW / 450 Volt |
|
Emergency generator |
1x Cummins VTA 28-D(M) diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 900 kW / 1.224 bhp, forward |
|
Cargo hold capacity |
15.250 m³ |
|
Tank capacities |
Ballast: 4.929 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 56 mm |
|
Cargo gear |
Gearless |
|
Crew size |
11 |
|
Manager |
JR Ship Management B.V. Korte Lijnbaan 25 8861 NS Harlingen The Netherlands |
|
Registered owner |
Expansa Shipping III BV Harlingen The Netherlands |
|
Renamed |
04/2021 Elbsun Portugal, Madeira - Call sign: CQEF7
|
|
Latest data adjustment |
30 March 2025 |
