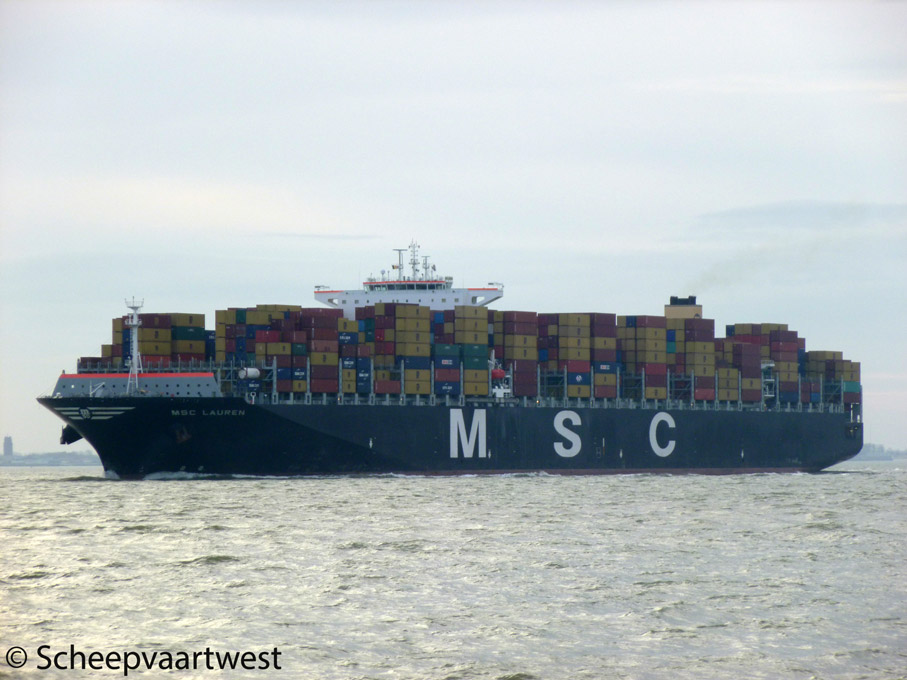

| Westerschelde 20 November 2012 |
 |
 |
 |
||

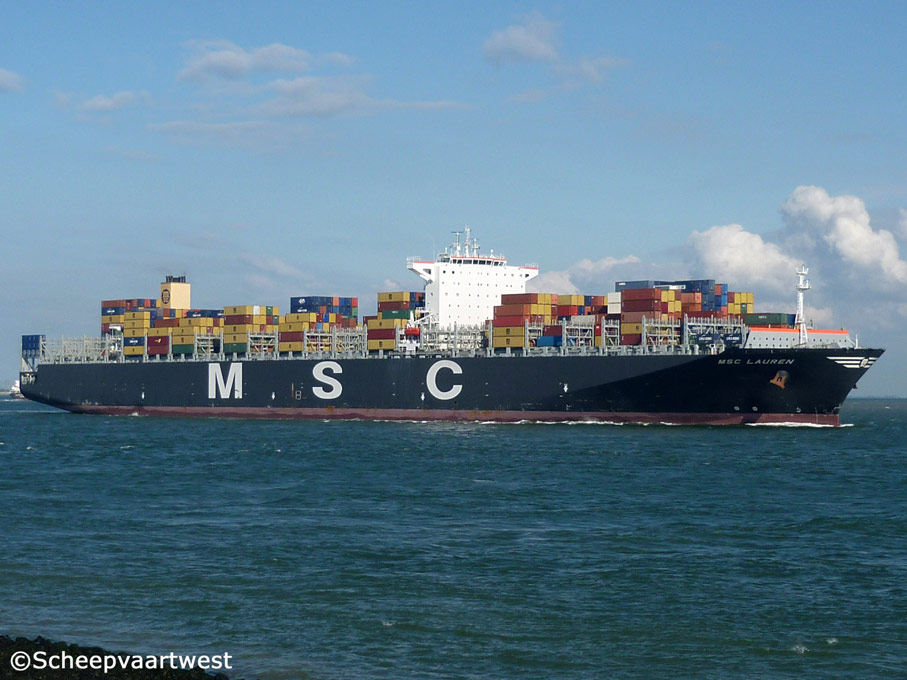

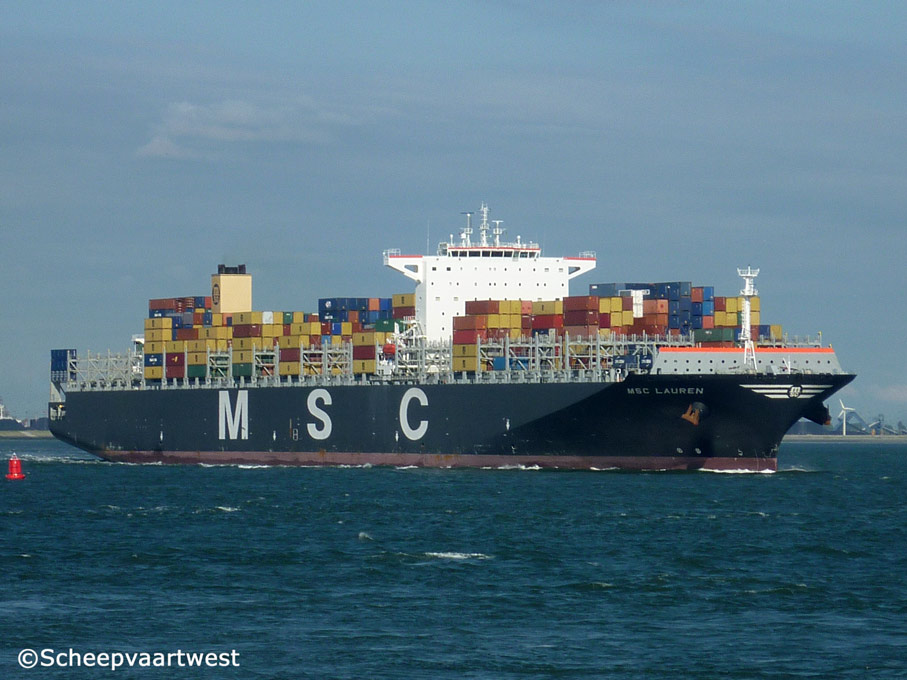

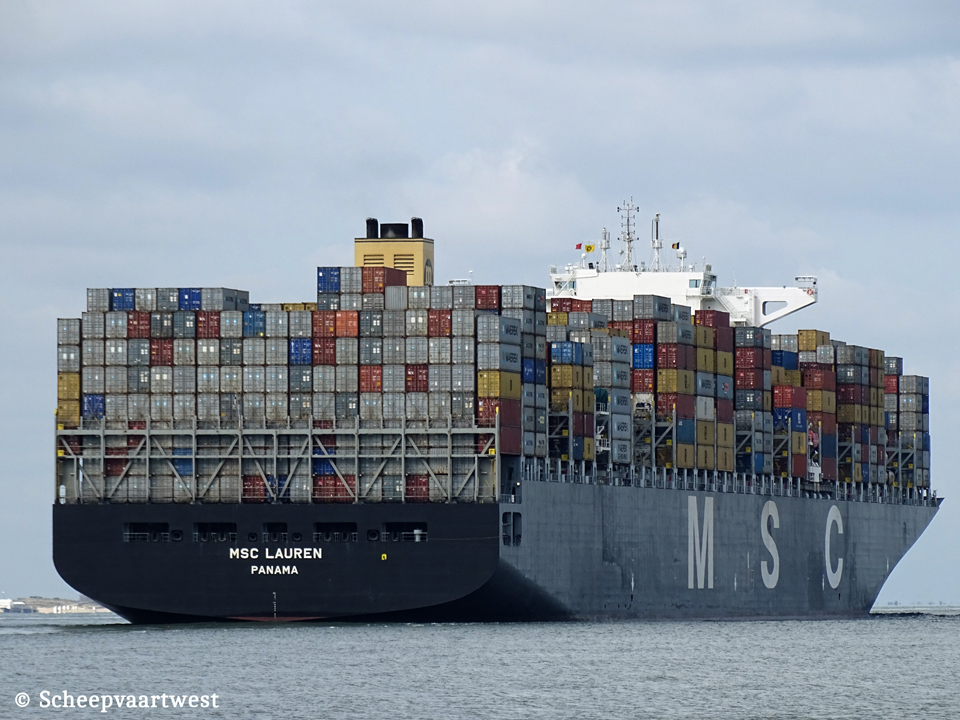

| Westerschelde 18/06/12 | Westerschelde 18/06/12 | Westerschelde 30/04/16 | ||
|
Name |
MSC LAUREN |
|
Type |
Cellular containership |
|
IMO-number |
9467407 |
|
Call sign |
3FZR5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
140.096 t |
|
DWT |
75.419 t |
|
NT |
139.324 t |
|
Number of 20ft containers |
12.400 |
|
Number of 40ft containers |
1.000 |
|
Container capacity 14t |
9.050 |
|
Reefer capacity |
800 |
|
Length |
365,85 m overall 351,89 m registered |
|
Breadth |
48,40 m registered |
|
Draught |
15,50 m |
|
Freeboard |
7.448 mm |
|
Depth |
29,80 m moulded |
|
Speed |
23,0 knots |
|
Built |
2011 |
|
Keel laid |
04/07/2010 |
|
Launch date |
02/10/2010 |
|
Date of completion |
10/01/2011 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. 100, Wonpo-dong Jinhae-gu Changwon-si ,645-305 Kyongsang-namdo Republic of Korea |
|
Yard number |
S-3012 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x STX/MAN-B&W 12K98MC-C7 - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW at 104,0 rpm Year of manufacture: 2010 Manufacturer: STX Heavy Industries Co., Ltd. 222, Jeokhyeon-ro, Seongsan-gu Changwon-si, 642-370 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,83 bar Heating surface: 76,0 m² 1x Steam boiler, exhaust gas heated - 8,83 bar Heating surface: 783,0 m² Year of manufacture: 2009 Manufacturer: KangRim Heavy Industries Co., Ltd. 40, Wongnam-dong Changwon ,642-290 Kyongsang-namdo Republic of Korea |
|
Electric installations |
4x Plants 6.600 V - 5.066,7 kVA 1x Plant 450 V - 625 kVA 1x Plant 24 V - 200 Ah 1x Plant 24 V - 215 Ah 1x Plant 24 V - 300 Ah |
|
Generators |
4x STX-MAN 8L32/40 main diesel generatorsets each 5.066,7 kVA |
|
Emergency generator |
1x Cummins VTA 28-D(M) diesel generatorset 625 kVA |
|
Batteries |
12x Batteries for UPS navigation each 300 Ah 4x Batteries for start emergency engine each 215 Ah 12x Batteries for UPS radio each 200 Ah 2x Batteries for automation each 184 Ah 2x Batteries for automation each 40 Ah |
|
Compressed air receivers |
2x Receivers each 20.000 litres - 30,0 bar 1x Receiver 600 litres - 30,0 bar 1x Receiver 1000 litres - 7,0 bar 1x Receiver 150 litres - 7,0 bar |
|
Bow thruster |
2x Transverse thruster each 2000 kW, forward |
|
Tank capacities |
Ballast: 44.965,4 m³ |
|
Anchor equipment |
3x Anchors weight each 24.500 kg Chain length: 770,00 m Diameter: 122 mm |
|
Cargo gear |
None |
|
Crew size |
32 |
|
Manager |
MSC Mediterranean Shipping Company S.r.l. Via Francesco Ciampa, 29 80063 Piano di Sorrento Naples Italy |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Compania Naviera Lauren S.A. C/O Eskildsen & Eskildsen PH Torre Panama, 15th Floor Panama City Republic of Panama |
|
Latest data adjustment |
22 April 2023 |
