Spijkenisse, The Netherlands 11 August 2020 |
|
Name |

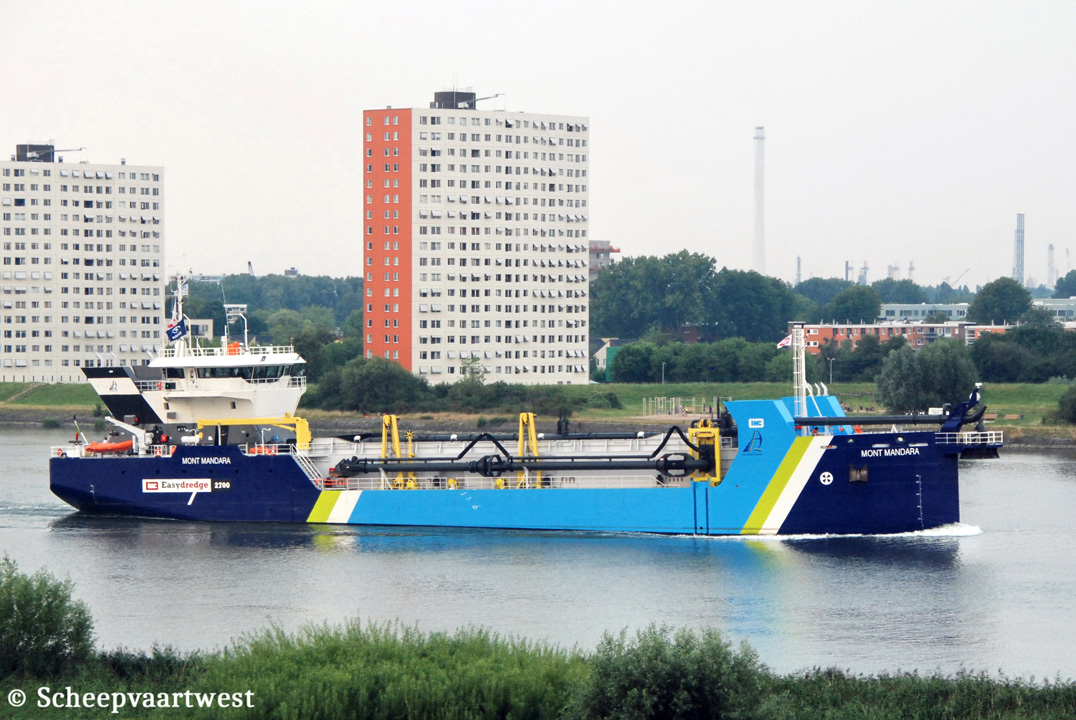

MONT MANDARA |
|
Type |
Trailing suction hopper dredger - EasyDredge 2700 |
|
IMO-number |
9848455 |
|
Flag |
Cameroon |
|
Port of registry |
Douala |
|
Previous flags |
Portugal, Madeira - Call sign: CQED7 |
|
GT |
2.950 t |
|
DWT |
4.200 t |
|
NT |
885 t |
|
Length |
81,75 m overall 79,80 m between perpendiculars |
|
Breadth |
15,80 m |
|
Draught |
5,50 m |
|
Freeboard |
1.510 mm |
|
Depth |
5,90 m |
|
Speed |
Max: 12,8 knots |
|
Built |
2020 |
|
Launch date |
27/02/2019 |
|
Date of completion |
31/07/2020 |
|
Builder casco |
Neptune Shipyard/Partner Stocznia Sp.z.o.o. Szczecin Poland Yard number: 526 |
|
Builder completion |
IHC Holland B.V. the Netherlands Yard number: 1296 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar - 4 stroke 12 cylinder 170 x 215 mm combustion engine total 2.500 kW / 3.396 hp at 1.600 rpm Builder: Caterpillar, Lafayette - United States |
|
Propellers |
2x Screw propeller solid |
|
Generators |
2x Diesel generatorsets each 250 kVA - 200 kW - 296 hp |
|
Emergency generator |
1x Diesel generatorset 81 kVA - 65 kW - 101 hp |
|
Hopper capacity |
3.000 m³ |
|
Dredging depth |
25,00 m |
|
Suction pipe |
700 mm |
|
Tank capacities |
Fuel: 221,7 m³ |
|
Registered owner |
Port Autonome De Douala Cameroon |
|
Latest data adjustment |
09 February 2021 |
