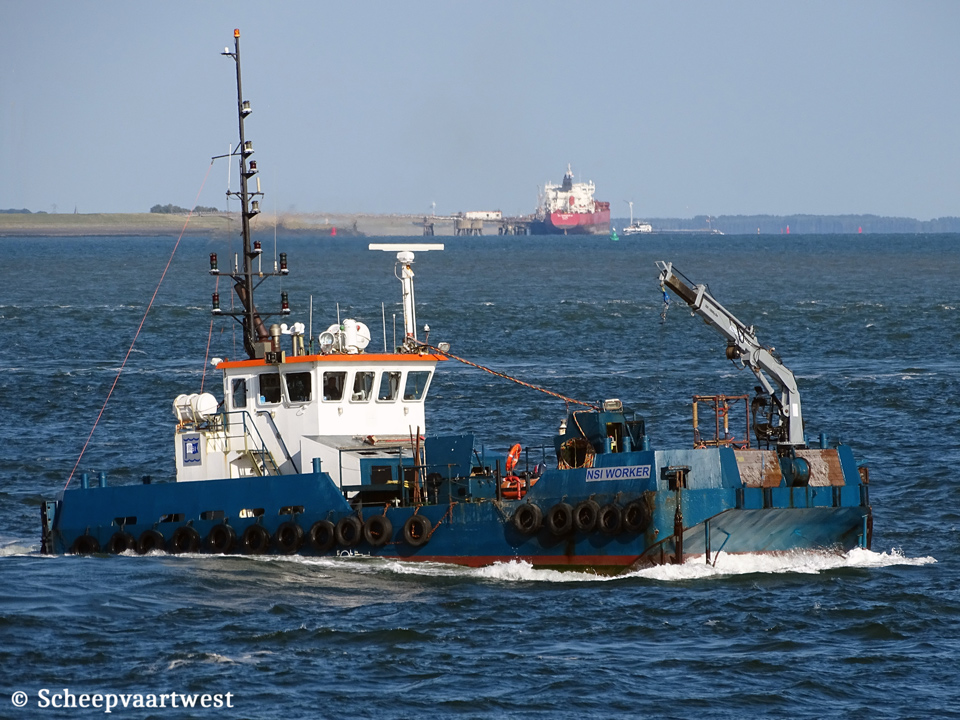

Westerschelde 02 July 2019 |
 |
 |
|

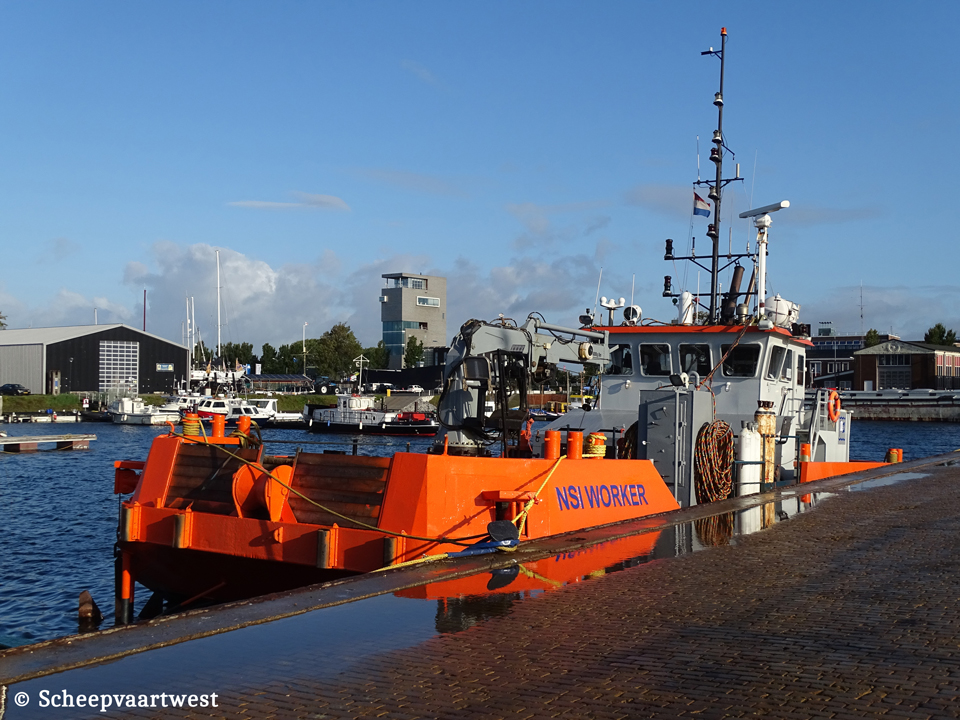

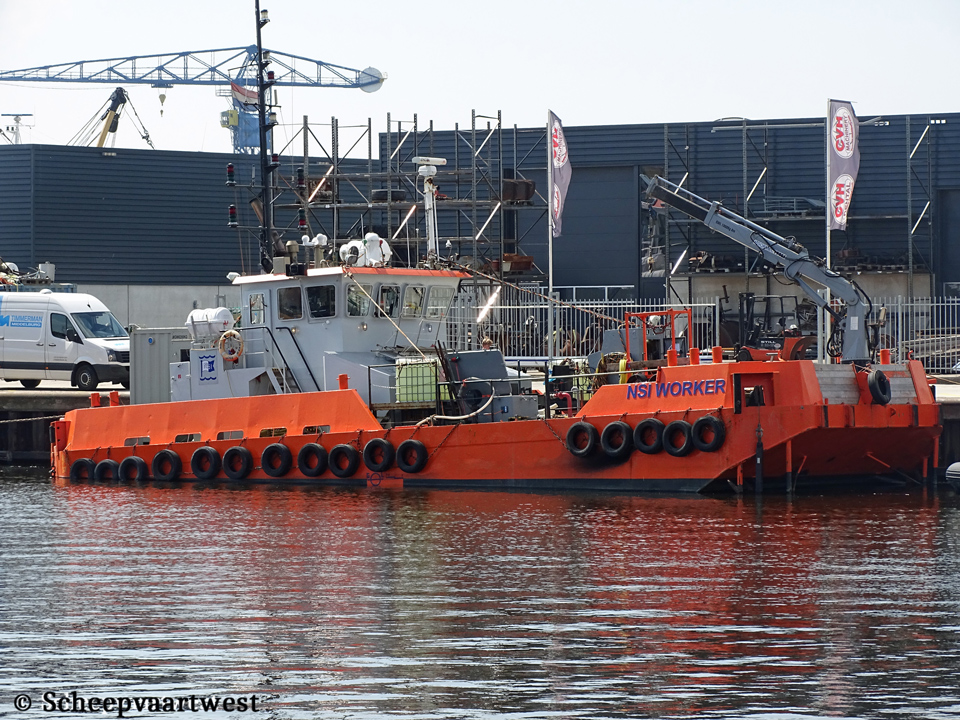

| Vlissingen 04/05/20 | Vlissingen 27/09/19 | |
|
Name |
NSI WORKER |
|
Previous names |
1984 - 08/2018 Neptunus |
|
Type |
Multi purpose diving workboat |
|
IMO-number |
8848288 |
|
ENI-number |
02717213 |
|
Call sign |
PGET |
|
Flag |
The Netherlands |
|
Port of registry |
Goes |
|
Previous flags |
The Netherlands, Zierikzee - Call sign: PGET |
|
GT |
109 t |
|
NT |
32 t |
|
Length |
21,54 m registered |
|
Breadth |
7,96 m registered |
|
Draught |
1,85 m |
|
Air draft |
6,95 m |
|
Depth |
2,50 m moulded |
|
Speed |
6,0 knot |
|
Built |
1984 |
|
Launch date |
06/1984 |
|
Date of completion |
09/1984 |
|
Builder |
Ravestein B.V. Waalbandijk 11 6653 KD Deest The Netherlands Ship converted: 01/1995 |
|
Yard number |
209 |
|
Hull material |
Shipbuilding steel (standard) |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi S6N-TA - 4 Stroke 6 cylinder 240 x 260 mm combustion engine383 kW at 1.800 rpm Year of manufacture: 1984 Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works 1-1, Wadasaki-cho 1-chome Hyogo-ku Kobe 652-8585 Japan |
|
Propellers |
1x Solid propeller - aft at 382 rpm |
|
Electric installations |
1x Plant 380/220 V - 175,5 kVA 1x Plant 380 V - 12,5 kVA |
|
Generators |
1x DAF DKT 1160 A main diesel generatorset 175,5 kVA at 1.500 rpm |
|
Emergency & harbour gen |
1x Lister ST2 diesel generatorset 12,5 kVA at 1.500 rpm |
|
Bow thruster |
1x Transverse thruster 74 kW, forward |
|
Free deck area |
70,0 m² |
|
Deck equipment |
4 Point anchor system - 12,0 t Rubber boat: 6 persons engine 25 hp |
|
Bollard pull |
7,0 t |
|
Pumps |
1x 365 m³ 1x 80 m³ 1x 30 m³ |
|
Hydraulic set |
200 bar / 30 l/min |
|
Tank capacities |
Fresh water: 5,0 t Fuel: 7,0 t |
|
Lifting equipment |
1x Crane - SWL 2,5 t at a top of 10,00 m |
|
Navigation & Communications |
1x JRC JMA-606E Radar 1x Sailor C-401 VHF 1x Icom IC-25H Handheld VHF 1x Sercel NR-103 GPS 1x Furuno NX-500 Navtex 1x Jotron Tron 303 mkII EPIRB 1x Jotron Tron Sart |
|
Owner |
NSI - Nautical Service International B.V. Albert Joachimikade 46 4463 AA Goes The Netherlands |
|
Previous names & owners |
1984 - 2005 Neptunus - Noordhoek Scheepvaart- en Duikbedrijf B.V., Zierikzee - The Netherlands 2005 - 2009 Neptunus - Stemat B.V., Rotterdam - The Netherlands 2009 - 2018 Neptunus - N-Sea Group B.V., Zierikzee, managed by N-Shore Diving B.V. |
|
Latest data adjustment |
22 May 2022 |
