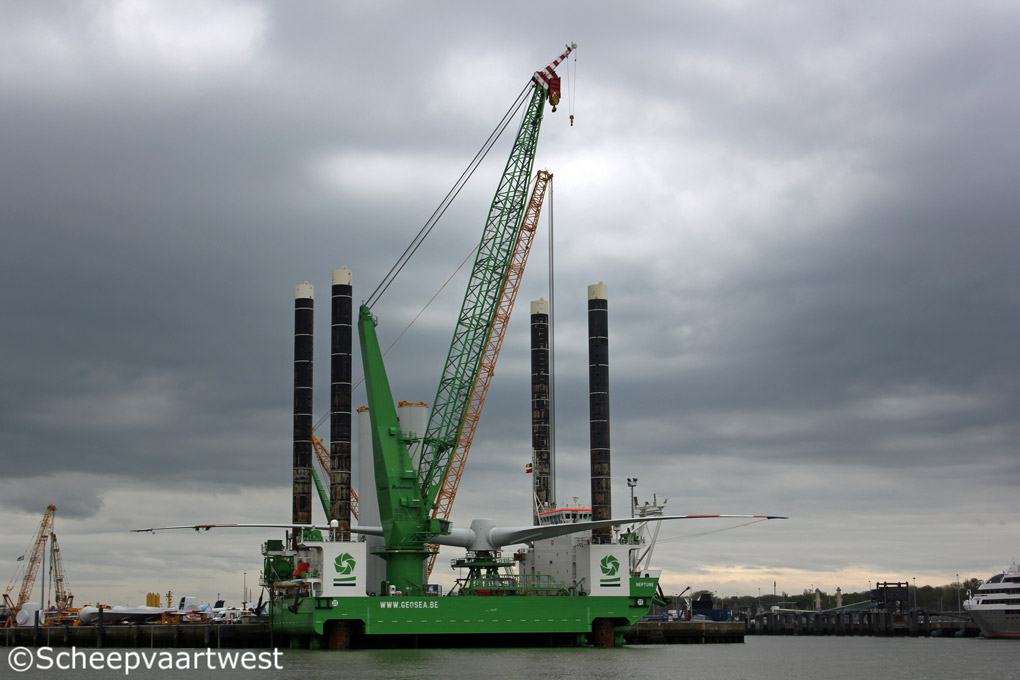

| Oostende, Belgium 10 May 2012 |
 |
 |
 |
 |
 |
||||

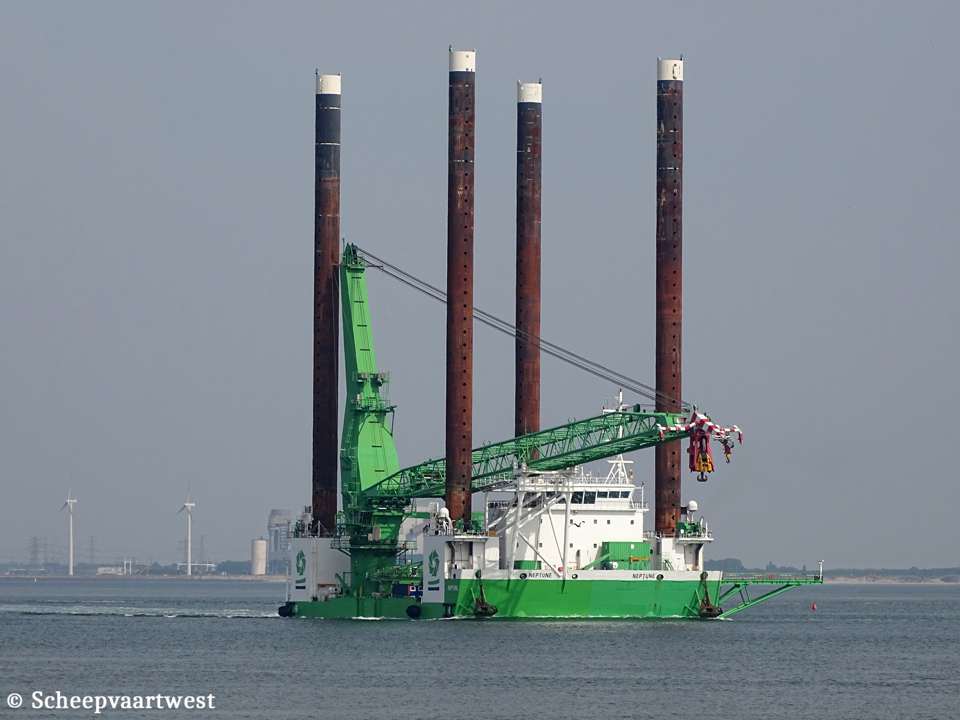

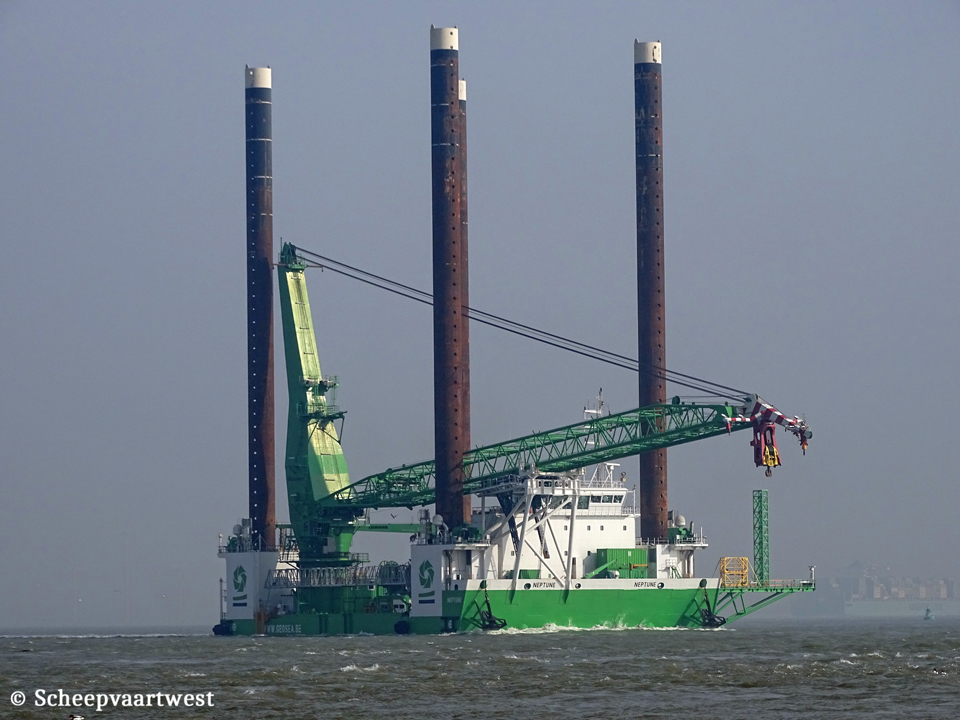

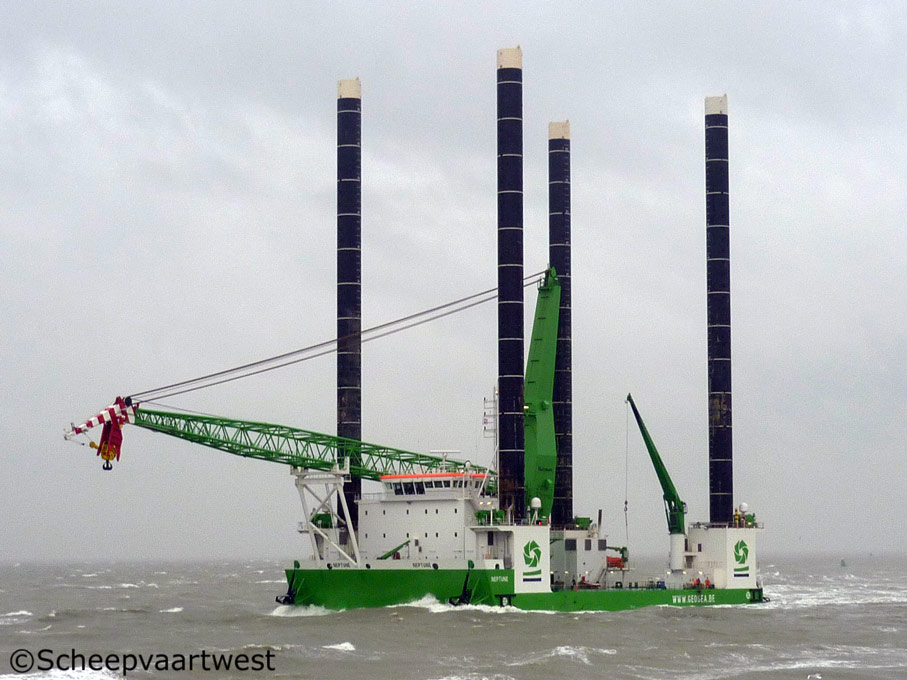

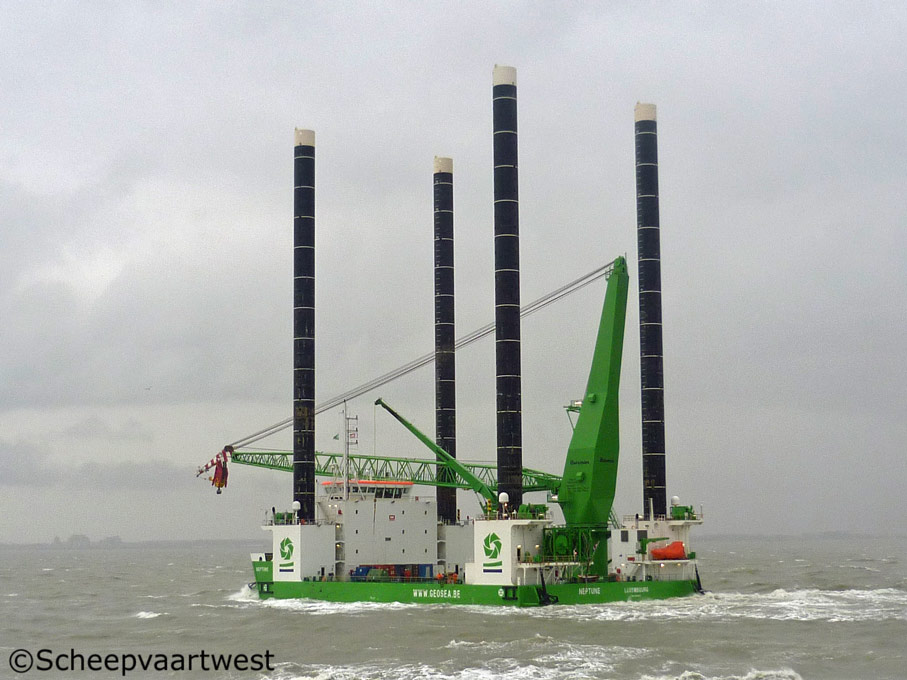

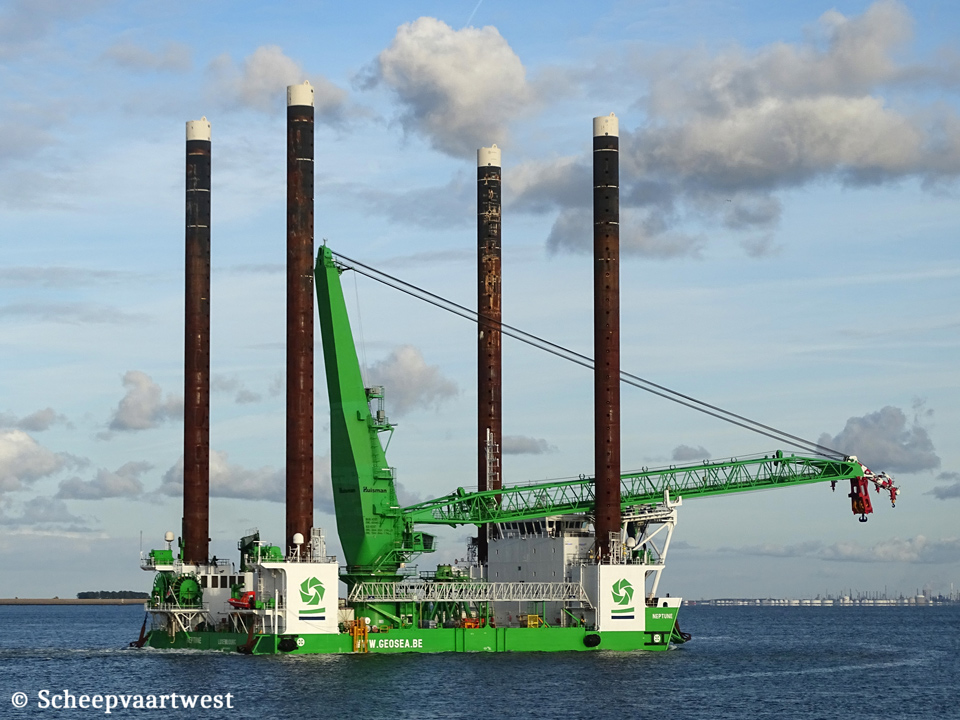

| Westerschelde 12/01/12 | Westerschelde 12/01/12 | Westerschelde 08/07/19 | Westerschelde 07/05/20 | Westerschelde 03/03/18 | ||||
|
Name |
NEPTUNE |
|
Type |
Self-elevating jack-up platform |
|
IMO-number |
9616864 |
|
Call sign |
LXNP |
|
Flag |
Grand Duchy of Luxembourg |
|
Port of registry |
Luxembourg City |
|
GT |
5.125 t |
|
NT |
1.537 t |
|
Length |
60,00 m overall |
|
Breadth |
38,00 m moulded |
|
Draught |
3,90 m |
|
Freeboard |
2.192 mm |
|
Depth |
6,00 m moulded |
|
Built |
2012 |
|
Keel laid |
25/03/2011 |
|
Launch date |
01/09/2011 |
|
Delivery date |
31/01/2012 |
|
Builder |
IHC Offshore & Marine B.V. (IHC Holland B.V.) Krimpen aan den IJssel The Netherlands |
|
Yard number |
723 |
|
Hull material |
High strength steel |
|
Watertight bulkheads |
4 |
|
Propulsion system |
1x Azimuthal thruster Stbd aft marine propulsion diesel engine 1x Azimuthal thruster Stbd forward marine propulsion diesel engine 1x Azimuthal thruster Port aft marine propulsion diesel engine 1x Azimuthal thruster Port forward marine propulsion diesel engine each type 3512C-HD Propulsion - 1678 kW at 1.800 rpm Number of cylinders: 12 Cylinder bore: 170 mm Piston stroke: 215 mm Manufactures: Caterpillar Inc. |
|
Generators |
2x Main power distribution system generator Stamford PM734C2 each 1.064 KW - 440 Volt 60 Hz Manufacturer: Caldic Techniek BV 2x Diesel engine driven generator Caterpillar C32 with Stamford generator each 944 kW - 440 Volt 60 Hertz Manufacturer: Pon Power B.V. 1x Auxiliary generator 250 kW - 440 Volt 60 Hz |
|
Leg |
Leg length: 80,00 m (extendable to 92,00 m) Leg diameter: 3,50 m |
|
Load capacity |
Free deck area: 1.600 m² Allowed deck stress: 10 t/m² |
|
Mooring system |
Winches: 4x 40,0 t line pull, hydraulic driven Anchors: 4x Delta flipper, 6,0 t |
|
Jacking system |
Type: GustoMSC hydraulic positive engagement Drive: electric / hydraulic Capacity: 2.750 t pre-load per leg Jacking speed: 0,70 m/min Jacking stroke: 1,75 m Maximum pay load: 1.600 t |
|
Number of tanks |
Fuel oil: 10 Ballast: 8 Sea water: 5 Waste water: 3 Fresh water: 2 Lubricating oil: 1 Hydraulic oil: 1 Sludge: 1 |
|
Tank capacities |
Freshwater: 171,60 m³ Fuel Oil: 389,4 m³ Hydraulic Oil: 29,03 m³ Lube Oil: 19,97 m³ Tank Ballast: 1.296,00 m³ |
|
Lifting equipment |
1x Main crane: boom length 85,00 m , capacity 600 t at 26,00 m 1x Deck crane Liebherr - SWL 10,0 t at 20,00 m, man riding certificate Manufacturer: Liebherr - Sunderland Works 1x Rescue boat davit - Maritime Design Office Rhs.13/3.5 - SWL 1,3 t Manufacturer:Global Davit |
|
Accommodation |
60 people, offices, infirmary, control room, kitchen/mess |
|
Operator |
GeoSea N.V. Haven 1025 Scheldedijk 30 2070 Zwijndrecht Belgium |
|
Group |
DEME - Dredging, Environmental & Marine Engineering Haven 1025 Scheldedijk 30 B-2070 Zwijndrecht Belgium |
|
Registered Owner |
GeoSea N.V. Haven 1025 Scheldedijk 30 2070 Zwijndrecht Belgium |
|
Latest data adjustment |
11 August 2022 |
